Sound Control Technologies RemoteCam5 Installation Instructions

Thank you for choosing the Sound Control Technologies' RemoteCam5™ camera integration kit!

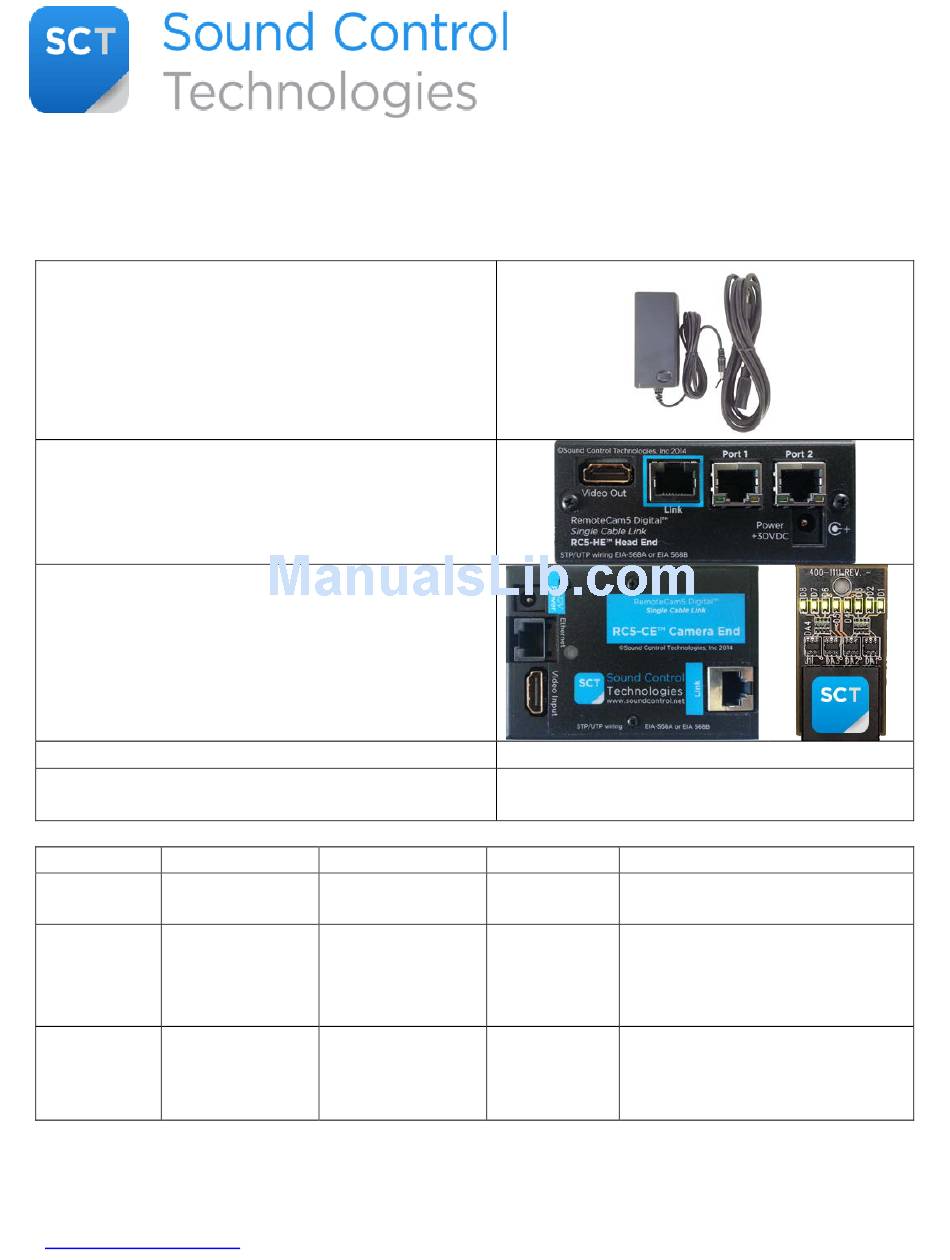

• 1 Power Supply & cord (Currently all RemoteCam
Kits utilize the WPS-12) to provide power for the
RemoteCam5™ electronics as well as the remote
camera up to 300' from the head end. All the
RemoteCam™ kits use the same power supply.
The power supply is AC 100-240V~47-63HZ
compliant.
• 1 RemoteCam5™ Head End Module (RC5-HE)
which provides system power, control interface
(Ethernet & IR) for the camera & one HDMI video
output for the codec.

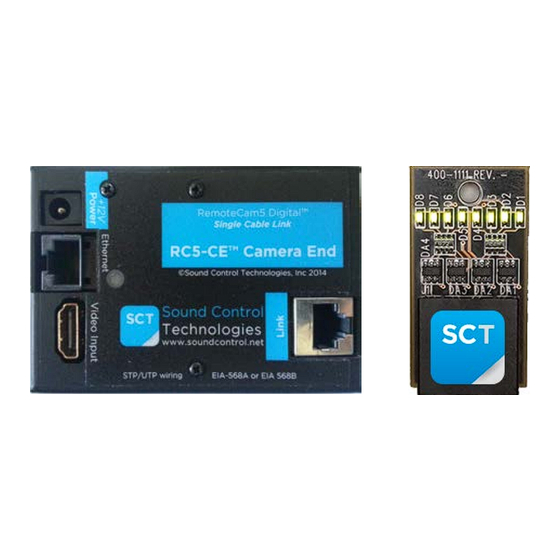

• 1 RemoteCam5™ Camera Module with
PowerSniffer™ (RC5-CE) that provides camera
power, control (Ethernet & IR) and HDMI video
input for the camera
• Documentation
• Specific cables (P/N according to the following
chart)
Company Codec
Cisco SX80
AW-RP50
AW-RP120
Panasonic
Generic
Controller
RMP10 or
Sony Generic
Controller
To proceed with the installation, insure that you have installed one CAT5e or CAT6 cable between
the camera installation site and the codec installation site.
www.soundcontrol.net
Included in each RemoteCam5™ kit will be:
Camera
Precision 60
Panasonic
AW-HE130
AW-HE40
AW-UE70
Sony
SRG-120H
SRG-300H
203-854-5701

Installation Instructions

SCT Kit
RCC-C001/RCC-C002/PPC-003
RC5-P60
RCC-H001/RCC-H016
RC5-P13
RCC-C001/RCC-C002/PPC-005
RC5-P40
RCC-H001/RCC-H016
RC5-P70
RCC-C001/RCC-C002/PPC-004
RC5-SRG
RCC-H001/RCC-H016
©SOUND CONTROL TECHNOLOGIES, INC. 2017
RemoteCam5™
Cables
