CRYSTALCLEAR CRD4630-10 Product Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
CrystalClear
Features
l
Six Channel Low Cost High Performance
PCI Audio Accelerator Add-in Card
l
CS4630 PCI Audio Controller with CS4297A
and CS4294 AC '97 Audio Codecs
l
Complete Suite of Analog I/O Connections:
– Line, Mic, CD, and Aux Inputs
– Front, Surround, and Center/LFE Outputs
– Headphone Output
l
S/PDIF (IEC-958) Digital Output
l
Coaxial and Optical S/PDIF Digital Inputs
l
PC Beep Input
l
Joystick/MIDI Interface
l
Two-layer Low Cost Adapter Board
l
Exceeds the Microsoft
Performance Specifications.
l
Complies with the Intel
Specification
MIC IN
FRONT OUT
SURR. OUT
CNT/LFE OUT
HP/LINE IN
S/PDIF IN
S/PDIF OUT
Preliminary Product Information
P.O. Box 17847, Austin, Texas 78760
(512) 445 7222 FAX: (512) 445 7581
http://www.cirrus.com
AC '97 Six Channel Low Cost PCI Audio Reference Design
®
PC 99 Audio
®
AC '97 Version 2.1
CDR4630-10
MIDI /
JOYSTICK
This document contains information for a new product.
Cirrus Logic reserves the right to modify this product without notice.
Description
The CRD4630-10 is a low cost PCI add-in board refer-
ence design that showcases Cirrus Logic's six channel
audio capabilities. The board contains three stereo out-
puts for front L/R, surround L/R, and center/low
frequency (LFE) speakers. The card features a CS4630
controller, CS4297A primary audio codec and CS4294
secondary audio codec. The audio codecs include ste-
reo 20-bit DACs and stereo 18-bit ADCs.
The CRD4630-10 reference design is available by or-
dering the CMK4630-10 manufacturing kit. Use this kit
to help you develop high quality PCI add-in cards and
PC motherboard audio designs. The CMK4630-10 in-
cludes a full set of schematic design files (OrCAD
format), PCB job files (PADS
files, and bill of materials. This design is production
ready and can easily be modified to meet your specific
requirements.
ORDERING INFO
CMK4630-10 (Manufacturing Kit)
CD IN
Copyright © Cirrus Logic, Inc. 2000
(All Rights Reserved)
CRD4630-10
®
ASCII), PCB artwork
AUX IN
CS4294
PC BEEP
CS4297A
S/PDIF IN
CS4630
DS445RD10A1
®
7.2
DEC '00
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRD4630-10 and is the answer not in the manual?

Questions and answers

Summary of Contents for CRYSTALCLEAR CRD4630-10

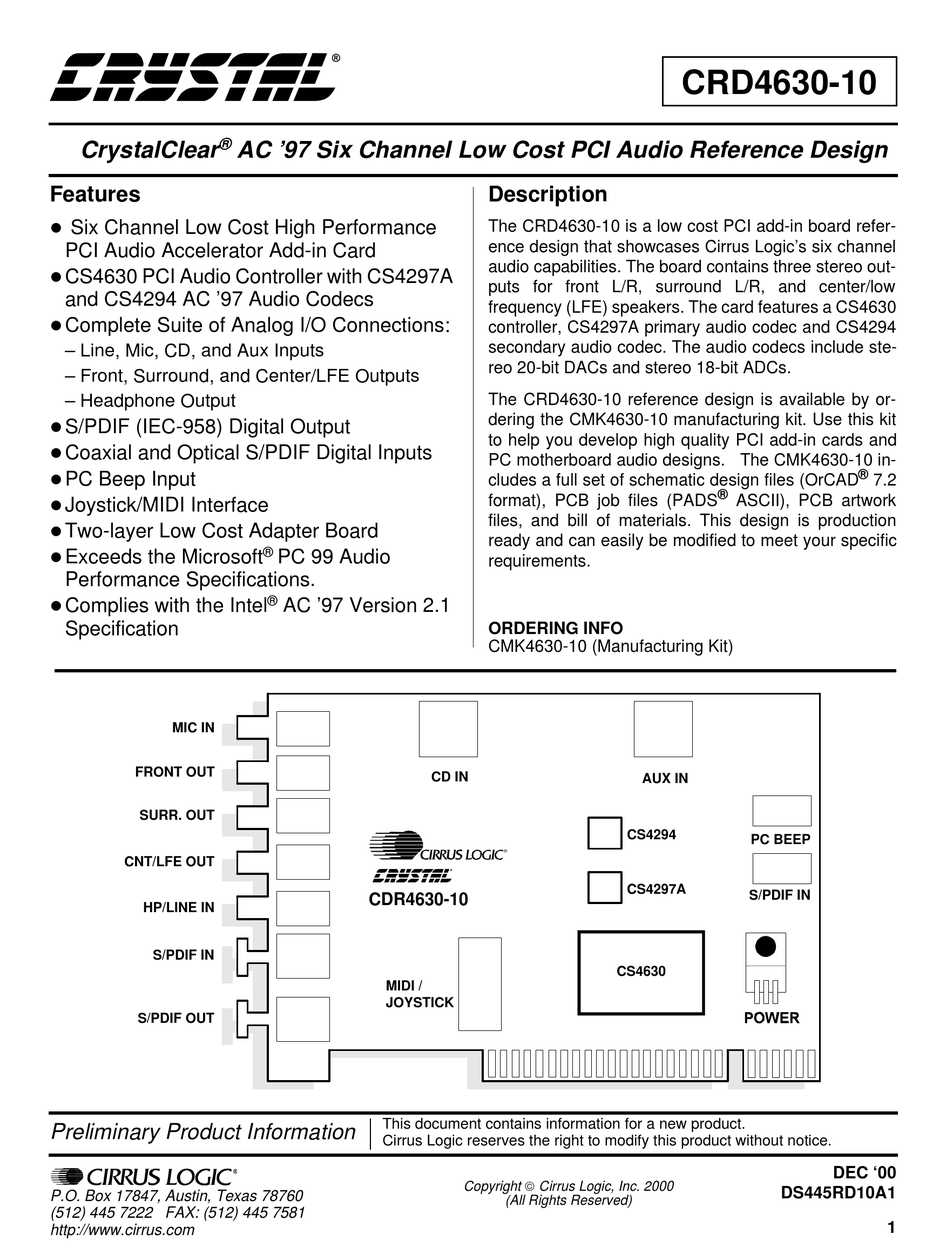

  • Page 1 AC ’97 Six Channel Low Cost PCI Audio Reference Design Features Description Six Channel Low Cost High Performance The CRD4630-10 is a low cost PCI add-in board refer- ence design that showcases Cirrus Logic’s six channel PCI Audio Accelerator Add-in Card audio capabilities. The board contains three stereo out-...

  • Page 2: Table Of Contents

    Microsoft , Windows 95, Windows 98 and Windows Millennium and WHQL is registered trademark of Microsoft. CrystalClear is a registered trademark of Cirrus Logic, Inc. Intel is a registered trademark of Intel Corporation. OrCAD is a registered trademark of OrCAD, Inc.
  • Page 3 CRD4630-10 LIST OF FIGURES Figure 1. AC-Link Connections ................... 4 Figure 2. CRD4630-10 Block Diagram ..............11 Figure 3. Aux, CD, and PC BEEP Inputs ..............12 Figure 4. Microphone Input ..................13 Figure 5. Front, Surround, and Center/LFE Outputs ..........14 Figure 6.

  • Page 4: General Information

    A high level of audio quality is maintained CS4297A and CS4294 AC ’97 audio codecs. The throughout the signal chain, exceeding the specifi- CRD4630-10 is a low cost board with a rich feature ® cations presented in Chapter 17 of Microsoft’s set and industry-leading audio performance.

  • Page 5: Schematic Descriptions

    One op-amp provides an 18 dB gain stage for the MIC signal. The other op-amp buffers the phan- The CRD4630-10 has three stereo (LINE IN, tom power supply. Phantom power is derived from CD IN, and AUX IN) and two mono (MIC IN and the +5 V analog supply and buffered by U1A to PC SPEAKER IN) analog inputs.

  • Page 6: Analog Out

    The CS4294, shown in Figure 7, acts as the second- Also provided are 220 kΩ bleed-off resistors, ary audio codec for the CRD4630-10. This audio maintaining the audio jacks at 0 V DC. codec receives the CRD4630-10 AUX, CD, MIC, Line In + Headphone Out and LINE analog inputs.

  • Page 7: Cs4630

    The EEPROM is connected to the CS4630 through a data and clock signal, EEDAT The Joystick/MIDI output on the CRD4630-10 is and EECLK. The EEPROM interface is enabled by not located on the primary bracket, shown in connecting the EEPDIS pin to digital ground.

  • Page 8: Pci Bus

    Great attention was given to the particular compo- The PCI Local Bus Specification, Revision 2.2 [2] nents used on the CRD4630-10 board with cost, requires each unused +3.3 V power pin be connect- performance, and package selection as the most im- ed with an average of 0.01 µF capacitance.

  • Page 9: Grounding And Layout

    The component layout and signal routing of the best results, the two ground planes are tied together CRD4630-10 provides a good model for laying out with a single wide trace between the CS4297A and your own PCI add-in card. PCI bus based add-in the CS4294, near their digital ground pins.

  • Page 10: References

    , Audio Codec ’97 Component Specification, Revision 2.1, May 22, 1998. http://developer.intel.com/ial/scalableplatforms/audio/ 2) PCI Special Interest Group, PCI Local Bus Specification, Revision 2.2, December 18, 1998. http://www.pcisig.com/developers/specification/ ® ® 3) Cirrus Logic, CS4630 CrystalClear SoundFusion PCI Audio Accelerator Data Sheet http://www.cirrus.com/pubs/cs4630.pdf ® ®...

  • Page 11: Figure 2. Crd4630-10 Block Diagram

    MIDIOUT MIDIOUT ARST# ASYNC JBB1 JBB1 JBB2 JBB2 ASDIN ASDIN JBCY JBCY JBCX JBCX JAB1 JAB1 JAB2 JAB2 JACY JACY JACX JACX POWER +12VA ----> +5VA +5V PCI -----> +3.3VD +5V PCI -----> +CVDD PCI_BUS Figure 2. CRD4630-10 Block Diagram...

  • Page 12: Figure 3. Aux, Cd, And Pc Beep Inputs

    For 2Vpp AUX IN signal: For 2Vpp CD IN signal: 1) Populate 6.8 kOhms, 1%, for R97, R99, R101 and R103. 1) Populate 6.8 kOhms, 1%, for R98, R100, R105 and R106. 2) Populate 3.4 kOhms, 1%, for R102 and R104. AUX IN CD IN C142...

  • Page 13: Figure 4. Microphone Input

    +5VA Do not populate R14 when using Pre Amp Mic +5VA Circuit MC33078D R17 2.7K 10uF ELEC AGND AGND AGND MIC IN 100K MIC_IN_1 +5VA 2.2uF AGND ELEC MC33078D MIC_IN_2 0.068uF 2.2uF 6.8K PHONO-1/8 ELEC Connect CGND 220pF 220pF 10uF to AGND at ELEC AGND...

  • Page 14: Figure 5. Front, Surround, And Center/Lfe Outputs

    C111 10uF LINE_OUT_R FRONT ELEC C112 10uF LINE_OUT_L ELEC PHONO-1/8 C113 C114 220pF 220pF 220K 220K Connect CGND to AGND at the jack. AGND CGND AGND C115 10uF LINE_OUT_R_2 SURROUND ELEC C116 10uF LINE_OUT_L_2 ELEC PHONO-1/8 C117 C118 220pF 220pF 220K 220K Connect CGND...

  • Page 15: Figure 6. Line Input And Headphone Output

    R109 C149 LINE_IN_R 6.8K 2.2uF R110 ELEC 6.8K LINE IN/ HEADPHONE 3x1 HDR HEADPH_OUT_R AGND C150 C152 PHONO-1/8 R111 C151 220pF 220pF LINE_IN_L 6.8K Connect CGND 2.2uF R112 to AGND at the ELEC CGND 6.8K CGND jack. C160 3x1 HDR HP_OUT_C HEADPH_OUT_L AGND...

  • Page 16: Figure 7. Secondary Audio Codec, Cs4294

    CS4294 +3.3VD +5VA AVdd1 AVss1 AVdd2 AVss2 AVdd3 AVss3 AGND AVss4 AVdd4 AVss5 DVdd1 DVss1 DGND DVdd2 DVss2 AUX_IN_L BIT_CLK AUX_L ABITCLK SDATA_OUT AUX_R AUX_IN_R ASDOUT SDATA_IN ASDIN2 SYNC ASYNC CD_IN_L CD_L RESET# ARST# CD_GND CD_GND CD_IN_R CD_R LINE_OUT_L LINE_OUTL_2 MIC1 LINE_OUT_R LINE_OUTR_2...

  • Page 17: Figure 8. Primary Audio Codec, Cs4297A

    CS4297A +3.3VD +5VA AVdd1 AVss1 AVdd2 AVss2 DVss1 DVdd1 24.576 MHz AGND DVss2 DVdd2 C123 C124 22pF 22pF DGND XTL_IN XTL_OUT DGND DGND ASDIN BIT_CLK ABITCLK SDATA_IN ASYNC SYNC SDATA_OUT ASDOUT ARST# RESET# LINE_OUT_L LINE_OUT_L PC_BEEP PC_BEEP LINE_OUT_R LINE_OUT_R PHONE AUX_L MONO_OUT AUX_R...

  • Page 18: Figure 9. Audio Controller, Cs4630

    CS4630 AUDIO AD[31..0] ACCELERATOR ABITCLK AD[0] ABITCLK/SCLK ABITCLK2 AD[1] ASDIN ASDIN/SDIN AD[2] ASDIN2 ASDIN2 AD[3] ARST# AD[4] ARST# ARST2#/SELECT_VAUX AD[5] ASYNC/FSYNC AD[6] ASYNC ASYNC2 AD[7] ASDOUT AD[8] ASDOUT/SDOUT ASDOUT2 AD[9] AD10 AD[10] AD11 ZLRCLK AD[11] AD12 AD[12] ZSCLK AD13 ZSDATA AD[13] AD14 AD[14]...

  • Page 19: Figure 10. Joystick/Midi Interface

    J12 JOYSTICK SUPPLY PINS +5V_JOY +5V_JOY Joystick button pullups still required on CS462X/CS4280 -- +5V_PCI PIN 1 PIN 2 must be populated C103 +5V_JOY 0.1uF 0.1uF 4.7K 4.7K 4.7K 4.7K DGND DGND JACX 2.2K JACY 2.2K 2.2K JBCX 2.2K JBCY JBB1 JBB2 JAB2...

  • Page 20: Figure 11. S/Pdif Output And Inputs

    S/PDIF OUT SPDIF_TX OPTICAL +5V_PCI DGND S/PDIF IN 8.2K 0.1uF OPTICAL TOTX-173 DGND DGND +5V_PCI 47uH DGND 0.1uF TORX-173 DGND DGND +5V_PCI C108 S/PDIF IN 0.01uF COAXIAL SPDIF_RX 2X1HDR-SN/PB C109 3x1 HDR 0.01uF SN75179B DGND DGND DGND +5V_PCI Place close to pins 1 and 4 on C110...

  • Page 21: Figure 12. Pci Bus

    +12VD +5V_PCI +5V_PCI -12VD TRST# -12V +12V GND11 TDI and TDO must be connected if IEEE 1149.1 is not used +5V(1) +5V(8) INTA# INTA# +5V(9) INTC# INTB# +5V(2) INTD# AD[31..0] RSVD(1) PRSNT1# PRSNT1#, PRSNT2# = 00 +5V(3) RSVD(4) RSVD(2) PRSNT2# Power Requirement = 7.5W max C/BE[3..0]# GND(1)

  • Page 22: Figure 13. Power Supplies

    +5V_PCI +3.3VD +12VD +5VA TAB (OUT) 0.1uF 10uF 10uF MC78M05ACDT 10uF 0.1uF ELEC ELEC LM1117CST-3.3 (SOT-223) ELEC AGND AGND DGND +CVDD DGND TAB (GND) 2.5 Volts +5V_PCI HOLE HOLE C106 C107 +5V_JOY 10uF 0.1uF LM2937IMP-2.5 (SOT-223) ELEC 31@100MHz CGND CGND Connect CGND to DGND with a 50 mil trace DGND FUSE 0.5A...

  • Page 23: Figure 14. Assembly Drawing

    Figure 14. Assembly Drawing...

  • Page 24: Figure 15. Top Silkscreen

    Figure 15. Top Silkscreen...

  • Page 25: Figure 16. Top Layer

    Figure 16. Top Layer...

  • Page 26: Figure 17. Bottom Layer

    Figure 17. Bottom Layer...

  • Page 27: Figure 18. Bracket A Drawing

    2X R.039 .850 .675 .200 FULL R .285 .174 .430 2X R.079 .550 .725 .338 .370 7 PL .100 4X .018 .450 .495 2X .155 .681 MIC IN .398 1.091 FRONT OUT .100 R.039 1.501 REAR OUT 2.555 2X .128 1.911 C/SUB OUT 2X .255...

  • Page 28: Figure 19. Bracket B Drawing

    .850 .200 FULL R .285 .174 .430 2X R .079 .550 .725 2X .100 .450 .100 2X .155 2.336 .366 2X 4.439 .221 4X R .132 .441 .035 .113 4.725 1.312 1.086 2X 10 .120 2X 52 JOYSTICK .155 .200 TRUE R .

  • Page 29: Bill Of Materials

    6. BILL OF MATERIALS Item Qty Pop Reference Description PCB Footprint Manufacturer. Part Number C1,C3,C12,C71,C78,C81,C84, CAP, 0805, X7R, 220pF, 10%, 50V CSN_0805 KEMET C0805C221K5RAC C86,C89,C113,C114,C117,C118, C121,C122,C150,C152 C2,C15,C57,C70,C73,C94,C101, CAP, ALU 5.0MM, ELEC, 10uF, 16V ALU5.0MM PANASONIC ECA-1CM100 C106,C111,C112,C115,C116, C119,C120,C139 CAP, 0805, X7R, .068uF, 10%, 50V CSN_0805 KEMET C0805C683K5RAC...
  • Page 30 L9,L10,L11,L12,L13,L14,L15 IND, FBEAD, 1206, 31@100MHz, 25% IND_FB1206 HF50ACB321611-T PCI BUS 5V SIDE B PCI_BUS_5V_B PCI BUS 5V SIDE A PCI_BUS_5V_A TRAN, SO, PNP, SOT23 SOT23 NATIONAL MMBT2907ALT1 TRAN, SO, NPN, SOT23 SOT23 NATIONAL MMBT3904LT1 R1,R8,R13,R15,R71,R99,R100, RES, SO, 0805, 47K, 5%, 1/10W, METAL FILM RES_0805 PHILIPS 9C08052A4702J...
  • Page 31 • Notes •...
