Unitedlink UniBox-3240 User Manual

Unibox-324 series, intel atom d2550 processor, fanless, industrial compact size pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
UniBox-324X Series
Intel Atom D2550 Processor, Fanless, Industrial Compact Size PC
User Manual
Release Date
Revision
Oct. 2015
V1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UniBox-3240 and is the answer not in the manual?

Questions and answers

Summary of Contents for Unitedlink UniBox-3240

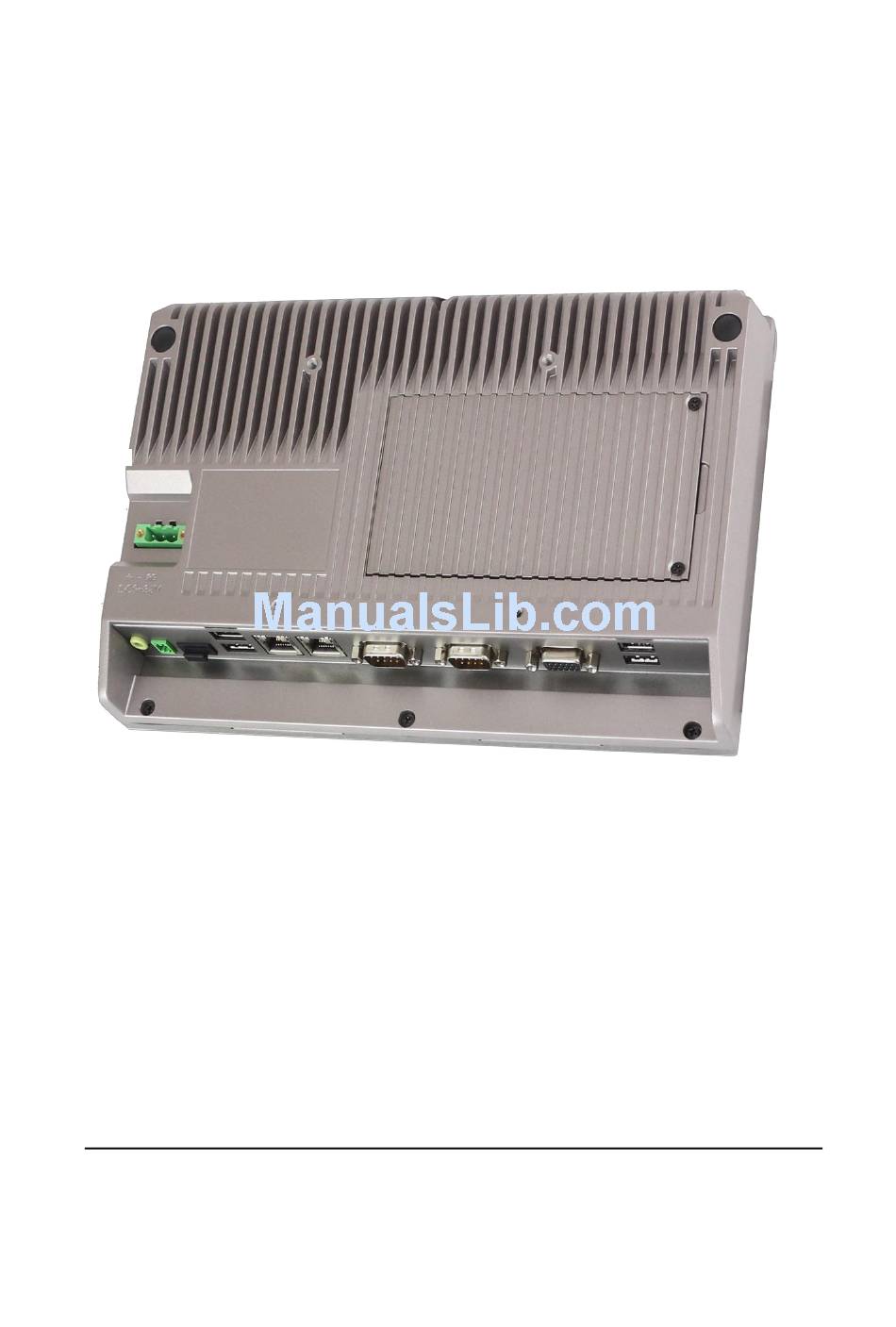

  • Page 1 UniBox-324X Series Intel Atom D2550 Processor, Fanless, Industrial Compact Size PC User Manual Release Date Revision Oct. 2015 V1.0...
  • Page 2 Revision History Reversion Date Description 2015/07/09 Official Version...

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Getting Started ......5 Features ................... 5 Specifications ................... 5 Dimensions ..................7 Brief Description of UniBox-324x Series ........... 9 Chapter 2 Hardware ......10 Motherboard Introduction............. 10 Motherboard Specifications ............10 Jumpers Setting and Connectors ............ 11 Difinition of Jumpers and Connectors ..........
  • Page 4 Table of Figures Chapter 1 Getting Started ......5 Figure 1.1 : Dimensions of UniBox-324x ............. 7 Figure 1.2 : Dimensions of UniBox-324x with Din Rail ........ 8 Figure 1.3 : Over View of UniBox-324x SERIES ........... 9 Figure 1.4 : IO View of UniBox-324x SERIES ..........9 Chapter 2 Hardware ......

  • Page 5: Chapter 1 Getting Started

    Wide Range 9~36V DC Power Input  Ultra Slim Size, Thickness: 3.39 cm  x 2.5” SATAII HDD space, Easy Accessible 1.2 Specifications UniBox-3240 System Intel Celeron N2930 1.83GHz Processor System Chipset System Memory Onboard 2GB DDR3-800, (4GB Option) IO Port...
  • Page 6 Mounting Wall, VESA 100 x 100, Din Rail Dimension (mm) 297 x 173 x 33.9 Net Weight (Kgs) 1.6Kg Environmental Operating Temperature -20~60°C Storage temperature -40~85°C Storage humidity 10 to 90% @ 40°C, non- condensing Certification CE / FCC Class A Operating System Windows Embedded 8.1 Industry Pro, Support...

  • Page 7: Dimensions

    1.2 Dimensions Figure 1.1 : Dimensions of UniBox-324x...

  • Page 8: Figure 1.2 : Dimensions Of Unibox-324X With Din Rail

    Figure 1.2 : Dimensions of UniBox-324x with Din Rail...

  • Page 9: Brief Description Of Unibox-324X Series

    1.3 Brief Description of UniBox-324x Series The UniBox-324x system is a Fan-less Box PC with High-efficiency Thermal Solution, powered by Intel Celeron N2930 1.83GHz Processor and on board 2GB DDR3-800 Memory, up to 4GB as option. It comes with 3 x USB 2.0 type A ports, 1 x USB 3.0 type A, 2 x COM Ports, 1 x Audio jack, 2 x GbE Lan, 1 x internal Full size Mini-PCIe slot, and 9~36V wide-ranging power input.

  • Page 10: Chapter 2 Hardware

    Chapter 2 Hardware 2.1 Motherboard Introduction SBC-7111 is a 4" industrial motherboard developed on the platform of Intel Bay trail-I/M Processors, which provides abundant peripheral interfaces to meet the needs of different applications. Also, it features dual GbE ports, 3 x COM ports and one Mini PCIE configuration, one VGA port, one HDMI port, one LVDS interface.

  • Page 11: Jumpers Setting And Connectors

    2.3 Jumpers Setting and Connectors Figure 2.2 : Jumpers and Connectors Location_ Board Top Figure 2.3 : Jumpers and Connectors Location_ Board Bottom...

  • Page 12: Difinition Of Jumpers And Connectors

    2.4 Difinition of Jumpers and Connectors 2.4.1 U2: (FCBGA1170), onboard Intel Bay trail-I/M Processors. Model Processor Number Cores/Threads Remarks SBC-7111-E3845-2G E3845 1.91GHz 4 / 4 SBC-7111-E3845-4G E3845 1.91GHz 4 / 4 Option SBC-7111-N2930-2G N2930 1.83 up to 4 / 4 4.5 / Option 2.16GHz...
  • Page 13 2.4.8 LED3/LED4（NC）: LED3:Reserve. LED4:Reserve. 2.4.9 DC_IN1: (5.08mm Pitch 1x3 Pin Connector),DC9V~36V System power input connector. Pin# Power input DC+9V~36V Ground Model DC_IN1 SBC-7111-E3845-2G 180°Connector SBC-7111-E3845-4G 180°Connector SBC-7111-N2930-2G 180°Connector SBC-7111-N2930-4G 180°Connector SBC-7111-E3815-2G 180°Connector SBC-7111-E3845P-2G 45°Connector SBC-7111-E3845P-4G 45°Connector 2.4.10 BT1/BT2: Power on/off button, They are used to connect power switch button. The two pins are disconnected under normal condition.
  • Page 14 2.4.12 VGA_PH1: (CRT 2.0mm Pitch 2x6 Pin Header), Video Graphic Array Port, Provide 2x6Pin cable to VGA Port. Signal Name Pin# Pin# Signal Name CRT_RED Ground CRT_GREEN Ground CRT_BLUE VGA_EN CRT_H_SYNC CRT_DDCDATA CRT_V_SYNC CRT_DDCCLK Ground Ground VGA hot plug setting for Windows XP: VGA1 (Pin Header) Function Pin4-Pin6 (Close)
  • Page 15 2.4.16 INVT1: (2.0mm Pitch 1x6 wafer Pin Header), Backlight control connector for LVDS. Pin# Signal Name +DC12V +DC12V Ground Ground BKLT_EN_OUT BKLT_CTRL 2.4.17 CN1: (1.25mm Pitch 2x20 Connector, DF13-40P), for 18/24-bit LVDS output connector, fully supported by Parad PS8625(DP to LVDS), the interface features dual channel 24-bit output.
  • Page 16 2.4.18 JP4: (2.0mm Pitch 2x2 wafer Pin Header), USB3(CN1) or Touch jumper setting. Function USB3 (CN1) Touch (TCH1) Close 3-4 (default) Open 3-4 (option) Open 1-2 (default) 2.4.19 TCH1: (2.0mm Pitch 1x6 wafer Pin Header), internal Touch controller connector. Pin# Signal Name SENSE GND_EARCH...
  • Page 17 2.4.23 COM1: (Type DB9M), Rear serial port, standard DB9 Male serial port is provided to make a direct connection to serial devices. COM1 port is controlled by pins No.1~6 of JP1, select output Signal RI or 5V or 12V, for details, please refer to description of JP1 and S_232 and S_422 setting.
  • Page 18 BIOS Setup: Advanced/F81216SEC Super IO Configuration/Serial Port 1 Configuration 【RS-485】 2.4.24 JP2: (2.0mm Pitch 2x3 Pin Header), COM2 jumper setting, pin 1~6 are used to select signal out of pin 9 of COM2 port. JP2 Pin# Function Close 1-2 COM2 RI (Ring Indicator) (default) Close 3-4 COM2 Pin9: DC+5V (option)
  • Page 19 2.4.29 SATA1: (SATA 7Pin+15Pin), SATA Connectors, one SATA connector are provided, with transfer speed up to 3.0Gb/s. 2.4.30 SD1: (SD card slot), Secure Digital Memory Card socket. 2.4.31 MPCIE1: (Socket 52Pin), mini PCIe socket, it is located at the top, it supports mini PCIe devices with USB2.0 and LPC and SMBUS and PCIe signal.
  • Page 20 2.4.36 LAN1/LAN2: LAN1/LAN2: (RJ45 Connector), Rear LAN port, Two standard 10/100/1000M RJ-45 Ethernet ports are provided. Used intel 82574L chipset, LINK LED (green) and ACTIVE LED (yellow) respectively located at the left-hand and right-hand side of the Ethernet port indicate the activity and transmission state of LAN. 2.4.37 BUZ1: Onboard buzzer.
  • Page 21 2.4.40 CN3: (1.27mm Pitch 2X30 Female Header), for expand output connector,It provides four GPIO,two USB 2.0,one PS/2 mouse,one PS/2 keyboard, two uart,one PCIex1, one SMbus. connected to the TB-528 riser Card. Function Signal Name Pin# Pin# Signal Name Function 5V_S5_USB 5V_S5_USB 5V_S5_USB 5V_S5_USB...
  • Page 22 2.4.41 TB-528C2ME1（option）: SBC-7111 Riser Card, TB-528C2ME1 CN3 connect to SBC-7111 CN3 pin Header. TB-528C2ME1 Top： CN3： (1.27mm Pitch 2X30 Pin Header), connect to SBC-7111 CN3 pin Header. M-PCIE1： (Socket 52Pin), mini PCIe socket, it is located at the top, it supports mini PCIe devices with USB2.0(USB2),Smbus,SIM and PCIe signal.
  • Page 23 Pin# Signal Name KBDATA MSDATA Ground KBCLK MSCLK GPIO1： (2.0mm Pitch 2x5 Pin Header),General-purpose input/output port, it provides a group of self-programming interfaces to customers for flexible use. Signal Name Pin# Pin# Signal Name Ground SMB_DATA_R SMB_CLK_R SOC-GPIO22 SOC-GPIO23 SOC-GPIO25 SOC-GPIO24 USB_23：...
  • Page 24 COM5(SBC-7111/COM3)： (Type DB9), serial port, standard DB9 serial port is provided to make a direct connection to serial devices. COM5 port is controlled by pins No.1~6 of JP5, select output Signal RI or 5V or 12v, For details, please refer to description of JP3.
  • Page 25 DSR (Data Set Ready) RTS (Request To Send) CTS (Clear To Send) JP6 Setting: Pin1-2: RI (Ring Indicator) (default) Pin3-4 : 5V Standby power (option) Pin5-6: 12V Standby power (option) COM_6（option,SBC-7111/COM4）： (2.0mm Pitch 2X5 Pin Header), COM6 Port, up to one standard RS232 port are provided.
  • Page 26 Pin# Signal Name KBDATA MSDATA Ground KBCLK MSCLK GPIO1： (2.0mm Pitch 2x5 Pin Header), General-purpose input/output port, it provides a group of self-programming interfaces to customers for flexible use. Signal Name Pin# Pin# Signal Name Ground SMB_DATA_R SMB_CLK_R SOC-GPIO22 SOC-GPIO23 SOC-GPIO25 SOC-GPIO24 USB_23：...
  • Page 27 COM5(SBC-7111/COM3)： (Type DB9), serial port, standard DB9 serial port is provided to make a direct connection to serial devices. COM5 port is controlled by pins No.1~6 of JP5, select output Signal RI or 5V or 12v, For details, please refer to description of JP3.
  • Page 28 RTS (Request To Send) CTS (Clear To Send) JP6 Setting: Pin1-2: RI (Ring Indicator) (default) Pin3-4 : 5V Standby power (option) Pin5-6: 12V Standby power (option) COM_6（option，SBC-7111/COM3）： (2.0mm Pitch 2X5 Pin Header), COM6 Port, up to one standard RS232 port are provided.
  • Page 29 SMBus H1/H2: MPCIE1 SCREW HOLES, H2 for mini PCIE card (30mmx30mm) assemble. H1 for mini PCIE card (30mmx50.95mm) assemble. LED1： Mini PCIe devices LED Status. SIM1（option）： (SIM Socket 6 Pin), Support SIM Card devices. PS_ON1： (2.0mm Pitch 1X2 Pin Wafer), ATX Power and Auto Power on jumper setting. PS_ON Mode Close 1-2...
  • Page 30 ports, speed up to 480Mb/s. USB_23（option）： (2.0mm Pitch 2x5 Pin Header) ,Front USB connector, it provides one USB port via a dedicated USB cable, speed up to 480Mb/s. Signal Name Pin# Pin# Signal Name 5V_USB23 5V_USB23 USB3_N USB2_N USB3_P USB2_P Ground Ground Ground...
  • Page 31 RTS (Request To Send) CTS (Clear To Send) JP5 Setting: Pin1-2: RI (Ring Indicator) (default) Pin3-4 : 5V Standby power (option) Pin5-6: 12V Standby power (option) JP6： (2.0mm Pitch 2x3 Pin Header), COM6 setting jumper, pin 1~6 are used to select signal out of pin 9 of COM6 port.
  • Page 32 TB-528C1U2 2.4.44 TB-528CAN2 R0.10（option）: SBC-7111 Riser Card, TB-528CAN2 CN3 connect to SBC-7111 CN3 pin Header. It provides two CAN-bus Interface. TB-528CAN2 Top： CN3： (1.27mm Pitch 2X30 Pin Header), connect to SBC-7111 CN3 pin Header. M-PCIE1： (Socket 52Pin), mini PCIe socket, it is located at the top, it supports mini PCIe devices with Smbus,USB2.0,SIM and PCIe signal.
  • Page 33 PS2： (2.0mm Pitch 1X6 Pin Wafer), PS/2 keyboard and mouse port, the port can be connected to PS/2 keyboard or mouse via a dedicated cable for direct used. Pin# Signal Name KBDATA MSDATA Ground KBCLK MSCLK USB_IN（option）： (2.0mm Pitch 2x5 Pin Header) ,Front USB connector, it provides two USB port via a dedicated USB cable, speed up to 480Mb/s.
  • Page 34 are provided. They can be used directly via COM cable connection. Signal Name Pin# Pin# Signal Name Ground JP6 Setting: RI/5V/12V COM5(SBC-7111/COM3)： (2.0mm Pitch 2X5 Pin Header), COM5 Port, up to one standard RS232 port are provided. They can be used directly via COM cable connection. Signal Name Pin# Pin#...
  • Page 35 Terminal resistor R-(internally connected to CANL2) CAN2 Shield cable (FG) Terminal resistor R+(internally connected to CANH2) CANH2 CAN bus Signal H CANL1 CAN bus Signal L Terminal resistor R-(internally connected to CANL1) CAN1 Shield cable (FG) Terminal resistor R+(internally connected to CANH1) CANH1 CAN bus Signal H 【See TB-528AN2 Manual】...

  • Page 36: Chapter 3 Bios Setup

    Chapter 3 BIOS Setup 3.1 Operations after POST Screen After CMOS discharge or BIOS flashing operation,.Press [Delete] key to enter CMOS Setup. After optimizing and exiting CMOS Setup, the POST screen displayed for the first time is as follows and includes basic information on BIOS, CPU, memory, and storage devices.

  • Page 37: Main Settings

    3.3 Main Settings System Time: Set the system time, the time format is: Hour : 0 to 23 Minute : 0 to 59 Second : 0 to 59 System Date: Set the system date, the date format is:...

  • Page 38: Advanced Settings

    Day: Note that the ‘Day’ automatically changes when you set the date. Month: 01 to 12 Date: 01 to 31 Year: 1998 to 2099 3.4 Advanced Settings 3.4.1 ACPI Settings Enable ACPI Auto Conf: [Disabled] [Enabled] Enable Hibernation: [Enabled] [Disabled] ACPI Sleep State: [S3 (Suspend to RAM) ] [Suspend Disabled]...
  • Page 39 3.4.2 F81216SEC Super IO Configuration Super IO chip F81216SEC Serial Port 1 Configuration UART1 Mode Selection： [RS-232] [RS-485] [RS-422] Serial Port 2 Configuration Change Settings [Auto] Serial Port 3 Configuration Change Settings [Auto] Serial Port 4 Configuration Change Settings [Auto] 3.4.3 IT8518 Super IO Configuration Super IO chip IT8518/IT8519 Serial Port 1 Configuration...
  • Page 40 Intel(R) Atom(TM) CPU E3845 @ 1.91GHz CPU Signature 30679 Microcode Patch Max CPU Speed 1910 MHz Mix CPU Speed 500 MHz Processor Cores Intel HT Technology Not Supported Intel HT-X Technology Supported L1 Data Cache 24KB x 4 L1 Code Cache 32KB x 4 L2 Cache 1024KB x 2...
  • Page 41 3.4.8 Thermal Configuration Parameters 3.4.9 IDE Configuration Serial-ATA(SATA) [Enabled] [Disabled] SATA Test Mode [Disabled] [Enabled] SATA Speed Support [Gen2] [Gen1] SATA ODD Port [No ODD] [Porto ODD] [Port1 ODD] [Disabled] SATA Mode [AHCI Mode] [IDE Mode] Serial-ATA Port 0 [Enabled] [Disabled] SATA Port0 Hotplug [Disabled]...
  • Page 42 SCC SD Card Support [Enabled] SDR25 Support for SDCard [Disabled] SDR50 Support for SDCard [Enabled] MIPI HSI Support [Disabled] LPSS Configuration LPSS DMA #1 Support [Enabled] LPSS DMA #2 Support [Enabled] LPSS I2C #1 Support [Enabled] LPSS I2C #2 Support [Enabled] LPSS I2C #3 Support [Enabled]...
  • Page 43 Video [Legacy] [UEFI] [Do not launch] Other PCI devices [UEFI] [Do not launch] [Legacy] 3.4.15 SDIO Configuration 3.4.16 USB Configuration USB Configuration USB Module Version 8.11.02 USB Devices: 1 keyboard, 1 Mouse，2 Hubs Legacy USB Support: [Enabled] [Disabled] XHCI Hand-off: [Enabled] [Disabled] EHCI Hand-off:...

  • Page 44: Chipset Settings

    Chipset Settings 3.5.1 Host Bridge ►Intel IGD Configuration ►IGD – LCD Control Force Lid Status [On] [Off] [Auto] ALS Support [Disabled] IGD Flat Panel [Auto] Pannel Scaling [Auto] ►Memory Frequency and Timing ►Graphics Power Management Control Memory Information Total Memory 4096 MB(DDR3L) Memory Slot0 4096 MB(DDR3L)

  • Page 45: Security Settings

    3.5.2 South Bridge ►Azalia HD Audio ►USB Configuration USB OTG Support [Disabled] USB VBUS [On] XHCI Mode [Smart Auto] USB2 Link Power Management [Enabled] USB 2.0(EHCI) Support [Enabled] USB EHCI debug [Disabled] USB Per Port Control [Enabled] USB Port 0 [Enabled] USB Port 1 [Enabled]...
  • Page 46 3.6.2 User Password Type the password with up to 20 characters and then press Enter key. This will clear all previously typed CMOS passwords. You will be requested to confirm the password. Type the password again and press Enter key. You may press key to abandon password entry operation.

  • Page 47: Boot Settings

    3.7 Boot Settings Setup Prompt Timeout Bootup Numlock State [On] [off] Quiet Boot [Disabled] [Enabled] Fast Boot [Disabled] [Enabled] Boot Option Priorities Boot Option #1 Sets the system boot order Hard Drive BBS Priorities [SATA PM:*** … ] Boot Option #1 SATA PM:***…...

  • Page 48: Save & Exit Settings

    3.8 Save & Exit Settings Save Changes and Exit Save & Exit Setup save Configuration and exit ? [Yes] [No] Discard Changes and Ext Exit Without Saving Quit without saving? [Yes] [No] Save Changes and Reset Save & reset Save Configuration and reset? [Yes] [No] Discard Changes and Reset...
  • Page 49 Load Previous Values Load Previous Values? [Yes] [No] Restore Defaults Load Optimized Defaults Load optimized Defaults? [Yes] [No] Save user Defaults Save Values as User Defaults Save configuration? [Yes] [No] Restore user Defaults Restore User Defaults Restore User Defaults? [Yes] [No] Launch EFI Shell from filesystem device WARNING Not Found...

  • Page 50: Chapter 4 Installation Of Drivers

    Chapter 4 Installation of Drivers This chapter describes the installation procedures for software and drivers under the windows XP. The software and drivers are included with the motherboard. The contents include Intel chipset driver, VGA driver, LAN drivers, Audio driver Installation instructions are given below. Important Note: After installing your Windows operating system, you must install first the Intel Chipset Software Installation Utility before proceeding with the installation of...

  • Page 51: Intel(R) Atomtm Soc Chipset

    4.1 Intel(R) AtomTM SoC Chipset To install the Intel chipset driver, please follow the steps below. Step 1. Select Intel (R) AtomTM SoC Chipset from the list Step 2. Click Next to setup program.
  • Page 52 Step 3. Read the license agreement. Click Yes to accept all of the terms of the license agreement. Step 4. Click Next to continue.
  • Page 53 Step 5. Click Next. Step 6. Select Yes, I want to restart this computer now. Click Finish, then remove any installation media from the drives.

  • Page 54: Intel(R) Vga Chipset

    4.2 Intel(R) VGA Chipset To install the VGA drivers, follow the steps below to proceed with the installation. Step 1.Select Intel(R) VGA Chipset Step 2. Click Automatically run WinSAT and enable the Windows Aero desktop theme(if supported). Click Next.
  • Page 55 Step 3. Read license agreement. Click Yes. Step 4. Click Next.
  • Page 56 Step 5. Click Install. Step 6. Click Install.
  • Page 57 Step 7. Click Next. Step 8. Click Yes, I want to restart this computer now. Then click Finish.

  • Page 58: Intel(R) Lan Driver

    4.3 Intel(R) LAN Driver To install the Intel (R) LAN driver, please follow the steps below. Step 1. Select Intel(R) 82574L LAN Driver from the list. Step 2. . Click Next.
  • Page 59 Step 3. Read license agreement. Click I accept the terms in the license agreement. Click Next. Step 4. Click Next to continue.
  • Page 60 Step 5. Click Install to begin the installation. Step 6. Click Finish to exit the wizard.

  • Page 61: Realtek Alc662 Hd Audio Driver Installation

    4.4 Realtek ALC662 HD Audio Driver Installation To install the Realtek ALC662 HD Audio Driver, please follow the steps below. Step 1. Select Realtek AL662 HD Audio Driver from the list Step 2. Click Next to continue.
  • Page 62 Step 3. Click Yes, I want to restart my computer now. Click Finish to complete the installation.

  • Page 63: Usb 3.0 Driver

    4.5 USB 3.0 Driver To install the USB 3.0 Driver, please follow the steps below. Step 1. Select USB 3.0 Driver from the list Step 2. Click Next to continue.
  • Page 64 Step 3. Read the license agreement. Then click Yes to continue. Step 4. Click Next to continue.
  • Page 65 Step 5. Click Next to continue. Step 6. Select Yes, I want to restart this computer now. Then click Finish to complete the installation.
  • Page 66 Warning!____________________ This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions manual, it may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment.
  • Page 67 Caution Risk of explosion if the battery is replaced with an incorrect type. Batteries should be recycled where possible. Disposal of used batteries must be in accordance with local environmental regulations. Precaution Risque d'explosion si la pile usagée est remplacée par une pile de type incorrect. Les piles usagée doivent être recyclées dans la mesure du possible.
  • Page 68 Packing List Accessories (as ticked) included in this package are: □ Adaptor □ Driver & manual CD disc □ Other.___________________(please specify) Safety Precautions Follow the messages below to prevent your systems from damage: ◆ Avoid your system from static electricity on all occasions. ◆...
  • Page 69 l'ensemble du système.
