Quick Guide
Downloading the system manual
A:
1x SL MIC HUB 1
4x MEB 114-S TC
1x MAS 2 TC
B:
2x SL MIC HUB 1
8x MEB 114-S TC
1x MAS 2 TC
Package contents
MEB 114-S TC
EN
DE
Quick Guide
FR
ES
IT
NL
RU
Safety Guide
ZH
JA
KO
Connecting the components
XLR-5 TC
MAS 2 TC
EN
DE
Quick Guide
FR
ES
IT
NL
RU
Safety Guide
ZH
JA
KO
A
1 - 4 microphones
SL MIC HUB 1
EN
DE
Quick Guide
FR
ES
IT
NL
RU
Safety Guide
ZH
JA
KO
B
5 - 8 microphones

Advertisement

loading
Need help?

Need help?

Do you have a question about the MEB 102-L TC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sennheiser MEB 102-L TC

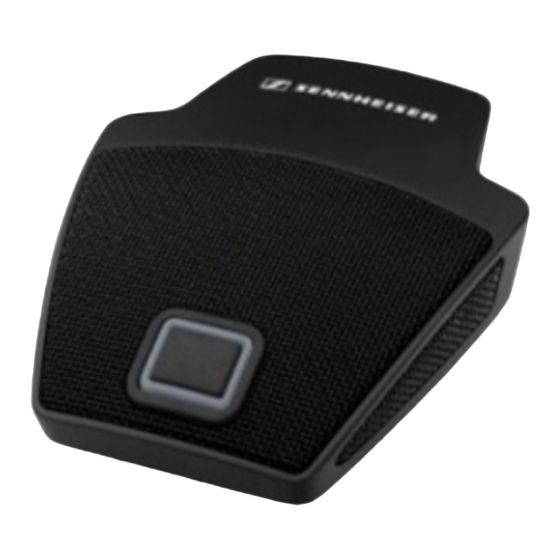

Summary of Contents for Sennheiser MEB 102-L TC

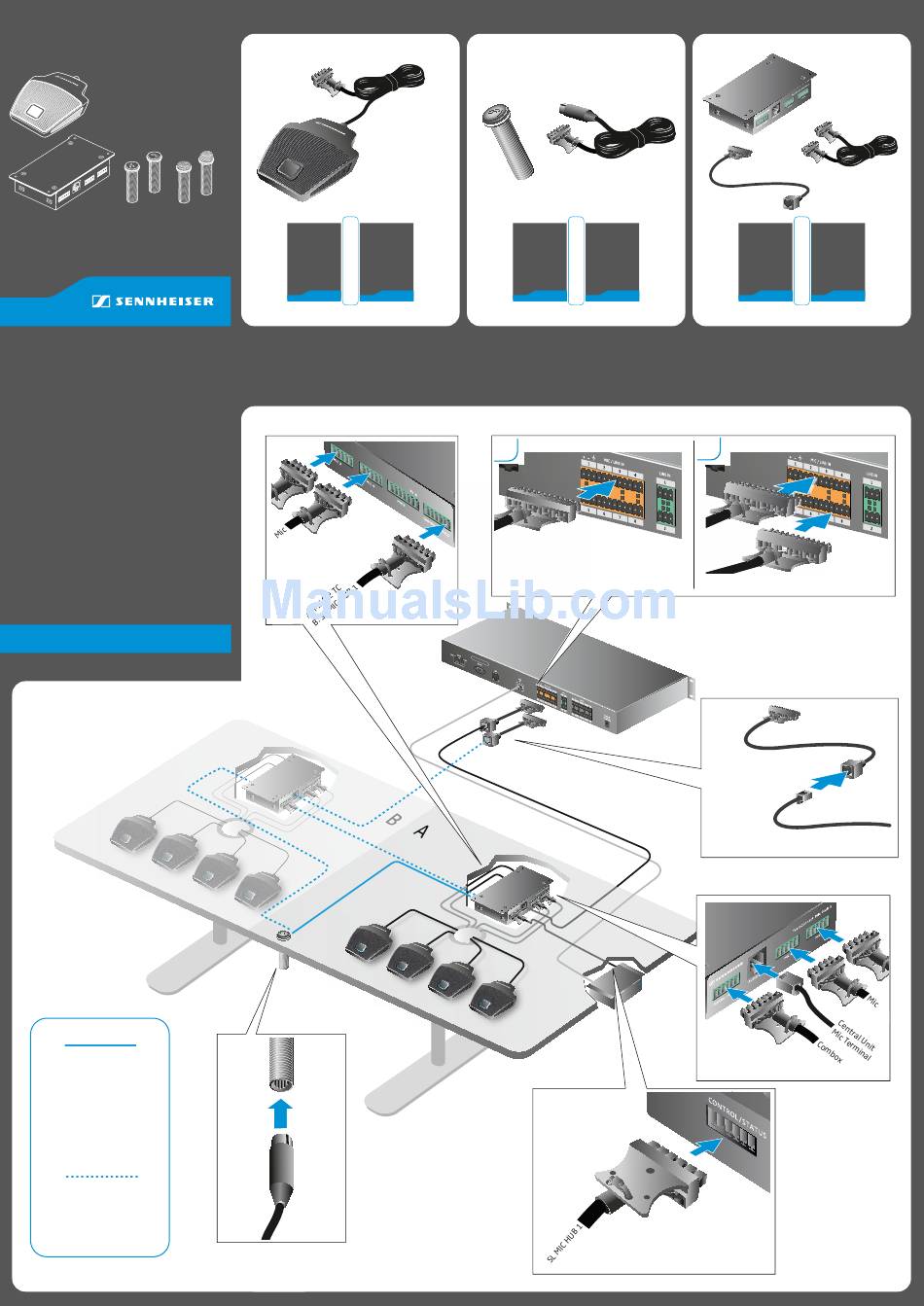

  • Page 1 Package contents SL TeamConnect MEB 114-S TC MAS 2 TC SL MIC HUB 1 Accessories MEB 102-L TC MEB 104-L TC MEB 114-S TC MAS 1 TC MAS 2 TC SL MIC HUB 1 Quick Guide Quick Guide Quick Guide...
  • Page 2 Package contents MEB 102-L TC MEB 104-L TC MAS 1 TC MAS 2 TC SL MIC HUB 1 Quick Guide Quick Guide Quick Guide Quick Guide Quick Guide Safety Guide Safety Guide Safety Guide Safety Guide Safety Guide Connecting the components...
  • Page 3 TeamConnect Meeting and audio conference solution Safety Guide...

  • Page 4: Important Safety Instructions

    Important safety instructions Important safety instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 5 Danger of hearing damage due to high volumes This product is used for commercial purposes. Commercial use is subject to the rules and regulations of the trade association responsible. Sennheiser, as the ma- nufacturer, is therefore obliged to expressly point out possible health risks arising from use.

  • Page 6: Manufacturer Declarations

    Manufacturer Declarations Manufacturer Declarations Warranty Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product. CU1 and CB1 In compliance with the following requirements • Battery Directive (2006/66/EC) CE Declaration of Conformity • RoHS (2011/65/EU) •...
  • Page 7 This Class B digital apparatus complies with the Canadian ICES-003. Changes or modifications not expressly approved by Sennheiser electronic Corp. could void the user’s authority to operate the equipment. TeamConnect...
  • Page 8 SL Loudspeaker 52 A Safety Guide...
  • Page 9 10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where it exits from the apparatus. 11. Only use attachments/accessories specified by Sennheiser. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
  • Page 10 Danger of hearing damage due to high volumes This product is used for commercial purposes. Commercial use is subject to the rules and regulations of the trade association responsible. Sennheiser, as the manufacturer, is therefore obliged to expressly point out possible health risks arising from use.
  • Page 11 Important safety instructions The product can produce sound pressure exceeding 85 dB(A). 85 dB(A) is the sound pressure corresponding to the maximum permissible volume which is by law (in some countries) allowed to affect your hearing for the duration of a working day. It is used as a basis according to the specifications of industrial medicine.
  • Page 12 Manufacturer Declarations Manufacturer Declarations Warranty Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product. CE Declaration of Conformity • RoHS (2011/65/EU) • Low Voltage Directive (2014/35/EU) • EMC Directive (2014/30/EU) Certified by Audio, Video and Similar Electronic Apparatus - Safety Requirements CAN/CSA-C22.2 No.
  • Page 13 TeamConnect Meeting and audio conference solution Safety Guide...
  • Page 14 Important safety instructions Important safety instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 15 Danger of hearing damage due to high volumes This product is used for commercial purposes. Commercial use is subject to the rules and regulations of the trade association responsible. Sennheiser, as the ma- nufacturer, is therefore obliged to expressly point out possible health risks arising from use.
  • Page 16 Manufacturer Declarations Manufacturer Declarations Warranty Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product. CU1 and CB1 In compliance with the following requirements • Battery Directive (2006/66/EC) CE Declaration of Conformity • RoHS (2011/65/EU) •...
  • Page 17 This Class B digital apparatus complies with the Canadian ICES-003. Changes or modifications not expressly approved by Sennheiser electronic Corp. could void the user’s authority to operate the equipment. TeamConnect...
  • Page 18 SpeechLine Wired MAS 1 Connection Guide switch switch green green LEDs +12 V +12 V MAS 1 Sennheiser TeamConnect external power supply* TeamConnect Combox +12 V DC * not included Biamp Nexia / Tesira external Biamp Logic Box power supply*...
  • Page 19 SpeechLine Wired MEB 102 | MEB 104 Connection Guide ground microphone + microphone - MEB 102 MEB 104 Sennheiser TeamConnect Biamp Nexia / Tesira Audio Input (Nexia or Tesira) POLYCOM SoundStructure PIN 2: TXD PIN 3: RXD PIN 5: GROUND...
  • Page 20 + microphone - LED Ctrl (H -> green, L -> red) LED Ctrl (H -> red) MEB 102-L MEB 104-L Sennheiser TeamConnect TeamConnect Central Unit TeamConnect Combox Biamp Nexia / Tesira Biamp Logic Box Audio Input (Nexia or Tesira)
  • Page 21 + microphone - LED Ctrl (H -> green, L -> red) LED Ctrl (H -> red) MEB 102-L MEB 104-L Sennheiser TeamConnect external power supply* MEB 102-L (MEB 104-L) MAS 1 +12 V DC * not included TeamConnect Central Unit...
  • Page 22 SpeechLine Wired MAS 1 | MEB 102-L (104-L) Connection Guide switch switch green green MAS 1 LEDs +12 V +12 V ground microphone + microphone - LED Ctrl (H -> green, L -> red) LED Ctrl (H -> red) MEB 102-L MEB 104-L Biamp Nexia / Tesira external...
  • Page 23 SpeechLine Wired MAS 1 | MEB 102-L (104-L) Connection Guide switch switch green green MAS 1 LEDs +12 V +12 V ground microphone + microphone - LED Ctrl (H -> green, L -> red) LED Ctrl (H -> red) MEB 102-L MEB 104-L POLYCOM SoundStructure external...
