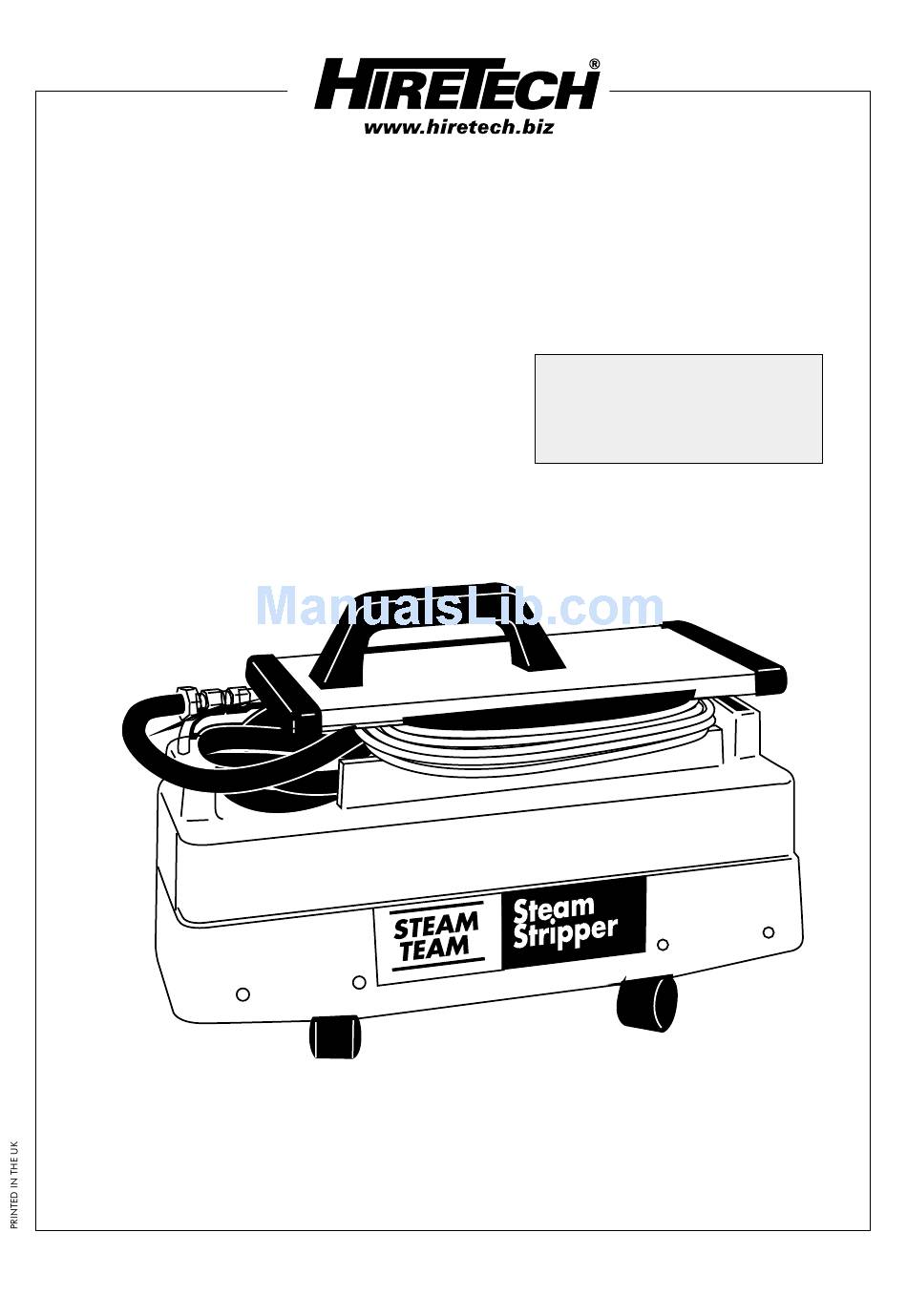

STEAM WALLPAPER STRIPPER
MODEL HTW-5
From Serial Number
67356 - 220/240 Volt
67429 - 110/120 Volt
OWNERS MANUAL & OPERATING INSTRUCTIONS
© Hiretech 2004
JULY 2003
REF. 73
PART # 007716

Advertisement

loading
Need help?

Need help?

Do you have a question about the Steam Team HTW-5 and is the answer not in the manual?

Questions and answers

Summary of Contents for HireTech Steam Team HTW-5

  • Page 1 STEAM WALLPAPER STRIPPER MODEL HTW-5 From Serial Number 67356 - 220/240 Volt 67429 - 110/120 Volt OWNERS MANUAL & OPERATING INSTRUCTIONS © Hiretech 2004 JULY 2003 REF. 73 PART # 007716...
  • Page 2 NORTH AMERICAN SAFETY INSTRUCTIONS WARNING: This steam wallpaper stripping machine must be grounded. This steam wallpaper stripping machine shall be grounded while in use to protect the operator from electric shock. The machine is provided with a three-conductor cord and a moulded three- contact grounding type attachment plug to fit the proper grounding type receptacle.
  • Page 3: Table Of Contents

    SPARE PARTS ® Use Hiretech genuine spare parts only for service and repair. Use of non-approved parts will void the product warranty. See the back cover of this manual for the terms and conditions of the Hiretech Limited Warranty. ®...
  • Page 4: Specification

    SPECIFICATION 11. Take care when stripping paper from ceilings, hot water may run from the steam plate. The Hiretech Steam Team® Steam Stripper will ® 12. DO NOT use a power socket directly below the remove multiple layers of wallpaper and painted area being stripped.
  • Page 5: Stripping Technique

    Refilling - DISCONNECT power supply and then you need to steam the wallpaper to make it easy allow the steam stripper to cool down for a to strip. MINIMUM OF 2 MINUTES. Using the stripping knife in a downwards 10. ENSURE that the steam outlet holes in the steam direction at a 45 angle towards the steam plate, plate are clear and that the steam hose is not begin to strip the covering from the top of the wall...
  • Page 6: Fault Finding

    FAULT FINDING FAULT Machine overheats. FAULT ACTION Machine does not heat up Check machine is on a level surface. If fault ACTION continues return to dealer for service. Check power supply and fuse in plug. If fuse blows more than once return your steam stripper to nearest dealer for service.
  • Page 7 STEAM WALLAPER STRIPPER HTW-5 ® STEAM WALLPAPER STRIPPER MODEL HTW-5 From Serial Number 00446 - 110/120 Volt (Excl. North America) 00634 - 110/120 Volt (North America) 00487 - 220/240 Volt OWNERS MANUAL & OPERATING INSTRUCTIONS MAY 2000 REF. 73 PART # 007716...
  • Page 8 STEAM WALLAPER STRIPPER HTW-5 Ref. PSTK Pack Description Qty. 007613 1 Steam Plate Complete 007609 1 Handle Assembly 007610 1 Label Steam Plate 007611 1 Tube Steam Plate 007612 2 Bracket Steam Tube 007642 12 Screw 007614 4 Rivet 007645 4 Screw 007636 2 End Caps Steam Plate...
  • Page 9: Htw-5 Circuit Diagram

    HTW-5 CIRCUIT DIAGRAM THERMAL SWITCH GREEN/YELLOW (GREEN - N. AMERICA) BROWN (BLACK - N. AMERICA) BLUE (WHITE - N. AMERICA) SUPPLY LEAD...
  • Page 10: Declaration Of Conformity

    DECLARATION OF CONFORMITY This declaration identifies the product, manufacturer's name and address, and applicable specifications recognised in the European community. DECLARATION OF CONFORMITY Manufacturer's Name: Hire Technicians Group Ltd. Manufacturer's Address: Chalk Hill House 8 Chalk Hill Watford Herts WD1 4BH declares that the product: Product Name: Steam Team Steam Wallpaper Stripper...
  • Page 11: Service & Repair

    WD19 4BH UNITED KINGDOM Hiretech Inc 661 Route 3 Tel: +1 518 562 3272 Unit A Fax: +1 518 562 3279 Plattsburgh Email: salesna@hiretech.co.uk NY 12901 Web: www.hiretech.biz Hiretech® and Steam Team™ are registered trademarks of Hire Technicians Group Limited...
  • Page 12 ® from defects in workmanship and materials. Should any part fail in the period of two years* from the date of the original purchase as a result of a defect, Hiretech will (at it’s option) either repair or replace ®...
