D-Link DIR-825 Quick Install Manual

Quick Install Guide

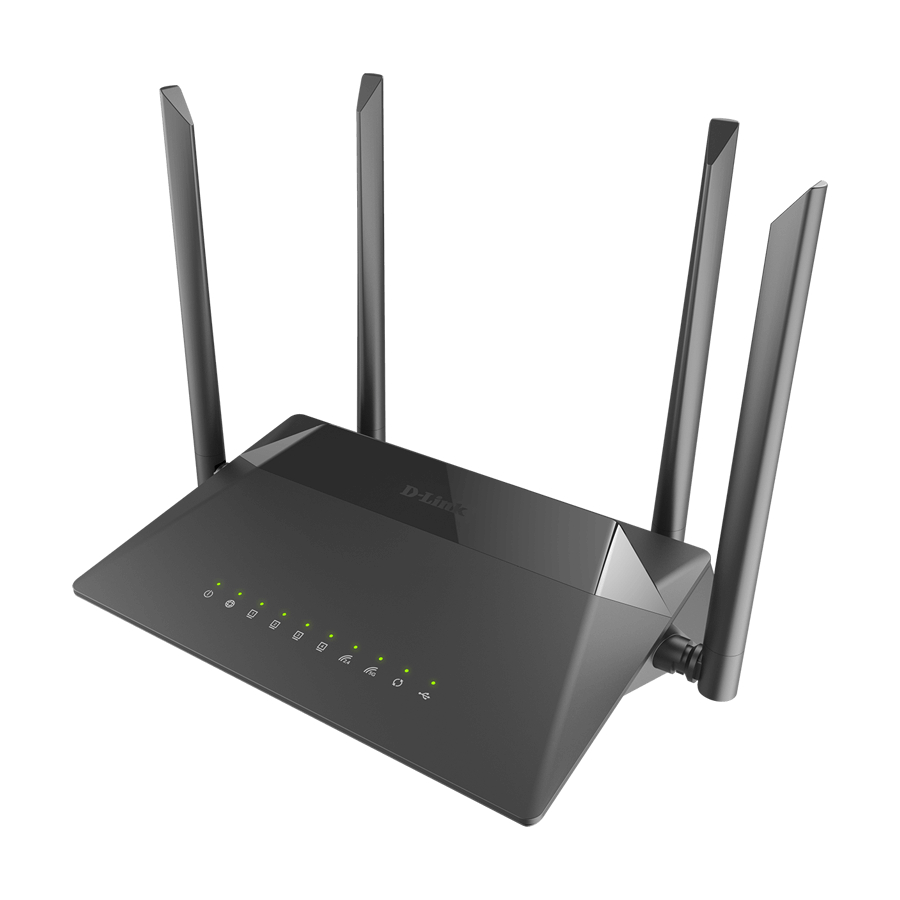

Xtreme N Dual Band Gigabit Router
If you are using Mac or Linux OS, you will need to use Manual Setup on the next page.
Important: For the quick setup wizard to work properly,
the computer must be connected to the Internet and
be online. If you have disconnected any hardware,
please re-connect your computer back to the modem
and make sure you are able to get online.
Tips for PPPoE and USB connections:
If you have DSL and are connecting via PPPoE, make sure that you disable or uninstall any
PPPoE software such as WinPoet, Broadjump, or Enternet 300 from your computer or you will
not be able to connect to the Internet.
You can only use the Ethernet port on your modem. If you were using USB to connect before,
then you must turn off your modem, disconnect the USB cable and connect an Ethernet cable
to the Internet port on the router, then turn the modem back on. In some cases, you may need
to call your ISP to change connection types (USB to Ethernet).
DIR-825
Manual Setup - Mac and Linux users
Important: for best results, insert the Installation CD and follow the on-screen instructions. If you
are unable to use the CD or are using Mac or Linux, please use the following installation steps:

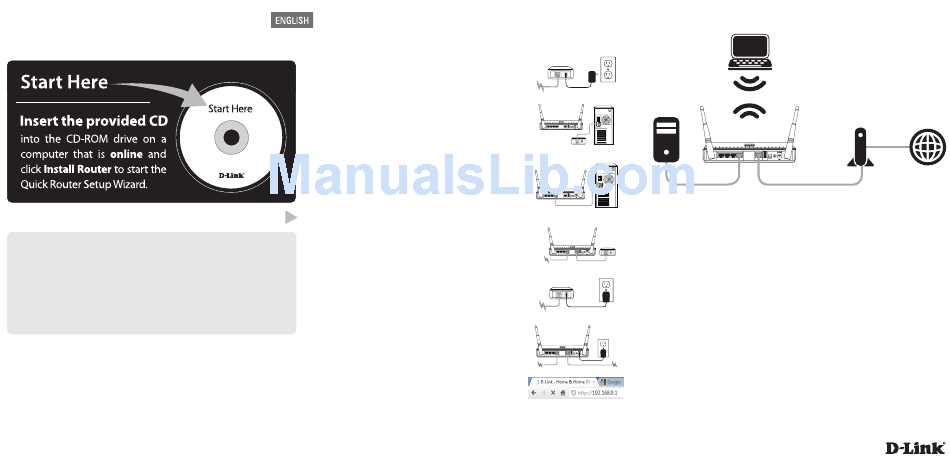

Step 1 - Turn off and unplug your cable or DSL broadband
modem.
Step 2 - Position your router close to your modem and a
computer. Place the router in an open area of your intended
work area for better wireless coverage.
Xtreme N Dual Band Gigabit Router
Step 3 - Unplug the Ethernet cable from your modem
(or existing router if upgrading) that is connected to your
computer. Plug it into the blue port labeled 1 on the back of
your router. The router is now connected to your computer.
Step 4 - Plug one end of the included blue Ethernet cable that
came with your router into the yellow port labeled INTERNET
on the back of the router. Plug the other end of this cable into
the Ethernet port on your modem.
Step 5 - Reconnect the power adapter to your cable or DSL
broadband modem and wait for two minutes.
Step 6 - Connect the supplied power adapter into the power
port on the back of the router and then plug it into a power
outlet or surge protector. Press the power button and verify
that the power LED is lit.
Step 7 - Open a web browser and enter http://192.168.0.1.
When the login window appears, set the user name to Admin
and leave the password box blank. Click Log In to continue
the setup. Please refer to the user manual for more detailed
installation information and advanced features.
Sample Network Configuration
Modem
Computer
DIR-825
RESET
4 3 LAN 2 1 INTERNET USB 12V - - - 2A
Modem Computer
4
DIR-825
RESET
4 3 LAN 2 1 INTERNET USB 12V - - - 2A
Network Security Warning
Computer
Use of this device may make your wireless network connection vulnerable to
unauthorized access and/or accessible by an unauthorized user. To protect your
wireless network connection from unauthorized access, you must activate the WPA or
DIR-825
Modem
WPA2 security feature supported by this device. Please consult the product manual
RESET
4 3 LAN 2 4 INTERNET USB 12V - - - 2A
that came with this device or visit http://support.dlink.com for more information
on how to activate this feature. Third party software/hardware may also be used
to help protect against unauthorized access to your wireless network connection.
Modem
Technical Support
Having trouble installing your new router? D-Link's website contains the latest user
documentation and software updates for D-Link products. U.S. and Canadian customers
can contact D-Link Technical Support through our website or by phone.
DIR-825
Canada
RESET
4 3 LAN 2 1 INTERNET USB 12V - - - 2A
Internet: http://support.dlink.ca
©2011 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the D-Link logo are registered trademarks of
D-Link Corporation or its subsidiaries in the United States and/or other countries. Other trademarks or registered trademarks are
the property of their respective owners. Product specifications, size and shape are subject to change without notice, and actual
product appearance may differ from that depicted on the package. Visit dlink.com (US) or dlink.ca (Canada) for more details.
Version 3.0 | November 8, 2011
Laptop
Modem
DIR-825
RESET
3 LAN 2 1 INTERNET USB 12V - - - 2A
Internet
