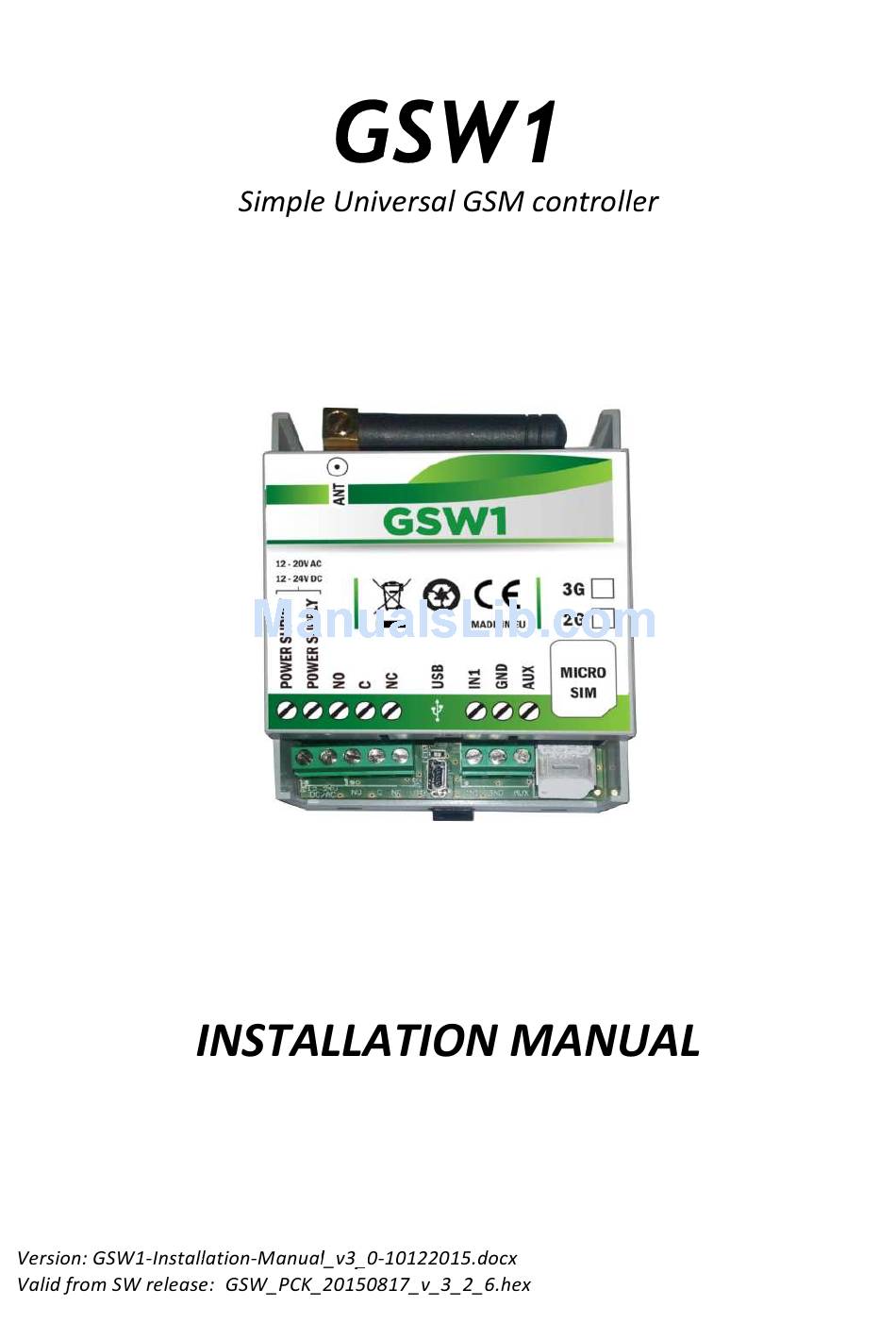

Summary of Contents for MARS COMMERCE GSW1
-
Page 2: Table Of Contents
LED DISPLAY ................................ 5 CLEAR ALL PROGRAMMED DATA FROM SIM ..................6 CONNECTION DIAGRAM ..........................6 PROGRAMMING GSW1 ............................7 THE GSW1 PARAMETERS ..........................7 ALARM SUPPORT................................7 OUTPUT MANAGEMENT ..............................10 SECURITY LEVEL - SL..............................11 PREPAID CARD CREDIT AND VALIDITY INFORMATION..................12 SET-UP PARAMETERS ..............................13... - Page 3 Table 15: CLIP parameters ........................17 Table 16: CLIP parameters example....................17 Table 17: LOG parameters.........................17 Table 18: LOG parameters example ....................17 Table 19: SMS commands.........................18 Table 20: SMS commands example....................18 Table 21 GSW1 default settings ......................24 Table 22 GSW1 parameters print out commands ................24...
-
Page 4: For Your Safety

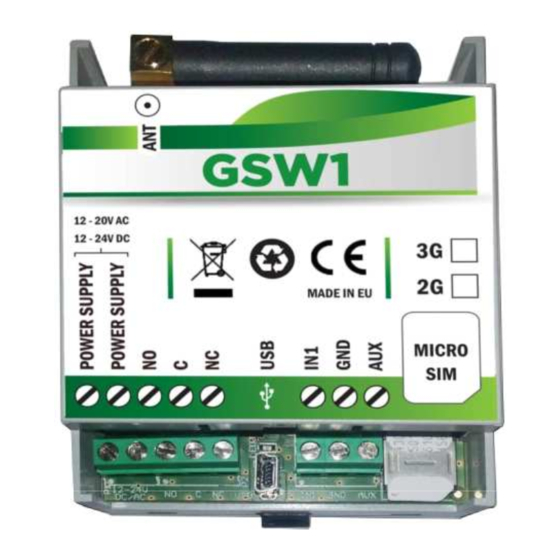

INTRODUCTION GSW1 is a universal remote controller based on GSM technology. It is designed as unlimited range, wire free, low cost, and highly robust remote control system. As all other devices from portfolio GSW1 supports alarm detection, stay-alive messages, credit... -
Page 5: Start Up
Insert SIM card to be used for GSW1 in your personal mobile phone. IMPORTANT ERASE THE PIN CODE! Insert SIM card in GSW1 device. The unit must be switched OFF when you insert the SIM! Connect inputs and outputs to GSW1. Connect the antenna to antenna connector. -
Page 6: Clear All Programmed Data From Sim
CLEAR ALL PROGRAMMED DATA FROM SIM This is highly recommended when a SIM card you are going to use for the GSW1 is not new and it already has some data stored in the phone book memory. By sending this SMS to GSW1 all programmed parameters and numbers are cleared: ;SDCLR;... -
Page 7: Programming Gsw1
GSW1 device supports different types of programming: You can program GSW1 remotely by SMS commands. You can program GSW1 with direct USB connection, with the use of configuration software running on PC (EasySet) You can program GSW1 with SmartPhone App. -
Page 8: Figure 2: Input Connection Diagram
Input time integration delay on input 1 Time delay for alarm reporting on input 1 Table 1: IN, ID and DD parameters Example: Programming with short text messages - SMS GSW1 PROGRAMMING TABLE Name Number Description Alarm activated by connecting to GND... -
Page 9: Table 3: Remote Alarm Reporting Parameters
Table 4: Remote alarm reporting parameters example Remote programming by SMS ;TN1=042376678;LN1=13;LN5=1; When telephone number (calling or messaging GSW1) is not authorized, not acknowledge event occurs (NAC). The telephone number responsible for this event NOTE can be send to TN user for notification. -
Page 10: Output Management
9.2 OUTPUT MANAGEMENT GSW1 supports the possibility to report alarms from inputs and any other events locally via 1 output. The behavior is defined using next parameters 9.2.1 OS parameter GSW1 device has 1 dedicated relay supported outputs. Outputs can be configured to different... -
Page 11: Security Level - Sl
TN5 can enter into programming and remote control of the GSW1 (dialing the GSW1 phone number or sending the SMS). When the SL level is 0, an access to the GSW1 is possible from any phone! NOTE Before any SL number is programmed the GSW1 can accept ALL CALLS. -
Page 12: Prepaid Card Credit And Validity Information
9.4 PREPAID CARD CREDIT AND VALIDITY INFORMATION GSW1 can be used with prepaid SIM cards and its limitations. To be able to overcome this limitation of the prepaid SIM cards, GSW1 offers the possibility of automatic checking mechanism for credit and time expiration. -
Page 13: Set-Up Parameters
GSW1 SIM card (telephone number of GSW1 device). 9.5.2 TST parameter A test SMS is sent periodically. GSW1 can send the test message in the interval ranging from 1 hour to 8760 hours. Example: To send test SMS TST value is set to 12, th 5 receive a test message every 12 hours. - Page 14 1 - Italian 2 - Slovenian 3 - Croatian 4 - Dutch 5 - German 6 - Spanish 9.5.7 BUZ parameter Parameter is used to control buzzer functionality on GSW1. Buzzer is used to audio support some events on GSW1.
-
Page 15: Sms Messages Editor
9.5.8 Table of parameters Name Comment Tel. number of GSW1 device Auto answer ring number SMS test time out Manual GSM provider selection ARST Time out control for automatic system restart Auto dial functionality ( Call TN1 ) Language selection... -
Page 16: Clip
Name Comment User location, same for all alarm messages Input 1, second part of message Table 13: Message parameters. Example: Programming with short text messages - SMS GSW1 PROGRAMMING TABLE Name Number Description #0House Location definition #1Kitchen Alarm input is from the kitchen... -
Page 17: Table 15: Clip Parameters
Programming with short text messages - SMS GSW1 PROGRAMMING TABLE Name Number Description LOGN 5 log events will be printed out on PLOG command LOGI Nonvolatile memory on GSW1 Log is auto cleared when full Table 18: LOG parameters example Remote programming by SMS ;LOGN=5;LOGI=0;ALC=1;... -
Page 18: Special Sms Commands
9.8.4 CLPCLR command Command is used to delete all CLP numbers. 9.8.5 MRES command Command is used to manually restart GSM module on GSW1 device. 9.8.6 SSRES command Command is used to manually restart GSW1 device. 9.8.7 Table of parameters... -
Page 19: Print-Out Of The Parameters
By sending this command to GSW1 you receive SMS messages with current SW version running on GSW1 device: ;PSW; 10.3 CHECK SIGNAL QUALITY (PSQ) By sending this command to GSW1 you receive SMS messages with signal quality GSW1 device is connected to network: ;PSQ; 10.4 RECEIVE TELEPHONE NUMBERS (PTN) -
Page 20: Receive Output Filter Value (Pod)
By sending this command to GSW1 you receive SMS message with all currently programmed direct output links: ;POD; 10.9 RECEIVE DELAY BEFORE DIAL VALUE (PDD) By sending this command to GSW1 you receive SMS message with all currently programmed Input filters: ;PDD; 10.10 RECEIVE ACCESS TELEPHONE NUMBERS (PSL) By sending this command to GSW1 you receive SMS message with programmed SL level: ;PSL;... -
Page 21: Receive All Clip Parameters (Pclp)
10.19 MANUAL GSM MODULE RESTART (MRES) By sending this command to GSW1 shuts down GSM module and after a few second it switches the power of the GSM module ON again. The unit reboots all parameters from the SIM card. -
Page 22: Changing Parameters Using The Sms Command
SMS, try next example: ;+TN1=+38640713470;IN1=1;OS1=15;ID1=120;LN1=1; Send SMS message to GSW1 telephone number and in a few seconds you receive SMS message from GSW1. The sentence of the SMS must be the same as the one you have sent to GSW1 before. -
Page 23: Default Settings On Gsw1
12 DEFAULT SETTINGS ON GSW1 GSW1 PROGRAMMING TABLE Name Default Value Short Description Telephone number 1 Empty Telephone number 2 Empty Empty Telephone number 3 Empty Telephone number 4 Empty Telephone number 5 Input 1 control Output 1 mode Input 1 direct output link... -
Page 24: Parameters Print-Out Commands
GSW1 PRINT TABLE Name Short Description Prints all parameters available on GSW1. PALL Prints SW version of GSW1. Prints GSM network signal quality of GSW1. Prints TNx numbers Prints LNx links. Prints INx parameters. Prints IDx parameters. Prints ODx parameters.
