Summary of Contents for Alkamedi AMS2100

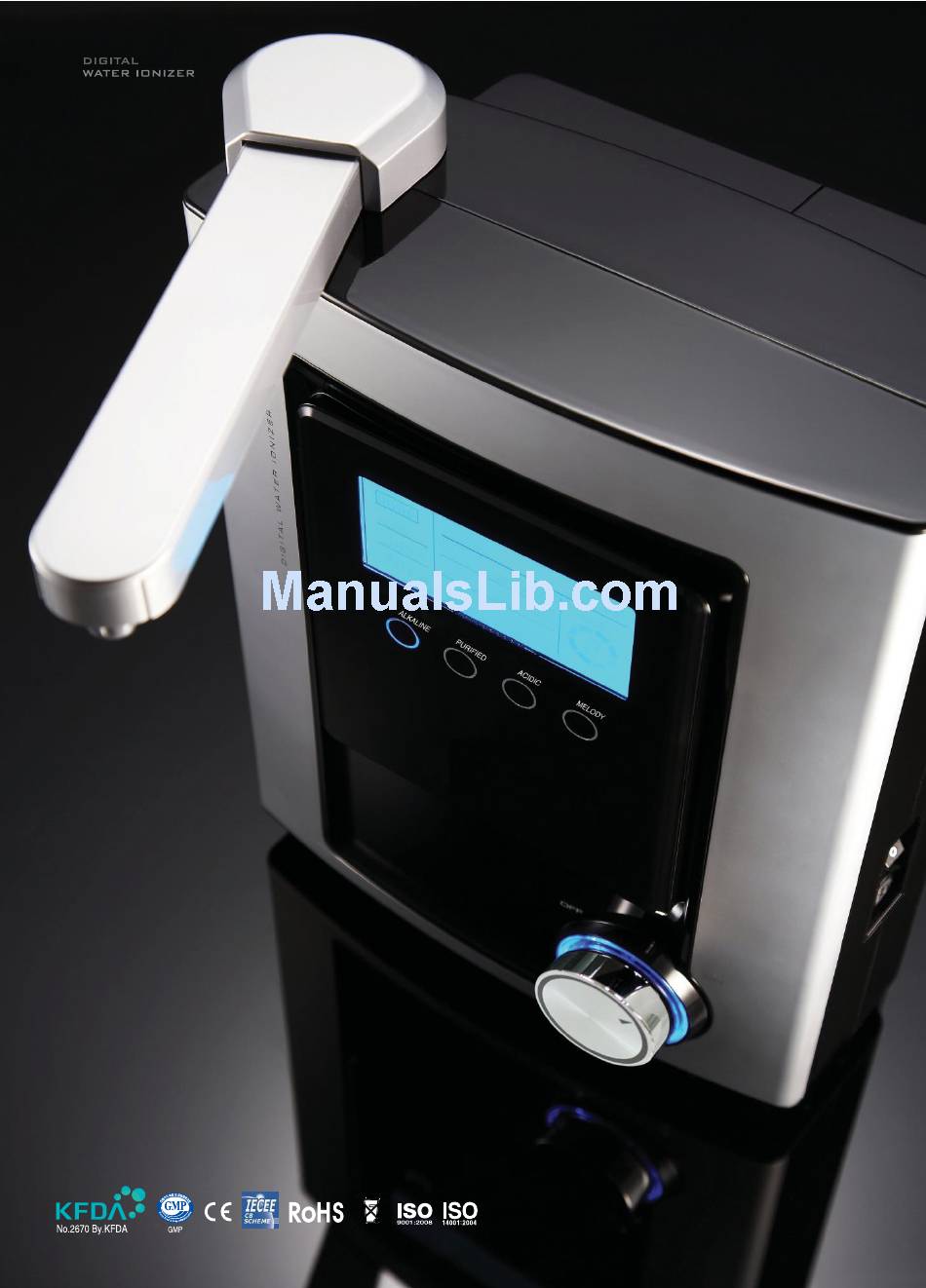

- Page 1 AMS 2100 AMS 2100S Operation Manual Make sure to read this manual to correctly use the unit. Keep the manual in an easy-to-find place for anytime reference.
-
Page 2: Table Of Contents
AMS 2 1 0 0 CONTENTS AMS 2100S Contents IMPORTANT SAFETY INSTRUCTIONS ··························································································· 3 PACKAGE CONTENTS ····················································································································· 7 APPEARANCE AND FUNCTIONAL STRUCTURE ········································································· 8 INSTALLATION ······························································································································· 10 HOW TO OPERATE ························································································································ 14 FILTER REPLACEMENT ················································································································· 19 FILTER COMPOSITION ·················································································································· 22 pH VALUE TEST ······························································································································... -
Page 3: Safety Instructions
AMS 2 1 0 0 SAFETY INSTRUCTIONS AMS 2100S ※ Make sure to read the following for your safety and protection. Warning symbol to indicate importance of danger such as fire and personal injury. Caution symbol to indicate precautions and damage to the unit. IMPORTANT DISCLAIMER NOTE ABOUT DRINKING IONIZED WATER Disclaimer: ·... - Page 4 AMS 2 1 0 0 SAFETY INSTRUCTIONS AMS 2100S ① For electrical safety If the unit is immersed in water, pull out the power plug immediately and then take the unit out of the water. Avoid an electric circuit overload an outlet or electric wiring. Connect the unit power plug to the corresponding AC voltage outlet.
- Page 5 AMS 2 1 0 0 SAFETY INSTRUCTIONS AMS 2100S ③ Operational safety guidelines Do not disassemble, repair, or modify in any situation. ▶ Personal safety could be compromised. ▶ For repair, please contact your authorized sales agent. Do not use any water other than sanitary drinking water. (municipal water, etc.) Let the unit have water input and output for 2-3 minutes before first operation of the unit after installation.
- Page 6 AMS 2 1 0 0 SAFETY INSTRUCTIONS AMS 2100S ④ Summary ·Do not give too high a drawing tension to the power cord when you pull the cord out of a socket. ·Keep the unit in a dry environment. ·Keep the unit clean away from dust, hot temperature, sunlight, salts, chemicals, etc. ·Do not attempt to modify the color, shape, or appearance of the unit.
-
Page 7: Package Contents
AMS 2 1 0 0 PACKEAGE CONTENTS AMS 2100S AMS 2100 AMS 2100S Unit Body Acidic Water One-touch Outlet Hose Reagent/ Test Tube / Fitting Safety Key Colorimeter Paper Fuse Screws and holders Water Diverter Source Water Inlet Hose Water Outlet Dispenser Cover (AMS 2100 only) •... -
Page 8: Appearance And Functional Structure
AMS 2 1 0 0 APPEARANCE AND FUNCTIONAL STRUCTURE AMS 2100S FRONT FACE 1. Front Side 2. Alkaline Water Outlet Dispenser -AMS 2100: Fold-down(hidden) type dispenser -AMS 2100S: Flexible SUS Tube Dispenser ALKALINE PURIFIED ACIDIC MELODY 3. LCD Screen (Function Indicator) 4. - Page 9 AMS 2 1 0 0 APPEARANCE AND FUNCTIONAL STRUCTURE AMS 2100S LCD SCREEN (Function Indicator Window) Filter Life Status lonize Alkaline Therm/Flow Purified Acidic Level 1. Filter Life Indicator 8. Acidic Water Choice Indicator Replace filter when it flickers Indicates the choice of acidic water 2.
- Page 10 AMS 2 1 0 0 INSTALLATION AMS 2100S VIEW OF AN INSTALLED UNIT Alkaline water comes out Main body Acidic water comes out WALL - MOUNT INSTALLATION ① Vertically attach the provided installation guide paper on the intended location of the wall after slightly pasting the guide paper with water. ②...
-
Page 11: Installation
AMS 2 1 0 0 INSTALLATION AMS 2100S INSTALLATION PROCEDURE ① Select a solid flat surface with proximity to a power supply for desired location. ② Connect the Source Water Inlet Hose to the Water Inlet Port and the Water Outlet to the Water Outlet Port. Ensure that they fit snugly. - Page 12 AMS 2 1 0 0 INSTALLATION AMS 2100S INSTALLATION PROCEDURE Connection to Faucet (Option B) ⓐ Remove aerator from faucet. Note : Pliers may be required. Faucet Type : Internal Screwed Faucet Type : External Screwed ⓑ If reqired, attach adaptor (2 sizes of adaptor are supplied for use supplied for use) before attaching water faucet diverter to faucet.
- Page 13 AMS 2 1 0 0 INSTALLATION AMS 2100S USAGE OF THE ALKALINE WATER OUTLET DISPENSER The Alkaline Water Outlet dispenser on the top of the unit is a fold-down type. Handle the dispenser as per the following diagram. ① ② ③...
-
Page 14: How To Operate
AMS 2 1 0 0 HOW TO OPERATE AMS 2100S TO OPERATE-POWER / WATER SUPPLY � Plug in the AC power plug firmly. � Filter Life Turn on the main power switch on the right side. ▶ The unit will beep and the LCD screen will display lonize Alkaline Therm/Flow... -
Page 15: How To Operate
AMS 2 1 0 0 HOW TO OPERATE AMS 2100S HOW TO OUTPUT ALKALINE IONIZED WATER � Rotate the operation knob clockwise to have water inflow into the unit. � Push the Alkaline Water button and choose the pH level by pushing the button repeatedly. - Page 16 AMS 2 1 0 0 HOW TO OPERATE AMS 2100S TO OUTPUT ACIDIC IONIZED WATER � Rotate the operation knob clockwise to have water inflow into the unit. ▶ Alkaline water mode appears initially. � Push the Acidic water button for acidic water outlet mode. ▶...
- Page 17 AMS 2 1 0 0 HOW TO OPERATE AMS 2100S HOW TO OUTPUT PURIFIED WATER � Rotate the operation knob clockwise to have water inflow into the unit. ▶ Alkaline water mode appears initially. � Push the Purified Water Button for purified water outlet mode. ▶...
- Page 18 AMS 2 1 0 0 HOW TO OPERATE AMS 2100S MELODY ON/OFF � Just push the melody button to turn the melody sound on or off. ▶ Push the Melody Button, and the melody sound will be mute. ▶ Push the Melody Button once again, and the melody sound will be on with appearance of a melody icon on the LCD Screen.
-
Page 19: Filter Replacement
AMS 2 1 0 0 FILTER REPLACEMENT AMS 2100S FILTER REPLACEMENT � Replace the filter when the Filter Life Indicator flickers. It is the filter replacement timing when the icon flickers. The icon starts flickering when 3% of the full filter life remains available ▶... -
Page 20: Filter Replacement
AMS 2 1 0 0 FILTER REPLACEMENT AMS 2100S � Insert the new authorized filter. 3. Connect the Filter 1. Insert the new filter 2. Push the filter down Connection Terminal. cartridge. and simultaneously drag the filter handle. Filter handle 1. - Page 21 FILTER REPLACEMENT Please consider replacing the filter with a new one even if the Filter Life Filter Life Indicator is not indicating the replacement timing ( ), in the event of the following abnormal conditions. ▶ Noticeable decrease in water outflow from the unit or a strange smell from outlet water. This could indicate that the filter is clogged due to a higher than expected level of pollutants.
- Page 22 AMS 2 1 0 0 AMS 2100S...
-
Page 23: Filter Composition
AMS 2 1 0 0 FILTER COMPOSITION AMS 2100S CARBON FILTER COMPOSITION 7 - Step Comprehensive Water Purification(Standard) *Sediment filters big particles, substances, rust, and dirt, etc. *Pre-activated Carbon provides first round activated carbon filtering of impurities to improve color and tastes of water while removing odor. *Calcium removes residual chlorine in the source water. -
Page 24: Ph Value Test
AMS 2 1 0 0 pH VALUE TEST AMS 2100S TESTING THE pH � Fill up to 2/3 of each provided test tube or a glass container with alkaline ionized water, acidic ionized water and tap(city) water respectively. � After putting up to five drops of pH test reagent into each tube, shake the tube or container properly to mix well. -
Page 25: Troubleshooting
AMS 2 1 0 0 TROUBLESHOOTING AMS 2100S Abnormal condition Cause Treatment ·Insufficient water inflow. ·Increase water inflow. ·A power cord is not properly ·Ensure that power cord is plugged in Main power lamp does plugged in. correctly. not come on. ·The fuse is blown. - Page 26 AMS 2 1 0 0 TROUBLESHOOTING AMS 2100S Abnormal condition Cause Treatment ·Filter life (longevity) is expired. ·Filter life is extremely shortened as ·Filter replacement is needed. poor quality water is used. Strange smell from output water. ·Due to sudden change of source ·Select pH level 1~2 i.e.
-
Page 27: Unit Specifications
AMS 2 1 0 0 UNIT SPECIFICATIONS AMS 2100S UNIT SPECIFICATIONS Product Manufacture Permission No. No.2670 by KFDA Product Classification Medical substance generator (Ionized water generator) Model AMS 2100 & AMS 2100S AC 230V 50Hz (Different voltage and Hz to be available as per user’s Input Voltage requirement) Power Consumption... -
Page 28: Warranty Card
AMS 2 1 0 0 WARRANTY CARD AMS 2100S WARRANTY CARD Product Model No Name Purchase Serial No date ☎ Shop name Seller Address ☎ Name Buyer Address This product passed the precies inspection under strict quality control. In case the product is found to have any defect in production or to get any spontaneous mechanical malfunction within the warranty term, return the unit to our sales agency, distributor or our service centre along with this warranty sheet for repair free of charge. - Page 29 Such water used for quality test at the factory may remain inside of the unit Producer : Alkamedi Co., Ltd. Address : Megavalley 601, 602-ho, 268, Hagui-ro, Dongan-gu, Anyang-si, Gyeonggi-do 431-767, Rep. of Korea Ver.2 -1404 Marketed by : SUZUION TECHNOLOGIES PVT LTD.
