Summary of Contents for Perfect Aire 4PADP95

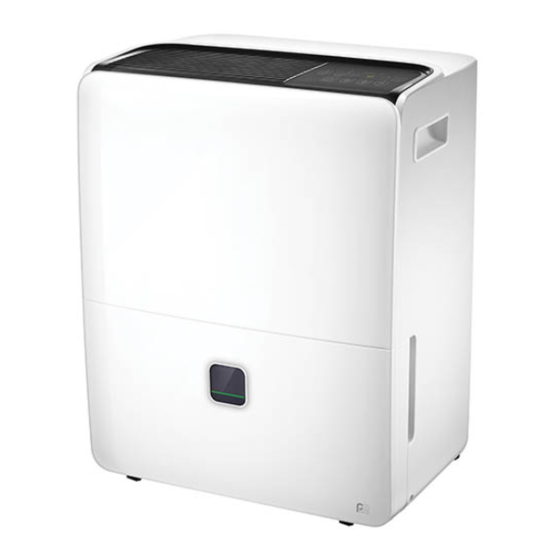

- Page 1 DEHUMIDIFIER USER MANUAL FOR MODEL: 4PADP95 Before using your dehumidifier, please read this manual carefully and keep it for future reference, along with your receipt. Be sure to read the QUICK START TIPS on the next page...
- Page 2 QUICK START TIPS IT IS HIGHLY SUGGESTED THAT THE MANUAL BE READ IN FULL BEFORE OPERATING THE UNIT. However, the notes below are especially important in helping you to properly set up and begin to use your dehumidifier. 1. The dehumidifier should be kept upright. If for any reason it has not been stored upright while in your possession, put the unit in an upright position for a minimum of 24 hours before running it.
-
Page 3: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ..............1 ELECTRICAL INFORMATION ............2 CONTROL PADS ON THE DEHUMIDIFIER ........3 IDENTIFICATION OF PARTS ............5 OPERATING THE UNIT ..............6 CARE AND MAINTENANCE ............9 TROUBLESHOOTING ...............10 This manual provides the information needed for proper use and maintenance of this dehumidifier. Basic preventative care can help extend the life of this unit. The “Troubleshooting”... -
Page 4: Safety Precautions
SAFETY PRECAUTIONS READ SAFETY PRECAUTIONS BEFORE INSTALLATION To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. -
Page 5: Electrical Information
CAUTIONS DO NOT use the unit in small spaces. Lack of ventilation can cause overheating and fire. DO NOT put in places where water may splash onto the Water entering unit can degrade the insulation and unit. cause electric shock or fire. Place the unit on a level, sturdy section of the floor. -
Page 6: Control Pads On The Dehumidifier
CONTROL PADS ON THE DEHUMIDIFIER Auto Defrost ON Bucket Full NOTE: The control Indicator Light Indicator Light panel of the unit you purchased may be slightly Defrost Full different according to the models. TIMER POWER CONT. PUMP COMFORT FILTER TURBO FIG. - Page 7 Perfect Aire Consumer Services at Unplug the unit for at least 5 minutes and plug 844.472.2473. it back in. If error repeats, call Perfect Aire ES – TEMPERATURE SENSOR ERROR Consumer Services at 844.472.2473. Unplug the unit for at least 5 minutes and plug EC –...
-
Page 8: Identification Of Parts
IDENTIFICATION OF PARTS FRONT REAR 1. Control Panel 1. Continuous Drain Hose Outlet 2. Air Outlet Grille 2. Casters 3. Water Bucket 3. Power Cord & Plug 6. Handle (both sides) 4. Pump drain hose outlet 5. Band (used only FIG. -
Page 9: Operating The Unit
OPERATING THE UNIT POSITIONING THE UNIT A dehumidifier operating in one room will have little or no effect in FIG. 6 drying an adjacent enclosed area, such as a closet, or other room unless there is adequate circulation of air in and out of the area. 16"... - Page 10 REMOVING THE COLLECTED WATER: 3 OPTIONS OPTION 1: USE THE BUCKET OPTION 1: USE THE BUCKET A dehumidifier operating in one room will have little or no effect in FIG. 7 FIG. 8 drying an adjacent enclosed area, such as a closet, or other room unless there is adequate circulation of air in and out of the area.
- Page 11 OPTION 3: PUMP DRAINING OPTION 3: PUMP DRAINING Water can be automatically emptied into a floor drain or a suitable drainage facility by attaching the pump drain out with a pump drain hose FIG. 13 φ 1/4", supplied). • Remove the continuous drain hose from the unit and install the plastic cover to the continuous drain hose outlet of the unit by rotating it clockwise.
-
Page 12: Care And Maintenance
CARE AND MAINTENANCE CARE AND CLEANING OF THE DEHUMIDIFIER TURN THE DEHUMIDIFIER OFF AND REMOVE THE PLUG FROM THE WALL OUTLET BEFORE CLEANING. 1. CLEAN THE GRILLE AND CASE • Use a damp cloth with water and a mild detergent. Do not use bleach or abrasives. -
Page 13: Troubleshooting
TROUBLESHOOTING BEFORE CALLING FOR SERVICE, PLEASE REVIEW THE CHART BELOW ISSUE POSSIBLE CAUSES • Turn off unit and unplug 4-6 hours. • Plug unit back in. Run in Normal mode (no Turbo fan, not on Continuous operation) and set humidity level to no more than 5% lower humidity than what the display reads for the room humidity. AUTO DEFROST •... - Page 14 BEFORE CALLING FOR SERVICE, PLEASE REVIEW THE CHART BELOW ISSUE POSSIBLE CAUSES • Be sure unit is not too large or too small for the area of the room. • Allow enough time for unit to remove moisture. • If set on CONTINUOUS mode, de-select button and set unit to an appropriate humidity setting.
- Page 16 Distributed by: Perfect Aire, LLC 5401 Dansher Rd. Countryside, IL 60525 844-4PA-AIRE | 844-472-2473 www.perfectaire.us PA/User_4PADP95/11082017 Specification and performance data is subject to change without notice. Printed in China...
