Summary of Contents for RESOURCE XPRESS QX+

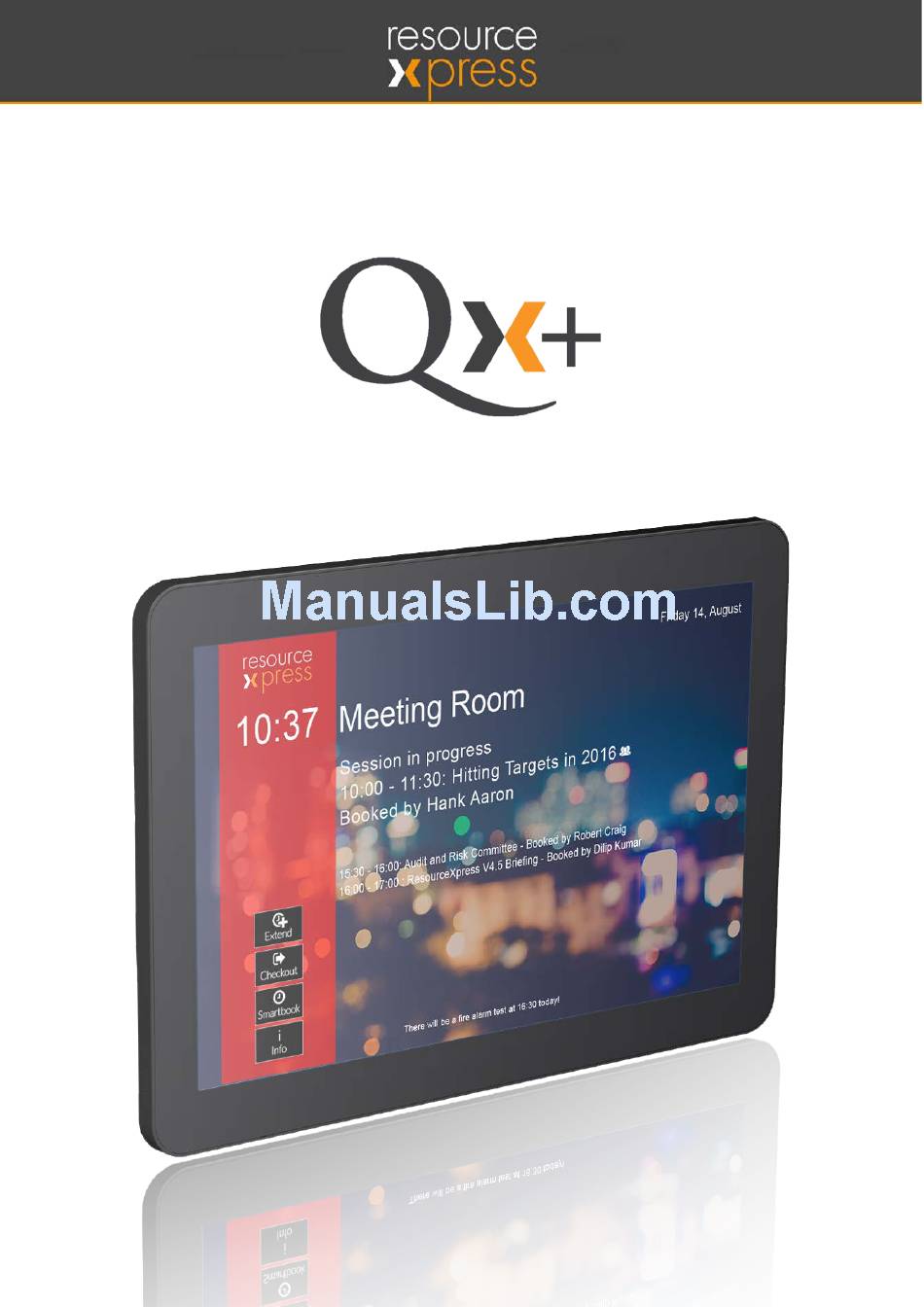

  • Page 1 Configuration & Installation Guide...
  • Page 2 Copyright No part of this publication may be reproduced, transcribed, transmitted, stored in a retrieval system or translated into any language, in any form or by any means mechanical, manual, electronic, magnetic, chemical, optical, including photocopying or otherwise without the prior written permission of QED Advanced Systems Ltd.
  • Page 3: Table Of Contents

    Contents Package Contents ............................4 Pre-Requisites ............................... 4 Qx+ Description ............................4 Specification ..............................5 Rear Panel Controls ..........................6 Procedures ..............................7 Power On .............................. 7 Configure Wi-Fi ............................. 7 Ethernet Configuration ........................10 Configure ResourceXpress URL ......................11 Appendix A: Changing the Default Security PIN ..................
  • Page 4: Package Contents

    Package Contents Qx+ Meeting Room Screen Mains Power Adapter Pre-Requisites ResourceXpress server with at least one room profile configured for use with a Qx+ screen. Local mains outlet and 802.11b/g/n Wi-Fi network or RJ45 LAN connection port Qx+ Description Qx+ is the wireless Android touchscreen for use with the ResourceXpress innovative and intelligent resource management system It has a large 10.1”...
  • Page 5: Specification

    Specification Panel Information Screen size 10.1” Resolution 1280 x 800 Brightness 450 cd/m Contrast Ratio 600:1 Aspect ratio 16:9 Viewing Angle 80/80-80/80 Touch Technology Capacitive 5 Point Hardware and OS Quad Core,1.6GHz Graphics Hardware RK 616 Internal Memory 2GB, DDR SDRAM Flash Memory 8GB NAND Flash Operating System...
  • Page 6: Rear Panel Controls

    Rear Panel Controls SD Slot and Cover Menu/Enter Button Function Keys Up/Down Function Keys Up/Down Bottom Power Switch DC In Mini HDMI Out Add-in module slot Micro USB USB Type A Ethernet RJ45 Smart Resource Booking Technology www.resourcexpress.com...
  • Page 7: Procedures

    Procedures Power On Ensure the screen is connected to a power supply using the provided power cable. The LED (See 1 above) will be lit up on the top edge of the device. Configure Wi-Fi After the power up sequence the image below will be displayed on the screen. Touch the four corners of the screen starting top left and going clockwise, as indicated by the numbers below.
  • Page 8 After entering the current PIN a panel at the top of the screen will appear, select the three dots in the top right corner. From this menu select Quit. Pressing the Menu/Enter button (No 3 on Rear Panel Controls Illustration) on the top of the panel will exit to the screen as shown below.
  • Page 9 Select Wi-Fi. (Ensure it is switched to ON) Choose the correct network and enter the password. Press the Menu/Enter button (No 3 on Rear Panel Controls Illustration) on the top of the panel to return to the Home Screen. Smart Resource Booking Technology www.resourcexpress.com...
  • Page 10: Ethernet Configuration

    Ethernet Configuration From the Home screen select Settings, then select More…, followed by Ethernet to turn the feature on. Smart Resource Booking Technology www.resourcexpress.com...
  • Page 11: Configure Resourcexpress Url

    Configure ResourceXpress URL As when configuring Wi-Fi, touch the four corners of the screen, starting from top left and going clockwise. The PIN code prompt will appear. (The default PIN code is 11223344) Smart Resource Booking Technology www.resourcexpress.com...
  • Page 12 After entering the current PIN a panel at the top of the screen will appear, select the three dots in the top right corner. From this menu select Screen URL. This will display a text field as shown below. Enter the correct URL for the appropriate resource profile (see ResourceXpress Administration &...
  • Page 13: Appendix A: Changing The Default Security Pin

    Appendix A: Changing the Default Security PIN To change the security PIN from the default 11223344, touch the four corners of the screen starting from the top left and going clockwise (as previously described), a prompt for the current PIN code will then appear. After entering the current PIN, a panel at the top of the screen will appear, select the three dots in the top right corner.
  • Page 14: Appendix B: Mounting Instructions

    Appendix B: Mounting Instructions (Slim-line VESA Bracket) Glass Walled Rooms 1. Using a suitable spirit level, where the screen is to be located, mark the position where the bracket is to be mounted with marker pen or masking tape. The recommended height to the centre of the screen from the floor level is 1500mm.
  • Page 15 5. Leave the bracket to fully bond for a minimum of 24 hours before checking the unit is bonded securely. Screens should not be fitted until this time has elapsed (Note: pressure, time and warmth all promote a good bond). 6.
  • Page 16: Solid Or Partition Walls

    Solid or Partition Walls 1. Using a suitable spirit level, where the screen is to be located, mark the position where the bracket is to be located with a marker pen. The recommended height to the centre of the screen from the floor level is 1500mm 9.
  • Page 17: Appendix C: Safety And Warnings

    Appendix C: Safety and Warnings NOTE This mark is applied to indicate that the equipment conforms to European safety and electro-magnetic compatibility standards. WARNING! Main supply: This equipment is designed to operate from 100-200Volt, 50/60Hz AC main supply. The use of other power sources may damage this equipment. Check that the voltage marked on the rating plate located at the rear of the power adapter states 100-240V.
