LUXNA LXFRD10APP Installation Instructions

LuxnaControl APP Gateway Kit

Installation Instructions

Please read these instructions carefully before installation
Leave a copy for the user/maintenance engineer for future reference
Download the LUXNAControl APP for iOS or Android.
Link to your smartphone or tablet using the LUXNA APP
Gateway Kit via your network connection.
Visit the website for further details and setup information.

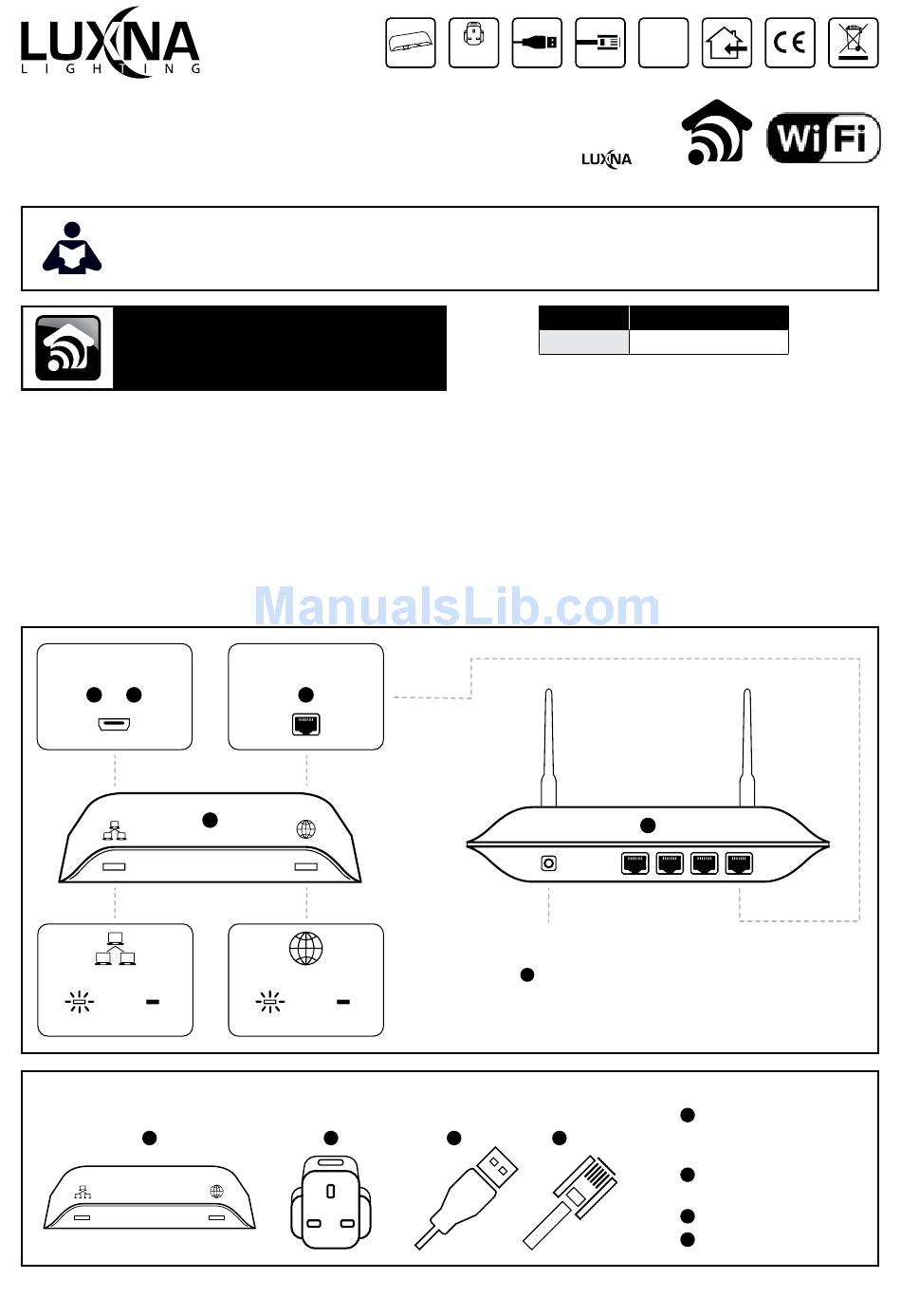

Quick Setup Guide
• This LUXNA APP Gateway Kit is for use with LUXNA Lighting
APP LED Downlights – Part No. LXFRD10APP
• Using the pack contents supplied, follow the diagram below
to install the LUXNA APP Gateway Kit and connect to your
network router.
• Please observe the recommended maximum distances
between products for secure connection.
Power Input
+
2 3
Local Network Status
Blink offline Steady online
Pack contents
1
Issue: LXFRDGWV1.616
Network Input
4
1
Remote Network Status
Blink offline Steady online
2
Smart USB Power
Power
Gateway Adapter Cable
Part No.
LXFRD10/GW
• The first APP Downlight in the room should be
installed within 10 metres of the APP Gateway location.
The distance between the last APP Downlight and the first
App Downlight in adjacent rooms should be less than 5m.
• The maximum number of APP Downlights which can be
connected to 1 APP Gateway is 200. Additional APP Gateway
Kits can be connected to expand the system if required.
Power Input
Note – The Wi-Fi Router shown in this
5
document is for illustration purposes only
and is not included with the contents.
3 4
Ethernet
2 Year
Warranty
Cable
Control
A U T O M A T E Y O U R W O R L D
Description
APP Gateway Kit
5
Luxna APP Gateway.
1
Wireless: 2.4GHz,
Input: DC 5V (USB)
Power Adapter
2
Input: AC 100 - 240V.
USB Power Cable.
3
Ethernet Network Cable.
4
www.luxna-lighting.com
