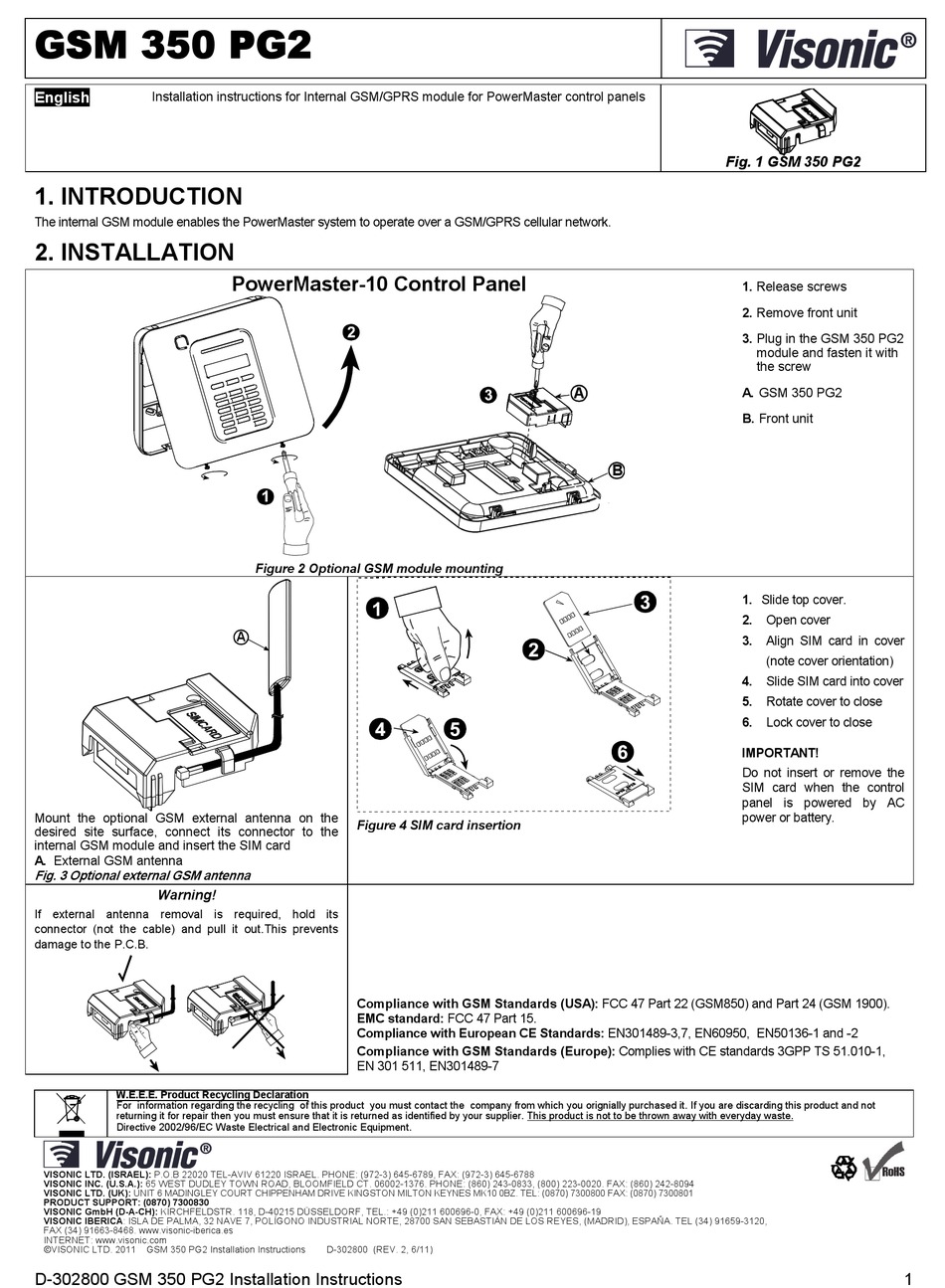

Visonic GSM 350 PG2 Installation Instructions

GSM 350 PG2
English
Installation instructions for Internal GSM/GPRS module for PowerMaster control panels
1. INTRODUCTION
The internal GSM module enables the PowerMaster system to operate over a GSM/GPRS cellular network.
2. INSTALLATION
Mount the optional GSM external antenna on the
desired site surface, connect its connector to the
internal GSM module and insert the SIM card
A. External GSM antenna
Fig. 3 Optional external GSM antenna
Warning!
If external antenna removal is required, hold its
connector (not the cable) and pull it out.This prevents
damage to the P.C.B.
W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you must contact the company from which you orignially purchased it. If you are discarding this product and not
returning it for repair then you must ensure that it is returned as identified by your supplier. This product is not to be thrown away with everyday waste.
Directive 2002/96/EC Waste Electrical and Electronic Equipment.
VISONIC LTD. (ISRAEL): P.O.B 22020 TEL-AVIV 61220 ISRAEL. PHONE: (972-3) 645-6789, FAX: (972-3) 645-6788
VISONIC INC. (U.S.A.): 65 WEST DUDLEY TOWN ROAD, BLOOMFIELD CT. 06002-1376. PHONE: (860) 243-0833, (800) 223-0020. FAX: (860) 242-8094
VISONIC LTD. (UK): UNIT 6 MADINGLEY COURT CHIPPENHAM DRIVE KINGSTON MILTON KEYNES MK10 0BZ. TEL: (0870) 7300800 FAX: (0870) 7300801
PRODUCT SUPPORT: (0870) 7300830
VISONIC GmbH (D-A-CH): KIRCHFELDSTR. 118, D-40215 DÜSSELDORF, TEL.: +49 (0)211 600696-0, FAX: +49 (0)211 600696-19
VISONIC IBERICA: ISLA DE PALMA, 32 NAVE 7, POLÍGONO INDUSTRIAL NORTE, 28700 SAN SEBASTIÁN DE LOS REYES, (MADRID), ESPAÑA. TEL (34) 91659-3120,
FAX (34) 91663-8468. www.visonic-iberica.es
INTERNET: www.visonic.com
VISONIC LTD. 2011
GSM 350 PG2 Installation Instructions
D-302800 GSM 350 PG2 Installation Instructions
PowerMaster-10 Control Panel
1
Figure 2 Optional GSM module mounting
A
Figure 4 SIM card insertion
Compliance with GSM Standards (USA): FCC 47 Part 22 (GSM850) and Part 24 (GSM 1900).
EMC standard: FCC 47 Part 15.
Compliance with European CE Standards: EN301489-3,7, EN60950, EN50136-1 and -2
Compliance with GSM Standards (Europe): Complies with CE standards 3GPP TS 51.010-1,
EN 301 511, EN301489-7
D-302800 (REV. 2, 6/11)
Fig. 1 GSM 350 PG2
1. Release screws
2. Remove front unit
3. Plug in the GSM 350 PG2
A
A. GSM 350 PG2
B. Front unit
B
1. Slide top cover.
2.
3.
4.
5.
6.
IMPORTANT!
Do not insert or remove the
SIM card when the control
panel is powered by AC
power or battery.
module and fasten it with
the screw
Open cover
Align SIM card in cover
(note cover orientation)
Slide SIM card into cover
Rotate cover to close
Lock cover to close
1
