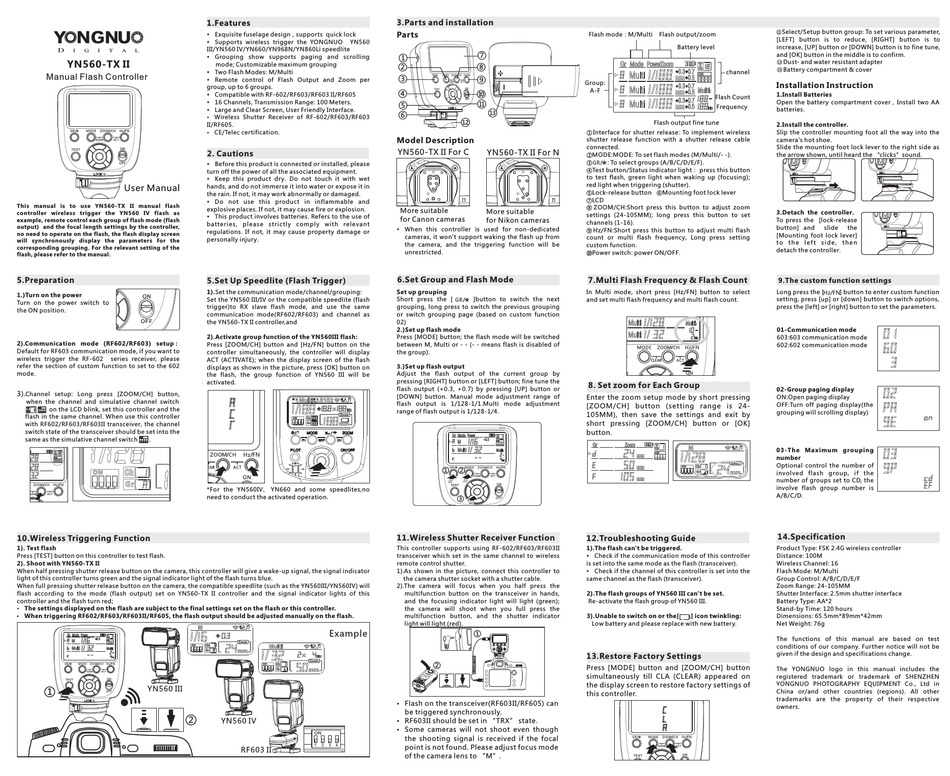

YN560-TX II
User Manual
This manual is to use YN560-TX II manual flash
controller wireless trigger the YN560 IV flash as
example, remote control each group of flash mode (flash
output) and the focal length settings by the controller,
no need to operate on the flash, the flash display screen
will synchronously display the parameters for the
corresponding grouping. For the relevant setting of the
flash, please refer to the manual.
5.Preparation
1.)Turn on the power
Turn on the power switch to
the ON position.
2).Communication mode (RF602/RF603) setup：
Default for RF603 communication mode, if you want to
wireless trigger the RF-602
series receiver, please
refer the section of custom function to set to the 602
mode.
3).
Channel setup: Long press [ZOOM/CH] button,
when the channel and simulative channel switch
on the LCD blink, set this controller and the
flash in the same channel. When use this controller
with RF602/RF603/RF603II transceiver, the channel
switch state of the transceiver should be set into the
same as the simulative channel switch
.
10.Wireless Triggering Function
1). Test flash
Press [TEST] button on this controller to test flash.
2). Shoot with YN560-TX II
When half pressing shutter release button on the camera, this controller will give a wake-up signal, the signal indicator
light of this controller turns green and the signal indicator light of the flash turns blue.
When full pressing shutter release button on the camera, the compatible speedlite (such as the YN560III/YN560IV) will
flash according to the mode (flash output) set on YN560-TX II controller and the signal indicator lights of this
controller and the flash turn red;
The settings displayed on the flash are subject to the final settings set on the flash or this controller.
Ÿ
Ÿ
When triggering RF602/RF603/RF603II/RF605, the flash output should be adjusted manually on the flash.
1.Features
Ÿ
Exquisite fuselage design，supports quick lock
Supports wireless trigger the YONGNUO YN560
Ÿ
III/YN560 IV/YN660/YN968N/YN860Li speedlite
Ÿ
Grouping show supports paging and scrolling
mode; Customizable maximum grouping
Ÿ
Two Flash Modes: M/Multi
Ÿ
Remote control of Flash Output and Zoom per
group, up to 6 groups.
Ÿ
Compatible with RF-602/RF603/RF603 II/RF605
Ÿ
16 Channels, Transmission Range: 100 Meters.
Ÿ
Large and Clear Screen, User Friendly Interface.
Wireless Shutter Receiver of RF-602/RF603/RF603
Ÿ
II/RF605.
CE/Telec certification.
Ÿ
2. Cautions
Ÿ
Before this product is connected or installed, please
turn off the power of all the associated equipment.
Keep this product dr y. Do not touch it with wet
Ÿ
hands, and do not immerse it into water or expose it in
the rain. If not, it may work abnormally or damaged.
Ÿ
Do not use this product in inflammable and
explosive places. If not, it may cause fire or explosion.
Ÿ
This product involves batteries. Refers to the use of
ba t te r i e s , p l e a s e s t r i c t l y c o m p l y w i t h re l e va n t
regulations. If not, it may cause property damage or
personally injur y.
5.Set Up Speedlite (Flash Trigger)
1).Set the communication mode/channel/grouping:
Set the YN560 III/IV or the compatible speedlite (flash
trigger)to RX slave flash mode, and use the same
communication mode(RF602/RF603) and channel as
the YN560-TX II controller,and
2).Activate group function of the YN560III flash:
Press [ZOOM/CH] button and [Hz/FN] button on the
controller simultaneously, the controller will display
ACT (ACTIVATE); when the display screen of the flash
displays as shown in the picture, press [OK] button on
the flash, the group function of YN560 III will be
activated.
*For the YN560IV、 YN660 and some speedlites,no
need to conduct the activated operation.

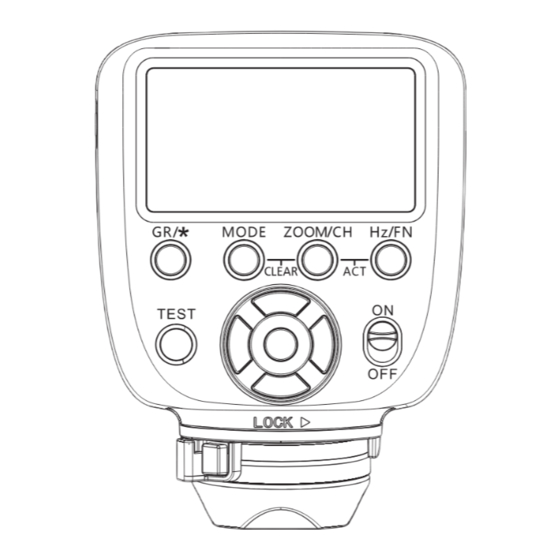

3.Parts and installation
Parts
⑦
①
⑧
②
③
⑨
④
⑩
⑤
⑥
Model Description
YN560-TX II For C
YN560-TX II For N
More suitable
More suitable
for Canon cameras
for Nikon cameras
Ÿ
When this controller is used for non-dedicated
cameras, it won't support waking the flash up from
the camera, and the triggering function will be
unrestricted.
6.Set Group and Flash Mode
Set up grouping
Short press the [
]button to switch the next
grouping, long press to switch the previous grouping
or switch grouping page (based on custom function
02)
2.)Set up flash mode
Press [MODE] button; the flash mode will be switched
between M, Multi or - - (- - means flash is disabled of
the group).
3.)Set up flash output
Adjust the flash output of the current group by
pressing [RIGHT] button or [LEFT] button; fine tune the
flash output (+0.3, +0.7) by pressing [UP] button or
[DOWN] button. Manual mode adjustment range of
flash output is 1/128-1/1.Multi mode adjustment
range of flash output is 1/128-1/4.
③
11.Wireless Shutter Receiver Function
This controller supports using RF-602/RF603/RF603II
transceiver which set in the same channel to wireless
remote control shutter.
1).As shown in the picture, connect this controller to
the camera shutter socket with a shutter cable.
2).The camera will focus when you half press the
multifunction button on the transceiver in hands,
and the focusing indicator light will light (green);
the camera will shoot when you full press the
multifunction button, and the shutter indicator
light will light (red).
①
②
Flash on the transceiver(RF603II/RF605) can
Ÿ
be triggered synchronously.
RF603II should be set in " TRX" state.
Ÿ
Some cameras will not shoot even though
Ÿ
the shooting signal is received if the focal
point is not found. Please adjust focus mode
of the camera lens to "M".
Flash mode：M/Multi
Flash output/zoom
Batter y level
channel
Group:
A-F
Flash Count
Frequency
Flash output fine tune
① Interface for shutter release: To implement wireless
shutter release function with a shutter release cable
connected.
②MODE:MODE: To set flash modes (M/Multi/- -).
③
: To select groups (A/B/C/D/E/F).
④Test button/Status indicator light： press this button
to test flash, green light when waking up (focusing);
red light when triggering (shutter).
⑤Lock-release button ⑥Mounting foot lock lever
⑦LCD
⑧ ZOOM/CH:Short press this button to adjust zoom
settings (24-105MM); long press this button to set
channels (1-16).
⑨ Hz/FN:Short press this button to adjust multi flash
count or multi flash frequency, Long press setting
custom function.
⑩Power switch: power ON/OFF.
7.Multi Flash Frequency & Flash Count
In Multi mode, short press [Hz/FN] button to select
and set multi flash frequency and multi flash count.
8. Set zoom for Each Group
Enter the zoom setup mode by short pressing
[ZOOM/CH] button (setting range is 24-
105MM), then save the settings and exit by
short pressing [ZOOM/CH] button or [OK]
button.
12.Troubleshooting Guide
1).The flash can't be triggered.
Check if the communication mode of this controller
Ÿ
is set into the same mode as the flash (transceiver).
Check if the channel of this controller is set into the
Ÿ
same channel as the flash (transceiver).
2).The flash groups of YN560 III can't be set.
Re-activate the flash group of YN560 III.
3).Unable to switch on or the[
] icon twinkling:
Low batter y and please replace with new batter y.
13.Restore Factor y Settings
Press [MODE] button and [ZOOM/CH] button
simultaneously till CLA (CLEAR) appeared on
the display screen to restore factor y settings of
this controller.
Select/Setup button group: To set various parameter,
[LEFT] button is to reduce, [RIGHT] button is to
increase, [UP] button or [DOWN] button is to fine tune,
and [OK] button in the middle is to confirm.
Dust- and water resistant adapter
Batter y compartment & cover
Installation Instruction
1.Install Batteries
Open the batter y compartment cover， Install two AA
batteries.
2.Install the controller.
Slip the controller mounting foot all the way into the
camera's hot shoe.
Slide the mounting foot lock lever to the right side as
the arrow shown, until heard the "clicks"sound.
3.
Detach the controller.
To press the [lock-release
button] and
slide
the
[Mounting foot lock lever]
t o t h e l e f t s i d e , t h e n
detach the controller.
9.The custom function settings
Long press the [
] button to enter custom function
setting, press [up] or [down] button to switch options,
press the [left] or [right] button to set the parameters.
01-Communication mode
603:603 communication mode
602:602 communication mode
02-Group paging display
ON:Open paging display
OFF:Turn off paging display(the
grouping will scrolling display)
0 3 - T h e M a x i m u m g ro u p i n g
number
Optional control the number of
involved flash group, if the
number of groups set to CD, the
involve flash group number is
A/B/C/D.
14.Specification
Product Type: FSK 2.4G wireless controller
Distance: 100M
Wireless Channel: 16
Flash Mode: M/Multi
Group Control: A/B/C/D/E/F
Zoom Range: 24-105MM
Shutter Interface: 2.5mm shutter interface
Batter y Type: AA*2
Stand-by Time: 120 hours
Dimensions: 65.5mm*89mm*42mm
Net Weight: 76g
The functions of this manual are based on test
conditions of our company. Further notice will not be
given if the design and specifications change.
The YONGNUO logo in this manual includes the
registered trademark or trademark of SHENZHEN
YONGNUO PHOTOGRAPHY EQUIPMENT Co., Ltd in
China or/and other countries (regions). All other
trademarks are the proper ty of their respective
owners.
