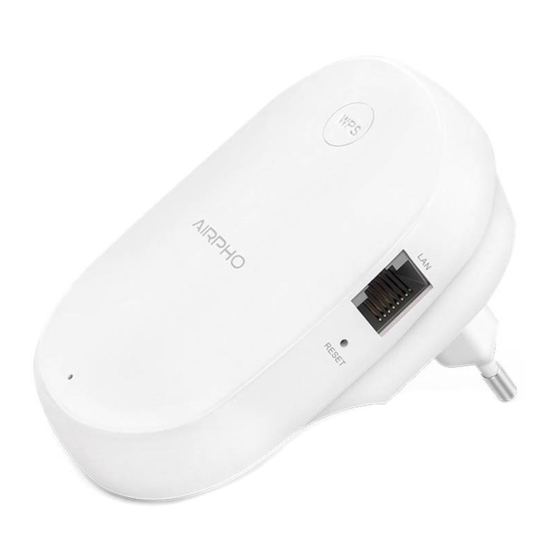

Airpho AR-E200 Installation Manual

Quick
Installation Guide
300Mbps Wi-Fi Range Extender
AR-E200
Airpho Technology Co.,Ltd
Web: www.airpho.com
LED Explanations
Status Color Indication
The Extender is connected to the
Green
router, and is in good location.
On
Red There is no active connection.
WPS connection is in progress.
Blinking Red
Off
– – The Extender is off.
METHOD ONE
Quick Setup Using the WPS Button
1
Power on the Extender
Plug the Extender into an electrical outlet next to your router.
Wait about 1 minute
until the LED is lit in
solid red.
2
Connect to the Extender's network
1. Press the WPS button on your router.
2.Press the WPS button on your Extender within 1 minute.
The LED should turn from
blinking red to solid green,
indicating a successful WPS
connection. If not, please try
METHOD TWO.
3
Relocate the extender
1.Plug in the Extender into an electrical outlet halfway
between your router and the Wi-Fi dead zone. You
need to make sure the location you choose is within
the range of your host network.
2.Wait about 1 minute until the LED is lit and solid
green. If not, relocate it closer to the router to achieve
better signal quality.
AR-E200
Host Network Extended Network
