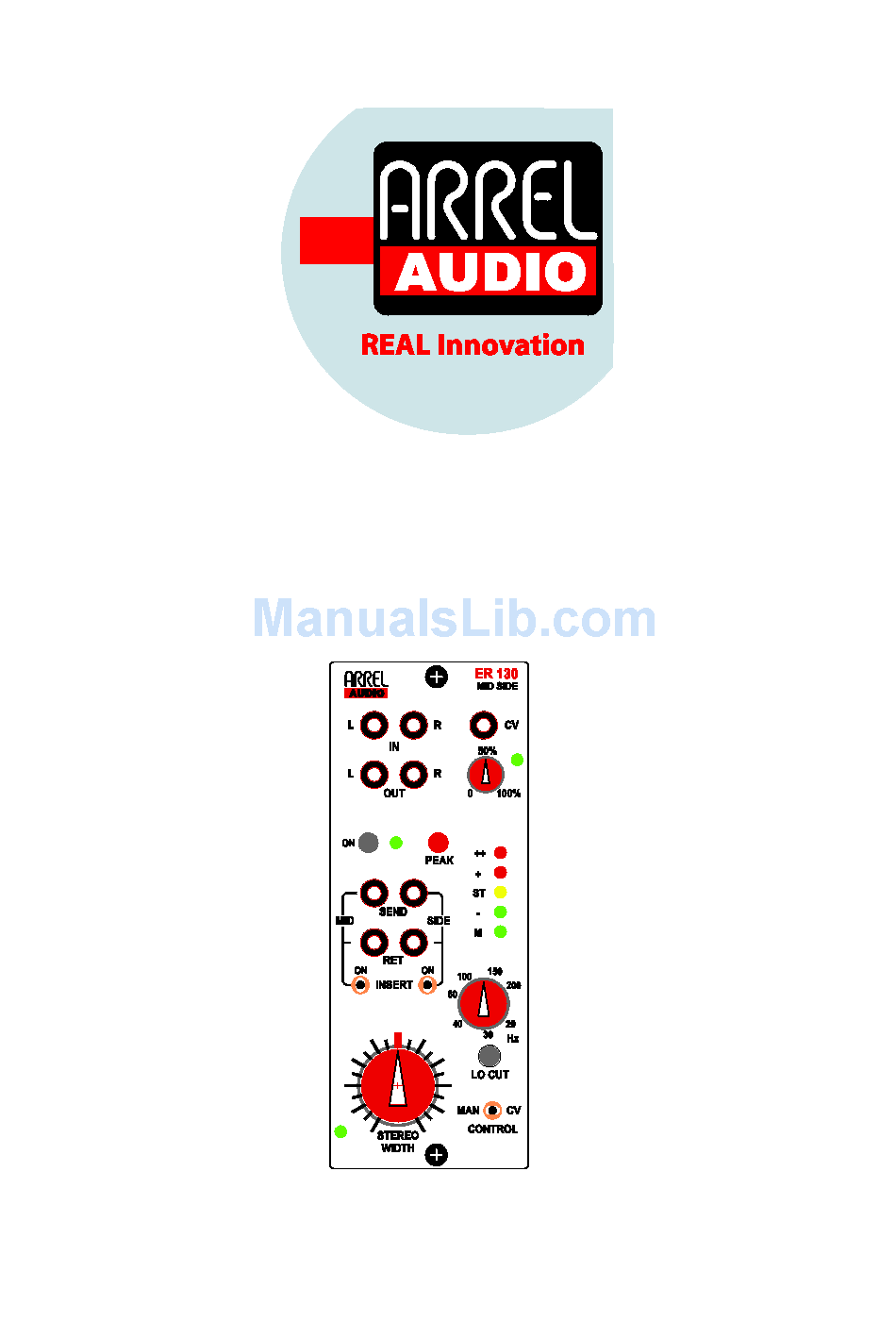

- Page 1 ER-130 Eurorack Voltage Controlled MID-SIDE Unit User Manual Issue 0.0...
-
Page 2: Safety Instructions
[Information on Disposal in other Countries outside the European Union] This symbol is only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal. ER-130 User Manual, Issue 0.1 Page 2... -
Page 3: Arrel Audio Contacts
Web: www.arrel-audio.com Support: http://www.arrel-audio.com/support ARREL Audio is continuously working to the improvement of its systems and related documentation. In any case, we reserve the right to change the specifications without notice but in the respect to the current legislation. Disclaimer: The information contained in this manual has been carefully checked and we believed is accurate at the time of publication. -
Page 4: Table Of Contents
ARREL Audio Contacts ......................3 TABLE OF CONTENTS ....................... 4 INTRODUCTION ......................... 5 Housing ..........................5 ER-130 Front Panel Controls and Operations ..............6 MODE SWITCH ....................... 6 input L/R CONNECTORS ....................6 OUTPUT L/R CONNECTORS ..................6 CONTROL VOLTAGE (c.v.) CONNECTOR ..............6 Control voltage (c.v.)potentiometer ................... -
Page 5: Introduction
10. Peak indicator (audio out signal) Housing The ER-130 is contained in a 10 HP Eurorack units and by a depth of about 40 mm. No specific air conditioning is required for the unit, provided that there is a free flow of air through the rack from front to back and the temperature is maintained in the operating range. -
Page 6: Er-130 Front Panel Controls And Operations
ARREL Audio ER-130 Front Panel Controls and Operations MODE SWITCH Selects manual control of the stereo width or CV mode. In CV mode the control voltage in applied on the corresponding jack. The voltage range can be 0-10 V. The potentiometer below CV jack controls the depth of the action of the CV (Fig.1). -
Page 7: Stereo Width Control Knob
ON –OFF control for the LO-CUT filter on the MID channel, pressed switch meand that the low cut filter is on. LO-CUT CUT OFF FREQUENCY KNOB Cut off frequency control for the LO-CUT filter. ER-130 User Manual, Issue 0.1 Page 7... -
Page 8: Appendix A: Front Panel
ARREL Audio APPENDIX A: Front Panel FIG. 1 ER-130 Front Panel ER-130 User Manual, Issue 0.1 Page 8... -
Page 9: Technical Specifications
1 x 3.5 mm jack for the CV INPUT Rear Panel Power Supply Eurorack power supply connector Connectors Construction 10 HP Dimensions 142 mm x 128 mm (w x h) Weight 500 g ER-130 User Manual, Issue 0.1 Page 9...
