Summary of Contents for Auraland DC-31UC

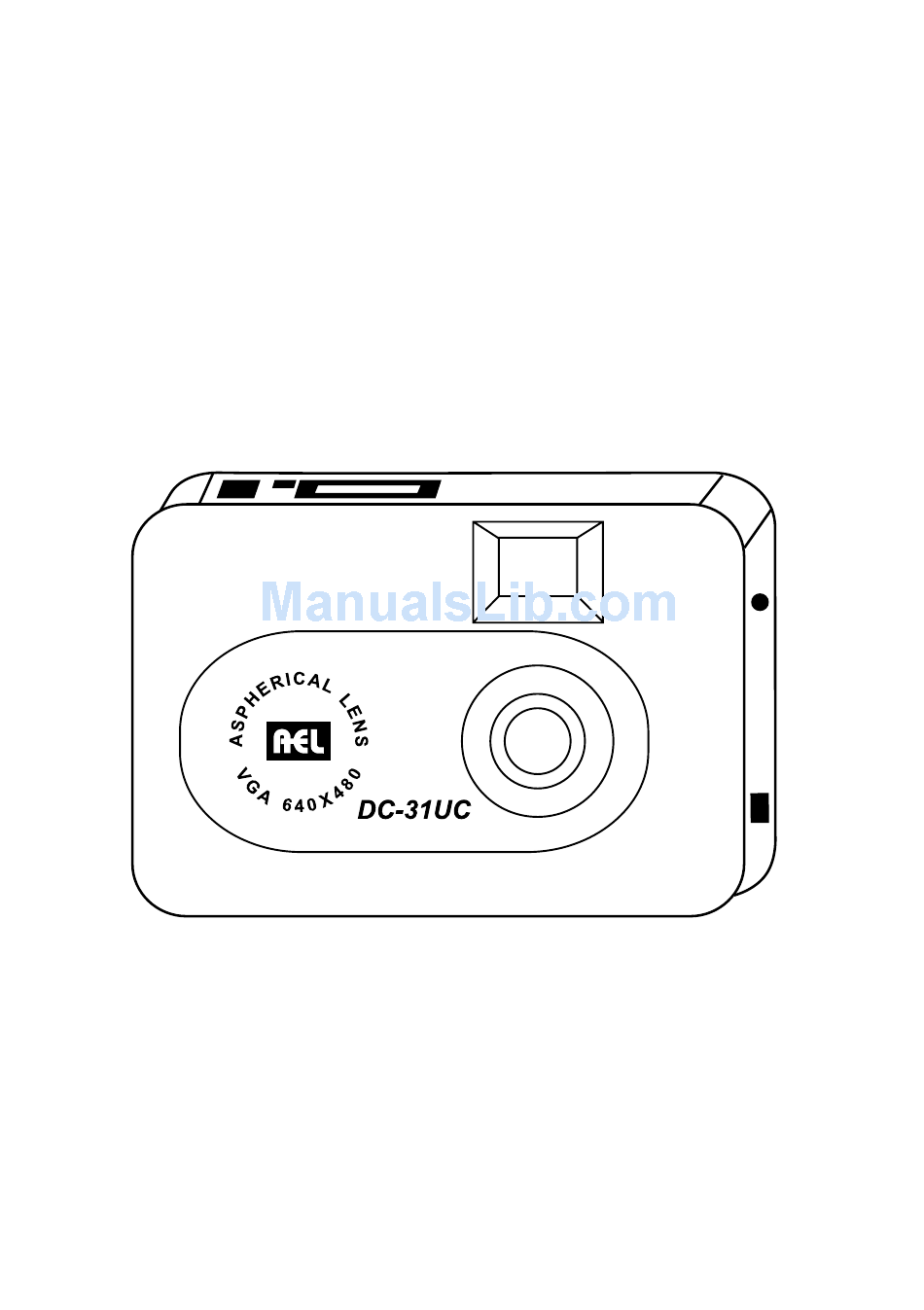

- Page 1 DIGITAL & PC CAMERA USER’S GUIDE MODEL: DC-31UC...
-
Page 2: First Things First
First Things First Unpack the Camera and Accessories 1. Digital Camera 2. USB Serial Cable 3. Camera Stand 4. User’s Guide 5. Image Editing Software (optional) & Driver Software CD-ROM Camera Details - 1 -... -
Page 3: Power Supply
Power Supply The DC-31UC digital Camera features two ways to supply power to it, either using 4 batteries (size AAA) or via the USB connector when attached to a Computer. Make sure that battery switch is on. The battery switch is located on the bottom of the camera, next to the battery compartment cover. - Page 4 Resolution & number of pictures table Model Hr Mode/Pictures Lr Mode/Pictures DC-31UC 640 X 480 / 75 320 X 240 / 300 • Mixing the storage of ‘Hr’ & ‘Lr’ pictures is OK in the same picture taking session. LCD display 1.
-
Page 5: Operation
4. AVI:Video record about 7 frame for all resolution. 5. Battery detection:Low battery detection and 3 steps. Auto alarm to showing low battery message and then stops capturing. 6. 50/60:50 for 50Hz electrical power frequency, 60 for 60Hz electrical power frequency. - Page 6 4. When enter mode change, if no buttons pressed for a while, will escape from mode change to standby. 5. If change mode by mode button, the LCD will blink, if press shutter button will enter (select) this mode. 6. When standby press shutter button can take a picture. 7.
- Page 7 10. If enter “Video” mode press shutter button and don’t release will recorded, release shutter button or memory full to stop. If memory full will show and alarm sound. 11.If enter the 50/60 mode, press shutter button to select either one mode. The 50 or 60 select match the nation power frequency is necessary to avoid flicker on picture.
-
Page 8: Twain Driver
blink and wait shutter button press, if press shutter button for a while will hear sound tone from low to high then the picture number will reset to zero. It completes the “delete all” execution steps. If no button pressed for a while, return back to standby. - Page 9 • The camera driver is the base component, you must install this component, otherwise your camera will not work correctly with Windows. • The camera requires only standard USB and TWAIN drivers to work with any WINDOWS 98 or above standard compliance video and imaging application. Uploading pictures from the camera to your Computer For use with a USB connection, WINDOWS 98 or better is required to upload pictures from the camera to the computer.
-
Page 10: Troubleshooting
Focus Range: 0.65m ~ infinity Shutter Speeds: 1/20 ~ 1/1000 second (Auto) LCD Monitor: B/W indicator Power Source: 4x1.5V AAA-size batteries Operation temperature range: 5 ~ 40°C Weight: about 100g without batteries Dimensions: 62(H) x 92(W) x 26(D) mm max. •... - Page 11 • Make sure any tripod used has a screw that fits the camera’s tripod mount appropriately. A longer tripod screw could puncture and damage the camera’s casing and internal structure. - 10 -...
