H908

Wiring ExamplE

CONTACTOR
Insulated Conductor
MOTOR
Z201494-0E PAGE 1
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
CURRENT MONITORING
CONTROLLER
Digital
Input
Fan or Pump
©2009 Veris Industries USA 800.354.8556 or 503.598.4564 / support@veris.com

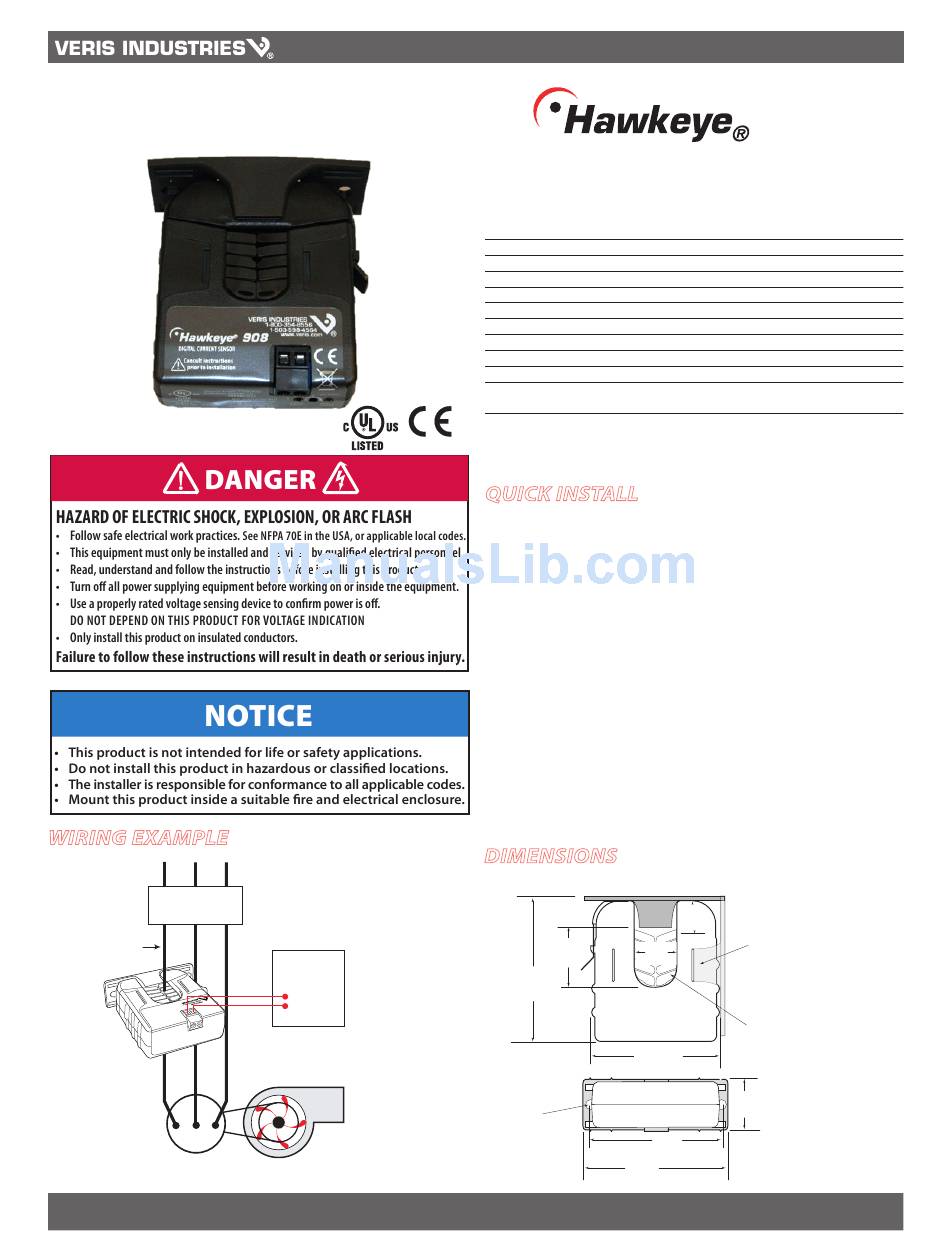

INSTALLATION GUIDE

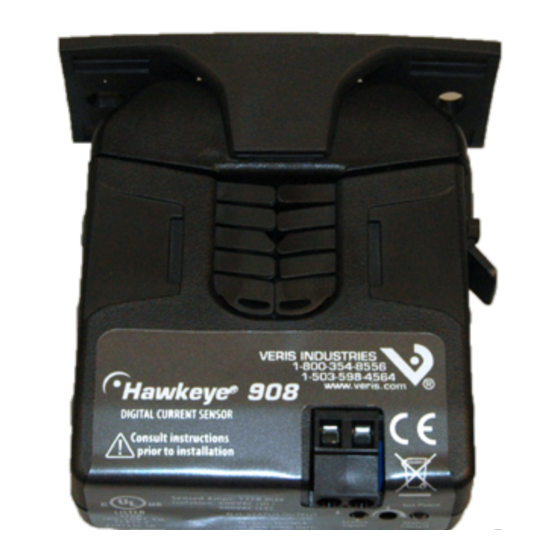

Split-Core Current Switch, Adjustable Trip Point
Installer's Specifications
Sensor Power
Insulation Class
Frequency Range
Temperature Range
Humidity Range
Amperage Range
Output
Hysteresis
Terminal Block Maximum Wire Size
Terminal Block Torque (nominal)
Agency Approvals
CE: EN61010-1:2001-02, CAT III, deg. 2, basic insulation
Specification Note: For CE compliance, conductor shall be insulated according to IEC 61010‑1:2001,
Installation Category III or equivalent.
The product design provides for basic insulation only.

quick install

1. Disconnect and lock out power to the conductor to be monitored.
2. Plan the installation:
Locate a mounting surface for the removable mounting bracket that will allow
the monitored conductor to pass through the iris, or "window" when it is installed
and keep the product at least 1/2" (13mm) from any uninsulated conductors (CE).
Determine cable routing for the controller connection, allowing wiring to reach
the mounting location.
3. Install mounting bracket
Drill holes to mount the bracket to the chosen surface using the included screws.
4. Wire the output connections between the sensor and the controller (solid-state
contact).
5. Snap the sensor over the wire to be monitored and clip the assembly to the
mounting bracket.
6. Calibrate the sensor (see page 2) with the load running normally.

DimEnsions

Removable Mounting Bracket
1.1"
0.8"
(26 mm)
(21 mm)
3.1"
(79 mm)
2.8"
(70 mm)
Ø = 0.3"
(8 mm)
2.5"
(64 mm)
3.0"
(76 mm)
908
Induced from monitored current
600VAC RMS (UL), 300VAC RMS (CE)
-15° to 60°C (5° to 140°F)
10-90% RH non-condensing
2.5 - 135A Continuous
N.O. 1.0A@30VAC/DC, polarity insensitive
10% of setpoint, typical
UL 508 open device listing
1.0"
(25 mm)
Bracket can be mounted
on either side for added
installation flexibility.
Self-gripping
Iris
Use DIN Rail
1.4"
Mounting clip
(36 mm)
(Veris part
number AH01) to
mount on stan‑
dard DIN rail.
50/60Hz
14 AWG
4 in-lbs
05091
