Summary of Contents for Kirk 1G8

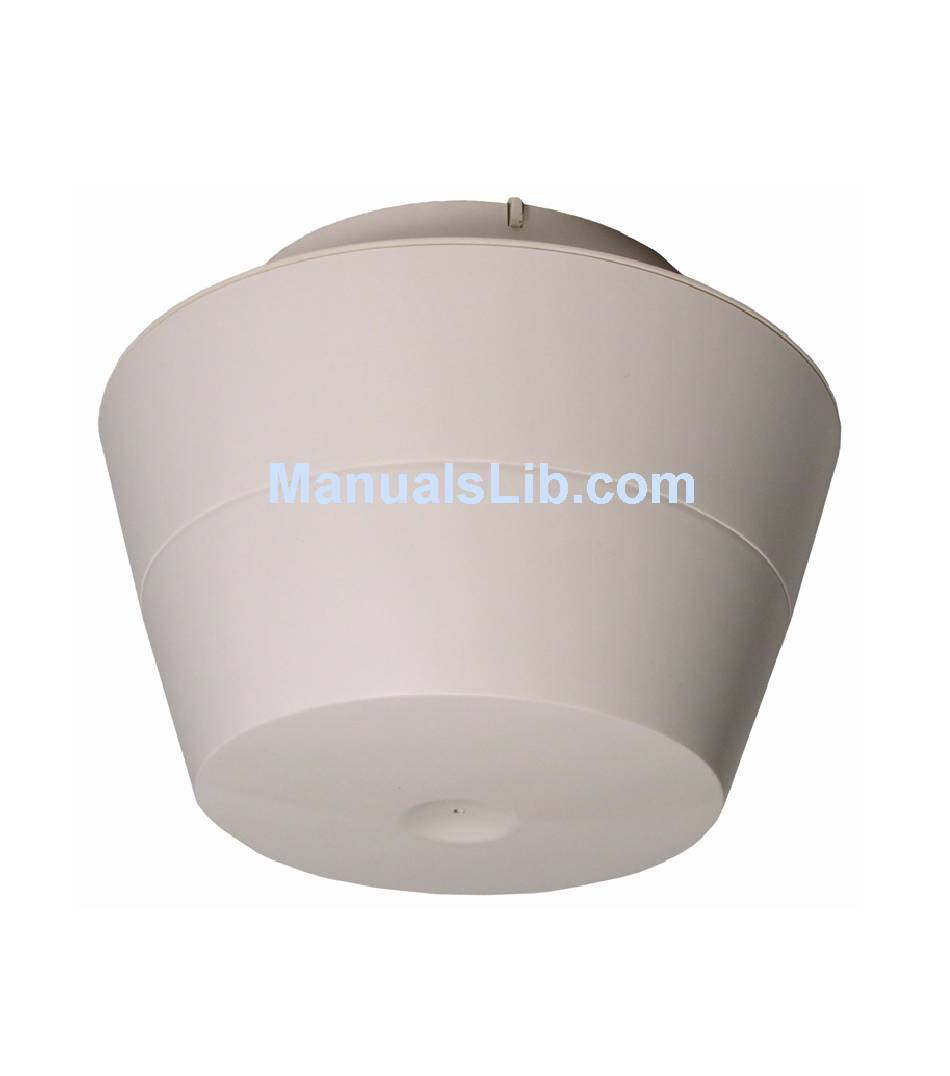

- Page 1 KIRK Base Station 1.8 GHz User Guide...
- Page 2 1 Introduction The base station is only intended for use with a wireless server. The base station is not intended to be connected directly to the PSTN network. The base station is designed with two internal antennas and supports antenna diversity. The base station is also able to carry out a handover between the RF channels under the same base station, and handles four DECT speech channels simultaneously.
- Page 3 2 Installation First you have to determine where to install the base station to have the right coverage. The average cov- erage within buildings is 75 meters/246 feet. The coverage depends on the construction of the build- ing, architecture and choice of buildings materials. You may have to use the Deployment Kit to opti- mize your installation.
- Page 4 Mounting ring Release spring...
- Page 5 To mount the base station directly on the ceiling: Pull the cable through the mounting ring, and then mount the mounting ring on the ceiling, using the anchors and screws accompanying the product. Connect the plug to the top of the base station. Adjust the length of the cable.
- Page 6 After the wireless server is powered up again, a cable lenght measurement is needed. Note: Cable dimensions min. as AWG 26.
- Page 7 International Regulatory Information Please find the EC Declaration of Conformity at http://www.kirktelecom.com/ company/suk273.asp The WEEE Marking on this equipment indicates that the product must not be disposed of with unsorted waste, but must be collected separately.
- Page 8 KIRK telecom A/S Langmarksvej 34 DK-8700 Horsens Tlf. +45 7560 2850 Fax +45 7560 2851 www.kirktelecom.com...
