Schlage 900-FA Installation Instructions

*44487072*
44487072
The 900-FA Fire Alarm board can be installed
on any one of the following power supply or
option boards (refer to installation instructions):
:
ING
WA RN
!
ING :
RN
WA !
DAN GER
!
F1
ER :
NG
DA !
PS902 Power Supply 900 2RS (2 relay)
• If 900-FA was factory installed, go to step 2
• If installing to option board, go to 1a
• If installing to PS902 main board, go to 1b
1

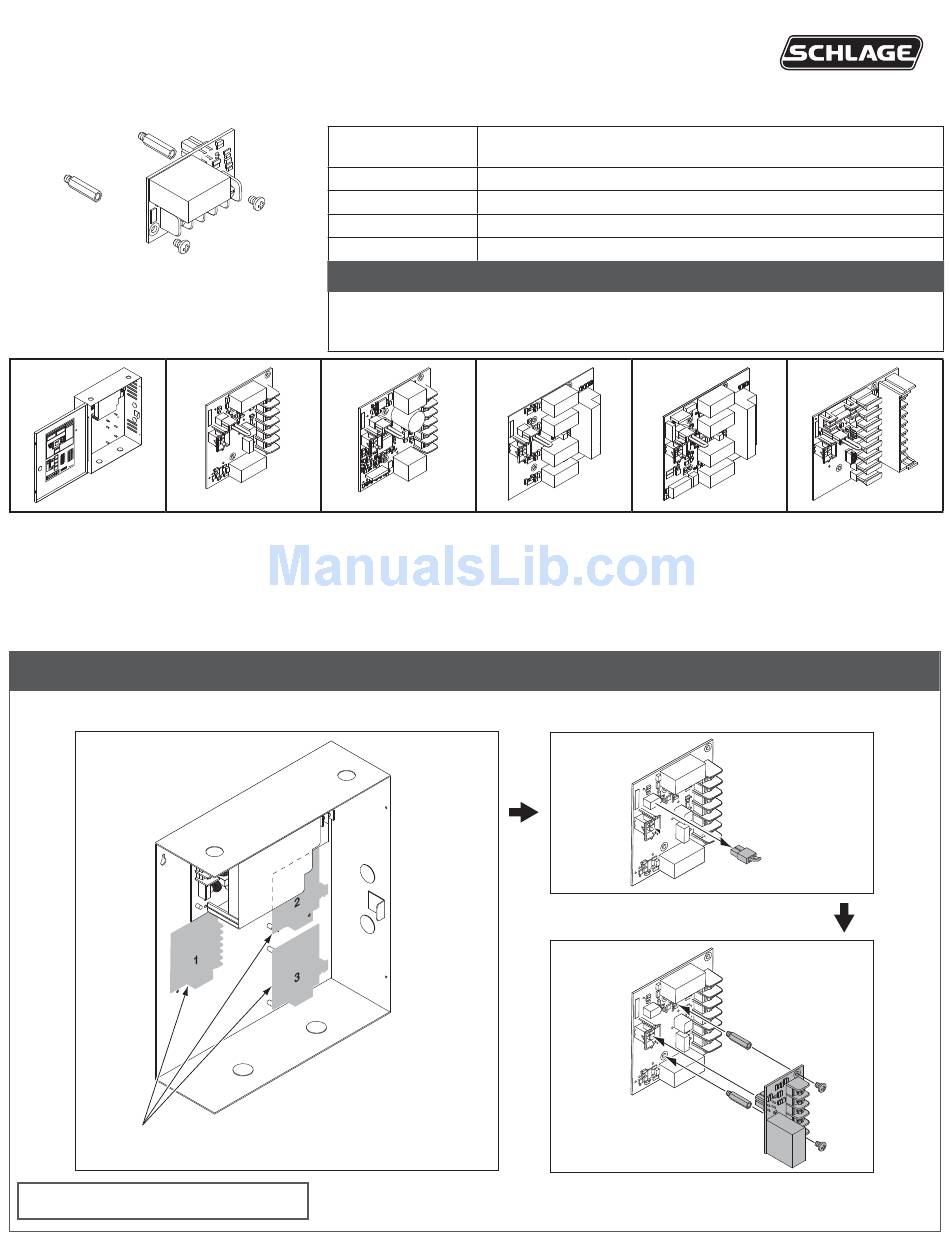

a If installing to option board
Choose Option Board where 900-FA is to be Installed
Option board may be in any of these three locations.
Customer Service
1-877-671-7011 www.allegion.com
900-FA Fire Alarm Input
Input (Fire Alarm)
Output (Supervision)
Board Input Power
Temperature Range
Compliance
To avoid risk of electric shock, turn off AC power to power supply before installing or wiring
900-FA board. In the event a fire alarm is active, this board will remove power from the PS902
DC output and any 900-series option board output.
900-2Q
(2 Relay w/com)
Note:
If using
battery backup,
location 3 is
not available.
Dry contacts required (Closed = no fire alarm)
Connect control contacts between FA1 and FA2
30VDC, 1A resistive dry contact
Board requires 0.05A max. of power supply output current to operate
32°-120° F (0°- 49° C)
UL 294, ULC-S318, RoHS, & FCC Part 15
WARNING
900-4R (4 Relay)
(4 Relay w/logic)
Remove Jumper from Option Board

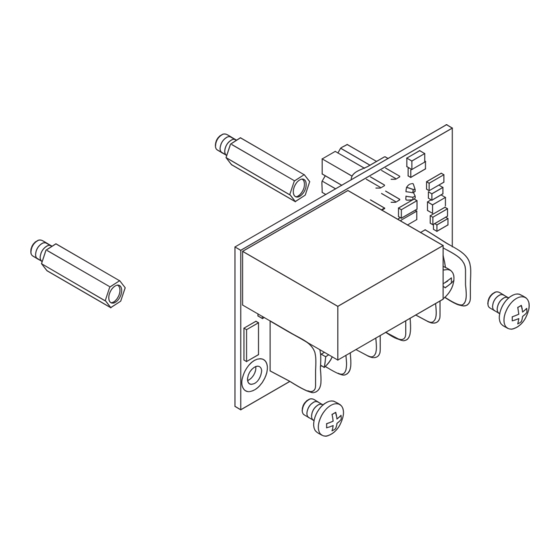

Install 900-FA to Option Board
Installation Instructions
900-4RL 900-8F (8 Zone,
Distribution-fuse)
900-8P (8 Zone,
Distribution-PTC)
