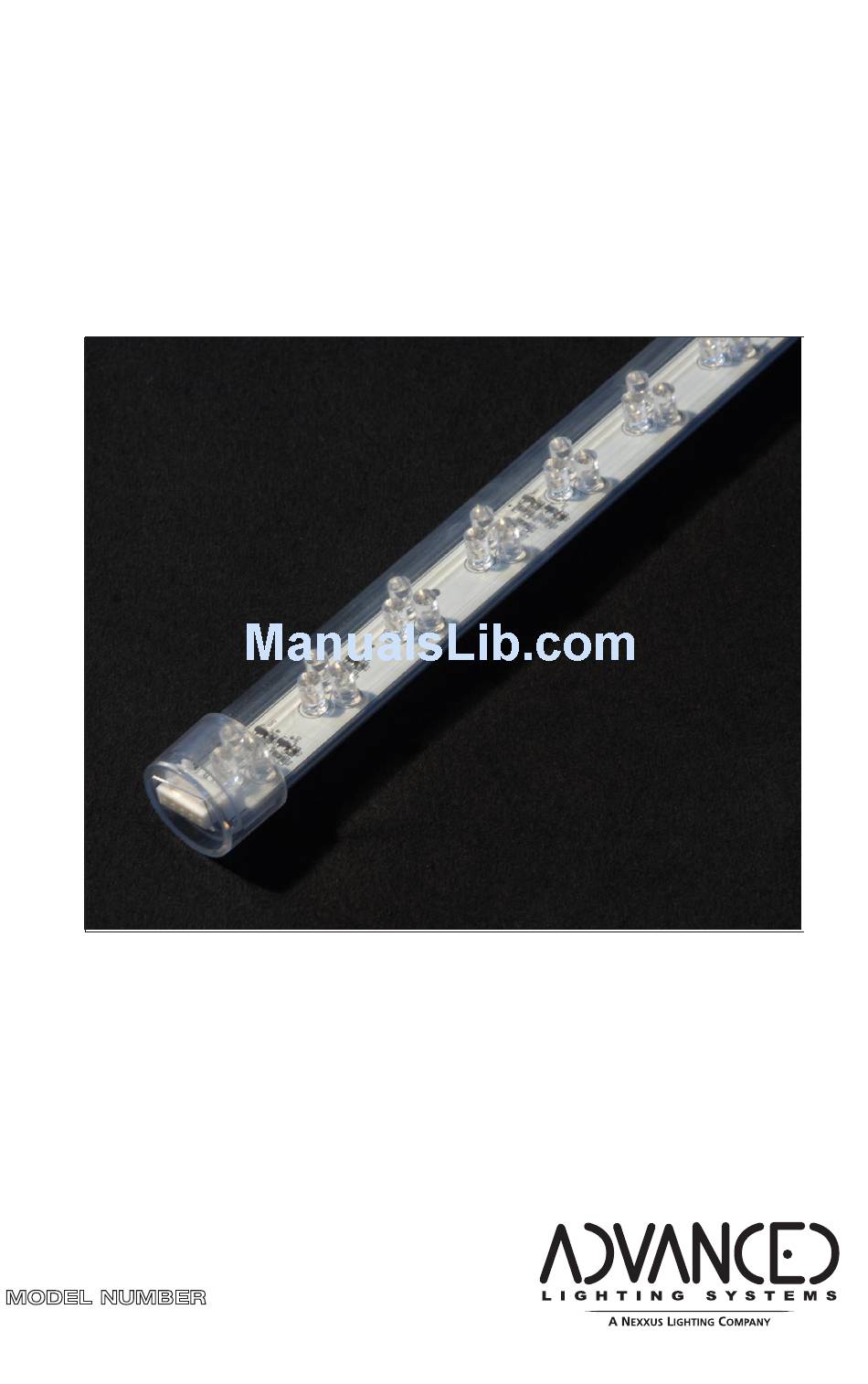

- Page 1 InstallatIon InstRUCtIons elum Cove RGB Model NuMber ALS-ELUM-RGB...
- Page 2 Table of Contents Page 1.0 Important Safety Information..………………….. 2.0 Mounting Instructions...…………………………… 3.0 General Operating Instructions..………………… 4.0 eLum RGB Controller Stand Alone Settings...…… 5.0 Schematic Example..………………....…...
-
Page 3: Important Safety Information
The eLum™ Cove RGB creates 16.5 million deep and very bright colors. The proper voltage required at the site is 24 VDC. The eLum Cove RGB can be mounted outdoors or indoors (damp or dry), but it is vital in outdoor applications that the unit is not exposed to water, snow, or rain, and that the water resistant endcap is properly sealed. - Page 4 The eLum RGB controller is designed to recieve DMX512 protocol and will drive a number of ALS eLum Cove RGB strips. They use 24 VDC power and three 0.5 - 5V analog control singals to vary the intensity of the red, green, and blue LED’s. The eLum RGB Controller has four outputs to eLum LED strips.
- Page 5 3.0 eLum Cove RGB Controller Stand Alone Settings Effect # Switch Position Description Static red Static blue Static green Static magenta Static yellow Static cyan Static warm white Static cool white Static blue magenta Static red magenta Static turquoise Static orange...
- Page 6 ALS-EL-RGB-JMP-5 5’ Jumper Cable For additional assistance or questions contact an authorized distributor or dealer for Ad- vanced Lighting Systems, Inc. or contact the factory at: Advanced Lighting Systems, Inc. 519 Lincoln Road Sauk Centre, MN 56378 Tel: 320.352.0088 Fax: 320.352.0089 •...
- Page 7 LIMITED WARRANTY Nexxus Lighting, Inc. warranties its products, excluding lamps, to be free from defects in material and/ or workmanship, under normal condition, use and service, for a period of two (2) years from the original invoice date (Five (5) Years for Red, Amber and Orange FlexLED and Border Light LED products and one (1) Year for Non-UL Listed Power Supplies).
