Summary of Contents for HRK MP568C
-

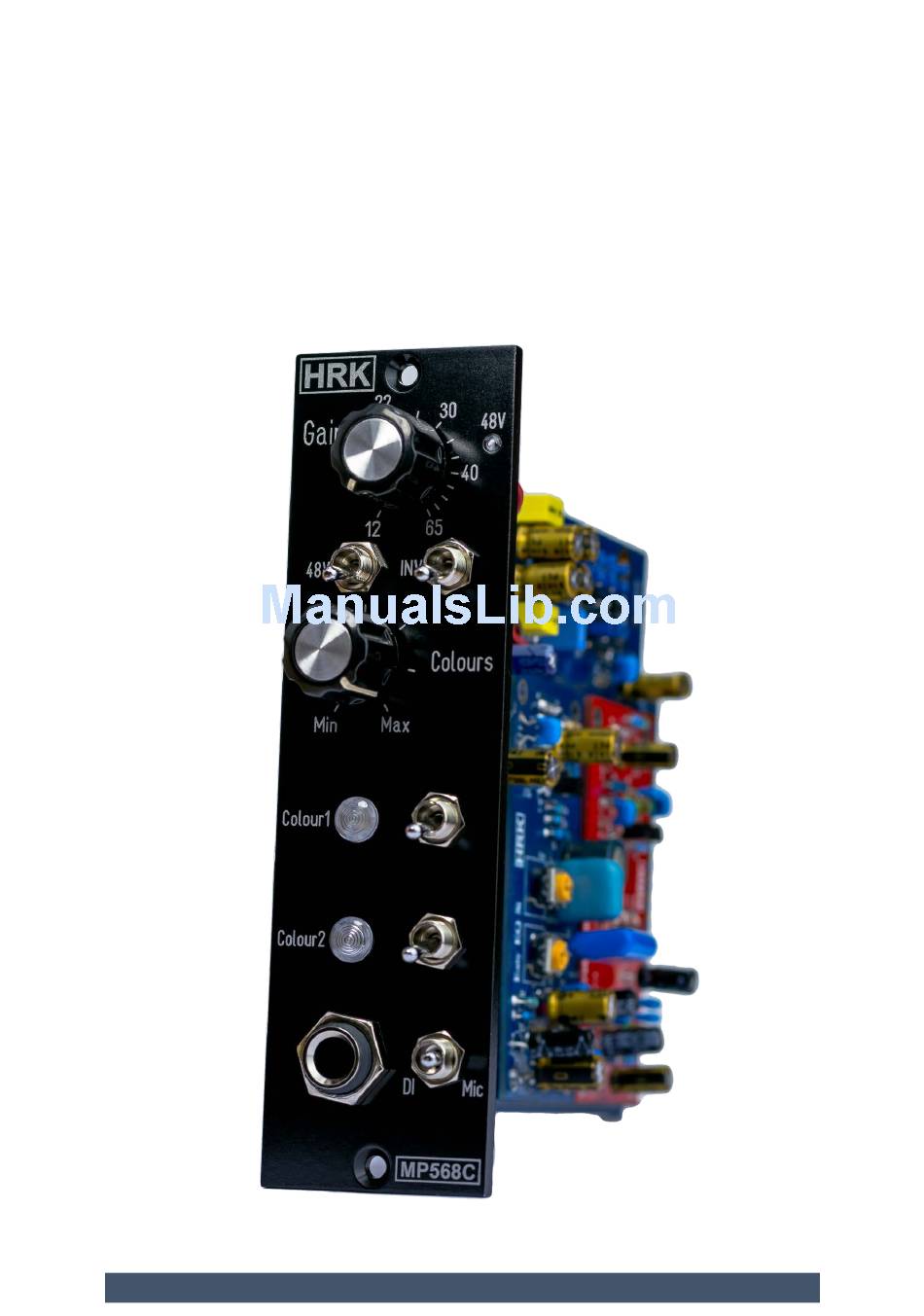

Page 1: User Manual
MP568C User Manual MP568C USER MANUAL © BART HRK... - Page 2 List of content: 1. The Microphone Preamplifier Section. 2. The Colour Section. 3. The Direct Input Section. 4. The Colour Signal Routing. MP568C USER MANUAL © BART HRK...
- Page 3 1 – Microphone / DI Gain - this control sets the total gain of the MP568C. Values shown on the scale are approximately equal to the total gain of the MP568C from input to output. The gain range is from +12dB to +65dB. The signal sent to the colour section is always 6dB lower than the total gain set by the Gain control knob.
- Page 4 (if Colours are disengaged) to the output. For the 12 o’clock knob position the total output signal level from the MP568C is attenuated by 15dB. This is NOT the Colour/Clean Balance Control.
- Page 5 Instrument / Direct Input. Note: * The Direct Input uses special ultra-high impedance active circuitry. Remember to be very careful when inserting the instrument cable jack in to the DI, reduce the output level to minimum first. MP568C USER MANUAL © BART HRK...
- Page 6 The Colours control knob sends the signal to the output. Both Colour Modules are effected by the Colours knob. MP568C is shipped in the default routing configuration. The post Colours knob position. Signal is sent from the Mic/DI input to the first Colour Module.
