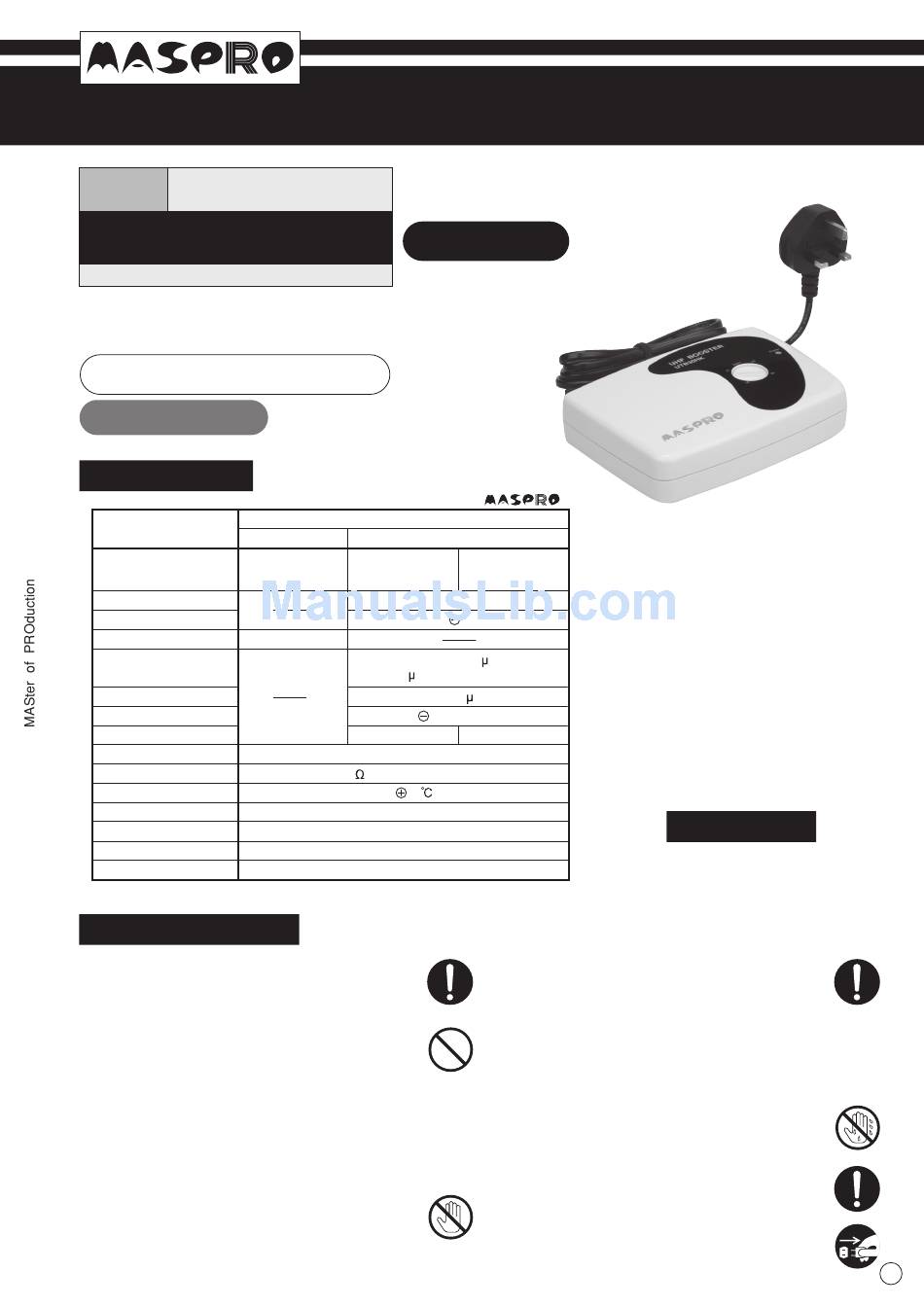

Maspro UTB30HK Instruction Manual

European Standard ch.21-69
Amplification
American Standard ch.14-83
Channels
Chinese Standard ch.13-59
UTB30HK
VHF/FM pass
MASPRO's latest super low noise UHF booster
has 2-way distribution circuit so that two TV sets
can be connected.
F-type Connector
Indoor Use

Specifications

Items
Reception Channels
Gain
Gain Control Range
Insertion Loss
Operating Input Level
Maximum Output Level
Cross Modulation
Noise Figure
VSWR
Input/Output Impedance
Temperature Range
Power Requirements
Power Rating
Dimensions
Weight
You can always rely on MASPRO's performance data.

Safety Precautions

Use only 220V AC power supply. Using the
●
Booster with a different voltage power supply
could cause fire or electrical shock.
Do not put the Booster in a poorly ventilated
●
place. The Booster will overheat and may
cause fire. Do not use in the following ways:
· Pushing the Booster into a poorly ventilated
place such as closet, bookcase or just under
a ceiling.
· Covering with a table cloth. Placing on a
carpet or bedding.
· Covering or wrapping with a cloth or bedding.
When you hear thunder, do not touch any
●
lead-in cable from the TV antenna. It may
cause electrical shock.
UHF BOOSTER
30 dB
UHF RECEPTION AND
VIDEO RECORDING
E : European Standard
A : American Standard
C : Chinese Standard
Specification
VHF/FM
E ch.2 – 12 E ch.21 – 58
A ch.2 – 13 A ch.14 – 63
C ch.1 – 12 C ch.13 – 45
22 – 32dB
0 –
3 – 6dB
36 – 63dB V
(73dB V at the minimum gain)
46dB or less
3dB
1.1 – 3
( F-type connector )
75
0 – 40
220V AC／50Hz
1.6W
39 ( H ) x 152 ( W ) x 122 ( D ) mm
Approx. 520 g
Read this Instruction Manual carefully before use.
INSTRUCTION MANUAL
TYPE
UHF
E ch.59 – 69
A ch.64 – 83
C ch.46 – 59
10dB
95dB V
3.8dB
Never let water come into contact with the
●
Booster. Do not use them in the bathroom.
Do not put medicine or fluid matter on them.
If liquid material gets into them, they will
cause fire or electrical shock. Do not let your
pets climb on them. If their urine or droppings
get into them, they will also cause fire or
electrical shock.
Do not plug or unplug the Booster when your
●
hand is wet. It may cause electrical shock.
Set the AC plug at the place where you can
●
easily unplig it.
When the Booster is not in use for a long
●
time, be sure to unplug the Booster from the
wall outlet for safety. Not doing so may
cause fire.
for Home Use
(AC cord length: 1.6m)

Accessories

Wood screw
(for wall mounting) . . . . . . 2 pcs.
1
