H E AT SYS T EM

WIRELESS SYSTEM

FOR HOUSE HEATING MANAGEMENT

Table of Contents

Need help?

Do you have a question about the H+P and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Plus H+P

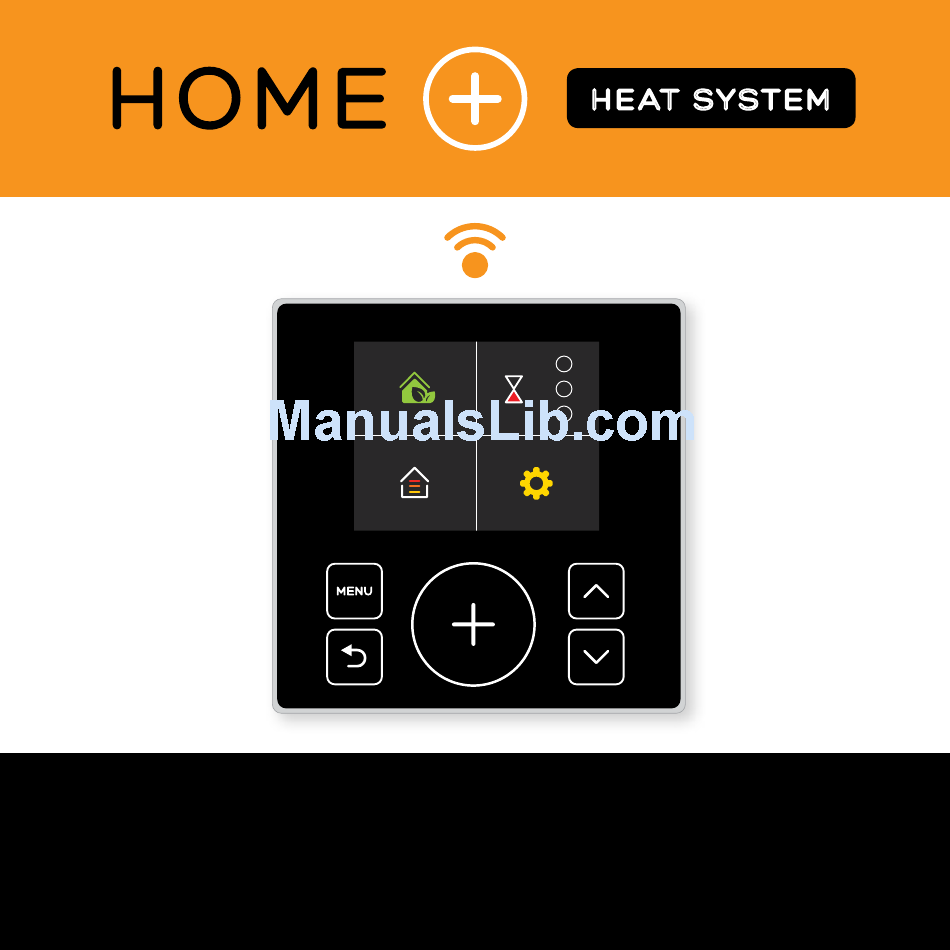

Page 1 H E AT SYS T EM WIRELESS SYSTEM FOR HOUSE HEATING MANAGEMENT...
Page 2: Guarantee Terms
GUARANTEE TERMS – H+P PROGRAMMER GUARANTEE TERMS: Guarantee is granted by manufacturer for 24 months period star ting from date of sale, but no longer than 36 months from date of the manufacture. Defects revealed within this period, resulting from a fault of manufacturer will be repaired free of charge or the item replaced with new, equivalent one.
Page 3: Maintenance
TECHNICAL INFORMATION/SAFETY SAFETY The H+P programmer is powered by the battery, which is permanently mount- ed in the device. Use only approved power supply (charger) – the type is giv- en below. Use of incompatible charger may cause fire or explosion of the battery.
Page 4 Home + System allows to manage electric heating system, com- posed of max. 8 heating zones (Z1, Z2, etc.) and max. 24 radiators installed in rooms. The system permits to group them and programm am- bient temperatures in different modes, which you can adjust individually.
Page 5 Thank you for choosing the HOME + for your house! Remote control of electric heating in your house www.homeplus-system.com Home + System programmer is designed to operate with electric heaters made by Heatpol: – H+ heater for bathroom radiators – H+h heater for column, aluminium and cast iron radiators...
Page 6 HOW THE HOME + SYSTEM WORKS Radio remote control Home + System allows remote control of ambient temperature in your house. It’s enough to install HOME + heaters in radiators.
Page 7 The H+R remote controller can operate with any of HOME + heaters H+P programmer can control all heaters...
Page 8: Installation
The H+P programmer is ready to use after unboxing. If battery is discharged connect the charger using a microUSB port on the side of the housing. Full charge is enough for 4-5 months of use.
Page 9: First Start
Konserwacja: Konserwacja: Obudowę czyścić wilgotną szmatką , z dodatkiem delikatnych środków czyszczących. Obudowę czyścić wilgotną szmatką , z dodatkiem delikatnych środków czyszczących. Unikać zamoczenia obudowy. Unikać zamoczenia obudowy. Two steps: time settings and heaters pairing FIRST START Użytkowanie Użytkowanie Programator jest przewidziany do zamocowania na ścianie. Służy do tego płytka mocująca , którą Programator jest przewidziany do zamocowania na ścianie.
Page 10: Adding Devices
No faults. Heater No 3 shows an error! Possible faults. No communication between H+P programmer and Heater fault. Check the fault No at the heater’s controller. a heater. Check a range. Check does the heater is on. Compare with the heater manual available at:...
Page 11 AMBIENT TEMPERATURE SETTINGS Edit settings in zones (Z) where HOME + heaters are installed Temperatures visualisation < 18°C 18-20°C AUTOMATIC MODE 21-23°C Enter daily settings (Monday-Sunday). >23°C Set every hour (24h) and assign temperature. This is precise setting of different temperatures at each hour.
Page 12: Automatic Mode
AUTOMATIC MODE INDIVIDUAL, AUTOMATIC SETTINGS ( For every zone (Z1, Z2..) you can assign automatic tempera- ture profile, which you can set before in H+P programmer. So you can easily assing a profile to every room/zone (You save time) - low temperature...
Page 13: Eco Mode
When you leave home and care of bills ECO MODE ECO MODE ECO mode saves energy when you don’t need to heat your house fully. – easy access from MENU – with one click you lower the temperature for all zones/rooms ECO mode individual settings ECO mode detailed settings Set an automatic temperature reduction for...
Page 14 When you need to heat up quickly TURBO-BOOST MODE TURBO/BOOST mode Maximum heating for 1/2/3 hours - easy access from MENU - with two clicks you turn the boost on and set a time range - the mode works for set hours, afterwards returns to current settings - Turbo mode switches on in all rooms (except the ‘garage’...
Page 15: Technical Settings
TECHNICAL SETTINGS Time and day of a week settings The H+P programmer works in 24h and 1 week mode: 0:00 - 24.00, MONDAY-SUNDAY Display brightness settings You can adjust the display brightness to your requirements. Video manual available at :...
Page 16 H E AT SYS T EM www.homeplus-system.com...
