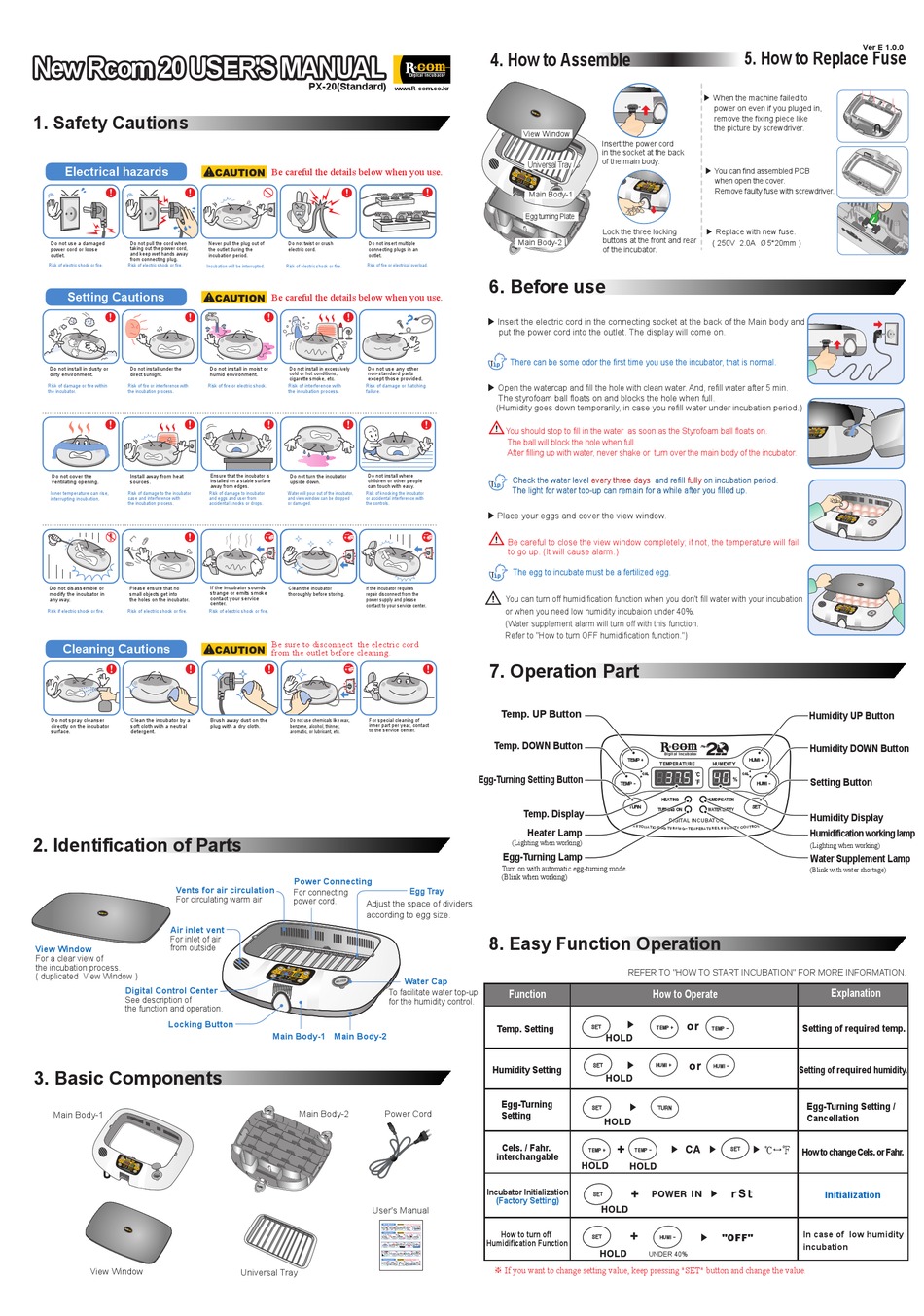

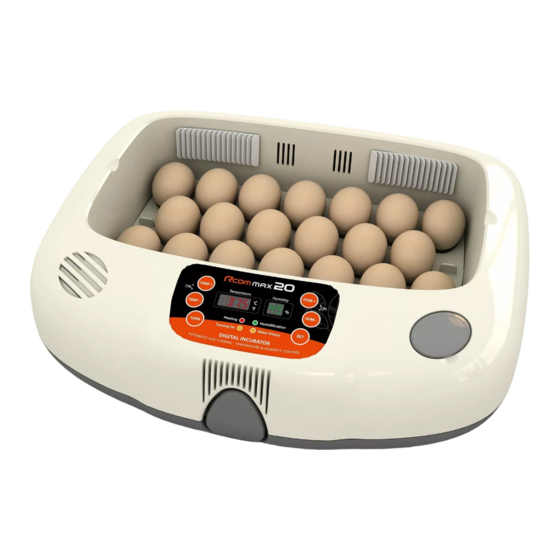

R-COM 20 User Manual

New Rcom 20 USER'S MANUAL New Rcom 20 USER'S MANUAL

1. Safety Cautions

Electrical hazards
Do not use a damaged Do not pull the cord when
taking out the power cord,
power cord or loose
and keep wet hands away
outlet.
from connecting plug.
Risk of electric shock or fire. Risk of electric shock or fire.
Setting Cautions
Do not install in dusty or Do not install under the
dirty environment. direct sunlight.
Risk of damage or fire within Risk of fire or interference with
the incubator. the incubation process.
Do not cover the Install away from heat
ventilating opening. sources.
Inner temperature can rise, Risk of damage to the incubator
case and interference with
interrupting incubation.
the incubation process.
Do not disassemble or Please ensure that no
modify the incubator in small objects get into
any way. the holes on the incubator.
Risk if electric shock or fire. Risk of electric shock or fire.
Cleaning Cautions
Do not spray cleanser Clean the incubator by a
directly on the incubator soft cloth with a neutral
surface. detergent.

2. Identification of Parts

Vents for air circulation
For circulating warm air
Air inlet vent
For inlet of air
from outside
View Window
For a clear view of
the incubation process.
( duplicated View Window )
Digital Control Center
See description of
the function and operation.
Locking Button

3. Basic Components

Main Body-1
View Window
PX-20(Standard)
Be careful the details below when you use.
Never pull the plug out of Do not twist or crush Do not insert multiple
the outlet during the electric cord. connecting plugs in an
incubation period. outlet.
Risk of fire or electrical overload.
Incubation will be interrupted. Risk of electric shock or fire.
Be careful the details below when you use.
Do not install in excessively Do not use any other
Do not install in moist or
cold or hot conditions, non-standard parts
humid environment.
cigarette smoke, etc. except those provided.
Risk of fire or electric shock. Risk of interference with Risk of damage or hatching
the incubation process. failure.
Ensure that the incubator is Do not turn the incubator Do not install where
installed on a stable surface children or other people
upside down.
away from edges. can touch with easy.
Risk of damage to incubator Water will pour out of the incubator, Risk of knocking the incubator
and eggs and user from and view window can be dropped or accidental interference with
accidental knocks or drops. or damaged. the controls.
If the incubator sounds Clean the incubator If the incubator requires
strange or emits smoke
thoroughly before storing. repair disconnect from the
contact your service
power supply and please
center.
contact to your service center.
Risk of electric shock or fire.
Be sure to disconnect the electric cord
from the outlet before cleaning.
For special cleaning of
Brush away dust on the Do not use chemicals like wax,
inner part per year, contact
plug with a dry cloth. benzene, alcohol, thinner,
to the service center.
aromatic, or lubricant, etc.
Power Connecting
For connecting
power cord.
Adjust the space of dividers
according to egg size.
Main Body-1 Main Body-2
Main Body-2
User's Manual
Universal Tray

4. How to Assemble

Digital Incubator
www.R-com.co.kr
View Window
Universal Tray
Main Body-1
Egg turning Plate
Main Body-2

6. Before use

▶ Insert the electric cord in the connecting socket at the back of the Main body and
put the power cord into the outlet. The display will come on.
There can be some odor the first time you use the incubator, that is normal. There can be some odor the first time you use the incubator, that is normal.
▶ Open the watercap and fill the hole with clean water. And, refill water after 5 min.
The styrofoam ball floats on and blocks the hole when full.
(Humidity goes down temporarily, in case you refill water under incubation period.)
You should stop to fill in the water as soon as the Styrofoam ball floats on.
The ball will block the hole when full.
After filling up with water, never shake or turn over the main body of the incubator.
Check the water level every three days and refill fully on incubation period. Check the water level
The light for water top-up can remain for a while after you filled up. The light for water top-up can remain for a while after you filled up.
▶ Place your eggs and cover the view window.
Be careful to close the view window completely; if not, the temperature will fail
to go up. (It will cause alarm.)
The egg to incubate must be a fertilized egg. The egg to incubate must be a fertilized egg.
You can turn off humidification function when you don't fill water with your incubation
or when you need low humidity incubaion under 40%.
(Water supplement alarm will turn off with this function.
Refer to "How to turn OFF humidification function.")

7. Operation Part

Temp. UP Button
Temp. DOWN Button
Egg-Turning Setting Button
Temp. Display
Heater Lamp
(Lighting when working)
Egg-Turning Lamp
Turn on with automatic egg-turning mode.
(Blink when working)
Egg Tray

8. Easy Function Operation

Water Cap
To facilitate water top-up
Function
for the humidity control.
Temp. Setting
Humidity Setting
Egg-Turning
Power Cord
Setting
Cels. / Fahr.
interchangable
Incubator Initialization
(Factory Setting)
How to turn off
Humidification Function
※ If you want to change setting value, keep pressing "SET" button and change the value.

5. How to Replace Fuse

▶ When the machine failed to
power on even if you pluged in,
remove the fixing piece like
the picture by screwdriver.
Insert the power cord
in the socket at the back
of the main body.
▶ You can find assembled PCB
when open the cover.
Remove faulty fuse with screwdriver.
Lock the three locking
▶ Replace with new fuse.
buttons at the front and rear
( 250V 2.0A Ø5*20mm )
of the incubator.
every three days and refill fully on incubation period.
New
D i g i t a l I n c u b a t o r
TEMP + HUMI +
TEMPERATURE HUMIDITY
CAL CAL
TEMP - HUMI -
HEATING HUMIDIFICATION
TURN SET
TURNING ON WATER EMPTY
DIGITAL INCUBATOR
REFER TO "HOW TO START INCUBATION" FOR MORE INFORMATION.
How to Operate
SET SET
TEMP + TEMP +
TEMP - TEMP -
SET SET HUMI + HUMI +
HUMI - HUMI -
SET SET TURN
SET SET
TEMP + TEMP + TEMP - TEMP -
SET SET
"OFF"
SET SET HUMI - HUMI -
UNDER 40%
Ver E 1.0.0
Humidity UP Button
Humidity DOWN Button
Setting Button
Humidity Display
Humidification working lamp
(Lighting when working)
Water Supplement Lamp
(Blink with water shortage)
Explanation
Setting of required temp.
Setting of required humidity.
Egg-Turning Setting /
Cancellation
℃↔℉
How to change Cels. or Fahr.
Initialization
In case of low humidity
incubation
