Using your 5-in-1 Air Compressor

Press the air switch to the "ON" position, the compressor will now start.
CAREFULLY watch the operation and ensure that you do not over inflate the item.
When the item is sufficiently inflated, switch the unit to the "OFF" position.
Remove the adaptor from the item.
NOTE: Air will still escape from the air supply cable at the same time,
this is normal. Do not try to stop this.
Deflating:
4)
Fit the connector socket (item 3, Dia. 6) to the end of the red hose (item 2, Dia. 6)
then onto the socket on the front of the compressor marked "IN" (see Dia. 5).
Attach the appropriate adaptor required for the item to be deflated to the red hose
and ensure that it is securely fitted.
Note: Many items have a one-way valve fitted, the selected adaptor should open
this valve allowing air to escape.
Press the air switch to "ON" position, the compressor will now start.
When the item is sufficiently deflated, switch the unit to the "OFF" position.
Remove the adaptor from the item.
IMPORTANT!
Prevent hose from kinking.
Do not cover or obstruct the outlet and inlet of the inflator/deflator.
5) Lighting Operation:
Turn the light switch to "ON" for spot light operation.
6) Replacing the light bulb:
Ensure the compressor is switched OFF and the power cord is removed from the 12V
DC cigarette socket before replacing the light bulb.
Remove the work light cover ring by turning anti-clockwise (Dia, 3).
Remove the damaged light bulb from the bulb holder and replace it with a new light bulb.
Replace the light bulb cover ring back onto the compressor by turning clockwise.
To test the light bulb is functioning correctly plug the power cord into a 12V DC cigarette
socket and press the light switch to "ON" position.

Troubleshooting

If your compressor is not working, check the following:
a. The lighter socket fuse is not damaged (15amp).
b. The plug adaptor is pushed in firmly.
If your spot light does not work, check the following:
a. The "LIGHT" switch has clicked into position correctly.
b. The light bulb is securely inserted and the filament is undamaged (Dia. 3).
4

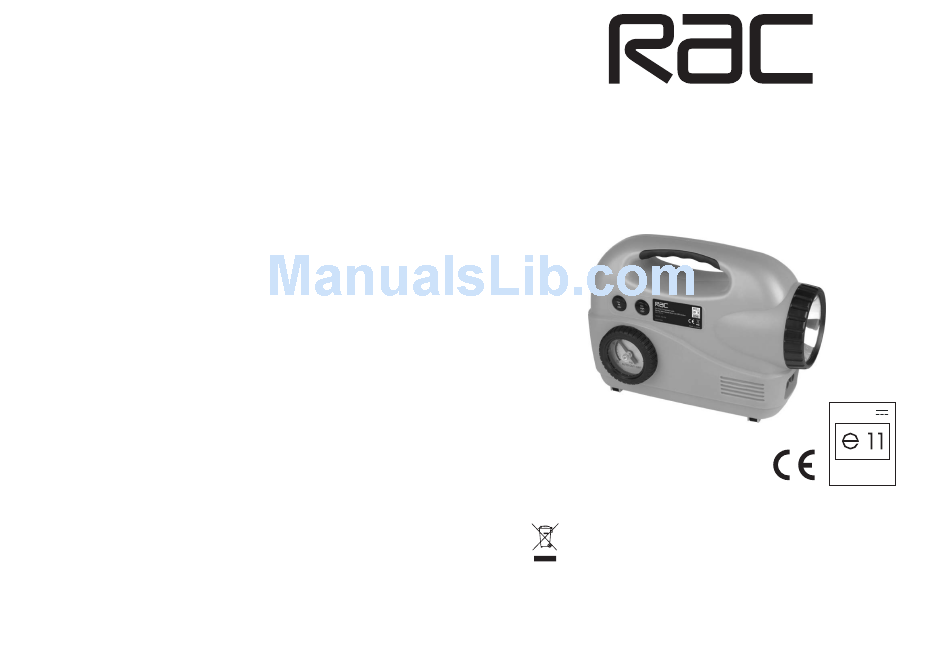

5-in-1 Air Compressor with
Pre-Set Mechanical Auto Cut-Off Function
with low pressure inflator/deflator
RAC-MV016
Environmental Protection
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your local authority or retailer
for recycling advice.
DC12V
020951
01/2006
