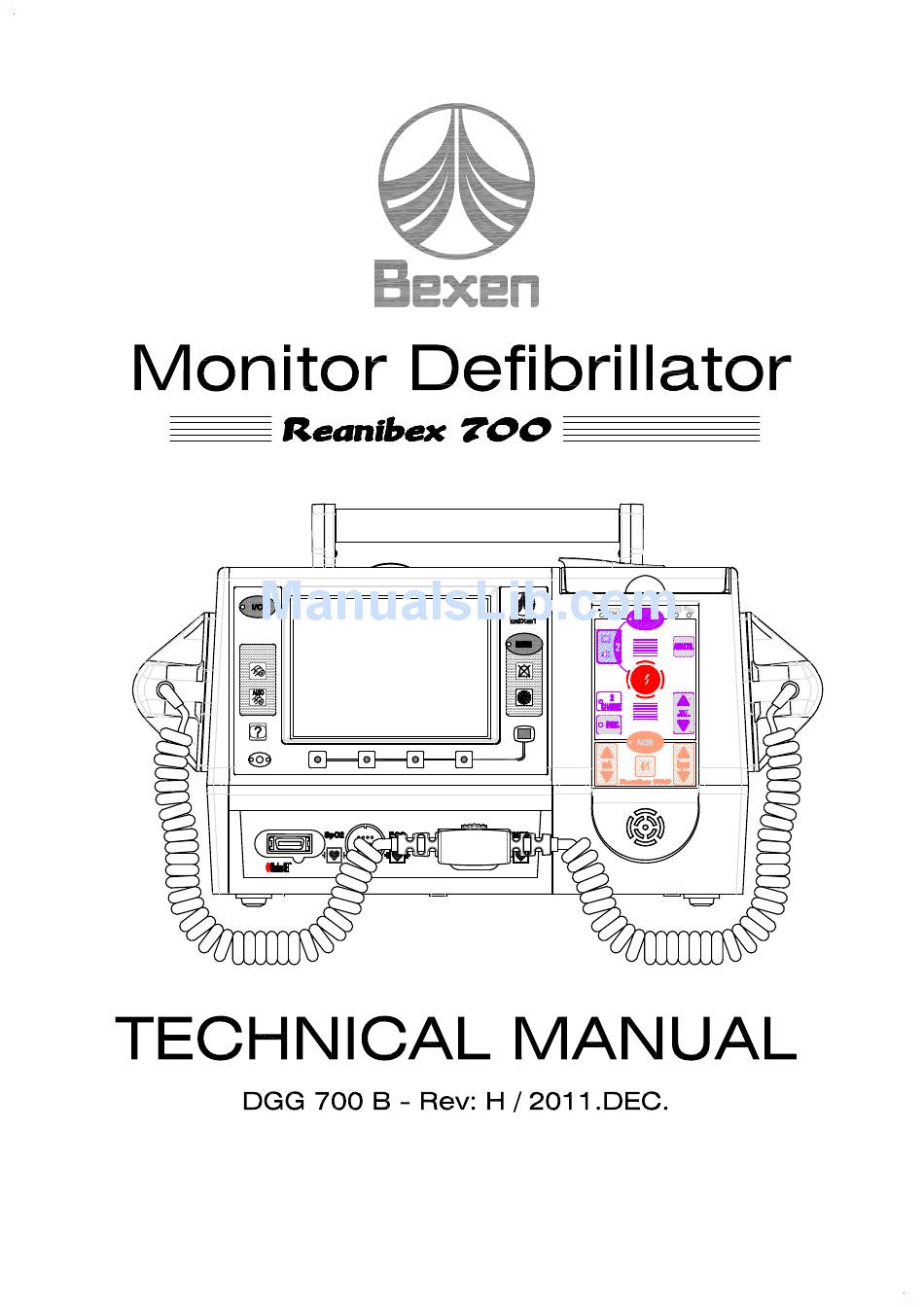

Bexen Reanibex 700 Technical Manual

Monitor defibrillator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Reanibex 700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bexen Reanibex 700

Summary of Contents for Bexen Reanibex 700

  • Page 3 REANIBEX Serie 700 Technical Manual Approved: R&D Director Revision: H Date: December - 2011...
  • Page 5 TECHNICAL MANUAL DGG 700 B Revision G 07/2011 All rights for this publication are reserved. This manual may not be totally or partially reproduced, in any way or by any means, without prior written authorisation from OSATU S.Coop. The information contained in this manual may be modified with no need for previous notification by the manufacturer.
  • Page 6 TECHNICAL MANUAL DGG 700 B...

  • Page 7: Table Of Contents

    1.9  Batteries ____________________________________________________________ 8  1.10  Repairs and Inspection _______________________________________________ 10  1.11  Recycling ___________________________________________________________ 10  1.12  REANIBEX 700 Series Symbols ________________________________________ 11  1.13  On-screen symbols ___________________________________________________ 13  1.14  Battery symbols _____________________________________________________ 16  1.15  Unit labels __________________________________________________________ 16  1.16  Battery labels _______________________________________________________ 18 ...
  • Page 8 TECHNICAL MANUAL DGG 700 B   CPU Board ______________________________________________________ 54   6.1  Block Diagram ______________________________________________________ 54  6.2  Description _________________________________________________________ 54  6.2.1 Control ________________________________________________________________ 55     6.2.2 Patient monitor _________________________________________________________ 56     6.2.3 Coprocessor (Optional) ___________________________________________________ 59     6.3 ...
  • Page 9 TECHNICAL MANUAL DGG 700 B 12.3  Accessories Test ____________________________________________________ 122  12.4  Front Panel Test ____________________________________________________ 124  12.5  Paddles Interface Test _______________________________________________ 125    Troubleshooting ________________________________________________ 126   13.1  Error Codes _______________________________________________________ 127  13.2  Tests _____________________________________________________________ 129  13.3  Actions to be Performed _____________________________________________ 138  13.4 ...
  • Page 10 TECHNICAL MANUAL DGG 700 B Blank page...

  • Page 11: Warnings

    TECHNICAL MANUAL DGG 700 B Warnings Safety This symbol indicates the need to read the user’s manual since pertinent information relating to the operation of the equipment is to be found in said manual. Read the user manual carefully before using the unit Keep the user manual next to the unit, in order to refer to it whenever necessary.
  • Page 12 - Cardio-pulmonary resuscitation (CPR) - Use of a Monitor/Defibrillator in accordance with the recommendations of the American Heart Association - AHA or of the European Resuscitation Council - - Use of the REANIBEX 700 Series...

  • Page 13: Design And Fabrication

    TECHNICAL MANUAL DGG 700 B WARNING: Risk of dangerous electrical shock. The defibrillator can provide up to 200 Joules of energy during a discharge. When the discharge is taking place do not touch either the patient or the defibrillation electrodes. ATTENTION: During defibrillation avoid contact between parts of the patient’s body (exposed skin of the head and limbs), and metallic objects such as the frame of the bed, which can produce undesirable paths for the defibrillation current.

  • Page 14: Preventive Maintenance

    TECHNICAL MANUAL DGG 700 B Preventive Maintenance The aim of Preventative Maintenance is to ensure that the unit operates under safe working conditions, and prevent potential problems. Suitably qualified personnel should carry preventive Maintenance out at least once a year, only. Make sure the unit is damage-free before using it.
  • Page 15 TECHNICAL MANUAL DGG 700 B Serial number: Date: Operative: Signature: Procedure/Incident Recommended action Result 1. Visual inspection of the device • • The device is dirty Clean the device • • There are cracks or damage Contact Technical service 2. Visual inspection of accessories •...

  • Page 16: Cleaning

    TECHNICAL MANUAL DGG 700 B Cleaning To clean the REANIBEX Serie 700 device, the cables and the reusable external paddles the following considerations must be taken into account: • Use a slightly damp soft cloth. Do not use abrasive or inflammable cleaning products. •...

  • Page 17: Sterilization Of The Internal Paddles

    TECHNICAL MANUAL DGG 700 B 1.6.1 Sterilization of the internal paddles In this section the steam sterilization process of the internal paddles is described. Continue the instructions provided when carrying out this process. 1. Clean the surface of the electrodes and the handles with a standard hospitable solution, such as, for example, isopropyl alcohol, using a soft cloth.

  • Page 18: Explosions

    TECHNICAL MANUAL DGG 700 B Explosions This unit has not been designed to be explosion-proof, and therefore it must not be used in rooms or environments where there is a risk of explosion, nor in the presence of inflammable anaesthetic products nor concentrated oxygen. FIRE OR EXPLOSION HAZARD: Do not use the unit when inflammable or anaesthetic gases are present.
  • Page 19 TECHNICAL MANUAL DGG 700 B WARNING: Storage of the batteries at temperatures greater than 30 ºC significantly reduces their lifespan. When it performs self-tests at start-up and during operation, the device checks the battery charge giving the appropriate instructions in case its charge is low. If on switching the device on, the battery indicator located on the front panel of the device is red in colour at start-up, it indicates that it is necessary to charge the battery, for this purpose connecting the device to an external power supply (car battery or AC mains).

  • Page 20: Repairs And Inspection

    Avoid electrical contact between the battery terminals. 1.10 Repairs and Inspection OSATU S.Coop. can only accept liability for the safety aspects of the REANIBEX 700 when the maintenance, repairs and subsequent modifications have been carried out by our technical personnel or by companies authorised by us, and when components affecting the safety of the unit have been replaced with original spare parts.

  • Page 21: Reanibex 700 Series Symbols

    WARNING: Follow the local, regional or national instructions of your country when recycling the different parts of the REANIBEX Serie 700, or send them to OSATU S. Coop. 1.12 REANIBEX 700 Series Symbols SYMBOL MEANING General ON/OFF button of the device.
  • Page 22 TECHNICAL MANUAL DGG 700 B FUNCTION Keys Alarms sound PAUSED key On-screen signal FREEZE-HOLD key Selected energy CHARGE key Synchronism ACTIVATION/DEACTIVATION key ENERGY SELECTION keys ECG signal ANALYSIS start key DISCHARGE Button Icon for following the audible and visual instructions of the device when it is operating in Semi-Automatic Defibrillator mode.

  • Page 23: On-Screen Symbols

    TECHNICAL MANUAL DGG 700 B Connection of the direct external supply (car battery) Connection of the alternating external supply (AC mains) Non-protected against defibrillation. CF type device Protected against defibrillation. CF type device ATTENTION: See accompanying documents Symbol of certification in accordance with the Directive for medical devices 93/42/CEE 1.13 On-screen symbols SYMBOL...
  • Page 24 TECHNICAL MANUAL DGG 700 B Loose PATIENT CABLE LEAD ERROR in the RECORDER (includes the lack of paper and the door being open) QRS BEEP DEACTIVATED ALARMS SOUND IN PAUSE COMPACT FLASH FULL ERROR in the COMPACT FLASH or no card installed VT/VF ALARM ACTIVATED and analyzing ECG signal...
  • Page 25 TECHNICAL MANUAL DGG 700 B There is an error in the PULSE OXIMETRY module TIME REMAINING for CPR TIEMPO RCP (SEG) 30 CHARGING the CAPACITOR to the selected CARGANDO energy...

  • Page 26: Battery Symbols

    TECHNICAL MANUAL DGG 700 B 1.14 Battery symbols SYMBOL MEANING ATTENTION: See accompanying documents Recyclable material. Heavy metal substances. Do not dispose them inappropriately Do not try to open the battery casing. Do not expose the battery to excessive heat or to flames.
  • Page 27 TECHNICAL MANUAL DGG 700 B In the lower part of the device there is the following label, where the serial number of the device is shown. In the upper part of the device, just under the protection cover of the Compact Flash, but only for those equipments which have Automated Defibrillation option, there is the following label that contains the indication of switching off the equipment before inserting and extracting the Compact Flash memory card:...

  • Page 28: Battery Labels

    TECHNICAL MANUAL DGG 700 B 1.16 Battery labels The label included in the battery holds information relating to the battery characteristics (type, capacity, voltage, batch and date of manufacture), as well as recommendations for its handling and storage.

  • Page 29: General Description

    TECHNICAL MANUAL DGG 700 B General description The REANIBEX Serie 700 is a Monitor/Defibrillator which allows advanced monitoring and resuscitation functions to be performed, for this purpose having four modes of operation: Monitor with pulse oximetry (SpO2) option, Manual Defibrillator, Semi-Automatic (optional) Defibrillator and External transcutaneous (optional) Pacemaker.
  • Page 30 TECHNICAL MANUAL DGG 700 B the parameters which control the operation of the device to the needs of the different users is permitted. The REANIBEX Serie 700 can operate with NiMH rechargeable batteries, connected to a supply AC mains or connected to a car battery. The remaining battery capacity is constantly seen in the top part of the device screen.

  • Page 31: Front View

    TECHNICAL MANUAL DGG 700 B Front view The elements and indicators that make up the front part of the device are described below: NUMBER DESCRIPTION REUSABLE EXTERNAL PADDLES PULSE OXIMETER extension cable CONNECTOR; it allows the connection of the extension cable to which the pulse oximetry sensor is connected PATIENT CABLE CONNECTOR, it allows the connection of the patient's cable, that can be 4, 5 or 10 lead...

  • Page 32: Upper View

    TECHNICAL MANUAL DGG 700 B The LOUDSPEAKER provides the sounds indicative of alarm, QRS detected, exceptional conditions produced during the utilization and also audible messages that guide the user during his utilization (Only for device that has the Semi-Automatic Defibrillator option). The FRONT PANEL, that includes the activation keys of the different operating modes.
  • Page 33 TECHNICAL MANUAL DGG 700 B NUMBER DESCRIPTION HOLDER of the reusable external paddles. To release the paddles, press the holder and extract the paddles PROTECTION cover of the COMPACT FLASH memory card. Under this cover the memory card holder is located. Only device that has the Semi- Automatic Defibrillator option has the possibility of data recording in the Compact Flash.

  • Page 34: Rear View

    TECHNICAL MANUAL DGG 700 B Rear view The rear part of the REANIBEX Serie 700 presents the following items: NUMBER DESCRIPTION BATTERY HOUSING. The place where the device battery is housed. CAR BATTERY CONNECTOR. It allows the connection of the device to a D.C.

  • Page 35: Front Panel

    TECHNICAL MANUAL DGG 700 B Front panel In this section the functions associated with each of the keys available in the front panel are described. The different keys are grouped according to the mode to which they belong. A series of keys common to all the ways of operation exists: NUMBER DESCRIPTION GREEN general on/off (I/O) key of the device.

  • Page 36: Monitor Mode

    TECHNICAL MANUAL DGG 700 B 2.4.1 Monitor Mode The keys corresponding to the Monitor mode are described below: NUMBER DESCRIPTION MONITOR mode access key. The indicator of this key is illuminated when the device is operating in Monitor mode. ALARMS SOUND PAUSED key. It allows sound alarms indication to be deactivated during a maximum time of 2 minutes.
  • Page 37 TECHNICAL MANUAL DGG 700 B NUMBER DESCRIPTION Access key for the DEFIBRILLATOR mode. The indicator of this key is illuminated when the device is operating in Defibrillator mode. Indication for following the audible and visual instructions of the device when it operates in Semi-Automatic Defibrillator mode. Charge the selected energy key.

  • Page 38: Pacemaker Mode (Optional)

    TECHNICAL MANUAL DGG 700 B 2.4.3 Pacemaker Mode (Optional) The following keys located in the front panel of REANIBEX Serie 700 allow operation in the Pacemaker mode: NUMBER DESCRIPTION PACEMAKER mode access key. The indicator of this key illuminates when the device is operating in Pacemaker mode. AMPLITUDE SELECTION of the pacemaker stimulation pulses key FREQUENCY SELECTION of the pacemaker stimulation pulses key Key 4:1.

  • Page 39: Paddles, Electrodes And Patient Cable

    TECHNICAL MANUAL DGG 700 B 2. Middle part – Displays the biological signals. It will be possible to display a single ECG channel or cascaded, or an ECG channel along with the plethysmographic curve, for device with this option. In the lower part of this area guide messages for the user, when in Semi-Automatic Defibrillator mode, and informative messages for the rest of the modes, are displayed.
  • Page 40 TECHNICAL MANUAL DGG 700 B The external reusable paddles have keys for the selection and charging with energy, for printing, and two shock push buttons: NUMBER DESCRIPTION SHOCK Push button of the Sternum pad. Operating in Manual Defibrillator mode allows the shock to be supplied to the patient when simultaneously pushed with that of the Apex pad.
  • Page 41 TECHNICAL MANUAL DGG 700 B SHOCK Push button of the Apex pad. Operating in Manual Defibrillator mode allows the shock to be supplied to the patient when simultaneously pushed with that of the Sternum pad. PRINT Key. It allows the recording both of the biological signals and of the events that occur with the device during the utilization.
  • Page 42 TECHNICAL MANUAL DGG 700 B Blank page...

  • Page 43: Technical Specifications

    TECHNICAL MANUAL DGG 700 B Technical specifications General TECHNICAL SPECIFICATIONS Electrical protection Input protected against high voltage defibrillation pulses (IEC 60601) Safety Classification IEC 60601, type CF, class I, internally powered equipoment. Continuous operating mode. MONITOR Monitoring is performed using 4, 5 and 10 lead cable, internal or external reusable paddles and disposable multifunction electrodes Outputs...
  • Page 44 TECHNICAL MANUAL DGG 700 B averagingthe heart rate - For heart rates lower than 50 bpm, the 4 most recent R-R intervals are used for averaging the heart rate. Heart rate response time - From 80 to 40 bpm: 3 secods - From 80 to 120 bpm: 2 secondss Alarm response time for tachycardia - 206 bpm (1 mV): 2 seconds - 206 bpm (half amplitude): 3 seconds...
  • Page 45 TECHNICAL MANUAL DGG 700 B Saturation (% SpO ) range 1-100% Saturation (%SpO ) accuracy Adults/Peditrics 70% - 100 % : ± 2 digits during no motion conditions 0% - 69 % : Not especified Neonates 70% - 100 % : ± 3 digits 0% - 69 % : Not especified Saturation (%SpO ) accuracy...
  • Page 46 TECHNICAL MANUAL DGG 700 B - Reusable external paddles Paddles Options - Internal paddles - Multifuctions ingle-use cable-electrodes - Permanent single-use multifunctions electode cable Energy Selection Front panel button and external paddle buttons Charge Control Front panel button and external paddle buttons Charge Indicator Charging tone, end of charge tone, LED in charge button and shock button on the front panel blinking...
  • Page 47 TECHNICAL MANUAL DGG 700 B Semi-automatic defibrillator (Optional) Maximum: 200 Joules ± 15 % Output energy Paddles Options - Single-use multifunction cable- electrodes - Permanent cable with disposable electrodes Guide messages Emission of audible and on-screen messages that guide the user during the procedure Charge Indication Charging tone, end of charging tone and blinking front panel discharge button...
  • Page 48 TECHNICAL MANUAL DGG 700 B Continuous current rectilinear Waveform Pulse width 40 msec Amplitude From 0 to 150 mA in increments of 5 mA Frequency From 30 to 180 ppm in increments of 5 ppm - Fixed Operating modes - On Demand Refractory period - 240 msec from 30 to 80 ppm - 340 msec from 85 to 180 ppm...
  • Page 49 TECHNICAL MANUAL DGG 700 B tendencies (optional) - Results of manual test and those carried out by the equipment. - Configuration parameters - Events / incidences stored in the memory card along with the associated ECG signal. Width of Paper 50 mm 10, 25 and 50 mm/sec ±...
  • Page 50 TECHNICAL MANUAL DGG 700 B Approximately 3 hours Charge time Weight 800 grams Alternating (Mains) 100-240 Vac and 50/60Hz Direct (Car battery) 10-16 Vdc Equipotential Conductor It provides an additional connection to the ground connection of a building electrical installation. If this ground connection is not available, connect the equipotential conductor to any metal element accessible on the building structure.
  • Page 51 TECHNICAL MANUAL DGG 700 B...

  • Page 52: Defibrillation Waveform

    TECHNICAL MANUAL DGG 700 B Defibrillation waveform For defibrillation the REANIBEX Serie 700 has incorporated a BIPHASIC TRUNCATED EXPONENTIAL WAVEFORM: Phase 1 Phase 2 Commutation time between phase 1 and phase 2 of the wave is 600 μsec. Furthermore, it is devised so that the negative tension (V2) coincides with the positive (V1) in the change of polarity.
  • Page 53 TECHNICAL MANUAL DGG 700 B Phase1 Duration (msec) Phase2 Duration (msec) Charge Energy applied (J) resistance ( Ω ) 10.6 11.2 10.1 11.9 10.6 12.5 Discharged energy waveforms at differente patient impredance, for a selected energy of 200 J: Impedancia Paciente de 25 Ω...
  • Page 54 TECHNICAL MANUAL DGG 700 B Impedancia Paciente de 50 Ω Impedancia Paciente de 75 Ω...
  • Page 55 TECHNICAL MANUAL DGG 700 B Impedancia Paciente de 100 Ω Impedancia Paciente de 125 Ω...
  • Page 56 TECHNICAL MANUAL DGG 700 B Impedancia Paciente de 150 Ω Impedancia Paciente de 175 Ω...

  • Page 57: Rhythms Detector

    TECHNICAL MANUAL DGG 700 B Clinical evaluation of the results obtained At the present time greater efficiency has been demonstrated for biphasic wave defibrillation than for traditional single-phase waves, since they require less energy for this purpose; it also being noted that the displacements that the aforementioned wave gives rise to on the ST segment of the ECG are less, likewise presenting lower incidence of cardiac dysfunction after defibrillation.
  • Page 58 TECHNICAL MANUAL DGG 700 B For each ECG test signal the result provided by the rhythms detector was recorded (shockable rhythm or non-shockable rhythm) and the result was compared with the classification and treatment recommendation for this rhythm by clinical experts. The following describes the development and validation databases: DEVELOPMENT VALIDATION...
  • Page 59 TECHNICAL MANUAL DGG 700 B The results obtained wiht these databases: NON- PPV / SE / SP RITMS SHOCKABLE SHOCKABLE NPV(%) Shockable 99.7 Coarse VF Rapid VT Non Shockable 99.8 Others * 99.7 Intermediate Fine VF 93.7 94.4 Other * The category Other includes AF, PVC, SB, BII, IV, SVT and Asistoles.

  • Page 60: General Block Diagram

    TECHNICAL MANUAL DGG 700 B General Block Diagram The following diagram shows the blocks that form part of the REANIBEX 700 Series and how they are inter-connected. LCD Screen & Keyboard Compact Flash Indicators card Speaker Signal Adaptation & Electrodes,...
  • Page 61 TECHNICAL MANUAL DGG 700 B Blank page...

  • Page 62: Connections Diagram

    TECHNICAL MANUAL DGG 700 B Connections Diagram +DIBUJADO REVISADO: ESCALA / CONNECTIONS DIAGRAM CANT. ANULA A / FECHA: DENOMINACION: CODIGO:...
  • Page 63 TECHNICAL MANUAL DGG 700 B Blank page...

  • Page 64: Cpu Board

    Block Diagram: CPU Board 6.2 Description The main function of the CPU Board is to control all the functions that the REANIBEX 700 Series must perform, as well as to carry out the monitoring of the patient, and in case of units...

  • Page 65: Control

    Within this area the principal microprocessor (SH-2 de Hitachi), entrusted with execution of the main software of the REANIBEX 700 Series and of the control of the rest of the modules and cards of the unit, is to be found. Within this processor the main program, which is entrusted...

  • Page 66: Patient Monitor

    TECHNICAL MANUAL DGG 700 B Basic audio Series line Controller (for recording of the unit software) Control Serial Line Memory Keyboard Controler Screen Register Basic Audio Pacemaker SpO2 Power Board Board Board Supply Block diagram: CPU control area 6.2.2 Patient monitor This module is essentially in charge of the following functions: Capture and adapting of the ECG signal Detection of the type of paddles or electrodes connected and of the type of patient...
  • Page 67 TECHNICAL MANUAL DGG 700 B Block diagram: Patient Monitor ECG signal capture can carry out by means of them following elements: • Reusable external or internal paddles • Multifunction disposable electrodes • Patient cable that can be 4, 5 and 10 lead This module has the following characteristics: •...
  • Page 68 TECHNICAL MANUAL DGG 700 B Block diagram: Signal adaptation A) Measurement of the impedance of the patient – necessary in order to determine the capacitor charge voltage, also permitting it to be determined if the disposable defibrillation electrodes or the paddles are correctly placed on the patient. Measurement of the impedance of the patient (Zp) is carried out by injecting an electrical signal to the patient through the defibrillation electrodes.

  • Page 69: Coprocessor (Optional)

    TECHNICAL MANUAL DGG 700 B B) QRS Detection – The purpose of this module is the detection of onset of rise of QR in order to allow the calculation of the cardiac frequency. QRS detection is also necessary in order to synchronise the discharge of the defibrillation pulse with the ECG, in the case that the Synchronisms option in <Manual >Defibrillator mode is activated, or in the case of Ventricular Tachycardia (VT) in Semiautomatic Defibrillator mode.

  • Page 70: Location Of Components

    TECHNICAL MANUAL DGG 700 B Audio recording both of the unit and of the scene Management of the interface with the Compact Flash memory card for recording both the ECG signal samples, and the events, and optionally the audio when working in Semiautomatic Defibrillator Mode.
  • Page 71 TECHNICAL MANUAL DGG 700 B Location of Components DIBUJADO: REVISADO: ESCALA / CANT. CPU Board (I) ANULA A / FECHA: DENOMINACION: CODIGO:...
  • Page 72 TECHNICAL MANUAL DGG 700 B Location of Components DIBUJADO: REVISADO: ESCALA / CANT. CPU Board (II) ANULA A / FECHA: DENOMINACION: CODIGO:...

  • Page 73: List Of Materials

    TECHNICAL MANUAL DGG 700 B 6.4 List of Materials ITEM QTY PART NUMBER DESCRIPTION REFERENC ADG619BRMZ Switch 4 ohms SPDT cmos 2.7 a 5.5V, U5,U9,U15, uSO8 (AD)format U107-U108 ADUC814ARUZ 12-bit ADC microcontroller with embedded FLASH, format TSSOP28 (AD) ADuM1250ARZ Hot Swappable Dual I2C Isolator, SO8 (ANALOG DEVICES) ADuM1401ARWZ Quad-Channel Digital Isolators, 1Mbps,...
  • Page 74 TECHNICAL MANUAL DGG 700 B L32,L37- L38,L40-L41 BLM18BD102SN1 Interferences suppresor Z=1K (100MHz), L52-L62 I=0.1A format 0603 (MURATA). BLM41PG102SN1 Interferences suppresor Z=1K (100MHz), L11,L13- I=1.5A (MURATA) L15,L18- L20,L22- L24,L27- L28,L33- L36,L39,L49 -L50,L63- B82442-H1475-K SMD Induction 4700uH/10% 0.05A 62.4omhs 0.9MHz (EPCOS) B82790-C0475-N265 Double coil shock 4,7mH/0.2A (EPCOS).
  • Page 75 TECHNICAL MANUAL DGG 700 B (JAMICON) CR2032FP2 3V capacity button battery 180mAh assembly in pcb vertical (VARTA). CYBIT_ASC100-BGLI DSP ref.(TI) TMS320VC5402PGE100 recorded with the compression algorithm, format LQFP144 (CYBIT). CY62256NLL-55SNXI SRAM memory 32768x8 bits of 55ns SOP28 (CYPRESS). C_P_ELER_2200uF_16V_20 Radial electrolitic capacitor 2200uF/16V C174 %_LESR 20% Low ESR...
  • Page 76 TECHNICAL MANUAL DGG 700 B C_S_X7R_330nF_25V_10%_ SMD Capacitor 1206 X7R 330nF/25V 10% C147 1206 C_S_X7R_330pF_50V_10%_ SMD Capacitor 0603 X7R 330pF/50V 10% C120 0603 C_S_X7R_470pF_50V_10%_ SMD Capacitor 0603 X7R 470pF/50V 10% C2,C23- 0603 C24,C52,C1 37,C139,C1 C_S_Y5V_1uF_50V_20%_12 SMD Capacitor 1206 Y5V 1uF/50V 20% C275,C288 C_S_Y5V_3,3uF_10V_20%_ SMD Capacitor 0805 Y5V 3,3uF/10V 20%...
  • Page 77 TECHNICAL MANUAL DGG 700 B FCI_SFW20R-1ST 20 pins FFC right angle connector raster 1 lower contact (FCI). FCI_SFW30R-1ST 30 pins FFC right angle connector raster 1 lower contact (FCI). FCI_SFW30S- 30 pins FFC straight connector raster 1 (FCI 2ST_MOLEX_52610-3090 o molex). GRM31MR71C225KA35L SMD Capacitor 1206 X7R 2,2uF/16V 10% C277,C285...
  • Page 78 TECHNICAL MANUAL DGG 700 B R299,R302- R303,R310- R311,R314- R315,R321- R322,R327, R334 HPWGF0104E50 100K ohms resistor, 1%, 63mW, 0603 R19- (ROYAL OHM). R23,R47,R5 1-R55,R84- R85,R250- R252,R295 HPWGF0153E50 15K resistor, 1%, 63mW, 0603 (ROYAL R49,R63- OHM). R64,R80,R9 5,R281,R30 1,R343 HPWGF0203E50 20K ohms resistor 1% tolerance 63mW R12,R35,R6 power, format 0603 (ROYAL OHM).
  • Page 79 TECHNICAL MANUAL DGG 700 B R319-R320 HPWGF0823E50 82K ohms resistor 1% tolerance 63mW power, format 0603 (ROYAL OHM). HPWGF1242E50 12K4 ohm resistor, 1%, 63mW, 0603 (ROYAL OHM). HPWGF2373E50 237K ohms resistor 1% tolerance 63mW R40,R90 power, format 0603 (ROYAL OHM). HPWGF2801E50 2K8 resistor 1% tolerance 63mW power, R236...
  • Page 80 TECHNICAL MANUAL DGG 700 B R194- R198,R200, R211- R212,R240, R242- R243,R246- R248,R254, R257- R258,R265- R266,R280, R284,R286- R287,R292- R293,R312- R313,R328- R329,R336- R342 HPWGJ0331E50 330 resistor 5% tolerance 63mW power, R213 format 0603 (ROYAL OHM). HPWGJ0332E50 3,3K resistor, 5%, 63mW, format 0603 R344 (ROYAL OHM).
  • Page 81 TECHNICAL MANUAL DGG 700 B (NATIONAL). LM2676S-5.0 Adjustable commutable regulator of 3 Amp with shutdown, format TO263-7pins (NATIONAL). LP2985-33DBVTE4 3,3V/150mA voltaje regulator of low noise U101 and Ultra Low-Dropout, format SOT23-5 (TI) LP8358MF-1.2 2V/150mA, uCap voltaje regulator, Low- Dropout, format SOT23-5 (NS) LT1617ES5 DC/DC Inverter converter of low power, format SOT23-5pins (LINEAR).
  • Page 82 TECHNICAL MANUAL DGG 700 B MURS120T3 Ultra-fast diode If=1A, V=200, trr=35ns , format SMB (ON) M25P10-AVMN6P 1Mbit Flash Memory, serial access SPI 2V3- U106 3V6, format SO8 (ST). NE555D Timer de Fmax = 500MHz, format SO8 (Philips). NFE31PT222Z1E9 2200pF EMI capacitor filter for direct voltaje L3,L6,L16- (muRata) L17,L43,L46...
  • Page 83 TECHNICAL MANUAL DGG 700 B R_0603_2K7_1% 2K7 ohm resistor 1% tolerance 63mW power, format 0603. R_0603_3K_1% 3K resistor 1% tolerance 63mW power, R61,R158,R format 0603. R_0603_3K3_1% 3K3 resistor 1% tolerance 63mW power, R2,R189 format 0603. R_0603_8K2_1% 8K2 resistor 1% tolerance 63mW power, R30,R140,R format 0603.
  • Page 84 TECHNICAL MANUAL DGG 700 B format 0603. R_0805_1K_1% 1K ohm resistor 1% tolerance 100mW R304 power, format 0805. R_0805_2K2_5% 2K2 resistor 5% tolerance 100mW power, R309 format 0805. R_0805_10_1% 10 ohm resistor 1% tolerance 100mW R126 power, format 0805. R_1206_820_5%_0.25W 820 ohm resistor 5% tolerance 250mW R268- power, format 1206.
  • Page 85 TECHNICAL MANUAL DGG 700 B ULN2803LW 8 Darlington output array TTL/CMOS format SOL18 (ALLEGRO). VEA-25V471MH10-R SMD Electrolitic capacitor 470uF/25V 20% C107 (LELON). VZH-25V101MF80-R Condensador electrolitico SMD 100uF/25V C203,C213, 20% Low ESR (LELON) C216-C217 W681310RG PCM Codec-Filter of 3V, format SSOP20 (WINBOND).
  • Page 86 TECHNICAL MANUAL DGG 700 B C116,C122, C124,C127- C134,C136, C138,C144- C146,C148- C150,C153, C155- C159,C161, C168- C169,C173, C176,C179- C182,C185- C187,C189- C192,C194, C196- C197,C199, C201,C206, C208- C212,C214- C215,C218, C223- C224,C226- C227,C236, C238- C241,C244, C246,C248- C249,C251- C255,C257- C259,C262- C268,C270- C273,C282- C284,C289, C291- C293,C296- C328 0805ZC105KAT2A SMD Capacitor 0805 X7R 1uF/10V 10% C167,C172,...
  • Page 87 TECHNICAL MANUAL DGG 700 B 2468-2061 6-pins SMD straight male connector pitch 2.54 (CENVALSA). 2468-2081 8-pins SMD straight male connector pitch J38-J39 2.54 (CENVALSA). 06035A101JAT2A SMD Capacitor 0603 NP0/C0G 100pF/50V C11,C13- 5% (AVX) C14,C16- C17,C41,C4 C44,C46,C4 8,C53- C54,C86,C2 06035C103KAT2A SMD Capacitor 0603 X7R 10nF/50V 10% C29,C63- (AVX) C64,C72,C7...

  • Page 88: High Voltage Board (Hv)

    TECHNICAL MANUAL DGG 700 B High Voltage Board (HV) 7.1 Block diagram HV Board 10-16 Vdc NiMH (external supply) Battery Power Supply 47-63 Hz, Distribution + Tarjeta CPU 90-264 Vac battery charger Charge Discharge Paddles / Circuit Circuit electrodes Charge Alarms Alarms pulses train...

  • Page 89: Charge And Discharge Process

    TECHNICAL MANUAL DGG 700 B 7.2.1 Charge and Discharge Process In order to ascertain the necessary charge voltage, the energy selected by the user and the patient impedance must be known, so that depending on these according the capacitor can be charged as required.

  • Page 90: Power Supply Distribution And Battery Charger

    NiMH battery when this is installed in the unit, which is in turn connected to an external alternating power supply (47-63Hz, 90-264 Vac) or direct (10-16 Vdc). Charging of the NiMH battery is carried out independently of whether the REANIBEX 700 Series is switched on or switched off.

  • Page 91: Location Of Components

    TECHNICAL MANUAL DGG 700 B Power Supply Distribution and Battery Charger VAC (47-63 Hz, VDC (10-16V) 90-264 Vac) Power Supply NiMH CPU Board Battery Distribution Battery CPU Board Charger Block Diagram: Power Supply distribution and battery charger 7.3 Location of Components...
  • Page 92 TECHNICAL MANUAL DGG 700 B Location of components DIBUJADO: REVISADO: ESCALA / CANT. HV Board ANULA A / FECHA: DENOMINACION: CODIGO:...

  • Page 93: List Of Materials

    TECHNICAL MANUAL DGG 700 B 7.4 List of Materials ITEM QTY PART NUMBER DESCRIPTION REFEREN AD822BR I.C. Operational amplifier of one power supply and FET input low power, SO8 (AD). ARW_SH_112D 12V Relay one commuted contact 15A with doubles pins BAS16 Rapid diode Ifrm=500mA, Vr=75V, format D7,D9...
  • Page 94 TECHNICAL MANUAL DGG 700 B BZX84C_10V Zener diode 10V 0.3W, format SOT23 D15,D25, (PHILIPS). D46,D48, D50,D52, D59-D64 BZX84C_18V Zener diode 18V 0.3W, format SOT23 D28-D31 (PHILIPS). B32560-J1225-K Epcos poliester capacitor 2.2uF/63V 10% C120 B32560-J1225-K B82111-B-C21 Bobine 5uH 10Amp (EPCOS) CENVALSA_2532-2021 Right angle male connector of 2 pins raster 2.54 (CENVALSA).
  • Page 95 TECHNICAL MANUAL DGG 700 B C_S_X7R_1uF_16V_10%_1 SMD capacitor 1206 X7R 1uF/16V 10% C34-C35 C44-C45 C64-C65 C67,C69, C71,C76, C78,C80, C90,C92, C107,C115 C_S_X7R_2.2nF_50V_10%_ SMD capacitor 0603 X7R 2.2nF/50V 10% C10,C26 0603 C_S_X7R_10nF_50V_10%_ SMD capacitor 0603 X7R 10nF/50V 10% C9,C17, 0603 C31-C32 C86,C121, C125 C_S_X7R_22nF_50V_10%_ SMD capacitor 0603 X7R 22nF/50V 10%...
  • Page 96 TECHNICAL MANUAL DGG 700 B C_T_CER_4.7nF_3150V_+8 Hight voltage ceramic capacitor 4.7nF 0-20% 3150V +80,-20%, ref.DEBE33F472ZA3B (muRata) C_T_ELER_100uF_25V_20 Radial electrolitic capacitor 100uF/25V 20% C28,C63 %_LESR LOW ESR C_T_ELER_220uF_25V_20 Radial electrolitic capacitor 220uF/25V 20% C27,C66 %_LESR LOW ESR C_T_ELER_1000uF_35V_20 Radial electrolitic capacitor 1000uF/35V 20%.
  • Page 97 TECHNICAL MANUAL DGG 700 B LMV321M5 Low voltage operational amplifier, format U13-U15 SOT23-5 (NS) LMV358M Low voltage operational amplifier, format SO8 (NS) LM78L12ACM 12V Voltage regulator, 100mA format SO8 (NS) LM79L12ACM -12V negative voltage regulator, format SO8 (NS). LP2951CMM Ajustable voltage regulator, of 200mA and Ultra Low-Dropout, format SO8 (NS).
  • Page 98 TECHNICAL MANUAL DGG 700 B R_1_50M_7500V_1% 50Mohms high voltage radial resistor7500V R13,R26 1% 1W, ref. HB1_50M0_FZRE (Meggitt CGS). R_2_SMD_0R03_1% 0.03ohm SMD resistor sensor tolerance 1% power 2W, serie SMD_OARS-1 (WELWYN). R_6_10K_5% 10K resistor tolerance 5% power 6W, R19-R20 format W22 (Welwyn). R_0603_0 0 ohm resistor power 63mW, format 0603.
  • Page 99 TECHNICAL MANUAL DGG 700 B R_0805_1K_5% 1K resistor tolerance 5% power 100mW, R94-R97 format 0805. R_0805_1M_5% 1M resistor tolerance 5% power 100mW, R72-R76 format 0805. R_0805_2K_1% 2K ohm resistor tolerance 1% power R80-R81 100mW, format 0805. R138 R_0805_2K2_5% 2K2 resistor tolerance 5% power 100mW, R106 format 0805.
  • Page 100 TECHNICAL MANUAL DGG 700 B R_0805_47K_5% 47K resistor tolerance 5% power 100mW, R140-R141 format 0805. R165-R166 R_0805_56K_5% 56K resistor tolerance 5% power 100mW, R120 format 0805. R_0805_56R2_0.1% 56R2 ohm resistor tolerance 0.1% power R161 100mW, format 0805. R_0805_68K_5% 68K resistor tolerance 5% power 100mW, format 0805.
  • Page 101 TECHNICAL MANUAL DGG 700 B R_1206_560_2%_0.25W 560 ohm resistor tolerance 2% power R53-R56 250mW, format 1206. R_2512_0R047_1% 0.047 Resistor tolerance 1% power 1W, R115-R116 format 2512. SHCV-SR2K20M105Z Varistor VRMS=20V (EPCOS) SIEMENS_RTE24012 12V Raley two commuted contacts limpiable 8A, RTE24012 (Siemens) SI4420DY MOS transistor of N chanel in enrichment mode, format SO8 (VISHAY).
  • Page 102 TECHNICAL MANUAL DGG 700 B WICKMANN_419_1800_000 SMD Fuse 8A, V=125V, P=1.3W, N-419 (WICKMANN) WICKMANN_419_2100_000 SMD Fuse 10A, V=125V, P=1.4W, N-419 (WICKMANN) WICKMANN_420_1250_000 SMD Fuse 2.5A, V=125V, P=0.4W, N-420 (WICKMANN) ZXCT1009F Lout meter through Rshunt format SOT23 (ZETEX) ZXM61P02F MOS Transistor P chanel in Q34,Q38 enriquecimiento, format SOT23 (ZETEX).
  • Page 103 TECHNICAL MANUAL DGG 700 B Blank page...

  • Page 104: Pacemaker Board (Optional)

    TECHNICAL MANUAL DGG 700 B 8. Pacemaker Board (Optional) 8.1 Block diagram Pacemaker Board Constant Disposable Power Supply Filter Electrodes Current 125 V 12 V (Patient) Generator Pulse control CPU Board monitoring Block diagram: Pacemaker Board 8.2 Description This board is entrustd with generating the stimulation pulses when operating in Pacemaker mode.
  • Page 105 TECHNICAL MANUAL DGG 700 B The amplitude of the pulses given to the patient is monitored in order to verify that it is appropriate. This information is sent to the CPU for its processing It implements a redundant control of the width of the pulses emitted, in order to ensure that in no case does this exceed 60 msec., even supposing that the main microprocessor of the CPU board becomes damaged.

  • Page 106: Location Of Components

    TECHNICAL MANUAL DGG 700 B 8.3 Location of Components Location of Components DIBUJADO: REVISADO: ESCALA / CANT. Pacemaker Board (I) ANULA A / FECHA: DENOMINACION: CODIGO:...
  • Page 107 TECHNICAL MANUAL DGG 700 B Location of Components DIBUJADO: REVISADO: ESCALA / CANT. Pacemaker Board (II) ANULA A / FECHA: DENOMINACION: CODIGO:...

  • Page 108: List Of Materials

    TECHNICAL MANUAL DGG 700 B 8.4 List of Materials ITEM QTY PART NUMBER DESCRIPTION REFEREN Washer M3 ARAN1, ARAN2, ARAN3, ARAN4, ARAN5, ARAN6 Flat Washer M3 ARAN1, ARAN2, ARAN3, ARAN4, ARAN5, ARAN6 100nf SMD capacitor 0805 X7R 100nF/25V C1,C2,C3, C4,C5,C7, C8,C13, C23,C24, C25,C29,...
  • Page 109 TECHNICAL MANUAL DGG 700 B Radial electrolitic capacitor raster 2 mm, Dia. 5 mm 105ºC (1uF/50V) 22nf Capacitor MKT 22nF/100V, Raster 5mm EPCOS(B32529C1223K) Capacitor 1uf/63V AVX (BF074DO105K) 1N5381B Zener Diodo 1N5381B (130V / 5W) D2,D1 BAV199 Diode BAV199, format SOT-23 D9,D3 MURS120T3 Diode MURS120T3, format SMB...
  • Page 110 TECHNICAL MANUAL DGG 700 B G5V-1 12VDC Relay Omron G5V-1 12VDC 150V Varistor 150V, B72650M151K72 3K9 ohm resistor tolerance 5% power R1,R3,R6, 100mW, format 0805 200R 200R ohm resistor tolerance 5% R2,R5,R8 power100mW, format 0805 100R 100 ohm resistor tolerance 5% power 250mW, format 1206 22R ohm resistor tolerance 5% power R7,R9...
  • Page 111 TECHNICAL MANUAL DGG 700 B 330R 330R ohm resistor tolerance 5% power 100mW, format 0805 100K 100K ohm resistor tolerance 5% power 100mW, format 0805 560K 560K ohm resistor tolerance 5% power 100mW, format 0805 390R 390R ohm resistor tolerance 1% power 100mW, format 0805 3K9 ohm resistor tolerance 1% power100mW, format 0805...
  • Page 112 TECHNICAL MANUAL DGG 700 B M3 Nut (VNA 003 B) TUER1, TUER2, TUER3, TUER4, TUER5, TUER6 MC74HC14AD Inverter MC74HC14AD, format SMD HCPL-2630 Dual Optocoupler TTL compataible, U2,U4 HCPL-2630, format DIP8 (HP), AD5300BRM Integrated circuit AD5300BRM AD822AR Integrated circuit AD822AR, format SOIC-8 IL300-F Optocoupler IL300-F...
  • Page 113 TECHNICAL MANUAL DGG 700 B Blank page...

  • Page 114: Display Board

    TECHNICAL MANUAL DGG 700 B 9. Display Board 9.1 Block diagram Display Board Only for Automatic equipments with Gain Semi-Automatic Microphone Board Defibrillator Control option Temperature CPU Board Sensor Only for Contrast Display equpment with CPU Board Planar PLANAR Control display Display Only for...

  • Page 115: Location Of Components

    TECHNICAL MANUAL DGG 700 B 9.3 Location of Components Location of components DIBUJADO: REVISADO: ESCALA / CANT. Display Board ANULA A / FECHA: DENOMINACION: CODIGO:...

  • Page 116: List Of Materials

    TECHNICAL MANUAL DGG 700 B 9.4 List of Materials ITEM QTY PART NUMBER DESCRIPTION REFEREN 470nf SMD 0805 capacitor X7R 470nF/25V C7,C1 47nf SMD 0805 capacitor X7R 47nF/25V 10% C2 100nf SMD 0805 capacitor X7R 100nF/25V C3,C8,C9, C10,C13, 10uf 10uf Electrolitic Radial capacitor 1uf Electrolitic Radial capacitor SMD capacitor 1206 X7R 1uF/25V 10% 10nf...
  • Page 117 TECHNICAL MANUAL DGG 700 B 10K ohm resistor tolerance 1% power R1,R4 100mW, format 0805 1K5 ohm resistor tolerance 1% power 100mW, format 0805 33K ohm resistor tolerance 1% power R3,R5 100mW, format 0805 47K ohm resistor tolerance 1% power R7,R6 100mW, format 0805 390R...

  • Page 118: Printer Support Board

    TECHNICAL MANUAL DGG 700 B 10. Printer Support Board 10.1 Block diagram Printer Support Board Functions Interface CPU Board Keyboard Block diagram: Printer support Board 10.2 Description This board basically serves to physically support the unit recorder and to act as interface between the functions keyboard positioned in the front part of the unit and the CPU board entrusted with control of the unit.

  • Page 119: Location Of Components

    TECHNICAL MANUAL DGG 700 B 10.3 Location of Components Location of components DIBUJADO: REVISADO: ESCALA / CANT. Printer Support Board ANULA A / FECHA: DENOMINACION: CODIGO:...

  • Page 120: List Of Materials

    TECHNICAL MANUAL DGG 700 B 10.4 List of Materials ITEM QTY PART NUMBER DESCRIPTION REFEREN HEADER 14 14 pins Vertical connector, FFC/FPC MOLEX (39-51-3144) HEADER 8 8 pins Vertical connector, FFC/FPC MOLEX (39-51-3084) HEADER 20 20 pins 1mm connector, 52043-2010 (MOLEX) 820R 820R resistor 1/4 W 5% (through-hole)
  • Page 121 TECHNICAL MANUAL DGG 700 B Blank page...

  • Page 122: Supplies Filter Board

    TECHNICAL MANUAL DGG 700 B 11. Supplies Filter Board 11.1 Block diagram Power Supply Filter Power VAC Signal Supply Filter (mains) HV Board VDC Signal Filter Block Diagram: Supplies Filter 11.2 Description This board has two EMC filters for the input supply signals. There is one filter for the electrical mains signal (VAC) and another for the signal that comes from a constant external power supply (VDC).

  • Page 123: Location Of Components

    TECHNICAL MANUAL DGG 700 B 11.3 Location of Components Location of components DIBUJADO: REVISADO: ESCALA / CANT. Power Supply Distribution Board ANULA A / FECHA: DENOMINACION: CODIGO:...

  • Page 124: List Of Materials

    TECHNICAL MANUAL DGG 700 B 11.4 List of Materials ITEM QTY PART NUMBER DESCRIPTION REFEREN OUT-230V Solded wire J1,J2 OUT-TIERRA Solded wire SALIDA + Solded wire SALIDA - Solded wire IN-230V Solded wire J6,J7 IN-TIERRA Solded wire ENTRADA DC 44472-0454 female straight connector of 2+2 pins, pitch 4.2mm (molex) 2X6,8mH 2X6,8mH Toroidal shock, RN 222-2/02,...
  • Page 125 TECHNICAL MANUAL DGG 700 B Blank page...

  • Page 126: Unit Self-Testing

    TECHNICAL MANUAL DGG 700 B 12. Unit Self-Testing The different self-tests that the unit runs, and their frequency, are given below: TYPE OF TEST Switch On Operating Start of module Manual Test FLASH Memory RAM Memory DUART Supply INTERNAL Battery Ambient Temperature DEFIBRILLATOR Biphasic Pulse Maximum...

  • Page 127: Description Of The Self-Checks

    TECHNICAL MANUAL DGG 700 B COPROCESSOR Communication Sound recording PACEMAKER Communication 125 V Source Pacemaker pulse Protections PULSE OXIMETRY Communications RECORDER Communication Status Test sheet PADDLES-PATIENT CABLE Detection Test Complete COMPACT FLASH Communication Space and status Read/Write 12.1 Description of the self-checks Each of the self-checks and/or checks that the REANIBEX Series 700 performs in different tests that it carries out is described below (at start-up, while operating, at start up of the module and Test Hardware manuals):...
  • Page 128 TECHNICAL MANUAL DGG 700 B 1- FLASH MEMORY - Perform the standard CRC test, in order to verify the integrity of the memory. With this test the resources (Font and Texts) and the parameters of the unit are tested. 2- RAM MEMORY - The state of the RAM memory of the unit is checked 3- DUART - Communication with the DUART is checked 4- RTC (Real Time Clock) - It will be checked if it is possible to establish communication with the RTC and if there is an error in the format of its data.
  • Page 129 TECHNICAL MANUAL DGG 700 B Discharged energy and biphasic pulse phases time - It verifies during the discharge, that the phase times of both the biphasic pulse and the discharged energy are within the established limits. 9- PATIENT MONITORING - Is entrustd with testing the part of the equipment in charge of monitoring the parameters of the patient.

  • Page 130: Hardware Test

    TECHNICAL MANUAL DGG 700 B 12- SpO2 Card: Identification and communication - To check if there is a SpO2 board, and in the case that there is, what board it is and if it is possible to establish communication with it. 13- RECORDER: Presence and condition -To check if there is or isn’t a RECORDER and its status.
  • Page 131 HARDWARE TEST REANIBEX 700 - - - - - - - - - - - - - - Monitor / Defibrillator...

  • Page 132: Accessories Test

    TECHNICAL MANUAL DGG 700 B carry out this test more often, it is recommended to switch the equipment off for an interval of at least one hour. If the " PAG " key is pressed and the recorder is operative, there a test sheet will be printed on it whose purpose is to ensure that it prints correctly.
  • Page 133 TECHNICAL MANUAL DGG 700 B 5.2 ACCESORIES TEST Paddles External Patient Cable 10 lead Press any key to exit 1- PATIENT CABLE – Indicates the type of patient cable that is connected the unit (3, 5 or 10 lead) in the moment of carrying out the test. In the case that there is no patient cable connected to the unit itself the word NONE will be shown.

  • Page 134: Front Panel Test

    TECHNICAL MANUAL DGG 700 B 12.4 Front Panel Test This option allows the correct operating of all the keys and indicators of front panel to be checked. When this option is accessed, a screen appears with a graphical representation of the front panel that includes all the keys of the REANIBEX 700Series.

  • Page 135: Paddles Interface Test

    TECHNICAL MANUAL DGG 700 B 12.5 Paddles Interface Test This test, like that of the previous section, is an interactive test that allows the operation of the interface with the reusable external paddles to be checked. On accessing this option, a graphical representation of the paddles with all its keys appears.

  • Page 136: Troubleshooting

    TECHNICAL MANUAL DGG 700 B 13. Troubleshooting The REANIBEX Series 700 carries out self-checks at start-up and during its operation in the different modes, in order to detect possible problems that may cause incorrect operation of the unit. If an anomalous condition is detected during any of these self-checks, the equipment will act in two different ways, depending on the type of error detected: SERVICE RECOMMENDED–...

  • Page 137: Error Codes

    TECHNICAL MANUAL DGG 700 B 13.1 Error Codes The following list shows the different error codes that the unit may display, together with an explanation of the system that they affect: CODE ERROR GENERAL errors Error in the STARTUP of the device Error in the device’s external RAM TEMPERATURE greater than MAXIMUM error TEMPERATURE greater than MINIMUM error...
  • Page 138 TECHNICAL MANUAL DGG 700 B TOO FAST charging of the capacitor error TOO SLOW charging of the capacitor error CANNOT HOLD THE CHARGE error Error in READING of the VOLTAGE of the main capacitor HV BOARD (Discharge – Relays circuit) errors Error in the DISCHARGE CIRCUIT - Does not discharge Error in the STG_1 Test RELAY connection Error in the STG_2 Test RELAY connection...

  • Page 139: Tests

    TECHNICAL MANUAL DGG 700 B Errors in the PRINTER Recorder NOT READY Errors in the COPROCESSOR Coprocessor not ready Coprocessor without audio messages Coprocessor does not understand the messages Error in the 3.3 V voltage Error in audio recording Generic error Errors in the RTC There is no communication with the RTC Error in the format of RTC data...
  • Page 140 TECHNICAL MANUAL DGG 700 B Temperature sensor - It performs a reading of the temperatura and checks that the temperature is within the established limits. If the temperature is greater than the upper limit it returns the error 11. If the temperature is below the minimum limit, it returns the error Power Supply Test The general supple of the unit is tested.
  • Page 141 TECHNICAL MANUAL DGG 700 B If in the high range the measurement has been good, the low rango is selected(signal ZP_GAIN to 0). The calibration value is readed and it is saved in the ADuC Flash memory and then, it is checked if there is deviatioon between the measure valuey and the stored value of previous calibrations.
  • Page 142 TECHNICAL MANUAL DGG 700 B - 104: error in the audio recorder. There is an error in the communication with the compressor. If there have been any error, the equipment returns the code, and if it no returns OK. After this, the wellcome message is emitted to check the audio reproduction. It the wellcome message is no heared, check the following elements: - The speaker must be connected.
  • Page 143 TECHNICAL MANUAL DGG 700 B Fly-Back power supply does not work. Two possible causes: 1. It is not possible to program the desired charge speed. 2. It is not possible to set to ON the supply ( check the relay and the fuse).
  • Page 144 TECHNICAL MANUAL DGG 700 B 5. Overcurrent protection Test - It is considered that the main capacitor is charged to a voltage not higher than 400 V. Alarms are reseted (positive pulse in the signal HV_REARM) and a shortcircuit is forced (HV_SCR1, HV_IGBT4 y HV_IGBT44 to 1). The pulse oscilator is switched on, and after 20 msec it is tested if the overcurrent alarm has produced.
  • Page 145 TECHNICAL MANUAL DGG 700 B Next, the SCR_2 is tested. Only the iGBT-s are connected (HV_IGBT4 and HV_IGBT44 to 1) and the SCR_2 is kept open. If it is discharged the error 63 is returned and the test is finished. If there has been any error, both the iGBT-s (HV_IGBT4 and HV_IGBT44 to 1) and the SCR (HV_SCR2 to 1) are connected and it is tested is there is a discharge.
  • Page 146 TECHNICAL MANUAL DGG 700 B The following tests are performed: 1. 125V source Test - SENSE_DC_A channel is selected in the multiplexer U8 and the collected value in the CPU is readed through an AD converter (AN4). If this value is no within a range (around 125V), the error 70 is returned and the test is finished.
  • Page 147 TECHNICAL MANUAL DGG 700 B If the option is included, the equipment resets the pulsioximeter through the DUART and waits the pulsioximeter inicial message. If the message is the correct one, the equipment shows the type of pulsioximeter and if not, it returns the error 80. Recorder Test In the case that there is no recorder, the equipmente avised the user.

  • Page 148: Actions To Be Performed

    DGG 700 B 13.3 Actions to be Performed When the REANIBEX 700 Series detects some anomaly on performing the different self-checks (at start-up, while operating, at start up of the module and during manual tests), this fact will be reflected by means of the malfunction indicator located in the equipment screen (blinking or it will remain steady depending on the type of error detected) and by means of on-screen messages.

  • Page 149: Problems Summary Table

    TECHNICAL MANUAL DGG 700 B 13.4 Problems Summary Table ACTIONS TO BE PROBLEM OBSERVED PERFORMED PHYSICAL Broken or dirty unit Replace the unit casing or clean it EXAMINATION casing following the cleaning recommendations described in this manual Broken or missing Replace the covers that are damaged recorder or Compact making sure that they close correctly...
  • Page 150 TECHNICAL MANUAL DGG 700 B STARTUP The unit does not start If working from battery, use a fully charged battery or connect the unit to the mains or to an external battery Check the connections to the HV Board of the internal battery, the mains supply and the external battery Check the battery terminals and the polarity of the battery connectors, of the...
  • Page 151 TECHNICAL MANUAL DGG 700 B The equipment does Make sure that the equipment has KEYBOARD not respond to pressing supply (internal battery, mains FUNCTION KEYS of the keys located in connection or external battery) the functions area of Check the functions keyboard by the keyboard, or the means of the Interface Test LEDs associated with...
  • Page 152 TECHNICAL MANUAL DGG 700 B PATIENT Measurement of the Check the instructions and carry out IMPEDANCE patient impedance has the Hardware test again in order to not been correctly calibrate the impedance meter carried out Check the continuity of the patient electrodes connection cable Check the patient electrodes connector to see if it is damaged...
  • Page 153 TECHNICAL MANUAL DGG 700 B This icon appears on Make sure that all the patient cable screen leads are correctly positioned Check and if necessary replace the patient cable Check and if necessary replace the patient cable connector Check the connection of the patient cable connector to the CPU board Check or replace the CPU board This icon appears on...
  • Page 154 TECHNICAL MANUAL DGG 700 B Inappropriate response Try to carry out the Hardware Test to NON- again and check its result DEFIBRILLABLE Check that the rhythms simulator rhythms. provides a non-defibrillable rhythm, checking the signal shown on-screen Check or replace the CPU board Contact OSATU for technical assistance Inappropriate response...
  • Page 155 TECHNICAL MANUAL DGG 700 B The capacitor charge Use a fully charged battery or connect time is greater than 10 the unit to an external power supply sec. Check or if necessary replace the energy storage capacitor Check or replace the HV board Check or replace the CPU board PACEMAKERS Stimulation with the...
  • Page 156 TECHNICAL MANUAL DGG 700 B Blank page...

  • Page 157: Manufacturer's Guide And Declaration Of Electromagnetic Compatibility

    TECHNICAL MANUAL DGG 700 B A.1 Manufacturer’s guide and declaration of Electromagnetic Compatibility The REANIBEX Serie 700 has been designed and tested to meet the requirements of the international standards for conducted and radiated emissions. The following tables provide detailed information on the Guide and Declaration for Electromagnetic Compatibility. The lists of cables, transducers and other accessories that have been approved by the OSATU and conform to their requirements on immunity and emissions in Standard IEC 60601-1-2 are listed in Annex “A12.
  • Page 158 TECHNICAL MANUAL DGG 700 B Voltage fluctuations/Flicker Conforms Emission IEC 610003-3 Electrical Medical Equipment requires special precautions with respect to EMC and needs to be installed and put into service in accordance with the EMC information provided in this document. ELECTROMAGNETIC IMMUNITY The REANIBEX Serie 700 is designed for use in electromagnetic environments as specified below.
  • Page 159 TECHNICAL MANUAL DGG 700 B Magnetic field at 3 V/m Conforms The magnetic fields should be at power line levels characteristic of a typical frequency location in a commercial (50/60Hz) environment or a busy hospital IEC 61000-4-8 environment NOTE: U is the AC voltage before the test level application ELECTROMAGNETIC IMMUNITY The REANIBEX Serie 700 is designed for use in electromagnetic environments such as those...
  • Page 160 TECHNICAL MANUAL DGG 700 B magnitude of the transmitter in Watts (W) according to the manufacturer of the transmitter, and d is the recommended separation distance in meters The field intensity of fixed RF transmitters, as determined by measurement of the electromagnetic disturbance in the area, must be less than the compliance level in each...
  • Page 161 TECHNICAL MANUAL DGG 700 B The REANIBEX Serie 700 is designed for use in environments in which radiated RF interference is controlled. The client or the user of the REANIBEX Serie 700 can help to prevent electromagnetic interference by maintaining a minimal distance between RF mobile and portable communications equipment (transmitters) and the REANIBEX Serie 700 as is recommended below, in accordance with the maximum outlet power of the communication device.
  • Page 162 TECHNICAL MANUAL DGG 700 B Blank page...
  • Page 163 (230Vac, internal battery and external battery) Internal battery during operation of the unit, when the unit is supplied: from the 230Vac mains or from an external battery. (*) This function will only be considered in the case that the Reanibex 700 Series has this option.
  • Page 164 TECHNICAL MANUAL DGG 700 B Blank page...

  • Page 165: Procedures For Changing Components

    A.3 Procedures for Changing Components A series of instructions that permit disassembling, manipulating and safely reassembling, those elements that are determined to be replaceable in the REANIBEX 700 Series. When disconnecting cables, label these cables and the connections in a way that facilitates later assembly.
  • Page 166 TECHNICAL MANUAL DGG 700 B Replace parts designated as replaceable only with original replacement parts. Once the equipment has been reassembled, enter Configuration mode and perform a Hardware Test in order to check the correct operation of the equipment. Also carry out a series of discharges at different energy levels, checking the energy discharged by means of a discharge checker or QED.

  • Page 167: Assembly Diagrams

    TECHNICAL MANUAL DGG 700 B A.4 Assembly Diagrams...
  • Page 168 TECHNICAL MANUAL DGG 700 B Blank page...
  • Page 169 TECHNICAL MANUAL DGG 700 B OSATU S.Coop., will provide on request assembly diagrams, circuit diagrams, descriptions and any information that will help to appropriately qualified technical personnel to repair those parts of the unit that are designated by the manufacturer as repairable.
