COUNTER-TOP MODELS:
OWNERS / OPERATORS MANUAL
SAFETY PRECAUTIONS..............................................
FEATURES & SPECIFICATIONS...................................
UNPACKING AND INSPECTION...................................
INSTALLATION..........................................................
STARTUP AND NORMAL OPERATION..........................
DAILY CLEANING PROCEDURES.................................
WIRING DIAGRAMS...................................................
TROUBLESHOOTING GUIDE ......................................
WARRANTY STATEMENT...........................................
Part Number: 18400-3114 d

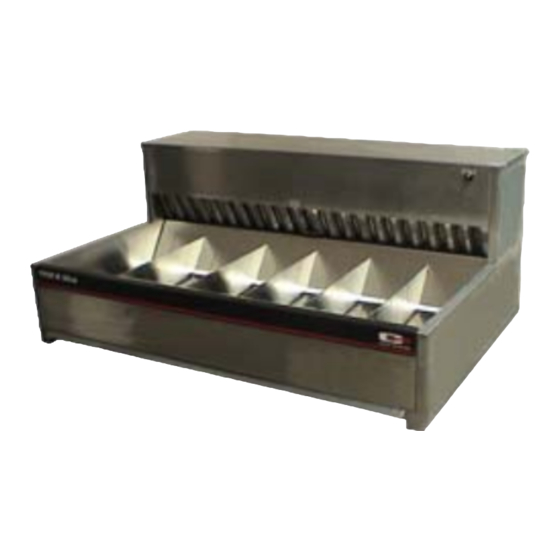

CRISP N' HOLD
FRIED FOOD HOLDING CABINET
CNH14, CNH14XD, CNH18, CNH18XD, CNH28,
CNH28LP, CNH28XD CNH40
DROP-IN MODELS: CNH12LP & CNH18LP
CNH40
TABLE OF CONTENTS
Printed in The United States of America
MANUFACTURED BY:
MUNDELEIN, IL 60060 U.S.A.
EMAIL: technicalservice@carter-hoffmann.com
CNH12LP
2
3
4
4-5
6
7
8
9
10
Rev: KBA111615
Advertisement
Table of Contents
Related Manuals for CARTER-HOFFMANN CNH14XD
Summary of Contents for CARTER-HOFFMANN CNH14XD
-
Page 1: Table Of Contents
CRISP N’ HOLD FRIED FOOD HOLDING CABINET CNH14, CNH14XD, CNH18, CNH18XD, CNH28, COUNTER-TOP MODELS: CNH28LP, CNH28XD CNH40 DROP-IN MODELS: CNH12LP & CNH18LP OWNERS / OPERATORS MANUAL MANUFACTURED BY: CARTER-HOFFMANN 1551 McCORMICK AVENUE MUNDELEIN, IL 60060 U.S.A. PHONE: 847-362-5500 FAX: 847-367-8981 EMAIL: technicalservice@carter-hoffmann.com... -
Page 2: Important Safety Instructions
SAFETY PRECAUTIONS WARNING: ELECTRIC SHOCK HAZARD WARNING All service requiring access to non-insulated components must be performed by qualified service personnel. Failure to heed this warning may result in severe electric shock. CAUTION: ELECTRIC SHOCK HAZARD Disconnect this appliance from electrical power before performing any maintenance or service. -
Page 3: Cnh14
Heater System: Electrical resistance 900 watt heaters, located away from oils and vapors. Performance: Temperature range to 190°F (88°C). Preheat to 190°F (88°C) in 20 minutes. Agency Approvals: Electrical Characteristics Models: CNH14, CNH14XD, CNH18, CNH18XD, Models: CNH28, CNH28LP, CNH28XD & CNH40 CNH12LP, CNH18LP Watts:... -
Page 4: Unpacking And Inspection
(15) days from the date the delivery was made to you. Be sure to retain the con- tainer for inspection. Carter-Hoffmann cannot assume liability for damage or loss incurred in transit, freight damage is not covered under warranty. We will, however, at your request, supply you with the necessary documents to support your claim. - Page 5 INSTALLATION Countertop Mounting WARNING: NOTE: CNH12LP and CNH18LP drop-in models are not in- Risk of personal injury tended to be dropped into an enclosed compartment. Counter Installation procedures must be must be made of a non-combustible material, located away performed by a qualified technician and shielded from combustible materials, clean and free of with full knowledge of all applicable debris.
-
Page 6: Startup And Normal Operation
STARTUP AND NORMAL OPERATION CAUTION: Startup HOT SURFACE 1. Plug the Crisp n’ Hold into a properly grounded electrical recepta- cle. Inner surfaces of the unit 2. Ensure all plastic and packaging materials have been removed. will be very hot during and after operation. -
Page 7: Cleaning Procedures
CLEANING PROCEDURES CAUTION: 1. After all food products have been removed from the cabinet, ELECTRIC SHOCK turn the power switch to “OFF” and allow the cabinet to cool. HAZARD 2. Unplug the unit prior to any cleaning. Disconnect appliance from 3. -
Page 8: Wiring Diagrams
WIRING DIAGRAMS CNH14 CNH14XD CNH18 CNH18XD CNH12LP CNH18LP 120 volts CNH28 CNH28LP CNH28XD CNH40 208, 220, 230 & 240 volts... -
Page 9: Troubleshooting Guide
Call service technician to verify in- coming voltage matches cabinet specifications. NOTE: NOTE: For warranty service, call Carter-Hoffmann The technical content of this manual, direct at 800-323-9793 including any wiring diagrams, schemat- or email ics, parts breakdown illustrations and / technicalservice@carter-hoffmann.com... -
Page 10: Carter-Hoffmann
Repair or replacements under this warranty will be performed, unless otherwise authorized in writing by CARTER-HOFFMANN, at its factory. All parts or components to be repaired or replaced under this warranty are to be shipped prepaid to CARTER-HOFFMANN, with reimbursement credit for such part or component to be given if found by CARTER-HOFFMANN to be defective.
