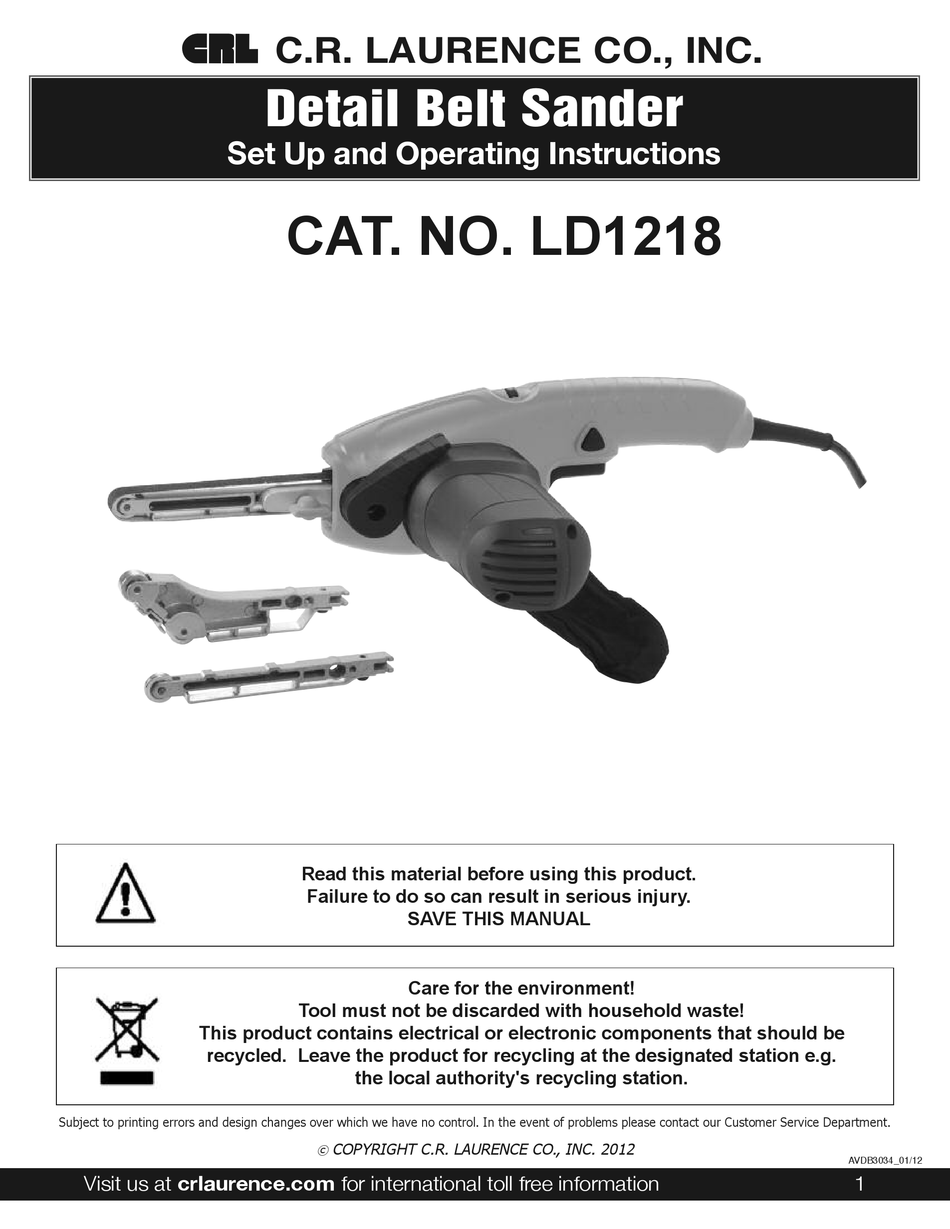

C.R. LAURENCE Co., INC.
Detail Belt Sander
Set Up and Operating Instructions
CAT. NO. LD1218
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL
Care for the environment!
Tool must not be discarded with household waste!
This product contains electrical or electronic components that should be
recycled. Leave the product for recycling at the designated station e.g.
the local authority's recycling station.
Subject to printing errors and design changes over which we have no control. In the event of problems please contact our Customer Service Department.
COPYRIGHT C.R. LAURENCE CO., INC. 2012
©
AVDB3034_01 12
Visit us at crlaurence.com for international toll free information
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LD1218 and is the answer not in the manual?

Questions and answers

Related Manuals for CRL LD1218

Summary of Contents for CRL LD1218

  • Page 1 C.R. LAURENCE Co., INC. Detail Belt Sander Set Up and Operating Instructions CAT. NO. LD1218 Read this material before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL Care for the environment! Tool must not be discarded with household waste! This product contains electrical or electronic components that should be recycled.

  • Page 2: Replacement Parts List

    Danger of death. LD1218NLG Narrow Long Guide, 3/8" Belt Read the operating instructions Electrical Specifications: carefully before use. LD1218 110V, 60 Hz, 3.4 Amp Always wear protective gloves LD1218EU 220V, 50 Hz, 400 w when working with metal parts. LD1218AU 240V, 50 Hz, 400 w Visit us at crlaurence.com for international toll free information...

  • Page 3: Installing Sanding Belt

    C.R. LAURENCE CO., INC. A SSEMB LY Dismantling Sanding Arm 1. Set the control for belt tensioning (5) in the forward position. 2. Remove the belt tensioning screw (6). 3. Remove the spring (11). Installing Sanding Arm 1. Install the spring (11). 2.
  • Page 4 C.R. LAURENCE CO., INC. OPER ATION Starting and Adjusting Release the trigger lock (2) and press the trigger (1) to start the machine. Set the speed to suit the sanding work. A basic rule is to use a low speed when sanding with a fine grain size and when sanding on hard materials.
