Summary of Contents for NXP Semiconductors BATT-14AAAPACK

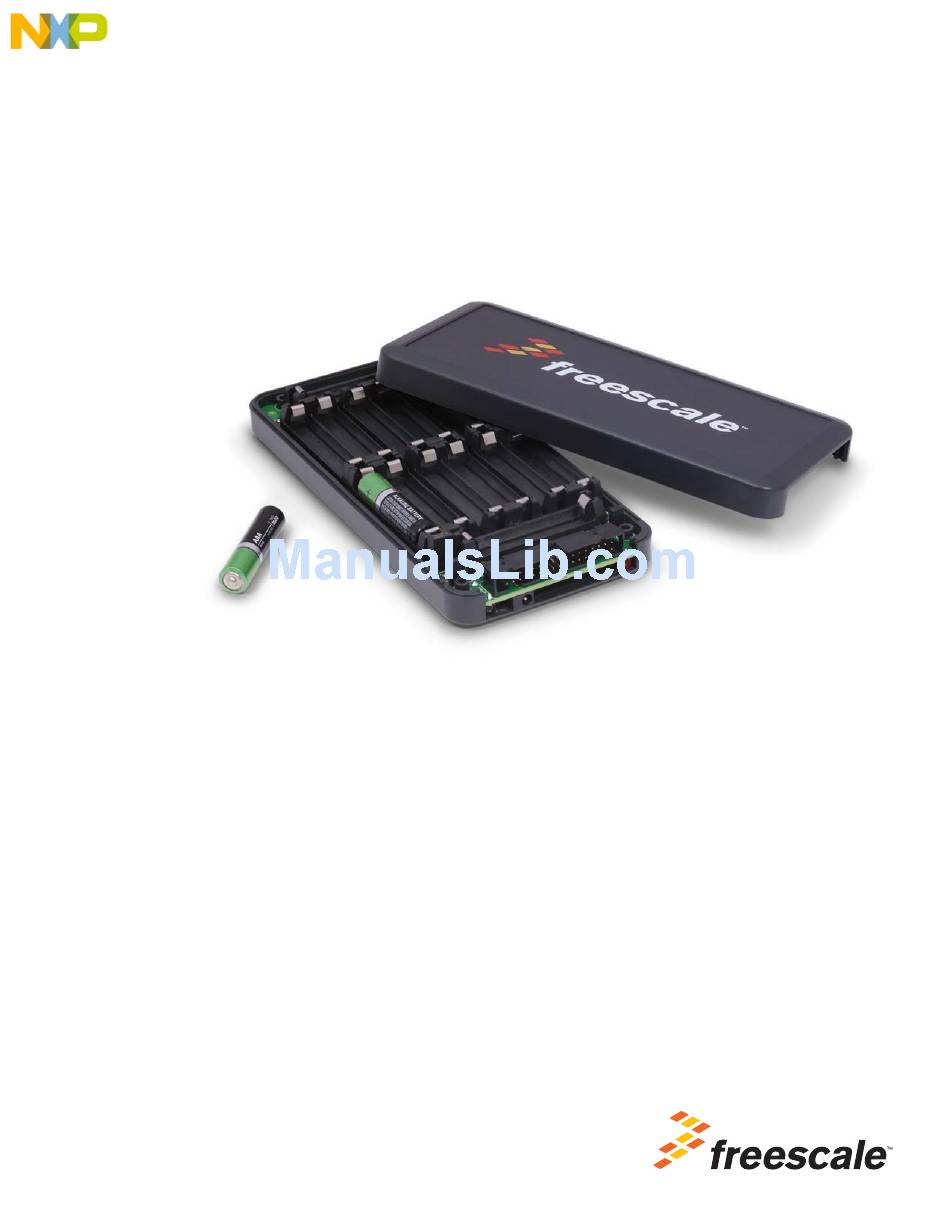

- Page 1 Freescale Semiconductor, Inc. Document Number: BATT-14AAAPACKUG User’s Guide Rev. 1.0, 10/2015 BATT-14AAAPACK Configurable AAA Battery Pack for KIT33771TPLEVB, KIT33771SPIEVB, and KIT33772ASP1EVB Figure 1. BATT-14AAAPACK © Freescale Semiconductor, Inc., 2015. All rights reserved.
-
Page 2: Table Of Contents
Contents Important Notice ..................3 Getting Started. -
Page 3: Important Notice
Important Notice Important Notice Freescale provides the enclosed product(s) under the following conditions: This evaluation kit is intended for use of ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY. It is provided as a sample IC pre-soldered to a printed circuit board to make it easier to access inputs, outputs, and supply terminals. -
Page 4: Getting Started
Getting Started Getting Started Kit Contents/Packing List The BATT-14AAAPACK contents include: • Assembled and tested battery pack board with housing • 34-pin ribbon cable • Warranty card Jump Start Freescale’s analog product development boards help to easily evaluate Freescale products. These tools support analog mixed signal and power solutions including monolithic ICs using proven high-volume SMARTMOS mixed signal technology, and system-in-package devices utilizing power, SMARTMOS and MCU dies. -
Page 5: Understanding The Battery Pack
Understanding the Battery Pack BATT-14AAAPACK Overview The BATT-14AAAPACK is a 3-cell to 14-cell configurable battery pack designed to work in conjunction with evaluation boards such as the KIT33771TPLEVB, the KIT33771SPIEVB, or the KIT33772ASP1EVB. It offers a compact and easily accessible standard battery platform that connects directly to the evaluation boards through a 34-pin ribbon cable. -
Page 6: Getting To Know The Hardware
Getting to Know the Hardware Getting to Know the Hardware Figure 3 Figure 4 illustrate components of the BATT-14AAAPACK. Current Sense 14 x AAA Battery Holders Jumper (J7) Protection 6-cell /14-cell Fuse (F1) Selection Jumper (J4) Figure 3. Top View... - Page 7 Getting to Know the Hardware AAA Battery Holders The battery pack includes 14 AAA battery holders connected in series. Each battery holder connects to the 34-pin connector and emulates the voltage cells that connect to the MC3377x cell terminals in a real application. The battery pack accepts any battery lower than 4.4 V that is compatible with the AAA format.
- Page 8 1.3mm Serial Charging Jack The BATT-14AAAPACK includes 1.3mm jack on the front of the pack to support external charging of the battery stack. However, the battery pack contains no internal charging circuitry. The pack also contains no overcurrent protection other than the F1 fuse. Therefore, be sure to select the proper smart charger when serial charging the batteries.
-
Page 9: Configuring The Hardware
Configuring the Hardware Basic Configurations The BATT-14AAAPACK is configured by default for an MC33771 and LOAD current sense. To use the battery pack with the MC33772, position the jumper J4 between pins 1 and 2. This routes CT6 directly to VBAT. - Page 10 Configuring the Hardware Cell Configuration The battery pack allows you to configure from three to six cells when used with the MC33772 and from seven to fourteen cells when used with the MC33771. The exact number of required cells depends on the device version. You may need to place AAA dummy batteries in some of the battery holders to match the requirements of your device.
-
Page 11: Schematic
Schematic Schematic Figure 9. Battery Pack Board Schematic BATT-14AAAPACKUG Rev. 1.0 Freescale Semiconductor, Inc. -
Page 12: Board Layout
Board Layout Board Layout Top Assembly Layer and Top Routing Figure 10. Top Layer Assembly Layer and Top Routing Bottom Layer Assembly and Bottom Routing Figure 11. Bottom Layer Assembly and Bottom Routing BATT-14AAAPACKUG Rev. 1.0 Freescale Semiconductor, Inc. -
Page 13: Board Bill Of Materials
Board Bill of Materials Board Bill of Materials Table 3. Bill of Materials Assy Item Schematic Label Value Description Part Number Resistors 0.1 Ω RES MF 0.1 OHM 1 W 1% 2512 WSLT2512R1000FEA 0 Ω R2, R3, R6 RES MF ZERO OHM 1/8 W -- 0805 RC0805JR-070RL 1 KΩ... -
Page 14: References
References References Following are URLs where you can obtain information on related Freescale products and application solutions: Freescale.com Description Support Pages www.freescale.com/BATT-14AAAPACK BATT-14AAAPACK Tool Summary Page www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MC33771 MC33771 Product Summary Page MC33772 Product Summary Page www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MC33772 www.freescale.com/products/analog-power-management/battery-management/battery-cell-contr KIT33771ASP1EVB Tool Summary Page... -
Page 15: Revision History
Revision History Revision History Revision Date Description of Changes 10/2015 • Initial Release BATT-14AAAPACKUG Rev. 1.0 Freescale Semiconductor, Inc. - Page 16 How to Reach Us: Information in this document is provided solely to enable system and software implementers to use Freescale products. There are no express or implied copyright licenses granted hereunder to design or fabricate any integrated circuits based Home Page: on the information in this document.
