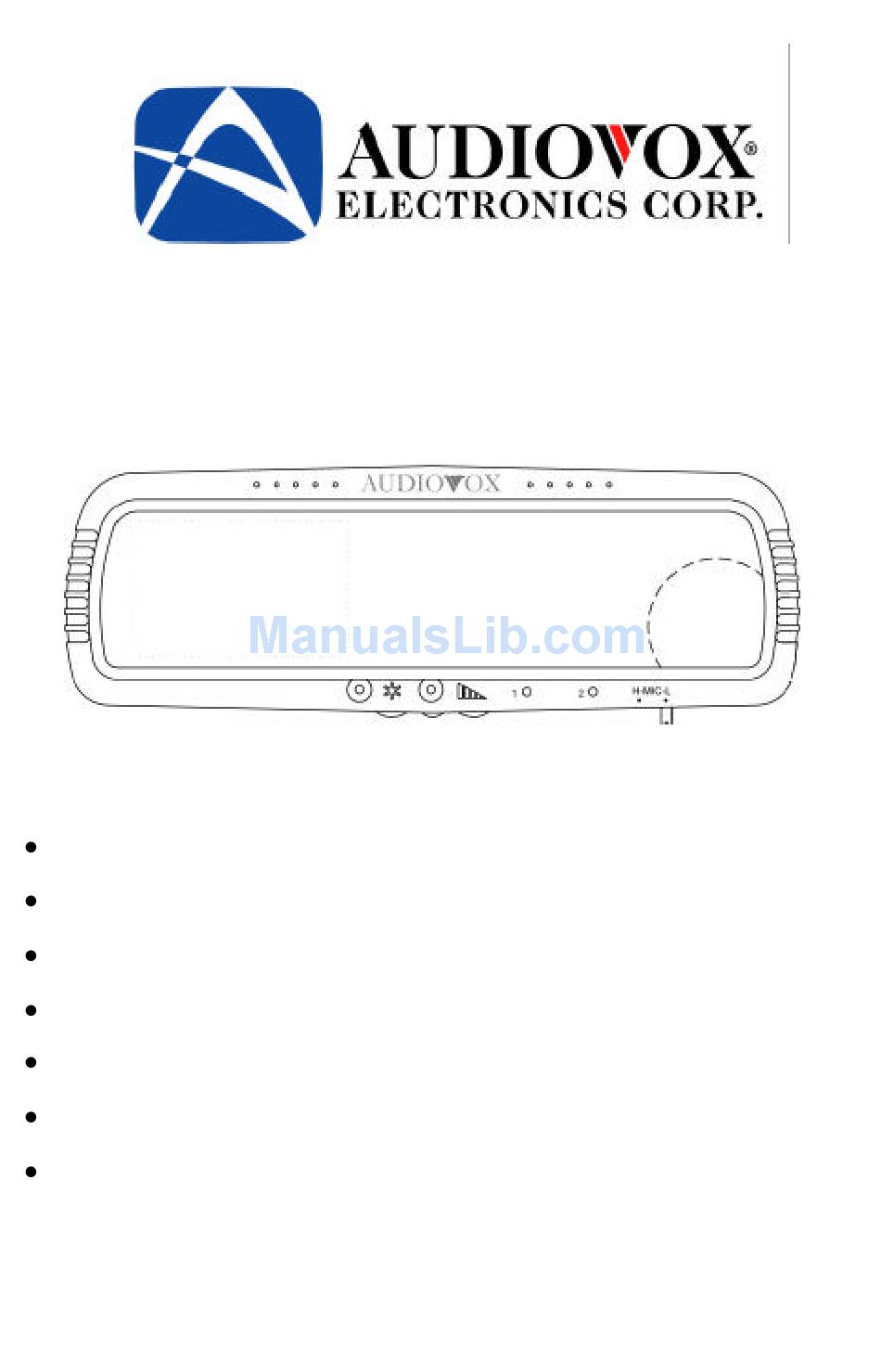

Owner's Manual
Rear Observation System Package
Features:
Rearview Mirror with 4" LCD
2 Built in Speakers
Rearview Camera Input
Auxiliary Video Input
Video System Auto Detection for PAL/NTSC
Cellular Phone Hands Free Input
Hands Free Microphone Built-In
NOTE:
cellular phones and/or an adapter may be required.
Rearview camera optional.
Model RVMPKG1
Installation Manual
Hands free feature may not operate with all
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Audiovox Rear Observation System Package RVMPKG1
Summary of Contents for Audiovox Rear Observation System Package RVMPKG1
- Page 1 Rear Observation System Package Features: Rearview Mirror with 4” LCD 2 Built in Speakers Rearview Camera Input Auxiliary Video Input Video System Auto Detection for PAL/NTSC Cellular Phone Hands Free Input Hands Free Microphone Built-In NOTE: cellular phones and/or an adapter may be required. Rearview camera optional.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Cautions! Preface WARNING:... 4 Backing up vehicle ... 4 Packing list 1. Installation Instructions 2. Install the mobile phone hands free seat 3. Signal Inputs SW1 and SW2: Specifications 9 General Maintenance Troubleshooting... -
Page 3: Cautions
The product is intended to assist in safe driving and to allow the driver to have a broader rearview while the vehicle is in reverse. You, as the driver, are solely responsible for the safe operation of your vehicle and the safety of your passengers according to the country and their local traffic regulations. -
Page 4: Preface
There is a blind spot that exists at the back of a vehicle while the vehicle is in reverse. Equipped with a camera, this electronic rearview mirror ensures safety by providing the driver with a clear and wide image of the area behind the vehicle while it is in reverse. -
Page 5: Installation Instructions
1. Installation Instructions (1) Mount the mirror/monitor onto the existing rearview mirror. Stick two adhesive foam backings on to the back of mirror in the two small rectangle indents. Take the two seven inch belts and slide them into the slots on the top rear of the mirror with grooved side of the belt facing down.. -
Page 6: Install The Mobile Phone Hands Free Seat
windshield then down the A pillar behind the plastic shroud to the under dash area. (3) Connect the 5 wires in the following manner. Red wire - 12 volt constant (positive) Black wire - Chassis ground (negative) Blue wire - 12-volt ignition (12 volt with ignition on) Green wire - Reverse light switch (12 volt when vehicle is in reverse) Yellow wire –... -
Page 7: Signal Inputs
3. Signal Inputs The signal input connections for the system include: Rear Camera: By connecting rear camera with control box plug, users can see the rearview camera image when the car is in reverse. Hands Free Jack: Put the hands free plug (3.5mm) into hands free jack and put the other side of plug into the headphone jack of the mobile phone. -
Page 8: Controls And Indicators
4. Controls and Indicators Figure 6 illustrates the controls and indicators of the RVMPKG1 rear view mirror: A: Rearview mirror C: Hands free Microphone E: Power indicator (Red when power is on) F: Volume Control Knob H: Switch 2 (see below) J: 2-position Switch for hands free microphone Sensitivity High/Low Select K: Speakers SW1 and SW2:... -
Page 9: Specifications
Vehicle Parked: SW1: Used to turn the LCD on/off when using the DVD/VCR player, provided the parking brake is engaged. SW2: When pressed and held, the rear camera image appears on the mirror. When released the LCD will turn off. The mirror will return back to its normal appearance. -
Page 10: Troubleshooting
Occasionally clean the surface of the mirror with a soft cloth moistened with water or window cleaner. Troubleshooting Symptoms The ON/OFF signal light <E> is not on after the car is started? No video signal appears while reversing the car? Video image is not sharp enough?? Symptoms When the Hands Free Phone... - Page 11 Figure 7...
- Page 12 © 2003 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788 128-6653...
