8-Port 10/100Mbps Fast Ethernet
Switch
ATC-408 Web management
Software User Manuals
http://www.szatc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATC-408 and is the answer not in the manual?

Questions and answers

Summary of Contents for ATC ATC-408

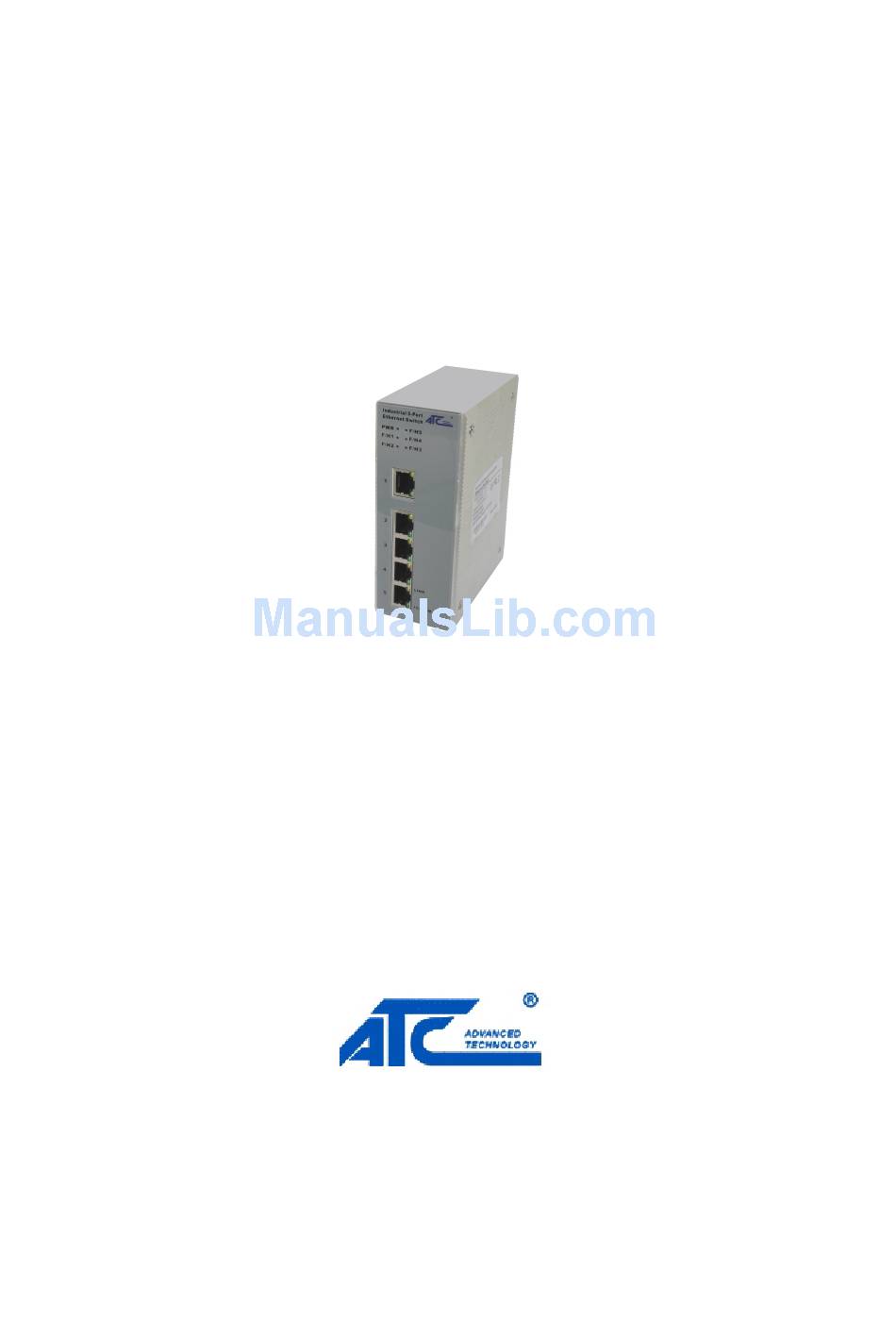

  • Page 1 8-Port 10/100Mbps Fast Ethernet Switch ATC-408 Web management Software User Manuals http://www.szatc.com...

  • Page 2: Table Of Contents

    Contents Administrator......................3 Authentication configuration...............7 System IP Configuration..............7 System status..................9 Load default setting................11 Firmware update................13 Reset device..................14 Port Management....................15 Port configuration................15 Bandwidth Control................16 Broadcast Storm Control..............19 Max Packet length................21 VLAN Setting......................24 Multi to 1 Setting................24 Tag Based VLAN................

  • Page 3: Administrator

    1 Administrator A. PC NIC setting Start→Control Panel Choose Internet Connection...
  • Page 4 Choose the Properties of Local Area Connection by clicking the right side of the mouse. Choose Internet Protocol (TCP/IP)
  • Page 5 Use the following IP address： IP address：192.168.2.X (X：1~254) Subnet mask ：255.255.255.0 Check switch IP address Start→Run→cmd ping 192.168.2.1 –t <enter>...
  • Page 6 B. Login Default IP : 192.168.2.1 Login ID ：admin (Lowercase) Password ：system (Lowercase) If you input error ID, the following screen will appear. C. Welcome to 8 Port Smart Switch Web Controller...

  • Page 7: Authentication Configuration

    1.1 Authentication configuration (Username & Password max:15 & can only use a-z","A-Z","0-9","_","+","-","=".) System IP Configuration Default IP：192.168.2.1 The following screen is the example of changing the IP address to...
  • Page 8 192.168.2.5. address, Subnet Mask, and Gateway at system IP Configuration diagram box can be configured by user. IP178C/IP178CH also supports DHCP methods to get IP address from DHCP server. Login in new IP address 192.168.2.5...

  • Page 9: System Status

    This page is used to check the status of switch, including Switch MAC address and software version. The MAC address and version of .ATC-408 will be shown at system status diagram box. Comment field can accept Aa~Zz, excluding special character. A. Comment:...
  • Page 10 B. Idle Time Security: It is an AUTO logout timer and the idle time range is 1~30 Minutes. If select Auto Logout and click update without filling in the idle time blank, then the idle time will be default value. Select Auto Logout (Default).

  • Page 11: Load Default Setting

    MAC address setting. For example: MAC Address, 50:80:17:80:13:F0, is modified as following, 50:80:17:80:13:F1. Click Update to get the new MAC address. 1.4 Load default setting Clicking the “Load default setting” button will make the switch being set to the...
  • Page 12 original configuration. Note: this change only concerns the switch behavior, excluding the change for user name, password and IP configuration. After Completing load process, the “System Setting Saved!!” will appear. Then press “Reset Device” to take effect.

  • Page 13: Firmware Update

    1.5 Firmware update After pressing firmware update button, the switch will erase the older version flash code first. Then enter file name at specific path, and the update will be completed. Enter password to execute firmware update process. After pressing “Update” button, the old web code will be erased.

  • Page 14: Reset Device

    Enter correct path and press “UPDATE” button to complete firmware update process. Firmware update is finished. 1.6 Reset device This page is used to reset device.

  • Page 15: Port Management

    Press “Confirm” button to take effect for rebooting device. 2 Port Management 2.1 Port configuration This page allows the user to configure operating mode of the physical port.

  • Page 16: Bandwidth Control

    After completing the settings, press “Submit” button to take effect. SMB status After completing the settings, click update button to take effect. The setting will be reflected at current status window. 2.2 Bandwidth Control The range of bandwidth is from 128K to 8M, Full speed. Example : Set Port1→128K、Port2→256K 、Port3→512K 、Port4→1M、Port5→2M 、...
  • Page 17 Results ： Results ：SMB setting ：100M Full，120m，60 length ，random data...

  • Page 19: Broadcast Storm Control

    2.3 Broadcast Storm Control IP178C/IP178CH drops the incoming packet if the number of broadcast packet in queue is over the threshold.
  • Page 20 SMB setting: Results: A Broadcast Storm Control = Disable B Broadcast Storm Control = Enable...

  • Page 21: Max Packet Length

    Max Packet length Two kinds of max packet length, 1536 / 1552 Bytes A Packet Length (Bytes):1536(default) SMB setting: set length 1532 bytes because CRC packets occupy 4 byte.
  • Page 22 Following chart shows packet length. Oversize packet length will appear in Oversize column.
  • Page 23 B Packet Length (Bytes):1552 SMB setting: set length 1548 bytes because CRC packets occupy 4 byte. Following chart shows packet length. Oversize packet length will appear in Oversize column.

  • Page 24: Vlan Setting

    3 VLAN Setting ulti to 1 Setting Enable Multi to 1 setting will force Tag Based VLAN and Port Based VLAN function to be disabled. Set a specific port as an exporting port. Other ports can’t transmit and receive packets and only the destination port can.
  • Page 25 Example: Set port 3 as the destination port. When port 0~port 7 transmit packets, only port 3 will receive packets. SMB setting: 100M Full / Flow control=ON Port 1~port 8 transmit packets in turn and only port 3 will receive packets. Port 3 transmits broadcast packets and Rx Bytes of port 1~port8 (excluding port 3) receive packets from port 3.

  • Page 26: Tag Based Vlan

    3.2 Tag Based VLAN Tag Based VLAN function can’t be enabled unless turning off Multi to 1 setting and Port Based VLAN function, meaning load default setting. Enable Tag Based VLAN function before use, or warning message will appear. A Set Add Tag / Don’t Care / Remove Tag function for port 1~port 8. (Note: Please don't add VLAN tag on your control port) Setting as following:...
  • Page 27 Example 1: SMB setting: Port 8 transmits packets with VLAN Tag. Example 1 results:...
  • Page 28 Example 2: SMB setting: Port 7 transmits packets without VLAN Tag.
  • Page 29 Example 2 results: B PVID Index Setting This setting must match VLAN Member setting Set the PVID index of port 1~port 8 and the value is 1~15. The set results will show as following.
  • Page 30 Example 1: Set 9 as the PVID index value of port 5. Port 5 transmits packets without VLAN Tag. (Length Random / Background Random / DA=Broadcast, SA=05) The result is that ports in VLAN Member 9 will receive the packets from port 5. Example 2: Set 9 as the PVID index value of port 1.
  • Page 31 C VLAN Member IP178C supports 15 sets of VLAN Group. Member ports in the same VLAN Group can transmit and receive packets from each other but non-member ports can not. Following chart shows VLAN Member setting.

  • Page 32: Port Based Vlan

    Example: SMB setting: Length Random / Background Custom / DA=Broadcast, SA=01 Set port 1, port 2, and port 3 in the same VLAN. When port 1 transmits packets, only port 2 and port 3 will receive the packets. 3.3 Port based VLAN Port Based on LAN function can’t be enabled unless turning off Multi to 1 setting and Tag Based VLAN function, meaning load default setting.

  • Page 33: Qos Setting

    Example: Set port 1, port 2, and port 3 in the same VLAN. When port 1 transmits broadcast packets, only port 2 and port 3 will receive the packets. 4 QoS Setting 4.1 Class of Service Configuration High priority is a special channel, which can make important packets pass through quickly.

  • Page 34: High Priority Queue Configuration

    4.2 High Priority Queue Configuration The setting in High Priority Queue Configuration must cooperate with Class of Service Configuration through selecting VLAN Tag/IP/DS. Weight-Round-Robin Mode sets packets High priority and Low priority, the proportion is 4(8):1. Example: Set port 5 and port 6 transmit packets to port 7.
  • Page 35 SMB setting: Capture port 7 packet data and check MAC src column. Find that the proportion of port 5 (High Priority) and port 6 (Low Priority) is 4:1.

  • Page 36: Customization Diffserv

    Capture port 7 packets and check MAC src column. Find that the proportion of port 5 (High Priority) and port 6 (Low Priority) is 8:1. 4.3 Customization DiffServ Set DiffServ value of IPv4/IPv6 DiffServ frame format in High Priority. The setting in Customization DiffServe must cooperate with Class of Service Configuration through selecting VLAN Tag/IP/DS.
  • Page 37 ＊ IPv4/IPv6 DiffServ frame format Select index=3 as IPv4/IPv6 DiffServ value, and 3 (hexadecimal) equals 000011 (6 bit).
  • Page 38 SMB setting: I. IPv4 DiffServ Reference IPv4/IPv6 DiffServ frame format, and then the value is 0100 0000 0000 1100 (2Byte). Therefore, 0800 400C (4 Byte) is the content of IPv4.
  • Page 39 II. IPv6 DiffServ Reference IPv4/IPv6 DiffServ frame format, and then the value is 0110 0000 1100 0000 (2Byte). Therefore, 86DD 60C0 (4 Byte) is the content of IPv6. Left frame (in red) shows that WRR is 4:1. Right frame (in blue) shows the content of IPv4. Left frame (in red) shows that WRR is 4:1.

  • Page 40: Port Security

    5 Port Security Enable this function will make ports unable to transmit and receive packets. Note: Please don’t enable port security on your linking port. Example: Enable port 1 and port 2. Use SMB to do Ring test and port 1 and port 2 won’t receive packets.

  • Page 41: Configuration Backup/Recovery

    6 Configuration Backup/Recovery This function can read/write EEPROM. Authentication method: Step 1 、Set port 1=Forced 100Mb FULL, port 2=Forced 10Mb FULL. Then plug power cord and enter the same web page for ensuring the new setting take effect.
  • Page 42 Step 2 、 Enter Configuration Backup/Recovery web page, and then choose Download in Backup(Switch->PC) column for saving this setting. Step 3 、Save the setting and the file name is x.bin...
  • Page 43 Step 4 、Choose the image file, enter password, and click Update shown in Recovery(PC->Switch) column for reading EEPROM. Step 5 、Click Reboot to use new setting to login.
  • Page 44 Step 6 、Enter following web page and know this new setting takes effect.

  • Page 45: Logout

    7 Logout Choose Logout Exit web page will appear for further confirmation. Click YES will leave this system. Click NO will back to this system. Click YES will close the web page. Click NO will back to the login web page.

  • Page 46: Appendix Hyper Terminal Authentication

    8 Appendix Hyper Terminal Authentication Step Start→ Programs→ Accessories→ Communications → HyperTerminal Step 2 、Enter a name and choose an icon for the connection Step 3 、Connect using: Choose COM1...
  • Page 47 Step 4 、COM1 roperties ： Bits per second ：19200 Flow control：None...
  • Page 48 Step 5 、Use Hyper Terminal to authenticate Web Code Version: V2.21...
