Summary of Contents for VarTech Systems VT320VHB

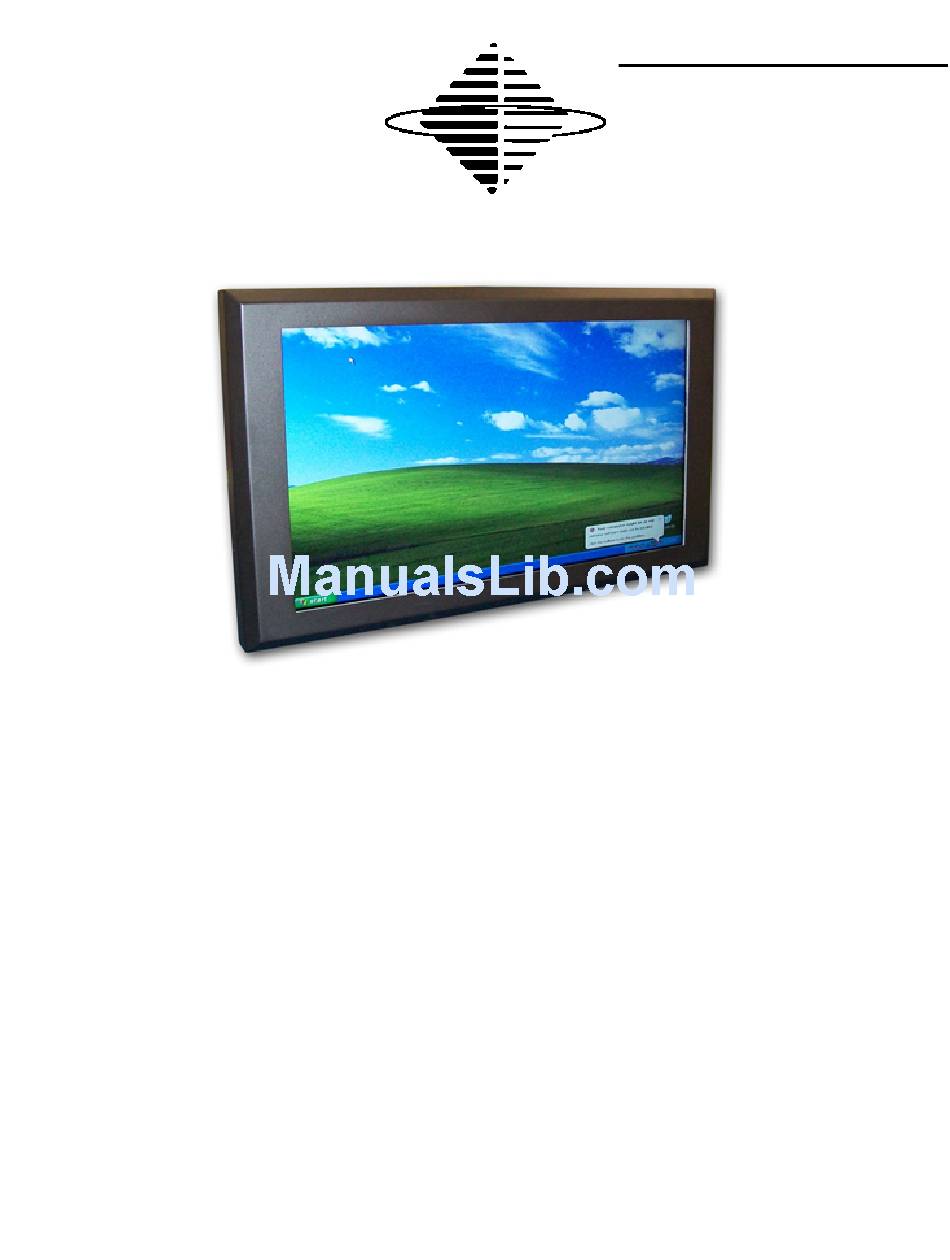

- Page 1 Solutions for Demanding Applications S Y S T E M S I N C. 32.0” NEMA 4 Fully Enclosed LCD Model VT320VHB User’s Guide Read these instructions completely before attempting to operate your new Enclosed LCD...
- Page 2 Revision History Date Rev No Summary Page 07/15/12 First Issue 10/18/12 Updated outline drawing to include DVI & S-Video 11/05/12 Corrected Resolution spec 32.0” NEMA 4 Fully Enclosed LCD 486-0035-00-01...
- Page 3 Safety Instructions Read the Safety Instructions carefully and keep it for use later. The chassis metalwork of the module must be installed properly to the main earthing termination for Class 1 equipment. Care must be exercised in the application of the system to prevent overheating. Ensure that the ambient temperature around the system does not exceed 60°C and provide adequate means of ventilation to achieve this.
-
Page 4: Lcd Monitor
Operational: 0 to 90% RH NC Storage: 0 to 95% RH NC Installation of Your Enclosed VESA Mount PC Packaged with each carton will be: 1 – VT320VHB 1 - AC Power Cable 1 – DVI-D Cable 1 – S-Video Cable 1 – VGA Cable 32.0”... - Page 5 ATTENTION: Mounting hardware must be tightened to a torque of 15 inch-pounds to provide a proper panel mount and avoid potential damage. Vartech Systems assumes no responsibility for water or chemical damage to the monitor or other equipment within the enclosure due to improper installation.
- Page 6 Product Drawing: Detail –A– 32.0” NEMA 4 Fully Enclosed LCD 486-0035-00-01...
- Page 7 Connections to the Enclosed LCD: Power Connection (Power In) The Enclosed LCD includes an AC line cord which is 6ft long. VGA Port Connection The Enclosed LCD is supplied with a circular to 15-pin D-Shell connector. DVI-D Port Connection The Enclosed LCD is supplied with a circular to DVI-I connector. The DVI connector is DVI-I but only supports DVI-D.
- Page 8 Controls Analog VR type Digital type On/Off – turns controller board power on VR toggle switch On/Off button Brightness – controls backlight brightness Rotary VR Brightness +/- buttons Menu – turns OSD menu On or Off (it will auto time Menu button Menu button off)
- Page 9 Wide screen mode Select the input mode (1280 / 1360 / 1366 / 1368) to recognize and display the correct information input signal information display on the OSD menu. display# 1280 : 1280x768 1360 : 1360x768 1366 :1366x768 1368 : 1368x768 Exit Exit the OSD menu and save the settings Brightness and Contrast...
- Page 10 + ) Total : 49 steps Exit Exit the OSD menu Exit the OSD menu For Additional Assistance Contact Your VarTech Sales Representative Vartech Systems, Inc. 11529 Sun Belt Ct. Baton Rouge, LA 70809 800-223-8050 Fax: 225-297-2440 www.vartechsystems.com 32.0” NEMA 4 Fully Enclosed LCD...
