Summary of Contents for Monroe Electronics R194

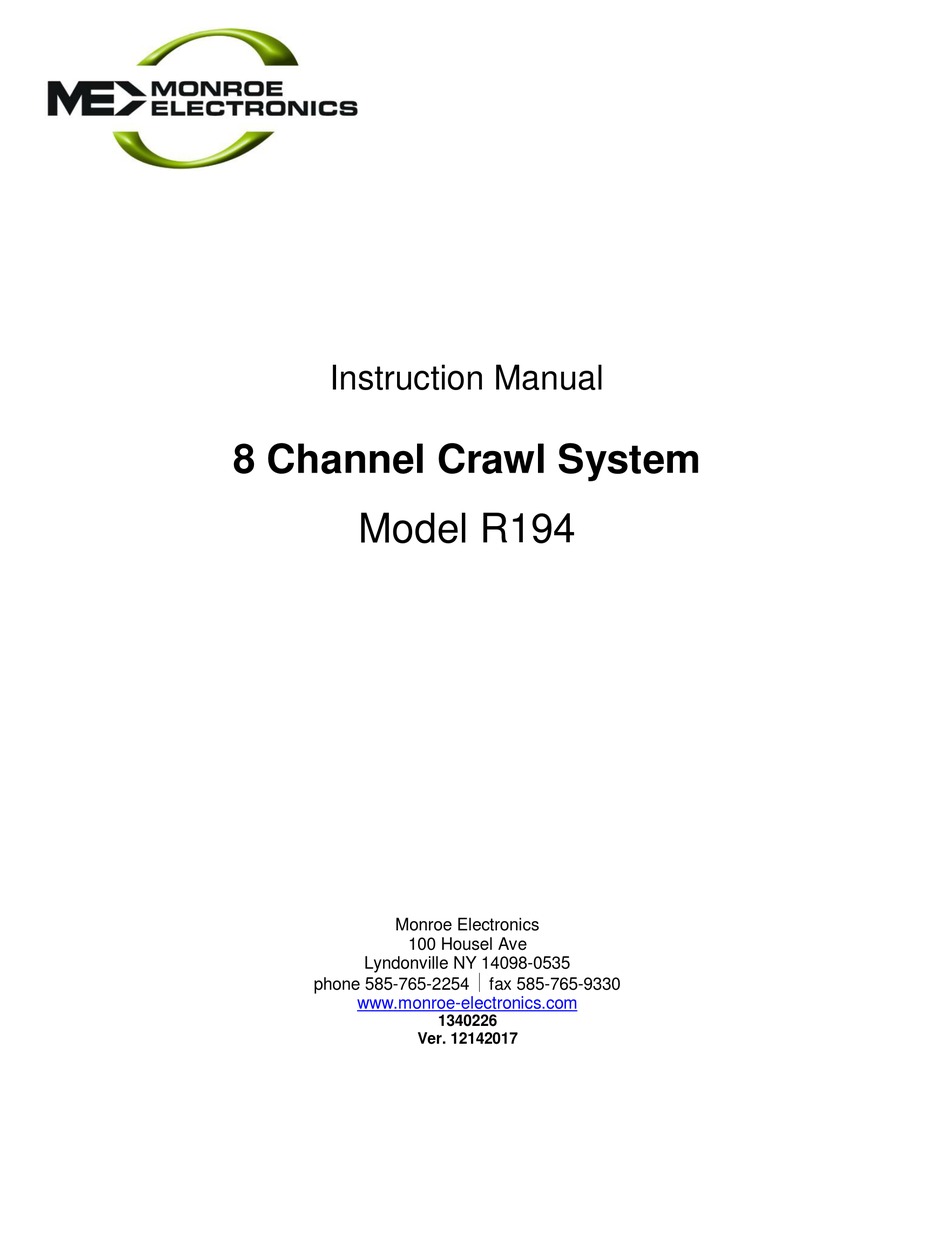

- Page 1 Instruction Manual 8 Channel Crawl System Model R194 Monroe Electronics 100 Housel Ave Lyndonville NY 14098-0535 phone 585-765-2254 fax 585-765-9330 www.monroe-electronics.com 1340226 Ver. 12142017...
-
Page 2: Table Of Contents
Table of Contents Warranty Specifications Front and Rear View General Overview Installation Programming Wiring Diagram... -
Page 3: Warranty
Monroe Electronics. In the event of a breach of the foregoing warranty, the liability of Monroe Electronics shall be limited to repairing or replacing the non-conforming goods and/or defective work, and in accordance with the foregoing, Monroe Electronics shall not be liable for any other damages, either direct or consequential. -
Page 4: Specifications
Control In: RS232 data 9 pin “D” connector from R189 One-Net Control Out: RS232 data 9 pin “D” connector to next R194 in the chain. Master / Slave Select Switch Master for single unit operation. For multiple units connected in series one Master, the remainder should be Slave Power Requirements: Input 120VAC @ .8amps max... -
Page 5: Front And Rear View
Front View Rear View... -
Page 6: General Overview
Video loop-thru connections are all BNC type. Audio loop-thru connections are all pluggable screw terminals. Control is by standard RS-232 signaling using DB9 type connectors. Up to 32 R194’s can be daisy-chained together to allow EAS service to as many as 255 individual analog channels from a single Monroe EAS controller. -
Page 7: Installation
R+ and R- connections of EAS Audio in connector of the R194. 5. If more than one R194 is to be used, connect the L+ and L- connections from the EAS Audio out connector on the first R194 to the L+ and L- connections of the EAS Audio in connector on the second R194 in the chain. -
Page 8: Programming
Programming There is no programming to be done in the R194. However, the serial port on the R189 needs to be programmed for the proper protocol. Programming the R189 serial port: 1. Log into the R189 One-Net. 2. Go to Setup, Video/CG and select the R194 serial protocol at the top of the page.
