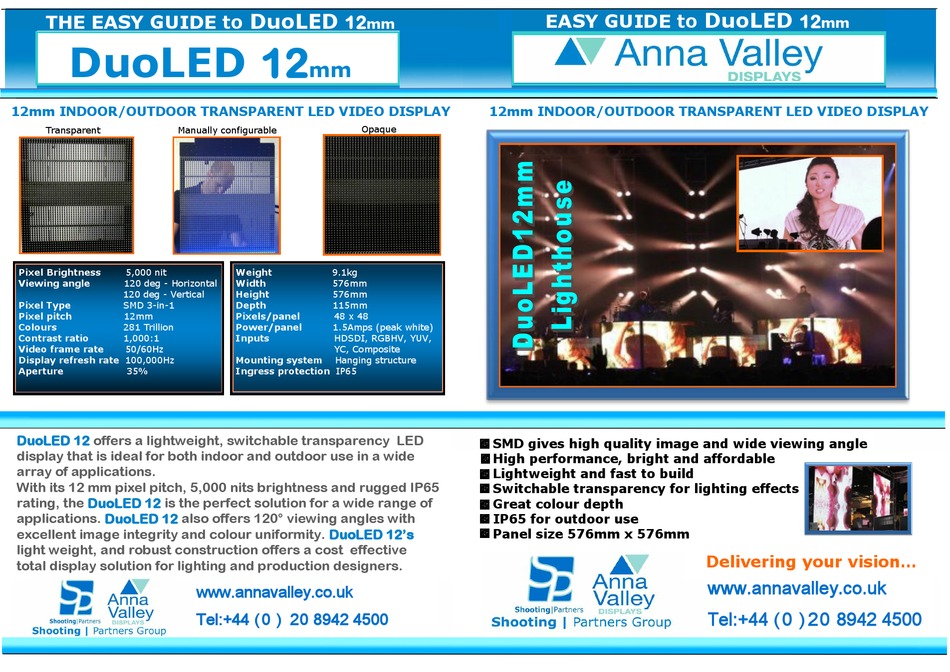

Anna Valley DuoLED 12mm Easy Manual

THE EASY GUIDE to
DuoLED 12
12mm INDOOR/OUTDOOR TRANSPARENT LED DISPLAY
12mm INDOOR/OUTDOOR TRANSPARENT LED VIDEO DISPLAY
Transparent Manually configurable
Pixel Brightness 5,000 nit
Viewing angle 120 deg - Horizontal
120 deg - Vertical
Pixel Type SMD 3-in-1
Pixel pitch 12mm
Colours 281 Trillion
Contrast ratio 1,000:1
Video frame rate 50/60Hz
Display refresh rate 100,000Hz
Aperture 35%
DuoLED 12 offers a lightweight, switchable transparency LED
display that is ideal for both indoor and outdoor use in a wide
array of applications.
With its 12 mm pixel pitch, 5,000 nits brightness and rugged IP65
rating, the DuoLED 12 is the perfect solution for a wide range of
applications. DuoLED 12 also offers 120° viewing angles with
excellent image integrity and colour uniformity.
light weight, and robust construction offers a cost effective
total display solution for lighting and production designers.
DuoLED
12
mm
mm
Opaque
Weight 9.1kg
Width 576mm
Height 576mm
Depth 115mm
Pixels/panel 48 x 48
Power/panel 1.5Amps (peak white)
Inputs HDSDI, RGBHV, YUV,
YC, Composite
Mounting system Hanging structure
Ingress protection IP65
DuoLED 12's
www.annavalley.co.uk
Tel:+44 ( 0 ) 20 8942 4500
THE EASY GUIDE to
12mm INDOOR/OUTDOOR TRANSPANENT LED DISPLAY
12mm INDOOR / OUTDOOR TRANSPARENT LED VIDEO DISPLAY
12mm INDOOR/OUTDOOR TRANSPARENT LED VIDEO DISPLAY
SMD gives high quality image and wide viewing angle
High performance, bright and affordable
Lightweight and fast to build
Switchable transparency for lighting effects
Great colour depth
IP65 for outdoor use
Panel size 576mm x 576mm
DuoLED
12
mm
Delivering your vision...
www.annavalley.co.uk
Tel:+44 ( 0 ) 20 8942 4500
