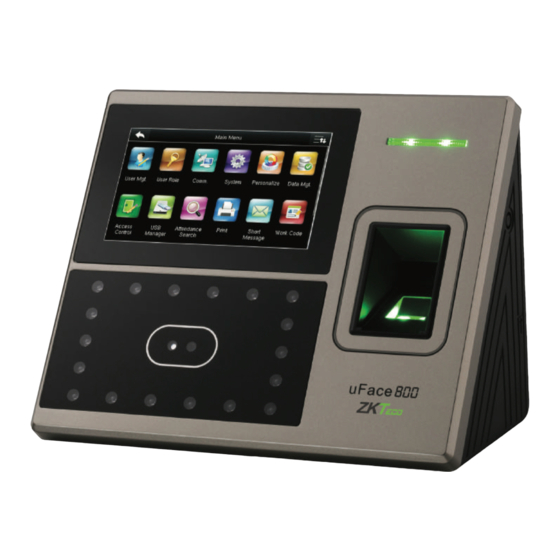

uFace800 Time Clock User Manual
Version 3.6.3
uFace800
Visit: MidexTimeAndAttendance.com | Call: 1-888-544-7878 | Email: info@midexsoftware.com
/TimeAndAttendanceSoftware |
/company/midex-software |
@MidexSoftware
©2003-2018 Midex Enterprises Ltd. | All designs and specifications are subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the uFace800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for midex uFace800

  • Page 1 Innovative Time and Attendance Solutions uFace800 Time Clock User Manual Version 3.6.3 uFace800 Visit: MidexTimeAndAttendance.com | Call: 1-888-544-7878 | Email: info@midexsoftware.com /TimeAndAttendanceSoftware | /company/midex-software | @MidexSoftware ©2003-2018 Midex Enterprises Ltd. | All designs and specifications are subject to change without notice.

  • Page 2: Table Of Contents

    CO N T E N T USER MANAGEMENT 1.1 New User ..............1.2 All Users .
  • Page 3 CO N T E N T DATA MANAGEMENT 6.1 Delete Data ..............6.2 Backup Data .
  • Page 4 CO N T E N T JOB CODE 12.1 New Job Code ............. . . 12.2 All Job Codes .

  • Page 5: User Management

    USER MANAGEMENT...

  • Page 6: New User

    USER MANAGEMENT 1.1 NEW USER Select User Management Select New User Select Enter the by using the keypad and press User ID User ID Select Click on User Role Registrar...
  • Page 7 USER MANAGEMENT A user with “Registrar” is able to “Add”, “Delete” and “Edit” standard users to the Select Super Admin device. The super administration has rights to all the menu functions. He is also able to view “Standard Attendance Data” for existing users on the clock.
  • Page 8 USER MANAGEMENT When you select the option from above the user need all three things to When you select the option above the user needs his/her fingerprint and verify himself or it won’t verify. either badge or user id to verify himself. When there is / sign it means you can either use one option from 2 to verify.
  • Page 9 USER MANAGEMENT Enrollment succeeds. If the enrollment fails, the system will display a prompt After the fingerprint is enrolled successfully the fingerprint will be shown as message and return to the [Enroll Fingerprint] interface. In this case, you 1 as above which means one fingerprint is enrolled. need to repeat the operations of step 2 Select “Face”.
  • Page 10 USER MANAGEMENT When you select the badge number it will tell you to swipe the badge/rfid When you swipe the badge number the badge number will be displayed as card to enroll. above. Here I swiped badge number 4261414 and that number is enrolled for that user.
  • Page 11 USER MANAGEMENT Select lockout override as A user punches in off the activate schedules, the device will notify the user Disable by “Error! Invalid time period Failed to verify. ” Select lockout override as When you enable this function the above image will be displayed. Enable A user punches in off the activate schedules, the device will notify the use by Select...
  • Page 12 USER MANAGEMENT Select You can change the number for that group in the input section above using Access Group the keypad. Select In verification mode, you can select apply group mode which will select all Verification mode. the methods of verification as shown above. Select Place your finger as shown above to select your duress fingerprint.

  • Page 13: All Users

    USER MANAGEMENT Press to select to select to whether the user use his/ When select , Press to select Time period 1. Apply Group Time Period, her group’ s default time zone. Similarly, you can choose time period 2.. Select duplicate punch period. 1.2 ALL USERS Here you can or select the punch period you want.

  • Page 14: Single Line

    USER MANAGEMENT Click to select “All User”. Here you can edit the user informationby selecting Edit The User ID cannot be modified, and the other operations are similar to If you want to delete the user select as shown above and the user Delete will get deleted.
  • Page 15 USER MANAGEMENT Multiple line Mixed Line...

  • Page 16: User Role

    USER ROLE...
  • Page 17 USER ROLE Select Click on User Role Registrar He is also able to view “Standard Attendance Data” for existing users on the clock Here you can for user by turning it ON. Select Enable the defined Role Define User Role Here you can select the rights you want to assign.

  • Page 18: Communication

    COMMUNICATION...

  • Page 19: Ethernet

    COMMUNICATION 3.1ETHERNET Celect “COMM” . Select Ethernet. 3.2 SERIAL COMMUNICATION IP Address: IP is 192.168.1.201 by default. You can modify it if it is necessary. But it cannot be the same with that of PC. Select Serial Comm Select “Serial Port”. RS232: Whether use RS232 to communicate.

  • Page 20: Pc Connection

    COMMUNICATION Select as no using if you do not want to use the port. Baudrate: Used for communication with PC. Serial Port 3.3 PC CONNECTION There are five options: 9600, 19200, 38400, 57600 and 115200. If the commu- nication speed is high, RS232 is recommended. If the communication speed Select PC connection is low, RS 485 is recommended...

  • Page 21: Wireless Network

    COMMUNICATION Select Here you can put the number for this device by using the keypad in the Device ID input screen as above and hit press Here the When you turn the “SSH” function the device will restart automatically Use SSH as shown above.

  • Page 22: Cloud Server Settings

    COMMUNICATION You can turn the wireless network and the networks available in the You can select any wireless network you wish to connect and you can up- range would be displayed as above. load the password via “USB” or by using the keypad on the clock. Once you upload the password you can press “Connect to WFI(OK)”...
  • Page 23 COMMUNICATION Once the “URL Mode” is “ON” you can upload the server address with “USB”. Here the server address is the IP address of the webserver. Here you can change server port of the webserver by using the keypad and Select It is as port which is used by the webserver.

  • Page 24: Wiegand Setup

    COMMUNICATION 3.6 WIEGAND SETUP When you enable the proxy function, set the IP address and port number of the proxy server. This option indicates whether to use a proxy IP address. You Click on Wiegand Setup may choose to enter the proxy IP address or the server address for Internet access, whichever you like.
  • Page 25 COMMUNICATION After you swipe the multiple card all the card with different Wiegand formats Here you can select the Wiegand format of the card you wish to choose to will be displayed as above. register. If you select “Cancel” that Wiegand format would not be selected. To select the particular Wiegand card format select that format and press as shown above.

  • Page 26: System

    SYSTEM...

  • Page 27: Date Time

    COMMUNICATION SYSTEM 4.1 DATE TIME Select “System” . Select Date Time 4.2 ATTENDANCE Press select items. When the setting is completed, press to save the setting and exit. Select Attendance If you want to display the user photo you can select ON If you don’t want the user photo to be displayed select OFF as above.
  • Page 28 COMMUNICATION SYSTEM When the available space is insufficient to store the specified number of You can change the value for attendance log alert from the image above. attendance records, the FFR terminal will automatically generate an alarm. (Value scope: 1-99) Select It specifies the maximum number of attend- This function can be disabled;...
  • Page 29 COMMUNICATION SYSTEM You can select the expiration rule as OFF if you don’t want to retain the user You can select one of the three conditions: information or to save attendance records. • Retaining user information and not saving attendance records; •...

  • Page 30: Face

    COMMUNICATION SYSTEM 4.3 FACE Here you can change the color of the font to different color you wish to apply. Select Face You can change the setting of face templates from the options above. Select “Show Attendance State” and turn “ON”. Once you turn “ON” you can change the attendance state font size and color.

  • Page 31: Fingerprint

    COMMUNICATION SYSTEM Select “Attendance State Font Color” You can change the font color to any color from the option above you wish to apply 4.3 FINGERPRINT Here select value is the similar of the ID+fingerprint 1:1 match threshold verification and the enrolled template. Select option and click Fingerprint...
  • Page 32 COMMUNICATION SYSTEM You can change the value from the image above. Select . It is used to set the sensitivity of fingerprint FP sensor Sensitivity collection. The default will be set to 35 The default value Medium is recommended. You can set the sensitivity of This parameter is used to set the retry times in the event of failure of 1:1 veri- fingerprint collection to High when the response to finger scan lags in a dry fication or password verification due to an absence of fingerprint enrollment...

  • Page 33: Reset

    COMMUNICATION SYSTEM 4.4 RESET Here you can change the fingerprint image to be shown while enrolling or to match and never Select Reset 4.5 USB UPGRADE When you select it will go back to previous menu. Cancel If you select it will rest the setting and restart the clock.

  • Page 34: Personalize

    PERSONALIZE...

  • Page 35: User Interface

    COMMUNICATION PERSONALIZE SYSTEM 5.1 USER INTERFACE Select Personalize Select User Interface Select If you select the wallpaper the different wallpaper will be displayed as shown Wallpaper above and you can select any of the wallpaper you want to be displayed. Select Here you can select the language you wish to display on the clock.
  • Page 36 COMMUNICATION PERSONALIZE SYSTEM To prevent hostile power-off, select whether to lock power-off or not. “Enable”: it is ineffective after pressing power-off “disable”: the power is off 3 seconds after pressing power-off. The device will display the main interface automatically when no operation This function can be disabled;...
  • Page 37 COMMUNICATION PERSONALIZE SYSTEM This parameter is used to set the picture cycle interval This parameter can be either disabled or ranges from 30 s to 999s. This parameter is used to set the picture cycle interval This parameter can be either disabled or ranges from 30 s to 999s. This parameter is used to specify a period after which the device is put in Numerical range in 30 minutes, the factory default for 30 minutes.

  • Page 38: Voice

    COMMUNICATION PERSONALIZE SYSTEM This is to set where and how the clock and status key are displayed on the Here is the “Style 1”. If you want this style press SET. And if you don’t want main screen. this style simply press back. Here is the “Style 2”.

  • Page 39: Bell Schedules

    COMMUNICATION PERSONALIZE SYSTEM 5.3 BELL SCHEDULES Touch prompt: - This parameter is used to set whether to generate beep sound in response to every keyboard touch. Select to enable the beep Select Bell Schedules sound, and select to mute Click on Click on bell status.
  • Page 40 COMMUNICATION PERSONALIZE SYSTEM You can change the timings for the bell to ring using the keypad and then The Repeat function specifies whether to repeat the ringtone confirm Here the bell is schedule at 12.24PM. You can select any day of the week to repeat the ringtone. And if you don’t Select and press Bell Type...
  • Page 41 COMMUNICATION PERSONALIZE SYSTEM You can select any ringtone you want from the above options. Select and press Internal bell delay (s) It specifies the duration for ringtone playing. You can edit the delay of the internal bell from the image above. It ranges Select All bell schedules from 5 to 99 seconds.
  • Page 42 COMMUNICATION PERSONALIZE SYSTEM Select Item you wish to edit. Press the bell schedule. Delete Select Press to select Options Select Press to select, press to save and return. External Bell Relay.

  • Page 43: Punch State Options

    COMMUNICATION PERSONALIZE SYSTEM 5.4 PUNCH STATE OPTIONS Press to select items. When the setting is completed, press to save the setting and exit. Press to select Punch State Options The main interface displays the status keys that can be switched automat- Punch state timeout specifies the timeout period of the status key displayed ically, and you are also allowed to switch status keys manually.

  • Page 44: Shortcut Key Mapping

    COMMUNICATION PERSONALIZE SYSTEM 5.5 SHORTCUT KEY MAPPING Specifies whether the status of work attendance check must be selected during authentication. Press to select Shortcut Key Mappings When it’ s on it will be selected. These are standard attendance keys for Uface. You can select any keys you wish to use from the above menu Select key as...
  • Page 45 COMMUNICATION PERSONALIZE SYSTEM Here you can change the punch state value in the input screen by using the Here select punch state options as Function keypad and press “OK”. You can change the function for the keys above. Select name for F1 You can name the key for F1 you want from the options above.
  • Page 46 COMMUNICATION PERSONALIZE SYSTEM Here you can and press . If you disable the job group will be disable Switch Cycle Select job group and it will not show on the screen You can select any job group you want and you can name the job group by If you “Disable”...
  • Page 47 COMMUNICATION PERSONALIZE SYSTEM Select Select Check Out. Punch State Value. Select as “Tip code”. You can change the value of the punch state by changing the value in the input screen with the help of keypad. Here the punch state value is set to 251 For more details refer to paragraph 13.
  • Page 48 COMMUNICATION PERSONALIZE SYSTEM Here the tip group is disable and no tip group has been selected. You can select the tip group you want. Here all the tip group are selected When you select all the tip group the select tip group will display as “All Select Break-In.

  • Page 49: Manual Add Log

    COMMUNICATION PERSONALIZE SYSTEM 5.6 MANUAL ADD LOG Click on User ID Select annual add log and press The user id is displaying as 1. Click on Verify mode. Here you can select any verification mode you want the user to get verified. Select verify state as none.
  • Page 50 COMMUNICATION PERSONALIZE SYSTEM Select You can set the date by using the keypad. Here the date is set to 11/03/2017. Date Select You can set the “Time” by using the keypad. Here the time is set to 12hr, Time 43min, 38ss.

  • Page 51: Data Management

    DATA MANAGEMENT...

  • Page 52: Delete Data

    DATA MANAGEMENT COMMUNICATION PERSONALIZE SYSTEM 6.1 DELETE DATA Select Data Manager Select Delete Data It will delete the attendance records When select it will delete all the attendance records Delete All You can delete the attendance data by Time Range too. To selete by time range you can select the time you want the data to be deleted.

  • Page 53: Backup Data

    DATA MANAGEMENT COMMUNICATION PERSONALIZE SYSTEM Here you can delete all data by selecting delete all data and press Here you can delete admin role by selecting delete admin role and press will take you back to previous screen. will take you back to previous screen CANCEL CANCEL 6.2 BACKUP DATA...

  • Page 54: Restore Data

    DATA MANAGEMENT COMMUNICATION PERSONALIZE SYSTEM Select and once the bacup is completed the above image will , the operations are similar to those performed to Backup Backup Start Backup to USB Disk be displayed. to Device. 6.3 RESTORE DATA If the usb is not properly inserted the above scdreen will be displayed. You can either change the USB or insert it properly again.
  • Page 55 DATA MANAGEMENT COMMUNICATION PERSONALIZE SYSTEM You can select the content you want to restore. select and press Start Restore select Yes or Device and press the operations are similar to those performed to If the USB disk is not properly inserted the above scdreen will be displayed. Restore from USB Disk restore from Device.

  • Page 56: Access Control

    ACCESS CONTROL...

  • Page 57: Time Schedule

    DATA MANAGEMENT COMMUNICATION ACCESS CONTROL PERSONALIZE SYSTEM 7.1 TIME SCHEDULE Select Access Control Select Time Schedule Use numeric keys to search for a time period in the range from 1 to 50. Press / to select a time option and press to set Select the item to be set.
  • Page 58 DATA MANAGEMENT COMMUNICATION ACCESS CONTROL PERSONALIZE SYSTEM Press Enter the No. using keypad and press Select Select Verification Mode, you wish to apply and save and return. Verification Mode select Enter the No. using keypad. Time Period 1...
  • Page 59 DATA MANAGEMENT COMMUNICATION ACCESS CONTROL PERSONALIZE SYSTEM Select to enable the item Select Include Holidays All Groups Select one of All Groups. Select Edit The No. cannot be modified, and the other operations are similar to those select Delete performed to add a New Groups. Press left arrow on the screen to return...
  • Page 60 DATA MANAGEMENT COMMUNICATION ACCESS CONTROL PERSONALIZE SYSTEM If you select it will delete all the access groups and when you select it will take you to previous screen without deleting any access Cancel groups.

  • Page 61: Usb Manager

    USB MANAGER...

  • Page 62: Download

    DATA MANAGEMENT COMMUNICATION ACCESS CONTROL USB MANAGER PERSONALIZE SYSTEM 8.1 DOWNLOAD Go to Menu and select USB Manage. Select Download Select the items you want to download. will import all the user information, fingerprints and facial images User data from the FFR terminal to a USB disk Here when we select the “Attendance Data”...

  • Page 63: Upload

    DATA MANAGEMENT COMMUNICATION ACCESS CONTROL USB MANAGER PERSONALIZE SYSTEM 8.2 UPLOAD The short message will be displayed by the administrator and will be import from terminal to USB disk. Select and press Upload In Upload it will upload all the data from USB disk to terminal. 8.3 DOWNLOAD OPTIONS will Upload the JPG documents with “ad_”...
  • Page 64 DATA MANAGEMENT COMMUNICATION ACCESS CONTROL USB MANAGER PERSONALIZE SYSTEM If the it wont downlad any data as the function is diabled. If the it will downlad the data as the function is enabled. ATT data ATT data...

  • Page 65: Attendance Search

    ATTENDANCE SEARCH...
  • Page 66 ATTENDANCE SEARCH DATA MANAGEMENT COMMUNICATION ACCESS CONTROL USB MANAGER PERSONALIZE SYSTEM Select Select Attendance Search Attendance Record Enter the “User ID” of the user you wish to see the attendance record Here you can select the time range you wish to see the record of that user. The different options are available as shown above.
  • Page 67 ATTENDANCE SEARCH DATA MANAGEMENT COMMUNICATION ACCESS CONTROL USB MANAGER PERSONALIZE SYSTEM Enter the “User ID” of the user you wish to see the attendance photo. Here you can select the time range you wish to see the record of that user. The different options are available as shown above.

  • Page 68: Short Message

    SHORT MESSAGE...

  • Page 69: New Message

    ATTENDANCE SEARCH DATA MANAGEMENT COMMUNICATION ACCESS CONTROL SHORT MESSAGE USB MANAGER PERSONALIZE SYSTEM 10.1 NEW MESSAGE Go to Menu and select Short Message Click on New Message Click on the “Message” option as shown above. After you click on “Message” the above screen will appear in which you can type the message with the help of keypad you wish to send.
  • Page 70 ATTENDANCE SEARCH DATA MANAGEMENT COMMUNICATION ACCESS CONTROL SHORT MESSAGE USB MANAGER PERSONALIZE SYSTEM Click on Here you can edit the “Start Time” to what time you want the message to be Start Time displayed. Click on Here you can choose the time you want the message to be expired from the Expired Time screen.

  • Page 71: Public Messages

    ATTENDANCE SEARCH DATA MANAGEMENT COMMUNICATION ACCESS CONTROL SHORT MESSAGE USB MANAGER PERSONALIZE SYSTEM 10.2 PUBLIC MESSAGES Go to Menu and select Short Message Select Public Message 10.3 PERSONAL MESSAGES The message will be displayed on the screen as above. Here also if you want to view any Personal Message click Personal Message 10.4 DRAFT MESSAGES The draft messages will be displayed as above.

  • Page 72: Message Options

    ATTENDANCE SEARCH DATA MANAGEMENT COMMUNICATION ACCESS CONTROL SHORT MESSAGE USB MANAGER PERSONALIZE SYSTEM 10.5 MESSAGE OPTIONS Select “Message Show Delay” to set the delay time for the message to be seen. Select Message Options Select the you want the message to be seen. Time The delay time ranges in seconds.

  • Page 73: Work Code

    WORK CODE...

  • Page 74: New Work Code

    WORK CODE 11.1 NEW WORK CODE Go to menu and selec Work Code Select New Work Code Select Enter the user ID using keypad for that user. Select Enter the name of the work code by using the keypad. Name...

  • Page 75: All Work Codes

    WORK CODE 11.2 ALL WORK CODES View All work codes. Select All work codes 11.3 SET WORK CODE Sselect the one you want to edit or delete. In edit you can edit the information and delete will delete the work code for Select Work code options that ID.
  • Page 76 WORK CODE When you turn the workcode required it will ask you to set the timeout Here you can change the timeout for the input screen from the image for the input screen. above. Click on input screen timeout. The timeout is in seconds. When you select for the function above the work code will not be When you turn...

  • Page 77: Job Code

    JOB CODE...

  • Page 78: New Job Code

    WORK CODE JOB CODE 12.1 NEW JOB CODE Select icon. Job code Select New Job Code Select Job Group ID and then assign a particular job code from the category Select . The job group id will be selected as country. Country such as as shown above.

  • Page 79: All Job Codes

    WORK CODE JOB CODE Select Input the in the box above. With the help of keypad you can Job Code Name Job Code Name input the name. Enter the job code name as shown above All input information you enter will be displayed on the screen as above. Press “ESC”...
  • Page 80 WORK CODE JOB CODE Select There is only one job code “USA assigned in to this group” Country 1 Country Select After selecting state, it will display all the job codes assign to different states State as shown above. Select as shown above to select the particular state Great Manchester Select...
  • Page 81 WORK CODE JOB CODE Select The different block will appear. BLOCK Select 1st block as shown above to select the particular block Select The different Streets will appear as shown above. Street Select Market street as shown above to select the particular street Select The different ZIP codes will appear as shown above.

  • Page 82: All Job Codes

    WORK CODE JOB CODE 12.2 ALL JOB CODES Select Job Code Select options. All Job codes Select The job codes assign to different country will be displayed as shown above. Country Select for the particular job code for that country. 1 USA After selecting 1 USA click on the function.
  • Page 83 WORK CODE JOB CODE Click on to edit the name for that job code Enter the by using the keypad. Job Code Name Job code Name Change the name from “USA” to America Click on confirm button to select America. The job code name will change to America as shown above.
  • Page 84 WORK CODE JOB CODE To delete the job codes in the particular group select Select Job Code . All Job Codes Select as shown above Select the job code you wish to delete. Country Here select Click on the function to change the name of the group. When you select it will delete the particular group you want to Edit...

  • Page 85: Job Code Options

    WORK CODE JOB CODE When you press the above screen will be displayed. When you press delete the above screen will be displayed. Delete When you press to execute it will go back to last menu screen and When you press to execute it will execute the function and delete the nothing will be edited or deleted particular job group you selected “Country”.
  • Page 86 WORK CODE JOB CODE Turning options will enable and options will disable the When you turned OFF the job code required function it will disable that Job Code function “Input Screen Timeout(s)” to set up the time period for function. Required displaying the job code list in seconds.

  • Page 87: Job Group Option Menu Operation

    WORK CODE JOB CODE Here we put 15 seconds and then click on confirm function to get that After pressing confirm O function the image will be displayed as above. time selected. Turning options will enable the function Turning ON options will enable the function Job Code Required Job Code Required...
  • Page 88 WORK CODE JOB CODE Pressing switch will enable and disable the each individual The name of the group can be edit using individually. Job Groups Set Job Group Name To set a Job Group Name click on set job group name as shown above. This screen will appear when you press the set job group name.
  • Page 89 WORK CODE JOB CODE Select the job group you want to enable by pressing functions. To change the group name select Set Job Group name. Other groups with functions will be disable. The job code functions will be active only to the group which is enable Change the current group name country by pressing* key on the keypad of Change the group name as Nation as shown above.

  • Page 90: Tip Code

    TIP CODE...

  • Page 91: Tip Code Settings

    WORK CODE JOB CODE TIP CODE 13.1 TIP CODE SETTINGS Select Tip Code and press Switch to enable Tip Code function; Enable All Tip Group disable Tip Code function. The groups can be turned on/off individually using associated with each tip group If you press it will enable that tip code function.

  • Page 92: Tip Code

    WORK CODE JOB CODE TIP CODE Here the Tip group is being change from breakfast to Dinner with the After you change the name press Confirm keypad on the clock. 13.2 TIP CODE Once you hit the Confirm button the set tip group name will be changed to Dinner as shown above.
  • Page 93 WORK CODE JOB CODE TIP CODE In F3 Select Punch State Value. You can change the punch state value by editing in the input section using the keypad. Select In function key select Function TIP code Pressing switch will enable and disable the If the check mark is not selected on the box no tip group will be selected and it will be disabled as above each individual...
  • Page 94 WORK CODE JOB CODE TIP CODE If you check mark all the groups as above all the Tip Group will be enabled. If all three tips are selected, will be displayed as Select Tip Grou All Group Select F3 key on the main screen as tip code. You can edit the tip in the amount of dollars by pressing up and down arrow on the keypad according to group.
  • Page 95 WORK CODE JOB CODE TIP CODE Once all the tip is set according to the group the user from the group can easily punch in and punch out by their fingerprint and the above image will displayed if the fingerprint is successfully verified.

  • Page 96: Autotest

    AUTOTEST...

  • Page 97: All Test

    AUTOTEST 14.1 ALL TEST Select “Auto test” . Select Test All The terminal automatically tests the LCD, voice, sensor, keyboard and clock, press to continue and press ESC to exit 14.2 TEST LCD You can continue the test by touching the screen or exit it by pressing [ESC] The terminal automatically tests the display effect of the color TFT display by displaying full color, pure white and pure black and checks whether the screen displays properly.
  • Page 98 AUTOTEST Here you can test the different voice wav file. To continue the voice test Here you can test the different voice wav file. To continue the voice test press and to exit press ESC press and to exit press ESC Here you can test the different voice wav file.

  • Page 99: Test Voice

    AUTOTEST 14.3 TEST VOICE 14.4 TEST KEYBOARD Here you can test the different voice wav file. To continue the voice test The terminal tests whether every key on the keyboard works normally. Press press and to exit press ESC any key on the [Keyboard Test] interface to check whether the pressed key matches the key displayed on screen.

  • Page 100: Xs Test Clock Rtc

    AUTOTEST 14.7 XS TEST CLOCK RTC Test Clock RTC: The terminal tests whether its clock works properly by checking the stopwatch of the clock. Touch the screen to start counting, and touch it again to stop to check whether the counting is accurate. Press [ESC] to exit the test.

  • Page 101: System Information

    SYSTEM INFORMATION...

  • Page 102: Device Capacity

    SYSTEM INFORMATION 15.1 DEVICE CAPACITY Select System Info Select “Device Capacity”. The number of enrolled users, administrators, passwords, the total The number of enrolled users, administrators, passwords, the total fingerprint storage capacity and occupied capacity, ID cards and attendance fingerprint storage capacity and occupied capacity, ID cards and attendance capacity are displayed respectively capacity are displayed respectively 15.2 DEVICE INFO...

  • Page 103: Firmware Info

    SYSTEM INFORMATION 15.3 FIRMWARE INFO Manufacture and Manufacture date are displayed on the device interface Click on Firmware Info The Firmware version, Bio Service, Push Service, Standalone Service and Dev Service and System Version are displayed on the firmware info interface...
