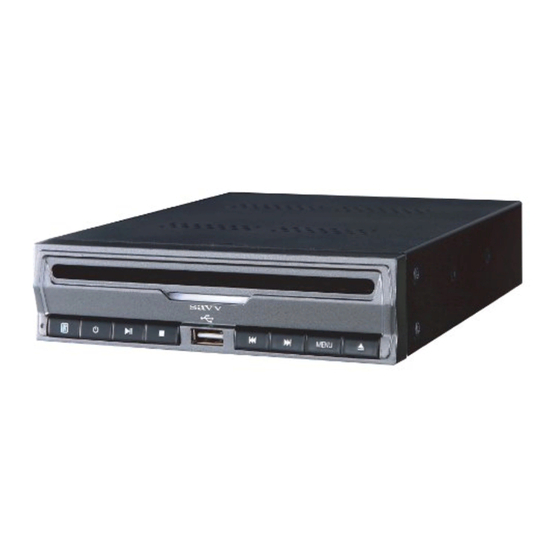

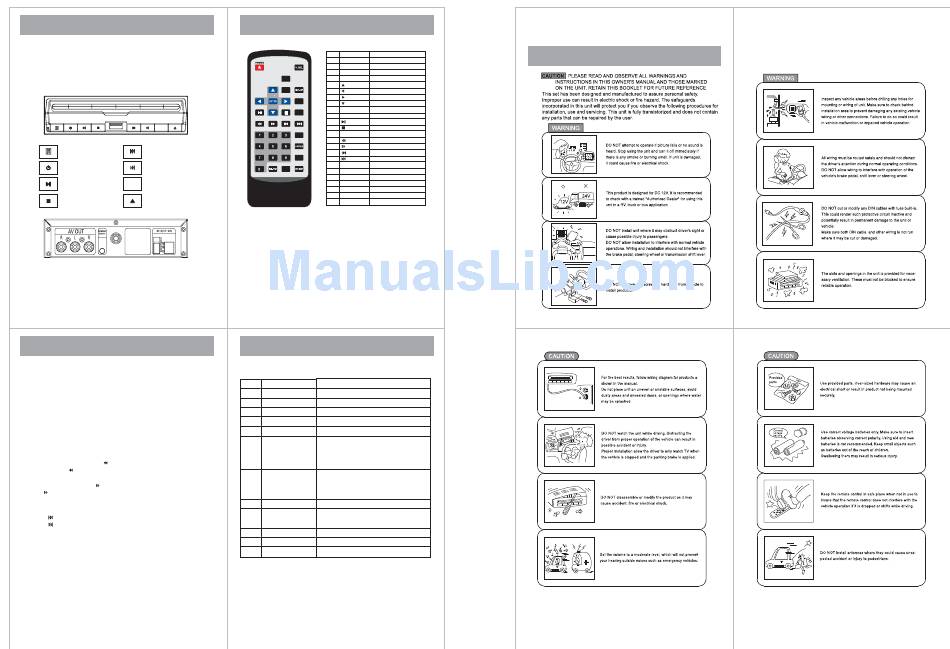

SAVV AVH-8080 User Manual

User's manual
Congratulations your new purchase of a DVD Entertainment system.
Please take a moment to fully review this owner's manual thoroughly prior to the initial
oeration, which will porvide you with the best understanding to properly operate your
new Entertainment system.
Description of buttons and ports
V.SEL
Remote Sensor Previous button
Power button Next button
Play / Pause button Video mode selection
V.SEL
Eject button
Stop
AV Out : Audio and Video Output
External Remote : External Remote Sensor Output
BLK(GND)/ RED(ACC+) : Power Connector input
Basic Operation
1. Play a Disc
1) Press the Power button on the unit or remote
2) Inset the disc into the disc slot with label side facing-up
3) The Player starts playback automatically
2. Ejecting a disc
Press eject button on the unit
3. Stopping play
1.) Press stop button on the unit or remote to stop playback
2.) Press Play button on the unit or remote control to play the disc again
4. Rewind & Fast Forward
1) Move to Rewind track : Press button on the remote control during play.
Each time Press button,track will be rewinded X2,X4,X8,X18,X32 times and
the Play again
2) Move to Fast track : Press button on the remote control during play.Each time
Press button,track will be Fast track X2,X4,X8,X18,X32 times and the Play again
5. Previons and Next
1) Press button on the unit or remote control to move to previous chapter
2) Press button on the unit or remote control to move to next chapter
6. Remote sensor (Infared sensor for remote control)
1) Point the remote control to IR window on the unit to control the DVD functions
2) Point the remote control to External IR sensor (Included) to control the
DVD functions
7. USB Play
1) Plug-in USB memory to USB slot on the unit
2) Please press V.SEL button on the unit or remote to Change the DVD Mode
to USB Mode
3) Internal folder will be showing up Move ▲ or ▼ cusor on the remore control
to select the file
4) Press Play button on the unit or remote control to play the file
5) Press Stop button on the unit or remote control to stop playback
*Only selected Audio & Video file format will be played with unit
Remote Control
1 POWER Power On/Off
2 V.SEL Change to Dics or USB Mode
3 SEARCH Search
4 EXIT Exit from the Current mode
5 SET-UP DVD Menu Set-up
V.SEL
SEARCH
Cursor Up
6
7 Cursor Left
EXIT
CH 8 > Cursor Right
INFO 9 Cursor Down
CH
10 ENTER Function Select
EXIT
REPEAT
11 INFO Display on Disc
12 Play & Pause
VOL- MUTE VOL+
13 Stop
14 REPEAT Repeat Functicn Change
Dimmer ASPECT MENU
ZOOM
15 Rewind
16 Fast forward
17 Previous
Next
DVD TITLE 18
19 1~0 Number Key
AUDIO 20 ZOOM Zoom In and Out
21 ANGLE Support DVD angle function
22 DVD TITLE DVD Title Menu
23 SUB-TITLE Sub-Title selection
24 AUDIO Audio function change
25 DVD ROOT DVD-Root Menu
Specifications
1
Mechanism Anti-Shock Steel supporting mechanism for Car
2
Mounting Vertical/Horizon mounting for various usuage
3
Video System NTSC/PAL Auto
4
Support Disc DVD Video, Compact Disc, CDR, CDRW, VCD
5
Audio Output level 1.5V± 0.1V (Under 250Ω )
6
Video Output level 1±0.2V (75Ω) Video outs
7
USB function Multimedia Play-back
Video : AVI, MPEG,MP4
Audio : MP3, WMA
Photo : JPG
8
Characteristics Frequancy Response 20Hz~20KHz ( ± 2dB)
S/N Ratio 90dB(JIS) (1KHz)
Channel Seperation > 85dB (1KHz)
9
Illumination Blue LED illumination
10
Remote control Full function remote control included
Remote-eye extension cable included (1.5m)
11
~
Supplying Voltage 12Volt (9 16V) D.C input
12
Current Compsumption Less than 2A
13
Dimension(W X D X H) 146mm X 179mm X 38mm
