PROSPORT EVO SERIES Installation Instructions

85mm speedometer w/warning & peak white/amber /blue / green led display

Advertisement

Quick Links

INSTALLATION INSTRUCTIONS
85mm EVO SPEEDOMETER
WHITE/AMBER /BLUE / GREEN LED DISPLAY
1

BEFORE YOU START

E
A
1.
Read instructions completely before installation.
2.
Install speedometer only when engine is cool and
ignition is off.
3.
Make sure all necessary tools, materials, and
parts are on hand.
4.
Refer to your vehicle's service manual for the location
of speedometer sensor port, vacuum system, and/or
charging system.
5.
Disconnect negative (-) battery cable before installing
speedometer.
2

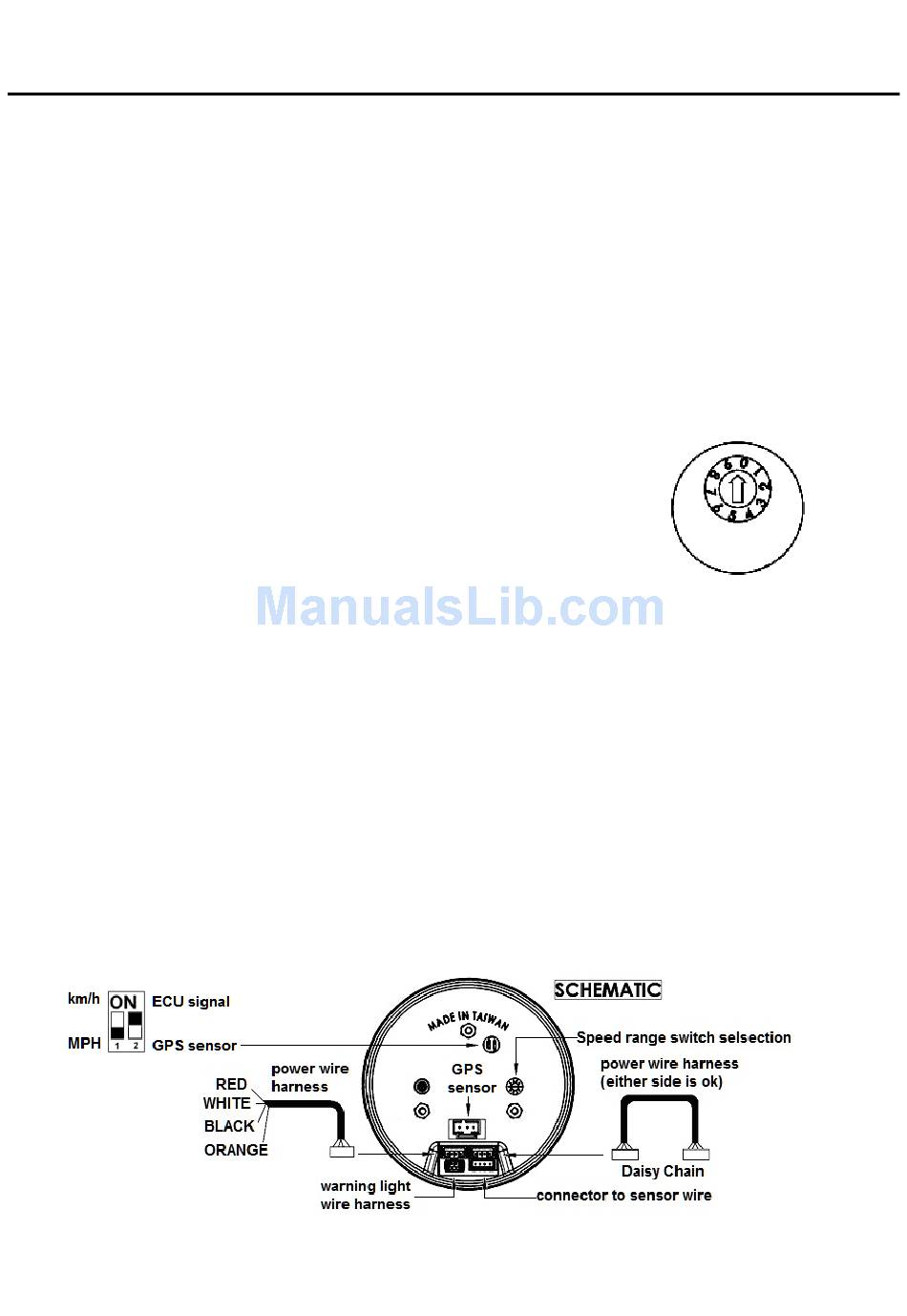

SPEED RANGE SWITCH SELECTION

E
A
A
1. Use the switches <
2. Switch toward <0.9.8.7.6.5.4.3.2.1.> to narrow the range.
Switch toward <1.2.3.4.5.6.7.8.9.0.> to widen the range.
3

MOUNTING

E
A
A
You can mount your speedometer on or under the dashboard or on the center console according to your personal choice.
Determine best position for good visibility before drilling screw holes.
4

SPEEDOMETER CONNECTION

E
A
A
1.
Connect power wire (RED) to +12V battery wire.
2.
Connect power wire (WHITE) to a switched +12V
circuit at fuse box, or splice into any vehicle harness
wire which is energized ONLY when ignition key is
ON (RUN) position.
3.
Connect power wire(BLACK) to ground, negative (-)
battery terminal or a good chassis ground.
4.
Connect power wire (ORANGE) to panel lights circuit
at fuse box, or splice into any vehicle harness wire
connected to the panel lights circuit.
www.prosportgauges.com email: sales@prosportpauges.com
1.2.3.4.5.6.7.8.9.0> to adjust the SPEED into an approximate range.
W/WARNING & PEAK
NOTE: It may be necessary to reprogram your radio,
clock, etc. after reconnecting the battery.
6. Make sure mounting location does not impair visibility of
interfere with driving. Also check behind the mounting
location for any wiring or components before drilling.
7. When connecting electrical wire, install crimp terminals
and make wire splices as needed. ALWAYS insulate wire
splices with electrical tape to prevent shorting.
8. Follow all necessary safety procedures for protection.
5. Secure lead wires along their route to prevent damage
from sharp edges, moving parts or hot engine
components.
6. Turn on ignition. DO NOT START ENGINE speedometer
Lcd display should be to minimum or "0" when ignition
is turned on.
.
