RFX RP93s Owner's Manual

displayed.
• To enable the setting you have chosen, press the STORE button.
• To return to programming the Program Numbers, press the UP or DOWN buttons until
the Program Numbers are again displayed.

RESTORING DEFAULT SETTINGS

• To restore the factory presets, press and hold Switch 1 and Switch 2 simultaneously for
5 seconds. The display will show FP during the reset operation. The RP93s will remain in
Learn Mode after the default settings have been restored.

RETURNING TO OPERATING MODE

• To return to normal operation mode, press and hold the UP and DOWN buttons again
(same as entering Learn Mode) for 5 seconds. Note: Any settings that have not been
stored will be lost.

RFX MIDI PHANTOM POWER

Inspired by an article in the December 1989 issue of Electronic Musician (by
Craig Anderton), we decided to emulate their MIDI phantom power model for RFX
equipment. MIDI receivers supply 12 VDC on pins 1 and 3, and transmitters
receive power on those same pins. Many MIDI devices can be modified to supply
power down the cable, but of course RFX makes no warranty to anyone as to the
applicability of this modification or any damage that might be done as a result
thereof. We supply this note for those adventurous people who may want to give
it a try.
Connect pin 1 to circuit ground, and pin 3 to +9 - +15 VDC of the receiving unit.

MIDI TEST MODE

The RP93s has the ability to display the MIDI information present at the MIDI IN
jack.
• To enter Test Mode, first make sure the RP93s power is off. Hold the UP and
DOWN buttons while switching the power on. Table 3 shows which MIDI com-
mands and their status.
TABLE 3 TEST MODE COMMANDS AND DISPLAY
LED MIDI COMMAND
Loop 1 Note Off
Loop 2 Note On
Loop 3 Pressure
Loop 4 Change
Switch 4 Change
Switch 3 Pressure
Switch 2 Pitch Wheel
Switch 1 System Messge
Salt Lake City, UT
1st Display 2nd Display
Channel Number Note Number
Channel Number Note Number Key
Channel Number Note Number Control
Channel Number Control Number Program
Channel Number Program Number Channel
Channel Number Pressure Value
Channel Number Not Used
SE or SC or RT Not Used

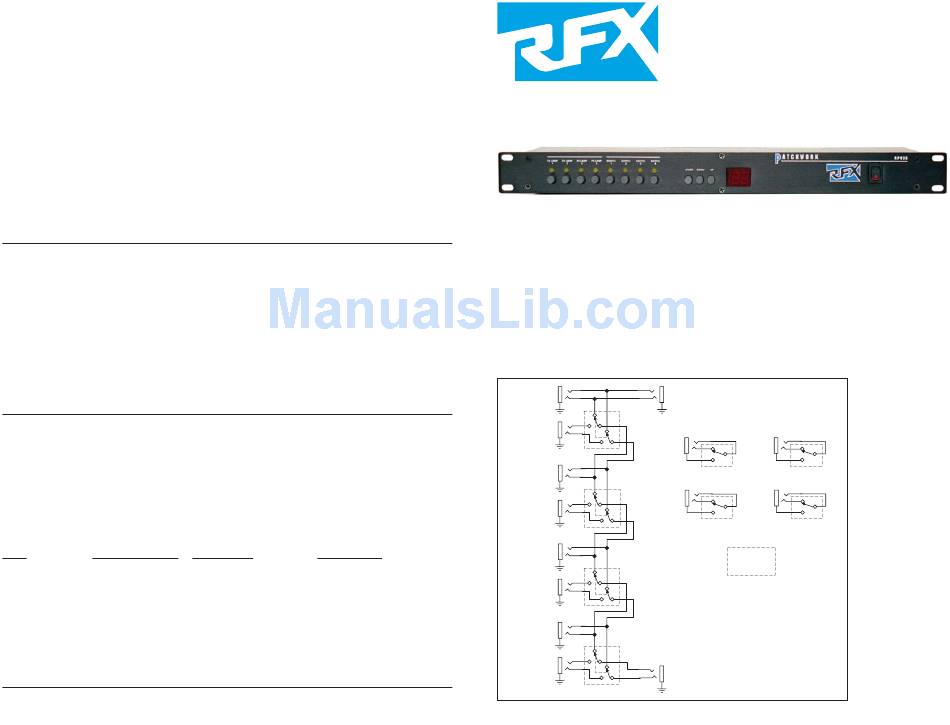

RFX
Thank you for your purchase of the RP93s Patchwork. This unit is designed as a MIDI
Controllable audio and signal switcher.
Please take a moment to read this Owner's Manual carefully. It will provide you with all
the information you need to operate this device properly.

SPECIFICATIONS

Jacks:
MIDI ports:
Display:
Phantom Power: +12 VDC on pins 1 and 3 of MIDI IN jack
MIDI signals recocnized: Program Change with MIDI Channel
Size:
Power:
SEND 1 INPUT
RETURN 1
SWITCH 1
SEND 2
SWITCH 2
RETURN 2
SEND 3
RETURN 3
SEND 4
RETURN 4
OUTPUT
RP93s
PATCHWORK
MIDI CONTROLLED
AUDIO SWITCHER
14; 1/4" phone TRS jacks
5-pin DIN IN and Through jacks
2-digit high efficiency red .56"
17" x 1.75" x 6"
120 VAC 15 VA 50/60 Hz
SWITCH 3
SWITCH 4
ALL DOTTED
BOXES INDICATE
RELAYS
OWNERS MANUAL
