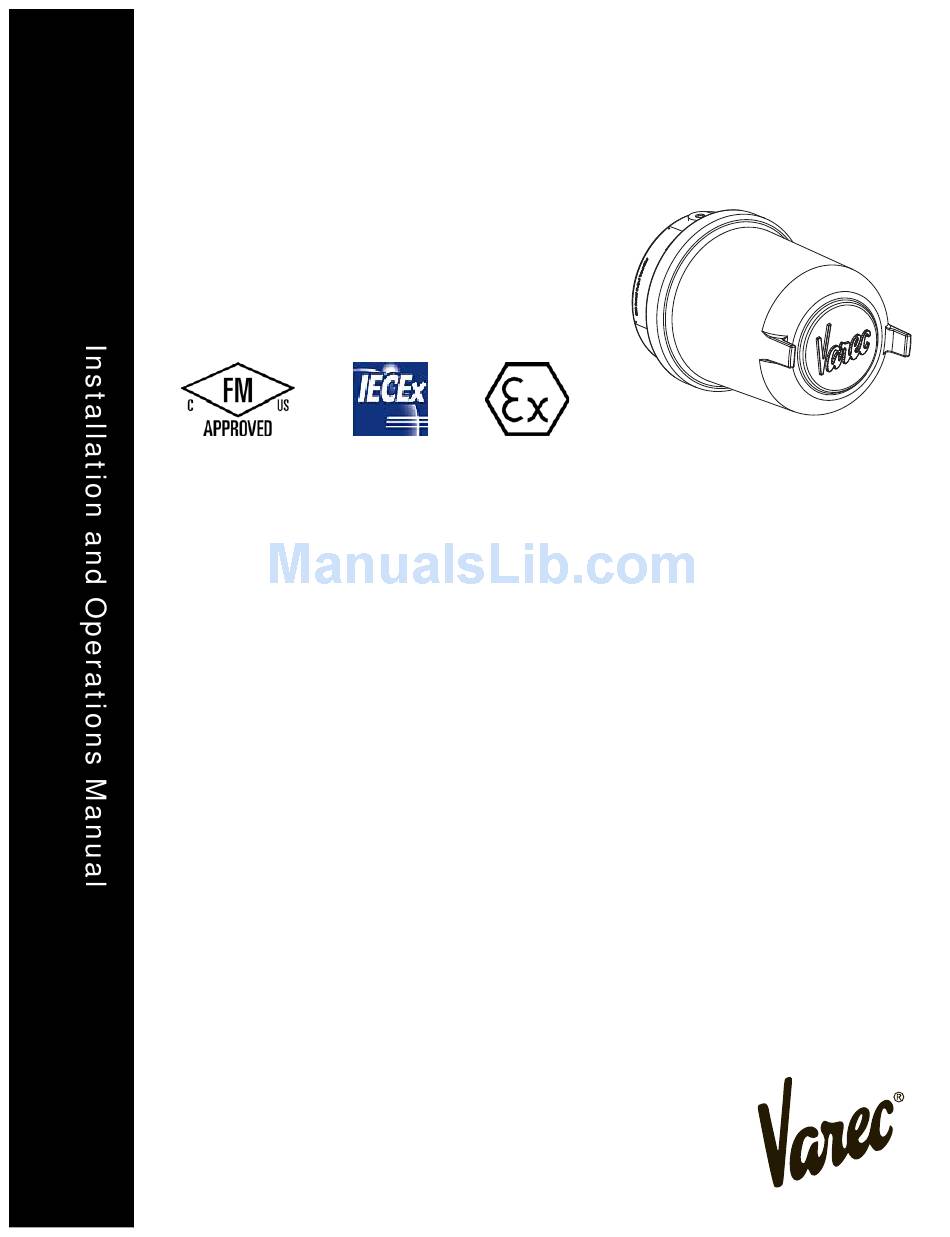

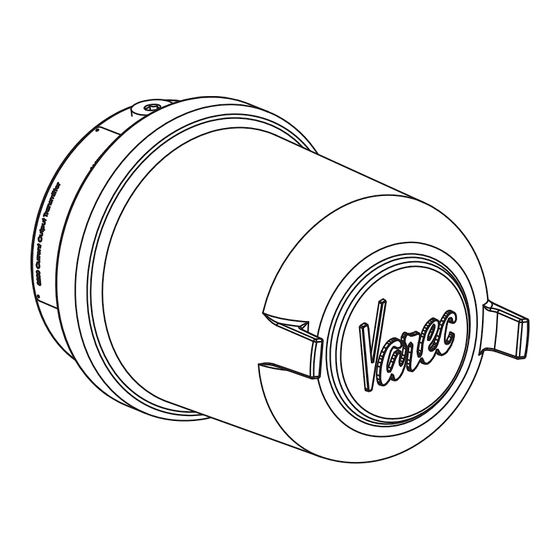

IOM005GVAE3713 8200 Current Output Transmitter Signal transmission for accurate level measurement in storage tanks Automation Solutions for oil & gas, defense and aviation applications... - Page 3 Phone: (770) 447-9202 Fax: (770) 662-8939 Trademarks Acknowledged Varec, Inc. recognizes all other trademarks. Trademarks of other products mentioned in this manual are held by the companies producing them. FuelsManager®, TankView®, TacFuels®, Varec®, and FuelsManager IntoPlane® are registered trademarks of Varec, Inc.
- Page 4 In no event shall Varec, Inc. or its suppliers be liable for any damages whatsoever including direct, indirect, incidental, consequential, loss of business profits or special damages, even if Varec, Inc. or its suppliers have been advised of the possibility of such damages.
-
Page 5: Safety Precautions
Read this manual carefully and make sure you understand its contents before using this product. Follow all instructions and safety guidelines presented in this manual when using this product. If the user does not follow these instructions properly, Varec cannot guarantee the safety of the system. - Page 6 Installation and Operations Manual...
-
Page 7: Table Of Contents
2.3 Mounting on Varec Gaugeheads ........ - Page 8 Contents viii Installation and Operations Manual...
-
Page 9: Introduction
An increase in current normally indicates a rising liquid level. An outage (reverse) reading current output option is available. A typical installation of the 8200 COT consists of directly mounting it onto a 2500 ATG gaugehead. It may also be mounted onto a gaugehead of other manufacturers. - Page 10 Introduction Installation and Operations Manual...
-
Page 11: Installation
Operations Manual Mounting on Varec Gaugeheads The 8200 COT is suitable for installation on 2500 ATG gaugeheads or on the gaugeheads of other manufacturers. This procedure provides instructions to mount the transmitter on a 2500 ATG gaugehead, as shown in Figure 2-1 on page 4. - Page 12 Figure 2-1: Typical Tank Installation Each 8200 COT requires two wires for analog signals. DC versions are loop powered while AC versions require an additional three wires for power. Warning! Whenever the back cover of the gaugehead is removed, stand to one side as the last bolt is removed.
- Page 13 Loosen the slotted drive coupling set screw using an Allen wrench. Set the transmitter to the actual liquid level in the tank by rotating the field adjust knob located at the end of the shaft. Once the level has been set, re-tighten the set screw. Proceed with field wiring. Varec, Inc.
-
Page 14: Mounting On Alternate Gaugeheads
Each transmitter has a two-conductor signal cable back to the control room. If AC power is required, an additional three-conductor cable is wired to the 8200 COT, either 110 VAC or 220 – 240 VAC. Follow national and local codes for wiring of power and signal cables. -
Page 15: With Ac Wiring
Connect the (-) lead of the user power to L4. Note No load resistor is normally necessary if the receiving device is an analog current sensing device operating within the jumpered range. Refer to the instructions for the device in use. Varec, Inc. -
Page 16: Jumper Settings
Two sets of jumpers provide the user the selection of the current output ranges and input voltage ranges. If the optional Varec on-board 110/220 power supply is used, the VAC selection must be made. The two AC jumpers must both be set to the applied AC voltage, 110 VAC or 220 VAC. - Page 17 Check that the 4-20/10-50 jumper is set for the current output range of the instrument load loop that is to be used. Current output range jumper settings (setting for 4-20 mA range shown) DC Version (08-06886-2) Field Wiri ng No parts installed in this area Figure 2-5: Current Output Jumper Setting Varec, Inc.
-
Page 18: Ac Electrical Connections
Installation AC Electrical Connections Connect 110 VAC or 220 – 240 VAC (50/60 Hz) at TB3, terminals N, H and Ground. The wire color code shown is NEC color coding in the U.S.A. and will vary in other countries. Please reference the local electrical code. -
Page 19: Junction Boxes And Limit Switches
Current Output Transmitter Junction Boxes and Limit Switches The 8200 COT is shown with optional junction box in Figure 2-6. See Figures 2-8 and Figure 2-9 on page 13, and the accompanying tables for details regarding junction box connections. The 8200 COT offers two or four limit switches as options. The wiring is pre-wired Normally Closed (N.C.). - Page 20 Installation Refer to Table 2-1 on page 12 for more information on limit switch connections. Transmitter Chassis Ground 3/4 inch NPT Figure 2-8: Junction Box DC Connectors Connection Wire Color Description Gray Brown Limit switch common Orange Switch #1 NC Violet Switch #2 NC Yellow...
- Page 21 Description Gray Brown Limit switch common Orange Switch #1 N.C. Violet Switch #2 N.C. Yellow Switch #3 N.C. Blue Switch #4 N.C. Black AC line White AC neutral Green AC Ground Table 2-2: Junction Box AC Electrical Connections Varec, Inc.
-
Page 22: 2.10 Initial Calibration
Note If the transmitter uses an internal power supply, the value of the DC POWER SUPPLY VOLTAGE entered into the equation is 30 VDC. Varec recommends that 22 gauge or larger size wiring be used. (The larger the gauge number the smaller the wire diameter.) Typical telephone field wiring is 21 gauge or larger. Mechanical field conditions affect the wire choice as well as cost. -
Page 23: Installation Checkout
The maximum acceptable resistance levels are at or below the indicated curve for the current range selected. 2.12 Installation Checkout Check the rotation of the sprocket sheave and transmitter mechanical coupling. Check the installation of the instrumentation wire loop. Proceed to Initial Checkout and Power-up in Chapter 3, Configuration on page 17. Varec, Inc. - Page 24 Installation Installation and Operations Manual...
-
Page 25: Configuration
Calibration The 8200 COT(s) are calibrated at the factory for full-scale operation. The scale of the transmitter, however, can be set to any range between 45% and 100%. See Figure 3-1 on page 18 for the calibration wiring and setup. Note that a power supply is needed for the calibration procedure. - Page 26 Configuration On-Board Power Supply Green White Zero VR2 “ “ “ “ “ “ “ “ B lack Span VR1 “ Current output board Multimeter Off-Board Power Supply External power supply 1 5 - 4 8 V D C “ “ “...
-
Page 27: Limit Switch Operational Setup
Allen wrench. Set the transmitter to the actual liquid level in the tank by rotating the field adjust knob located at the end of the shaft. Tighten the Allen screw on the drive shaft coupling and install the explosion proof cover. Varec, Inc. - Page 28 Configuration Installation and Operations Manual...
-
Page 29: Maintenance
Varec provides maintenance service contracts that provide regular periodic inspection and maintenance at substantial savings. Some repair tasks may require special tools. Major System Assemblies and Components The major system assemblies and components for the 8200 COT are identified in Table 4-1 and illustrated in Figure 4-1. Item Part No. - Page 30 Maintenance Figure 4-1: Major System Assemblies Installation and Operations Manual...
-
Page 31: Specifications
• 115 VAC +/- 10%, 50/60 Hz or 220 – 240 VAC +/-10%, 50/60 Hz Table 5-1: General Available Level Ranges Item Specification Feet 0-12.5', 0-25.0', 0-50.0', 0-100.0' Meters 0-3.75m, 0-7.5m, 0-15.0m, 0-24.0m Table 5-2: Available Level Ranges Varec, Inc. -
Page 32: Environmental
Specifications Environmental Item Specification Temperature -13°F [-4°F] to +185°F (-25°C [-20°C] to +85°C) Humidity 0 to 95% relative humidity (non-condensing) Safety Approvals Factory Mutual (cFMus) Explosion Proof, Class I, Division 1, Groups C & D, T5 ≤ ≤ -25°C +85°C: Enclosure NEMA 4 Rated ATEX Flameproof, EX II 2 G, Ex d IIB, T5 ≤... -
Page 33: Order Codes
Additional Option Not used 2 SPDT Switches (Normally Closed) 4 SPDT Switches (Normally Closed) Reverse Reading Reverse Reading with 2 SPDT Switches (Normally Closed) Reverse Reading with 4 SPDT Switches (Normally Closed) Junction Box None Included N8200 Complete product designation Varec, Inc. - Page 34 Order Codes Installation and Operations Manual...
-
Page 35: Identification
Joint de conduit requis à moins de 50mm aux entrées de conduit à la clôture une fois installé. MADE IN USA EX16-013116 REV B Varec, Inc., 5834 Peachtree Corners East Norcross (Atlanta) Georgia 30092 USA Figure 7-1: 8200 COT Warning 7.1.2... - Page 36 Identification Installation and Operations Manual...
