Summary of Contents for DI Lusso CC604MK
-

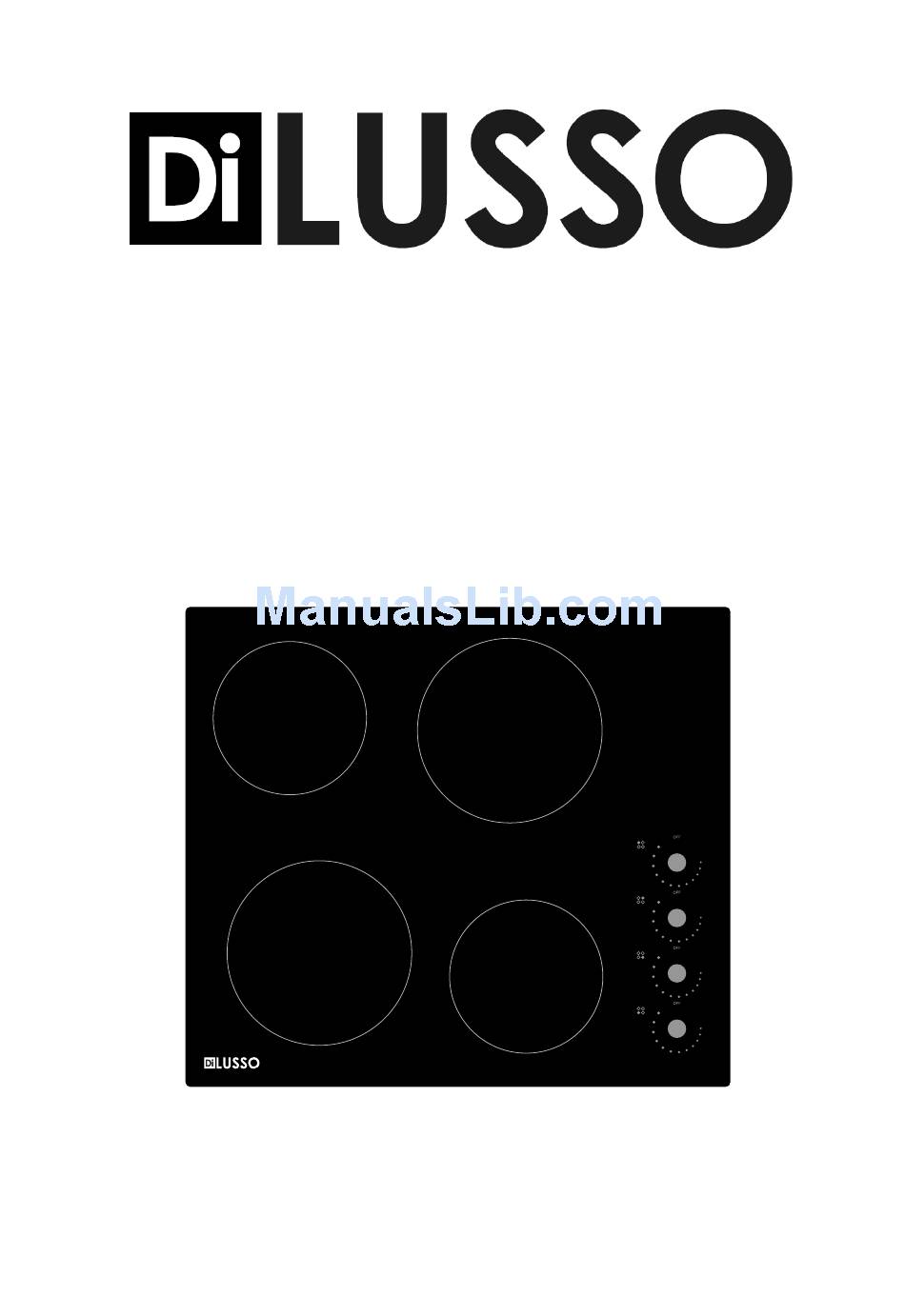

Page 1: Ceramic Hob
Ceramic Hob CC604MK Installation and Operating Manual... -
Page 2: Table Of Contents
Contents 1. Important Notes Safety Warnings……………………………………………………………………………………………………………….. 3 2. About the Ceramic Hob Product Overall Look………………………………………………………………………………………………………… 6 Control Panel……………………………………………………………………………………………………………………… 6 Technical Specification…………………………………………………………………………………………..…………… 7 3. Operating Instructions……………………..……………………………………………..…………………………..……… 8 4. Cooking Tips……………………..……………………………………………………………..…………………………..……… 8 5. Cleaning & Maintenance…………………………………………..……..……………………………………………….… 9 6. Troubleshooting…………………………………………………………….…….……………………………………………… 9 7. Installation Instructions……………………………………….……….…………………………………………………..…10 Dear User : This booklet contains advices for user, description, and commands as well as the correct procedures for cleaning and maintaining the appliance. -
Page 3: Important Notes
1. Important Notes Dear Customer Thank you for choosing our product. This appliance is easy to use; however please read this handbook carefully before installing and operating it. Herein, you will find the correct method of installation and tips for best use and maintenance of the product. Do save this Installation and Operating Manual for future reference. -
Page 4: Important Safety Instructions
Operation and Maintenance Electrical Shock Hazard Do not use if the ceramic glass cooktop is broken or cracked. If the cooktop breaks or forms a crack, immediately switch off the electrical power supply (isolation switch) and contact the service centre. Switch off the electrical power supply (isolation switch) before cleaning or maintenance. - Page 5 Do not place or drop heavy objects on your cooktop. Do not stand on your cooktop. Do not use pans with jagged edges or drag pans across the ceramic glass surface as this can scratch the glass. Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the ceramic glass.
-
Page 6: About The Ceramic Hob
Always lift pans off the ceramic hob – do not slide, or they may scratch the glass. 2. About the Ceramic Hob A – Single cooking zone 1200W B – Single cooking zone 1800W C – Single cooking zone 1200W D –... -
Page 7: Technical Specification
Before using your New Ceramic Hob Read this guide, taking special note of the ‘Safety Warnings’ section. Remove any protective film that may still be on your ceramic hob. Technical Specification Product CC604MK Cooking Zones 4 Single Zones Supply Voltage 220-240V~ 50Hz or 60Hz... -
Page 8: Operating Instructions
3. Operating Instructions Start cooking A suitable pan is placed on the desired cooking zone. Make sure that the bottom of the pan and • the surface of the cooking zone are clean and dry. • Turn the knob of the zone that the pan is put on in clockwise direction to adjust the power level. Heat setting can be adjusted any time during cooking. -
Page 9: Cleaning & Maintenance
5. Cleaning & Maintenance Before any cleaning or maintenance done, switch off the power supply. The hob should be cleaned regularly, preferably after use every time, when the residual heat indicator has gone off. For everyday soiling on glass such as fingerprints, marks, stains left by food or non-sugary spillovers, smudges from aluminium-bottom pans, clean the hob with a cloth damped in vinegar or cooktop cleaner. -
Page 10: Installation Instructions
7. Installation Instructions Worktop cutout The worktop has to be of heat-resistant material. Ensure there is a minimum of 50mm worktop space on all sides of the hole. Cut out the worktop according to the sizes shown in the diagram below. W(mm) D(mm) H(mm) -
Page 11: Electrical Connection
Installing the fixing brackets The unit should be placed on a stable, smooth surface (use the packaging). Ensure the control knobs line up over the edge of the table to prevent damaging it . Place the screw into the bracket and screw in only partially into the screw holes on the hob base. - Page 12 Yellow / Green Black Brown Blue Yellow / Green Black Brown Blue Warnings 1. The ceramic cooker hob must be installed by qualified personnel or technicians. 2. The ceramic cooker hob cannot be installed over cooling equipments, dishwashers and dryers. 3.
