Nikkai A43KK User Manual

Dome 5.8GHz A/V Sender
Order Code : A43KK
User Manual
2.Package Contents
Check to make sure that all units shown as below are enclosed.
If something is missing, please contact your dealer.
1. 5.8GHz Transmitter x 1
UHF:433.92MHz
3. IR Cable LED x 1
4. Power Adapters
(9V/ 500mA) x 2
UK/Eire Type
2
408-
2. 5.8GHz Receiver x 1
5. Cables x 2
UK/Eire Type( SCART Cable)
Contents
1.Important Safety Information.......................................1
2.Package Content........................................................2
3.Panel Control And Function......................................... 3
4.Setup Guide...............................................................4
5.Orient Transmitter/Receiver for optimal performance.....5
1.Important Safety Information
To prevent fire or shock hazard, do not expose this product to rain and
moisture. For example: do not use near a bathtub, washbowl, kitchen
sink, or laundry tub, in a wet basement, or nearby a swimming pool. To
avoid electric shock, do not take apart this product, provided as an
accessory. This product should be operated only under power supply.
Do not overload wall outlets and extension outlets as this can result in
the risk of fire or electric shock.
1
3.Panel Control and Function 2.Package Contents

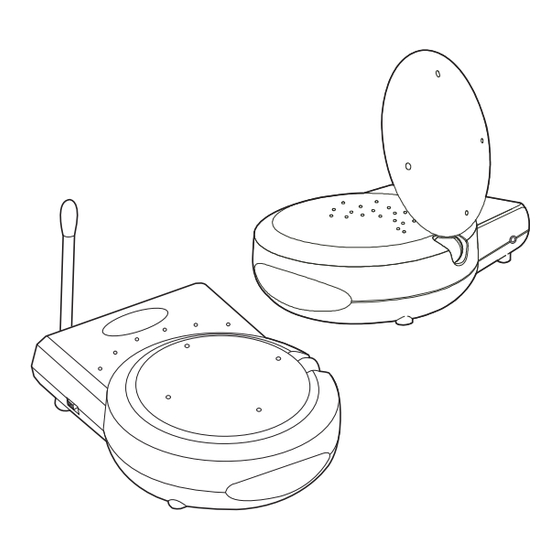

Transmitter/Receiver
1
2
ID Code
ON ON ON ON
1 2 3 1 2 3 1 2 3 1 2 3
ID 5 ID 6 ID 7 ID 8
ON ON ON ON
1 2 3 1 2 3 1 2 3 1 2 3
ID 1 ID 2 ID 3 ID 4
1. UHF Antenna
2. ON/OFF Switch
3. Power Indicator/IR Windows
4. IR mouse jack (transmitter only)
Channel selection button to find optimal reception (receiver only)
5. Power Adapter Jack
6. DIP switch for ID code, the transmitter and receiver
must to be configured as the same ID code.
7. A/V Jack
Note:
To eliminate static or unclear pictures caused by improper
installation, please check the power of transmitter is already on,
then turn off receiver power, press still on the channel selection
button of receiver until you have turned on receiver power again.
3
4
3
7
ON
5
1 2 3
6
