8 ports PoE Ethernet Switch is an unmanaged Ethernet switch. This product provides 1 Gigabit uplink
Ethernet port and 1 Gigabit uplink fiber port and 8* 100Mbps PoE Ethernet ports, support IEEE802.3af/at
power supply standard. The product is widely used in secrity surveillance and network project.
Application
PoE IP camera
PoE Dome camera
PoE IP camera
PoE Dome Camera
Feature
Provide 1*1000Mbps uplink fiber port and 1*1000Mbps
ports. 1~8 ports of PoE Ethernet switch support IEEE802.3af/at standard, which could provide Max. 30W
supply power for infrared camera with large consumption;
Reset button of 8 PoE ports which can easily solve problems of IP camera crash, without plugging
network cable, is very convenient for system maintenance;
Under one Key CCTV model, the 1~8 downlink ports can only communicate with uplink ports, the speed of
downlink port is limited in 10Mbps and the transmission distance is up to 250m (StretchIT Technology);
One Key CCTV mode is off by default, but can start while dialing the switch key on the front board to reset
the product;
Industrial product, fanless wavy metal shell design for good heat dissipation;
Excellent isolated circuit protection, lighting protection up to 6KV;
Fast installation, easily operation, convenient for wall, din rail and desktop installation.
1 M packet data cache to ensure large capacity data transfer smoothly;
8K MAC address, easy for network system expansion;
Support IEEE802.3X full duplex data control; support port (Auto MDI/MDIX) function ;
Redundant power design, support power hot backup.
Caution
1) Transmission distance is related to the connecting cable. We suggest to use standard Cat5e/6
network cable to get the best transmission result.
2) If use optical uplink port, customer needs to purchase additional SFP module.
3) The equipment must be connected to anti-thunder grounding ,otherwise the protection level will be
greatly reduced ; please use NO. 20th or above wire to connect grounding terminal to the earth.
1
Ethernet port, 8* 10/100Mbps downlink Ethernet
1.2018

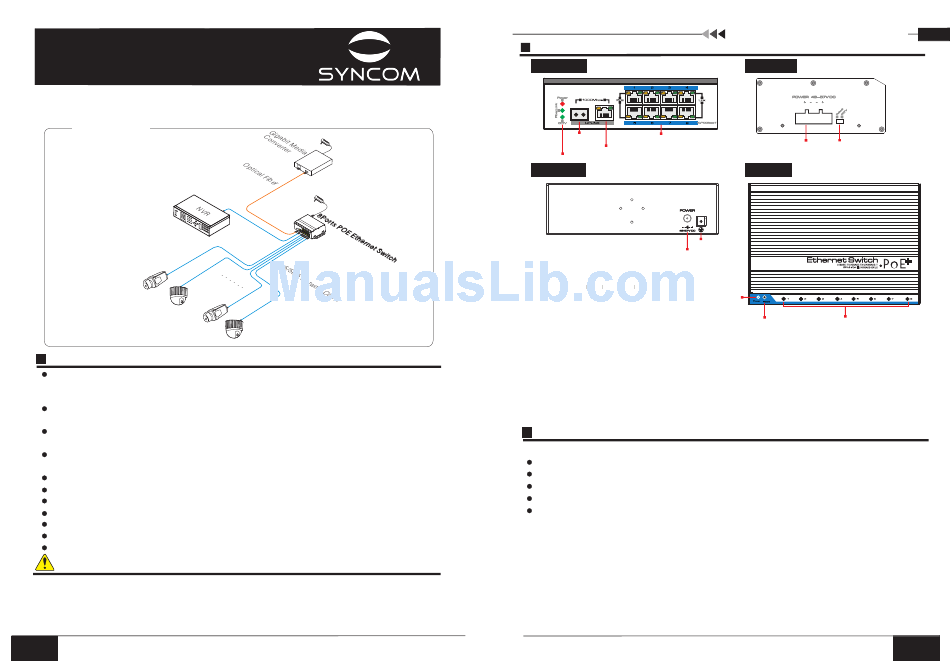

Board Diagram
Front Board
SFP
Ethernet PoE port
optical port
Uplink port
Power/Uplink optical port/CCTV indicator LED
Back Board
Ground terminal
Power input
Power indicator LED
Description:
1) Front board with PoE Ethernet port, the yellow light on the RJ 45 socket indicate PoE status, the green
light indicate network status; the yellow light and green light on the uplink network RJ 45 socket
indicate network working status; the LED on the left side of SFP optical port indicate power, CCTV and
working status of optical port;
2) The left board and back board have a DC48V~57V power input port respectively; equipped with a
120W power adapter by default, the average PoE output of each port is 15W, output of single port is
max. 30W.

Installation steps

Please check the following items before installation. If any missing, please contact the dealer.
POE Ethernet switch
Power adapter
MIT hangers
Din rail hanger
User manual
Please follow the following installation steps
1) Please turn off the signal source and the device's power, installation with power on may damage the
device;
2) Use 8pcs network cables to connect 8pcs IP cameras with the product's1~8 RJ45 Ethernet ports;
3) Use another network cable or (optical fiber) to connect switch's UPLINK port with NVR or computer;
4) Connect switch with power adapter;
5) Check if the installation is correct and device is good, make sure all the connection is reliable and power
up the system;
6) Make sure every network device has power supply and work normally.
1.2018
8 Port PoE Ethernet Switch
Left Board
Power input
CCTV Mode
Up Board
PoE port r eset button
Reset Button
1 pc
1 pc
2 pcs
1 pc
1 pc
2
