Summary of Contents for ILLUMINO IGNIS SMARTWIRE

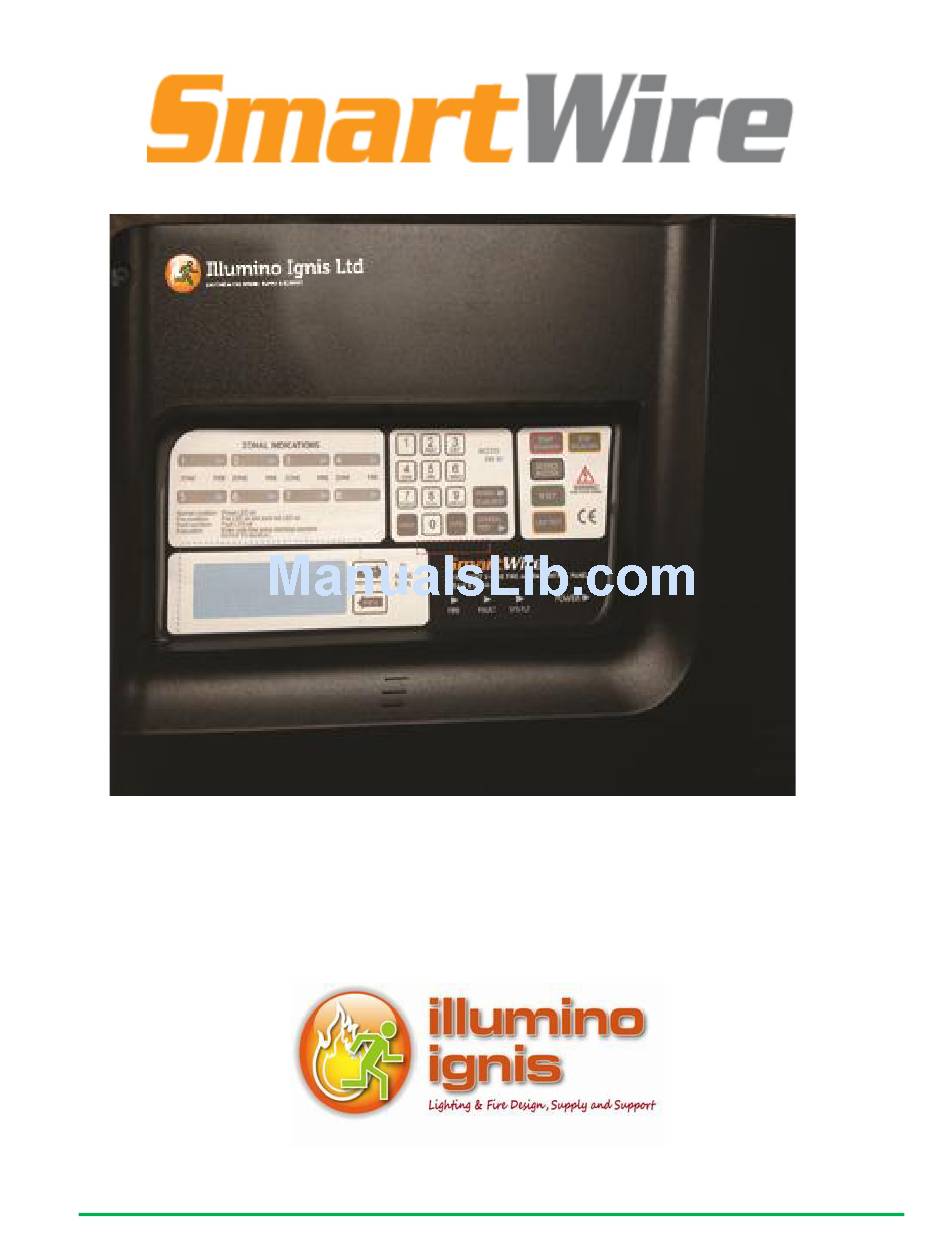

- Page 1 Quickstart Guide Page 0 Issue: 1.4 Author: JPB Date: 18/1/2013...
- Page 2 Overview The SMARTWIRE is an intelligent 2 wire panel that is available in 2, 4 or 8 zone sizes. It can have up to 15 devices per zone. The system uses an intelligent sounder flasher base, and SMARTWIRE smoke or heat detectors.
- Page 3 It can have up to 15 devices in each zone The total system load is 64 sounder flashers. Choosing the cabling method A SMARTWIRE system can be wired as individual radial circuits, or as a loop. The default configuration is radial circuits. To alter the panel for loop wiring:- 1.
- Page 4 Connections The SMARTWIRE sounder base Terminal Label Wire Colour Description Brown Loop In +ve Blue Loop In -ve Earth Green/Yellow Loop earth screen (In & Out) Blue Loop Out –ve Brown Loop Out +ve Call Point (See instructions supplied with call point) Page 3 Issue: 1.4...
- Page 5 Give the device a unique zone ID number between 1 & 15. Each item on a zone has a different ID setting. Settings for switch 8 Detector Type Switch 8 Position SMARTWIRE SOUNDER FLASHER BASE – SMOKE DETECTOR SMARTWIRE SOUNDER FLASHER BASE – HEAT Page 4 Issue: 1.4...
-
Page 6: Main Menu
DETECTOR SMARTWIRE CALL POINT SMARTWIRE SOUNDER I/O INTERFACE SMARTWIRE Menu Layout User Menu Main Menu 1.Clock 4. Device 2.Zone 5. Engineer 3.Logs In the user menu, you can view information for Zone contents or device status, or look at the event log. The clock can also be adjusted from here. - Page 7 Learning the Zone contents When devices are connected to a blank panel, the panel will report new devices found, and display “press enter to configure” Pressing enter will configure the zones. If the panel is not blank, the configuration will need to be started manually 1.
- Page 8 Panel reports Zoning fault after configuration On the SMARTWIRE Panel, all devices on a circuit need the configuration switches 5,6 & 7 to be the correct setting for the zone they are connected to. Zone Number Switch 5 Switch 6...
- Page 9 Checking Zone contents From the system normal screen, Press enter to display the user menu, then select option 2 The panel displays the number of devices fitted to each zone. Check this number is as expected. Z01: Z02: Z03: Z04: Z05: Z06: Z07:...
- Page 10 Editing Panel Name. The SMARTWIRE panel allows a text label to be added to the zone, and to the device. It also allows a 2 x 20 character name to be entered. This name will replace the “SMARTWIRE” banner on the system normal screen.
- Page 11 Choosing to use zone labels, address labels, or both. The SMARTWIRE panel has been designed to be flexible in the use of which labels are added. The table below gives a brief summary of the pros & cons of each option.
- Page 12 To edit a Device Label:- 1. Press enter to access the user menu 2. If the panel asks for a code, type 123 3. Select option 5 (Engineer) 4. If the panel asks for a code enter the engineer code 369 5.
- Page 13 Configuring the sounder flasher bases. The SMARTWIRE panel allows the sounder, the flasher, or both to be turned off for any sounder flasher base as required (Note that with the panel will still light the flasher for engineering functions, even if the flasher has been turned off).
- Page 14 Alarm Verification. The SMARTWIRE panel allows alarm verification to be applied to any smoke detector on the system. Alarm Verification is used to help filter out unwanted alarms caused by transient smoke or smoke like phenomenon, such as cooking fumes, or steam from a shower.
- Page 15 If the system has been set up by a 3 party, the exact Device locations are not always available. The SMARTWIRE panel allows the engineer to turn on the LED / Flashers of any device. Go to ID Device screen.
