Mackenzie DVTEL3000 Installation Manual

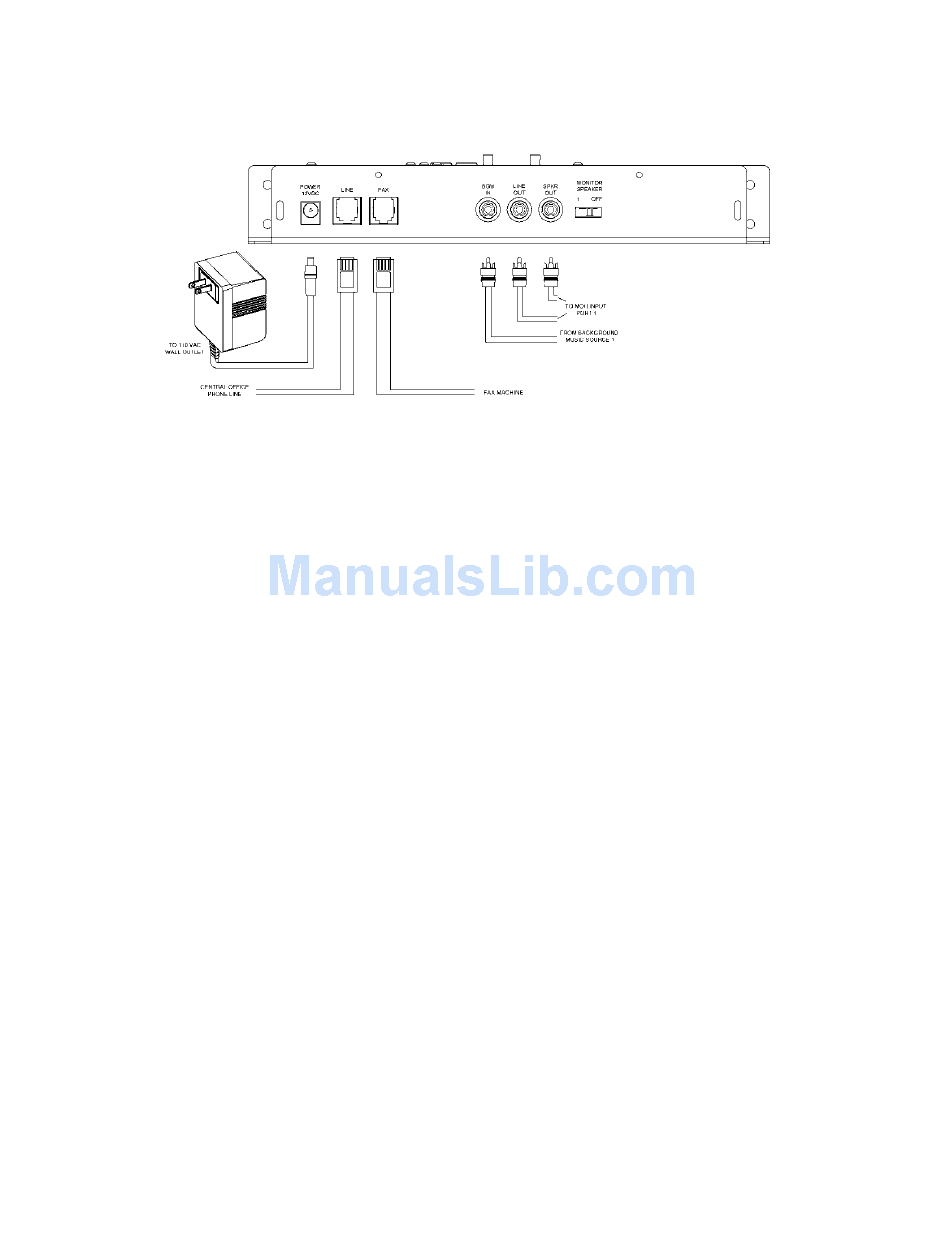

1. Make sure power is disconnected from the DVTEL-3100 system.
2. Connect one end of a modular telephone cable directly to the phone company box for the installation
phone number. The DVTEL-3100 must be connected before the fax machine. The user may need to
adapt the end of the modular connector to mate with the incoming phone line.
3. Connect the other end of the modular cable to the Line jack on the back of the DVTEL-3100.
4. Using another modular telephone cable, connect the Fax jack on the back of the DVTEL-3100 to the
fax machine.
5. Determine which impedance, Line Out (600ohm) or SPKR Out ( 8ohm), is compatible with the MOH
input of your phone system. Using a RCA cable, connect the appropriate output of the DVTEL-3100
system to the MOH input of the phone system. The user may need to adapt the cable to match the
input connection on the phone system.
6. If applicable, connect the line level (600ohm) background music source to the BGM In connection on
the back of the DVTEL-3100.
7. Plug the included 12VDC power supply into a normal 110VAC wall outlet. Connect the other end to
the Power jack on the back of the DVTEL-3100.
8. A solid green Power LED indicates the DVTEL-3100 is operating properly.
9. Set the fax machine to answer at a minimum of two rings.
DVTEL3000 Quikey Installation Guide
Procedure A, B, & C
6, January 2005
Installation Procedure A
(Fax Share Installation)
