Summary of Contents for PEGAS CRAFTAP

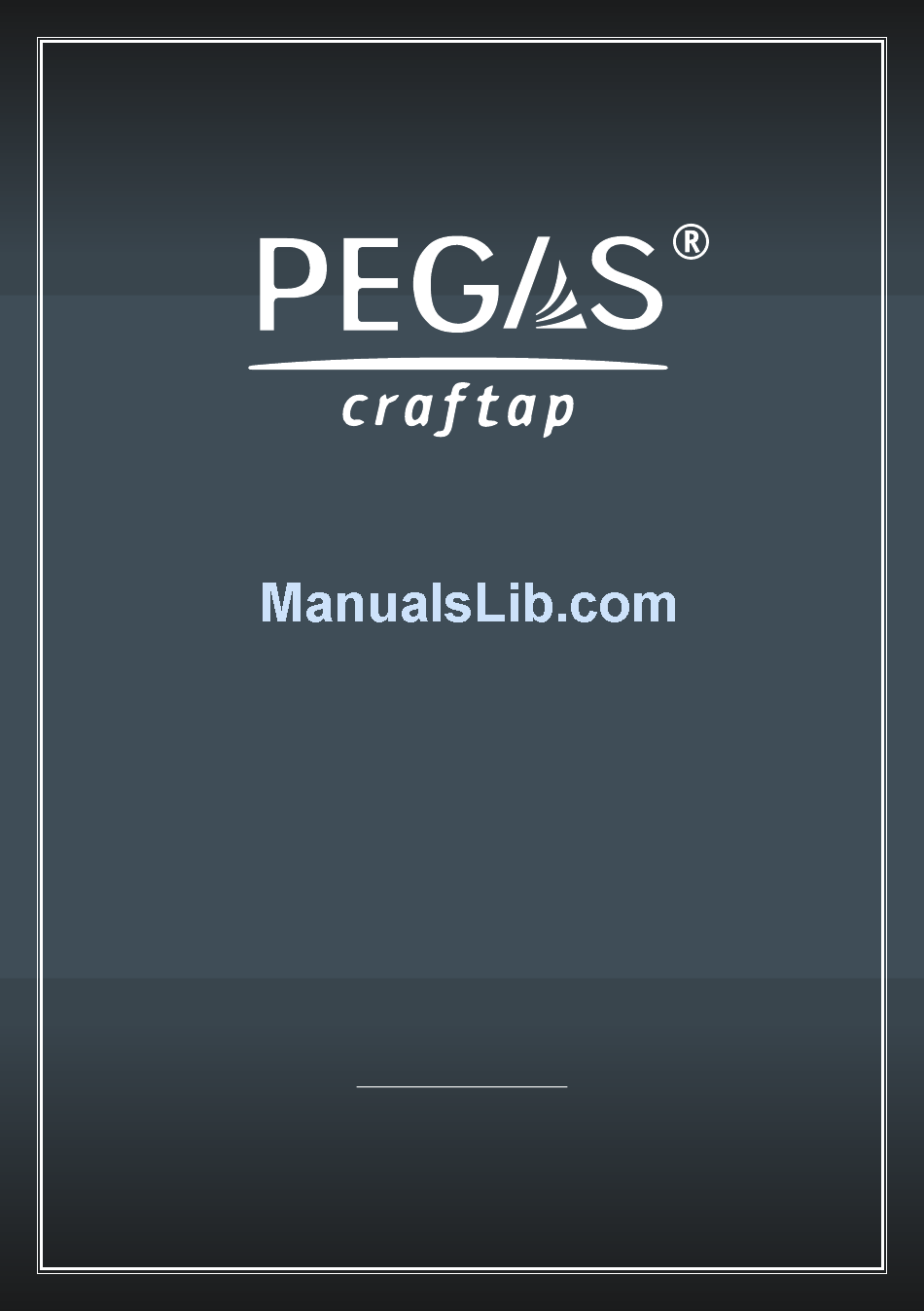

  • Page 1 Operation Manual www.beerinnovations.com...

  • Page 2: Table Of Contents

    9. Troubleshooting ..........................9 10. Additional Information ......................10 11. Acceptance and Sales Information ....................10 12. Appendixes. PEGAS CrafTap detailed schemes for service center specialists ........11 Scheme 2. Device Body ........................11 Scheme 3. Device Filling Mechanism ....................12 Scheme 4. Device Bottle Fixing Mechanism ..................13...

  • Page 3: Scheme 1. Device General View

    — 0.33–2.0 L (11–67.6 Fl Oz (US)), 2. Device Purpose must withstand the inner pressure of no less than PEGAS CrafTap device is designed for a fast foam- 0.5 MPa (5 bar) (Remember! The user must free dispensing of carbonated beverages (including...

  • Page 4: Technical Data

    ¹33 – 2 - Straight-blade screwdriver. ¹34 – 2 ¹35 – 1 The PVC beer, CO and drainage hoses for PEGAS CrafTap device have ¹36 – 2 an inside diameter of 7 mm (5/16") and an outside diameter of 12 mm (1/2").

  • Page 5: Assembly Instructions

    Fittings). At the time when the present Operation Manual was published, Micro Matic was not an approved dealer for the PEGAS system and therefore they may not carry spare parts for the PEGAS system at the present time. Pull the plug out of the power socket if you are 9.

  • Page 6: Filling Procedure

    21 bottle. 4. Make sure that the valve handle is firmly ATTENTION! Numbering coincides with the PEGAS turned clockwise till the end. This means that the CrafTap device scheme (See Scheme 1. Device Gene- pressure release valve is closed.

  • Page 7: Device Maintenance

    Table. PEGAS CrafTap* device maintenance In general, maintenance depends on the type and amount of dirt. If you use PEGAS CrafTap device for industrial filling or filling of unfiltered beer, the maintenance on certain types of treatment will need to be performed more regularly.

  • Page 8: Troubleshooting

    Operation Manual Treatment procedures for PEGAS CrafTap: 15) After some time water/solution surplus will start ATTENTION! Numbering coincides with Scheme 1 to enter drainage channel through opened pressure “Device General View”. release valve; Disinfecting and rinsing procedures: 16à) When washing and rinsing watch the container 1) Disconnect the coupler from the keg;...

  • Page 9: Additional Information

    Refer to the appointed dealer’s office 10. Additional Information 11. Acceptance and Sale Information No part from the present manual can be copied, transferred, PEGAS CrafTap is manufactured in accordance with rewritten, saved in the system of reserve coping or translated Technical Specifications ÒU 5131-002-48278688-04...

  • Page 10: Appendixes. Pegas Craftap Detailed Schemes For Service Center Specialists

    Operation Manual 12. Appendixes PEGAS CrafTap detailed scheme for service center specialists. 11 10 1. Body ÀRP-10.01.01.000 10. Plank ÀRP-10.00.00.003 2. Door ÀRP-10.01.02.000 11. Glass ÀRP-10.00.00.004 3. Handle ARP-10.01.03.000 12. Stub ÀRP-10.00.00.005 4. Case ÀRP-10.06.00.000 13. Plastic hinge 51õ48õ6 5. Base ÀRP-10.01.00.001 14.

  • Page 11: Scheme 3. Device Filling Mechanism

    Operation Manual 39 36 19. Body ÀRP-5.00.00.001-03 39. Ring 019-022-19 ÀRP-5.00.00.807 20. Body ÀRP-5.00.00.001-04 40. Sealing ring ÀRP-5.00.00.810 21. Body ÀRP-10.04.00.001 41. Rod ÀRP-5.00.01.001 22. Rod ÀRP-5.00.00.002 42. Hub ÀRP-5.00.01.002 23. Screw ÀRP-5.00.00.008 43. Screw ÀRP-5.00.01.003 24. Fixer ÀRP-5.00.00.011 44. Sealing ring ÀRP-5.00.01.005 25.

  • Page 12: Scheme 4. Device Bottle Fixing Mechanism

    Operation Manual 61. Hub ÀRP-10.02.01.000 62. Ring ÀRP-10.02.02.000 63. Ring ÀRP-10.02.03.000 64. Hub ÀRP-10.02.00.001 65. Ring ÀRP-10.02.00.002 66. Screw ÀRP-10.02.00.003 67. Flange ÀRP-10.02.00.004 68. Nut ÀRP-10.02.00.005 69. Semi-ring ÀRP-10.02.00.006 70. Roller ÀRP-10.02.00.007 71. Washer ÀRP-10.02.00.008 72. Screw ÀRP-10.02.00.010 73. Nut ÀRP-10.02.00.011 74.
  • Page 13 Operation Manual Technical Maintenance List Date Type of technical maintenance Performer Signature...
