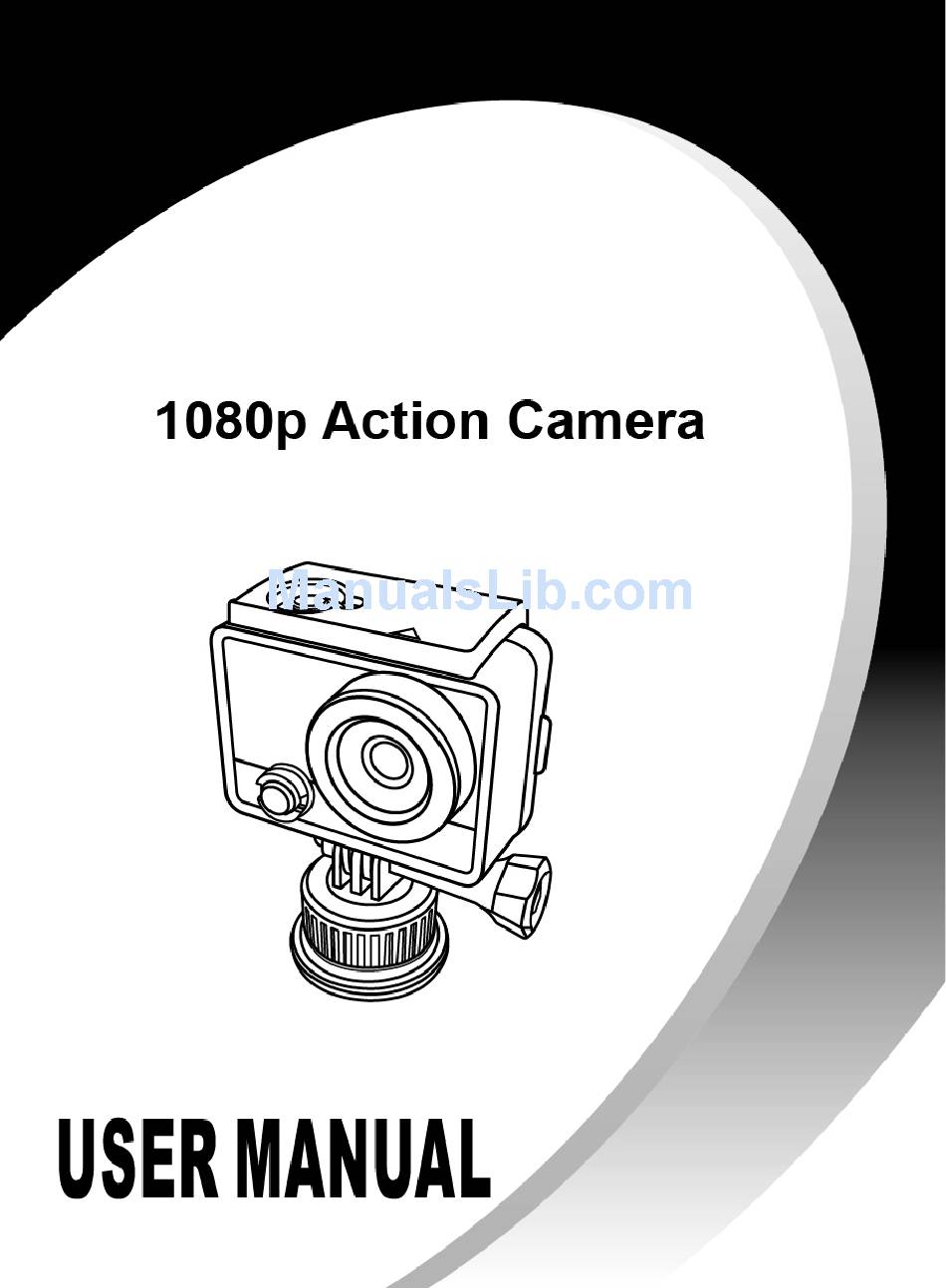

Digital Pro HD-160AW User Manual

1080p action camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

EN
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD-160AW and is the answer not in the manual?

Questions and answers

Summary of Contents for Digital Pro HD-160AW

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction............2  System Requirement........3 2. Preparation............4  Component & Accessories......4  Part Name............5 3. Install..............6  Take Out the Action Camera......6  Memory Card Install........9  Install the Action Camera....... 9 ...

  • Page 3: Introduction

    Welcome to the world of digital imaging. The following information will help you to use your Action Camera HD-160AW to its full capabilities. Before you install and operate the product, please take a few minutes to read through this manual. It provides proper instructions for you to install and operate the product.

  • Page 4: System Requirement

     System Requirement PC System Requirements  Intel® Core2Duo 1.8G or AMD equivalent CPU  Hi-speed USB2.0 port  1 GB RAM internal memory minimum  500MB free hard disk space  800 x 600 pixel color monitor  nVIDIA GeForce MX440 or above, AMD (ATi) Radeon 9200 or above ...

  • Page 5: Preparation

    2. Preparation  Component & Accessories Action Camera Waterproof Case User Manual Base Mount Bike Mount Tripod Mount micro USB Cable AC Wall Adaptor micro SD Card (Optional)

  • Page 6: Part Name

     Part Name...

  • Page 7: Install

    3. Install  Take Out the Action Camera 1. Release the latch of the Waterproof Case. 2. Open and push the latch to the end.
  • Page 8 3. Release the hook of the latch and open the case cover. 4. Dismount the case cover.
  • Page 9 5. Take out the Action Camera from the Waterproof Case.

  • Page 10: Memory Card Install

     Memory Card Install 1. Make sure the Action Camera has powered off. 2. Insert a compatible micro SD card into the memory card slot of the Action Camera.  Install the Action Camera 1. Put the Action Camera back in the Waterproof Case.
  • Page 11 2. Push the Action Camera to the end of the case. 3. Hook up the case cover and close it then push the latch down and lock the case cover.
  • Page 12 4. Force the latch down to the end. 5. Make sure the latch has locked and the case cover has closed completely.

  • Page 13: Base Mount Install

     Base Mount Install 1. Clean the flat surface where you want to fix the Base Mount. 2. Remove the protected membrane of adhesive on the Base Mount. 3. Put and compress the Base Mount on where you want to install and keep it for at least 24 hours to make sure the adhesive has firmly stuck on.

  • Page 14: Charge

    4. Charge 1. Open the Waterproof Case and take out the Action Camera. 2. Plug the micro USB cable into the supplied AC Wall Adaptor or a PC / Mac USB 2.0 port.
  • Page 15 3. The Status LED at the left side of the Action Camera light on in Green to tell you it’s charging. When the Status LED turns off, the battery is full and charge completely. Note: The Action Camera vibrates 3 times and power off when the battery power is low and need to recharge it.

  • Page 16: Record

    5. Record  Car Mode  Circulated Recording 1. Slide the Mode Switch down to the Car Mode. 2. The Video Record supports 2 resolutions. Slide the Resolution Switch up for Full HD 1080p and slide down for HD 720p.
  • Page 17 3. Press and hold the Power / REC Button for 3 seconds then release to turn on the Action Camera. The Action Camera vibrates 3 times and the Power LED light on in Blue. The Wireless Function active at the same time. 4.
  • Page 18 6. Press and hold the Power / RED Button for 3 seconds then release again. The Action Camera vibrates 3 times, the Power LED turn off and power off. Note: 1. Don’t take out the micro SD card during the video record. 2.

  • Page 19: Sporty Mode

     Sporty Mode 1. Press and hold the Power / REC Button for 3 seconds then release to turn on the Action Camera. The Action Camera vibrates 3 times and the Power LED light on in Blue. 2. Slide the Mode Switch up to the Sporty Mode.
  • Page 20 3. The Video Record supports 2 resolutions. Slide the Resolution Switch up for Full HD 1080p and slide down for HD 720p. 4. Press and release the Power / REC Button, the Action Camera vibrates 1 time. The Record LED light on in Red and start recording.
  • Page 21 5. Press and release the Power / REC Button again, the Action Camera vibrates 1 time. The Record LED turns off then stops record and saves file. 6. Press and hold the Power / RED Button for 3 seconds then release again. The Action Camera vibrates 3 times, the Power LED turn off and power off.

  • Page 22: Wireless

    6. Wireless Wireless function enables user to remotely control the Action Camera via Apps from iOS and Android smartphones and tablets.  Wireless On 1. The wireless function actives automatic when the Action Camera power on. 2. The Wireless LED lights on in Blue when wireless function has ready.

  • Page 23: Control Via App

     Control via App 1. Download and install the App SMC (Smart Camera) from App Store for iOS or Google Play for Android. 2. Remotely control the Action Camera via SMC (Smart Camera) from iOS and Android smartphones and tablets. ...

  • Page 24: Download

    7. Download  Download from Camera 1. Connect the supplied mini USB cable into the micro USB port of the Action Camera. 2. Plug the USB cable into a PC / Mac USB 2.0 port. 3. The Status LED at the left side of the Action Camera light on in Green after power on.

  • Page 25: Download From Card Reader

    4. On a PC / Mac, your Action Camera will mount to your computer as a mass storage device in MSDC mode. 5. You may download your video files from the X:\DCIM\100__DSC folder created on the micro SD card. Note: 1. Always eject the device from PC / Mac. 2.

  • Page 26: Playback

    8. Playback  Playback from PC The video file format is MOV which can be played by QuickTime with PC / Mac.  Windows 7: The videos can be viewed by the built-in Windows Media Player or QuickTime  Windows XP: The videos can be viewed by the Windows Media Player Ver.

  • Page 27: Appendix

    9. Appendix  Specification Sensor 5M (2592x1944) CMOS 1/3.2” AIT 8427 Lens 4G1P, F2.7, f3.16mm, Optical 132° Video Resolution Full HD : 1080p (1920x1080) 30 fps HD : 720p (1280x720) 60 fps Video File Format White Balance Auto Exposure Auto Video Encoder H.264 Audio Encoder...

  • Page 28: Waterproof Case Maintenance

    Waterproof Case Maintenance Maintenance 1. Inspect O-ring for damage prior to each use. 2. After extended storage, monitor initial use closely to ensure seal in tight. 3. Dry outer housing before opening to avoid damage to the seal. 4. Do not rinse outer housing. If dirty, wipe clean with a soft damp cloth.
  • Page 29 Federal Communications Commission (FCC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
  • Page 30 Trademark Information QuickTime , Mac , and iOS are trademarks of Apple Inc. or its related companies. Android is trademark of Google Inc. or its related companies. ® ® ® ® ® Windows , Windows XP , Windows Vista , Windows 7 , Windows 8 ®...
