Summary of Contents for LC-POWER LCCD-A1

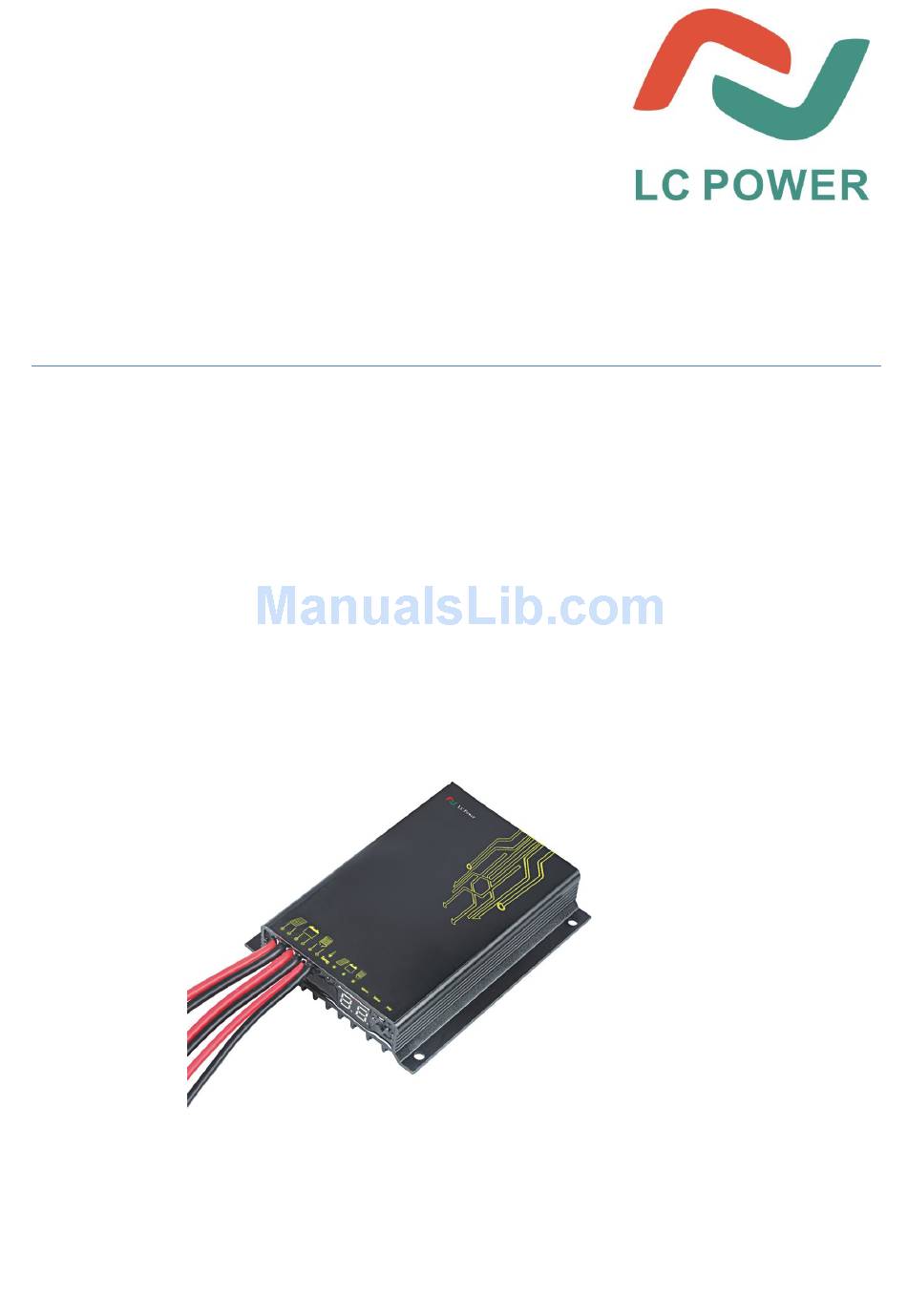

- Page 1 USER MANUAL LCCD-A1 Solar Controller+LED Driver+Built-in Timer 20120314 VERSION 1...
- Page 2 Please read the instructions carefully and thoroughly before using the product. It comes with a number of outstanding features, such as: Build-in LED driver, maximum output voltage up to 70V, maximum efficiency up to 96%. Automatic recognition of system voltage 12/24 V ...
- Page 3 Recommended minimum wire size: 2.5mm²; Controller be with Reverse Current Protection by MOSFET which inspects the current direction regularly; Installation steps & connection diagram Firstly connect load with controller and then wire battery and solar panel to controller respectively; please pay attention to the distinction of negative and positive;...
- Page 4 LED display Symbol Equipment Status Description battery working no battery connected battery slow flash low voltage quick flash over voltage daytime nighttime solar panel slow flash charging quick flash over tempreture, stop charging load off load work with 100% power load flash for 3 times load work with 75% power...
- Page 5 Morning Mode (4~5): The load would be turned on automatically in the morning, the output power is adjustable. Manual mode (6): can switch output performance manually no matter daytime or night; the power is adjustable. Debug mode ( ): used for debugging and installation;...
- Page 6 Keys and settings Skip Press: press the button within 2 seconds Confirm Press: press the button within 2 to 4 seconds. Configure Press: press the button over 4 seconds Browse Mode: nixie tube tens digit is “on” (except Setting mode: nixie tube unit digit is twinkling. Configure mode: nixie tube tens digit is showing symbol “...
- Page 7 Technical data System voltage 12/24 V auto recognition Max. charge/load current Output current 300mA~3300mA Float Charge 13.8V/27.6V(25℃) Main Charge 14.4/28.8 V (25 °C), 30 min. (daily) Boost charge 14.4/28.8 V (25℃ ), 2 hAc va on: ba ery voltage < 12V/24V Equlization charge 14.8/29.6V Deep discharge protec on:Cut-off...
- Page 8 Common problems & Solutions Phenomenon Problem Solution Make sure the wiring between controller and Battery indicator off Battery working problem battery is correct. Battery indicator slowly flash, Battery under over discharge protection Charge to recover voltage without output Battery indicator quick flash, Cut off output for protecting load, auto working Battery under overvoltage protection without output...
