Important: Read all instructions prior to installation.
Wireless Waterproof Remote RGB LED Controller
RGB LED Controller, On/Off, Color and Dynamic Modes

Parts Included

1 - RF Controller
1 - Key Fob Remote

Specifications

Model Number
Input Voltage
Output Current
Fuse Size
Operating Temperature
IP Rating
Static Color Dynamic Modes
Seven Color Dynamic Modes
Static Colors
Override Mode
Brightness Levels
Remote Battery
Remote Range
Remote Frequency
FCC ID

Wiring

Input Wires
Black
Red
Blue*
*Blue wire activates red single color mode at full brightness while voltage is applied. Use for
brake override if required. Works as brake override even when controller is in standby mode.
Output Connector
Black
Red
Green
Blue

Remote Pairing

Remote comes paired to the controller. Use the following Procedure if additional
remotes are required.On power up, LEDs will be green indicating pairing mode for three
seconds. During green pairing mode, press button "A" then "B" to pair a new remote.

Remote Buttons

1 - Inline Fuse Holder
1 - 3A Fuse
RCW-RFRGB
9~14.5 VDC
3 x 1.3A Maximum
3A
-4 ~149° F (-20~65° C)
Waterproof IP67
18
12V 27A x 1
33 Feet (10m) Maximum
315 MHz
2AFXS-JX-R001
Polarity
Negative (-)
Positive (+)
9~14.5 VDC Power In (+)
Positive (+)
9~14.5 VDC Red Override Signal In (+)
Polarity
Positive (+)
Common Anode (+)
Negative (-)
Red Cathode (-)
Negative (-)
Green Cathode (-)
Negative (-)
Blue Cathode (-)
Button
Cycles up through 18 single color modes and two 7 color modes.
Press and hold for dimming 80%, 60%, 40%, 20% and back to
Activates Flash Modes during single color modes. Switches
between Flash/Flash/Long Pause and Flash/Flash/Short Pause
during flash modes. Increases cycle speed during 7 color modes
Activates Fading Mode during single color modes. Decreases
Hold for 6 seconds to return to Mode 1 (Static Red)
2
To Brake
2
Switch
1
5
Purpose
Ground In (-)
Purpose
Functions
Brake Light
Circuit (+)
100% during single color modes.
cycle speed during 7 color modes.
On/Off
4400 Earth City Expy, St. Louis, MO 63045
User Manual
Part Number:
RCW-RFRGB
WIFI-CON
Remote: RCW-RFR

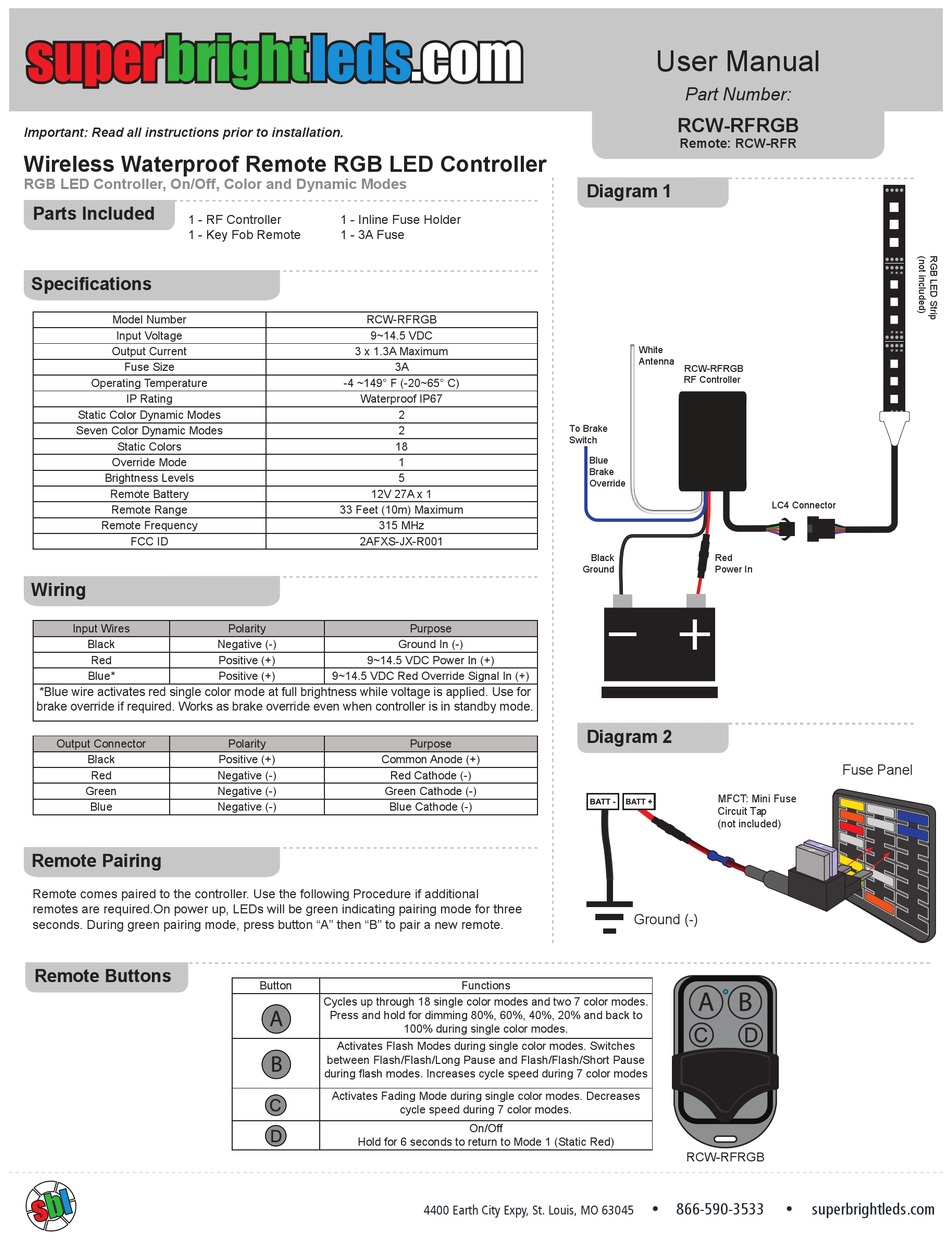

Diagram 1
White
Antenna
RCW-RFRGB
RF Controller
Blue
Brake
Override
Black
Red
Ground
Power In
Diagram 2
MFCT: Mini Fuse
Circuit Tap
(not included)
Ground (-)
PSC-164
Running Light Cicuit (+)
RCW-RFRGB
RF Controller
White
Antenna
Blue
Wire
RCW-RFRGB
866-590-3533
Black
Red
Ground
Power In
LC4 Connector
Fuse Panel
Ground
LC4 Connector
