Summary of Contents for FSR INC. DV-HAS

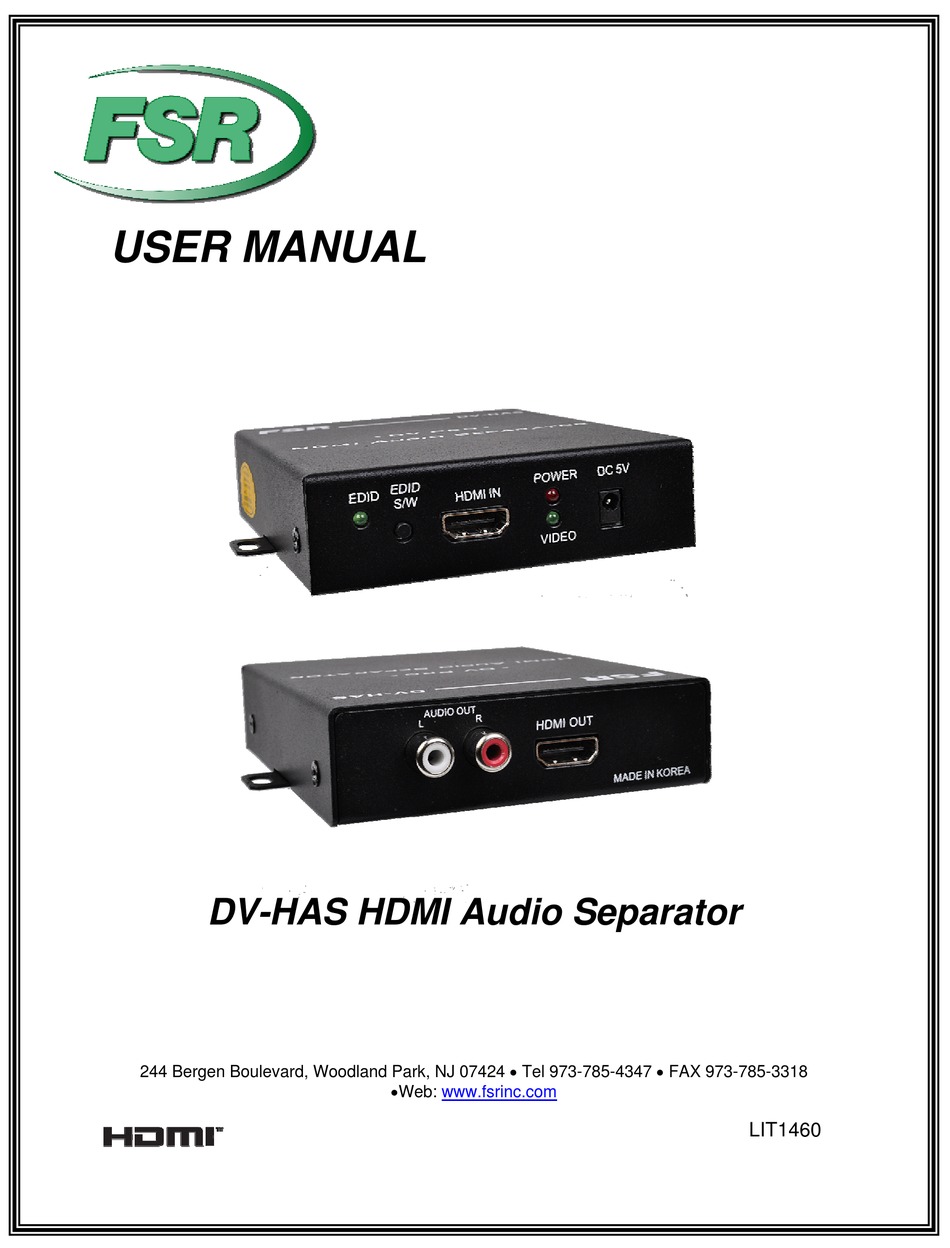

- Page 1 USER MANUAL DV-HAS HDMI Audio Separator 244 Bergen Boulevard, Woodland Park, NJ 07424 Tel 973-785-4347 FAX 973-785-3318 Web: www.fsrinc.com LIT1460...
-
Page 2: Proprietary Information
No part of this document may be reproduced, transcribed, or transmitted, in any form or by any means, without prior explicit written permission from FSR Inc. Unpacking Each DV-HAS HDMI Audio Separator includes the following items: DV-HAS HDMI Audio Separator Unit 5V Power Adapter HDMI Cable... -
Page 3: Table Of Contents
Environmental and Reliability Specifications ............6 Main Features ......................7 Video/ Audio Connections ..................8 DV-HAS Typical Application ..................9 Technical Specification ..................10 Mechanical Dimensions..................11 HDMI Connector Pin Assignment ................12 ... -
Page 4: Basic Understanding Of The Product
Basic understanding of the product Cautions for safety All the safety and user manual should be read before the appliance is operated. The safety and operating instructions should be retained for future reference. Unplug this product from the wall outlet before clean. Do not use liquid cleaners or aerosol cleaners. -
Page 5: Description, General Specification
HDMI Audio separator (DV-HAS) is designed to separate Video and 2ch stereo Audio from the HDMI signal. Compact size and low power design DV-HAS easily sends HDMI full HD (1920x1080p) to the HDMI display to Audio systems such as Audio Amps, Audio Mixers etc. HDCP Compliant ITEM... -
Page 6: Environmental And Reliability Specifications
-13°– 122°F (-20°C to 45°C), non-condensing humidity levels from 5-95%, and an altitude ceiling of 9,840 feet (3,000meters) The DV-HAS is expected to function for more than 50,000 hours of use at 90% confidence level. The device is tested to the identical standards for... -
Page 7: Main Features
The DV-HAS fully supports HDCP. Currently, every digital video product sends high resolution signal with HDCP. It will not display, if the products are not compliant to HDCP standards. Compliance to HDMI Version 1.3a DV-HAS is fully compliant with the HDMI Ver 1.3a with deep color 36 bit... -
Page 8: Video/ Audio Connections
Step 7: Turn on the source. EDID data saving The EDID Default of the DV-HAS is set to 1080p @60Hz. If you want to change the EDID data, please follow these steps: Step 1: Connect the HDMI to HDMI cable from the DV-HAS output port to the HDMI input of the display. -
Page 9: Dv-Has Typical Application
DV-HAS Typical Application FSR DV-HAS HDMI AUDIO SEPARATOR DISPLAY DVD PLAYER (SOURCE) 5VDC POWER SUPPLY (INCLUDED) NOTE: Audio output is active whether the Display is connected or not. -
Page 10: Technical Specification
Technical Specification Data transmission speed: 2.25 Gbps (Single Link) Digital Video Bandwidth: 25~165 MHz Resolution: Up to 1080p (1920*1080) @60Hz, PC up to 1920x1200 @60hz Digital Audio 2 channel up to 96 KHz Input/output signal standard: Digital RGB, TMDS, 2ch Audio Input connector type: HDMI Female 19P Output connector type: HDMI Female 19P / Stereo RCA JACK Power consumption: 5 Watts Max. -
Page 11: Mechanical Dimensions
Mechanical Dimensions (2) .390 x .196 SLO T 3.55 3.94 .14 - SUPPLIED/ 2.03 2.03 ATTACHED FEE T HEIGH T 1.13 4.06... -
Page 12: Hdmi Connector Pin Assignment
HDMI Connector Pin Assignment HDMI Input, Output Part No. Pin No. Description Remarks TMDS DATA 2+ TMDS DATA 2 Shield TMDS DATA 2- TMDS DATA 1+ TMDS DATA 1 Shield TMDS DATA 1- TMDS DATA 0+ TMDS DATA 0 Shield TMDS DATA 0- HDMI 19pin TMDS Clock +... -
Page 13: Limited Warranty
Limited Warranty The DV-HAS is warranted against failures due to defective parts or faulty workmanship for a period of three years after delivery to the original owner. During this period, FSR will make any necessary repairs or replace the unit without charge for parts or labor. Shipping charges to the factory or repair station must be prepaid by the owner, return-shipping charges (via UPS Ground) will be paid by FSR.
