Surveillix ENC-8CH Quick Start Manual

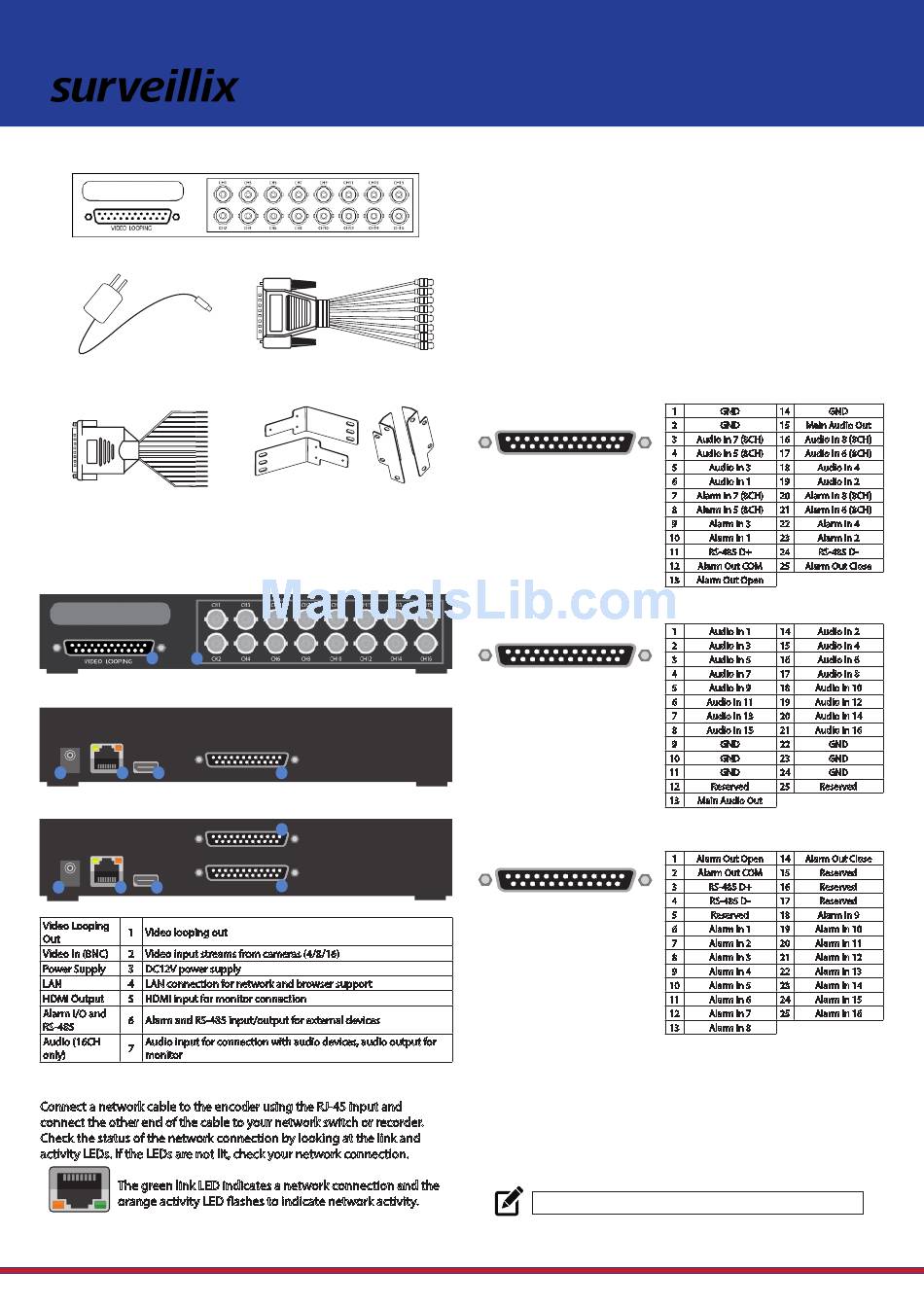

BOX CONTENTS

Encoder (8 or 16 channel model)
Power Cord
D-Sub Cable (Alarm I/O)
*second audio cable for 16 channel models
only

CONNECTIONS

8/16CH Front
1 2
8CH Rear
LAN
DC 12V
HDMI
3 4 5
16CH Rear
LAN
DC 12V
HDMI
3 4 5
Video Looping
1 Video looping out
Out
Video In (BNC) 2 Video input streams from cameras (4/8/16)
Power Supply 3 DC12V power supply
LAN 4 LAN connection for network and browser support
HDMI Output 5 HDMI input for monitor connection
Alarm I/O and
6 Alarm and RS-485 input/output for external devices
RS-485
Audio (16CH Audio input for connection with audio devices, audio output for
7
only) monitor
Ethernet Cable
Connect a network cable to the encoder using the RJ-45 input and
connect the other end of the cable to your network switch or recorder.
Check the status of the network connection by looking at the link and
activity LEDs. If the LEDs are not lit, check your network connection.
The green link LED indicates a network connection and the
orange activity LED flashes to indicate network activity.
D-Sub Cable (Video Looping)
Rack (left) and Wall (right)
Mounts with Screws
AUDIO
ALARM I/O
6
7
AUDIO
ALARM I/O
6
QUICK START GUIDE
ENC-8CH / ENC-16CH
Analog to IP Encoder
This quick start guide is a reference for users to install and operate their
encoder and provides basic information on the encoder's settings and op-
eration. Before attempting to connect, configure and operate the encoder,
please read this document thoroughly.

PRODUCT FEATURES

• H.264 video compression
• 30 IPS @ 960H
• Alarm I/O
• Rack and wall mount brackets included
• Looping outputs
• HDMI spot monitor output

ACCESSORY CABLE GUIDE

Alarm I/O and Audio (8CH models)
Audio
Alarm I/O
1 13
14 25
Audio (16CH models)
Audio
1 13
14 25
Alarm I/O (16CH models)
Alarm I/O
1 13
14 25

TURNING THE ENCODER ON

1. Connect the power cord to the encoder, and then plug the cord
into a power source.
2. Connect the network cable, accessory cables, and monitor
(optional), to the encoder.
3. Plug the power cord into the encoder, and then plug the power cord
into a power source.
NOTE
Acceptable power input is between AC110V ~ AC240V.
1 GND 14 GND
2 GND 15 Main Audio Out
3 Audio In 7 (8CH) 16 Audio In 8 (8CH)
4 Audio In 5 (8CH) 17 Audio In 6 (8CH)
5 Audio In 3 18 Audio In 4
6 Audio In 1 19 Audio In 2
7 Alarm In 7 (8CH) 20 Alarm In 8 (8CH)
8 Alarm In 5 (8CH) 21 Alarm In 6 (8CH)
9 Alarm In 3 22 Alarm In 4
10 Alarm In 1 23 Alarm In 2
11 RS-485 D+ 24 RS-485 D-
12 Alarm Out COM 25 Alarm Out Close
13 Alarm Out Open
1 Audio In 1 14 Audio In 2
2 Audio In 3 15 Audio In 4
3 Audio In 5 16 Audio In 6
4 Audio In 7 17 Audio In 8
5 Audio In 9 18 Audio In 10
6 Audio In 11 19 Audio In 12
7 Audio In 13 20 Audio In 14
8 Audio In 15 21 Audio In 16
9 GND 22 GND
10 GND 23 GND
11 GND 24 GND
12 Reserved 25 Reserved
13 Main Audio Out
1 Alarm Out Open 14 Alarm Out Close
2 Alarm Out COM 15 Reserved
3 RS-485 D+ 16 Reserved
4 RS-485 D- 17 Reserved
5 Reserved 18 Alarm In 9
6 Alarm In 1 19 Alarm In 10
7 Alarm In 2 20 Alarm In 11
8 Alarm In 3 21 Alarm In 12
9 Alarm In 4 22 Alarm In 13
10 Alarm In 5 23 Alarm In 14
11 Alarm In 6 24 Alarm In 15
12 Alarm In 7 25 Alarm In 16
13 Alarm In 8
